Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 2 illustrations

Illustrations

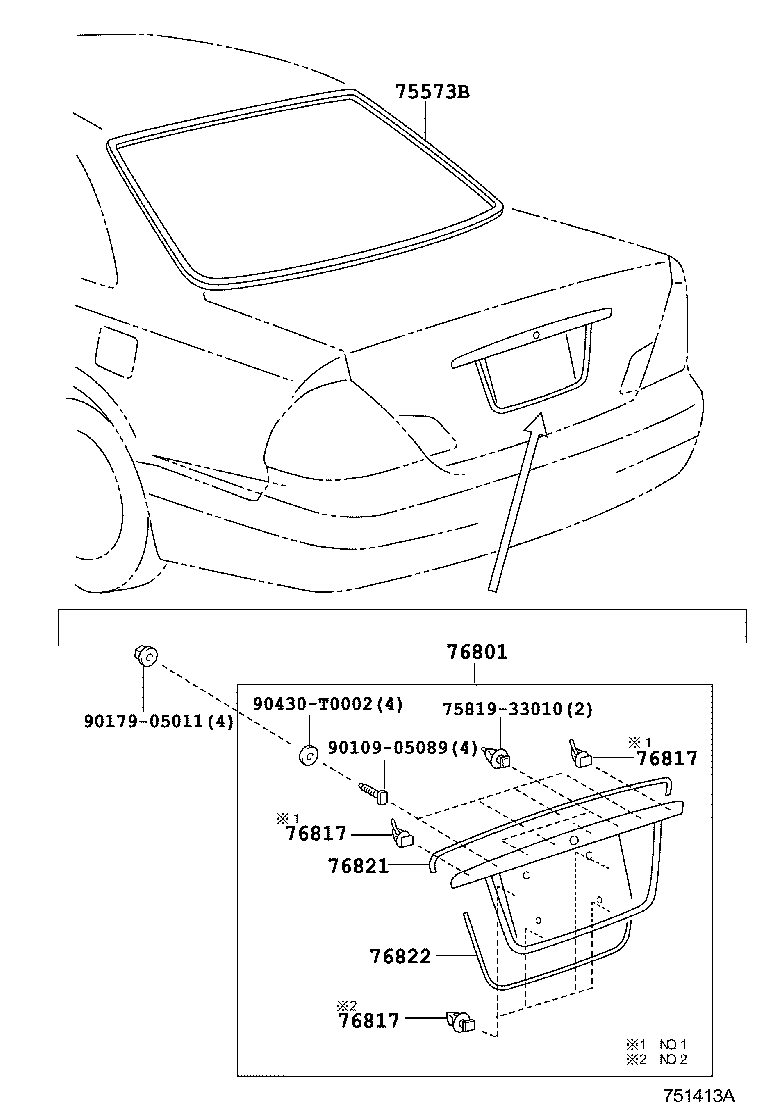

Figure 751072A 751072A 2002-08 → 2004-08 Figure 751413A 751413A 2004-08 → —

Part groups

PNCDescription
75573B Moulding, Back Window, Outside
76801 Garnish Sub-assy, Back Door, Outside
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76822 Protector, Back Door Garnish Moulding, Lower
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
