Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

13 part groups · 4 illustrations

Illustrations

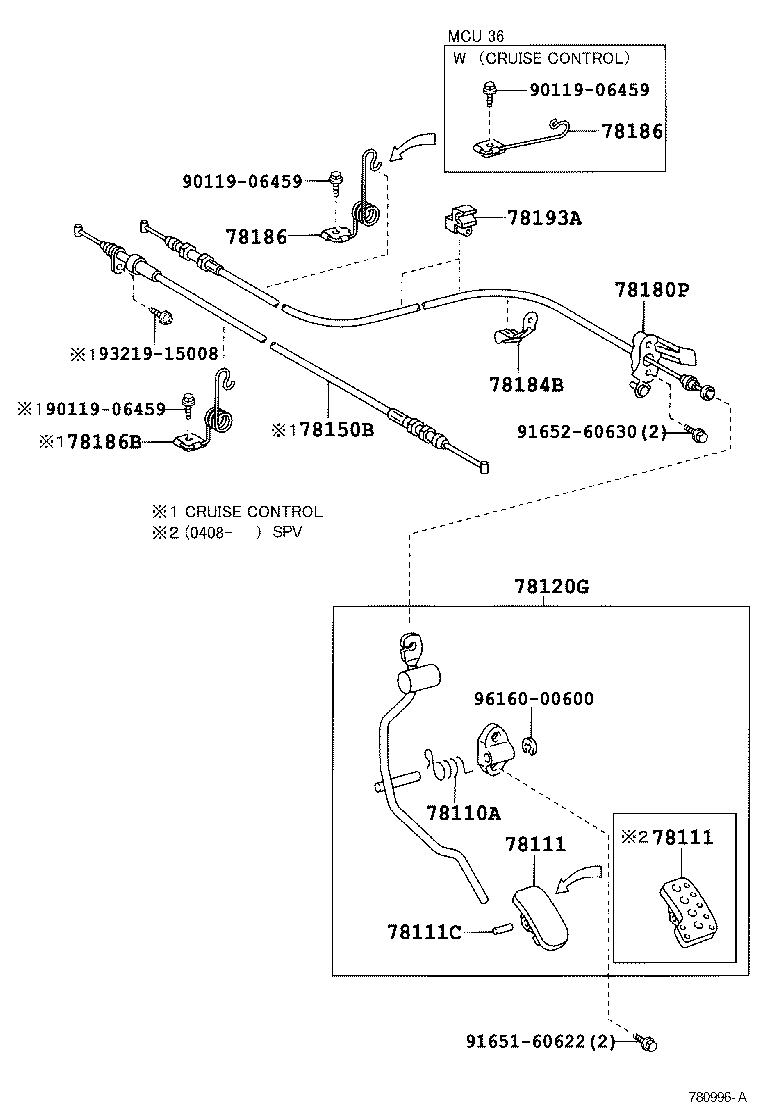

Figure 780680C 780680C 2002-08 → 2006-01 Figure 780996A 780996A 2006-01 → — Figure 780681C 780681C 2002-08 → — Figure 780995A 780995A 2006-01 → —

Part groups

PNCDescription
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78110C Bush (FOR ACCELERATOR PEDAL ROD)
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
78111 Pedal, Accelerator
78111C Pin (FOR ACCELERATOR PEDAL)
78114A Bracket, Accelerator Pedal Support
78120G Rod Assy, Accelerator Pedal
78150B Cable Assy, Accelerator Auto Drive
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78186B Support, Accelerator Control Cable NO.2
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
