Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

19 part groups · 11 illustrations

Illustrations

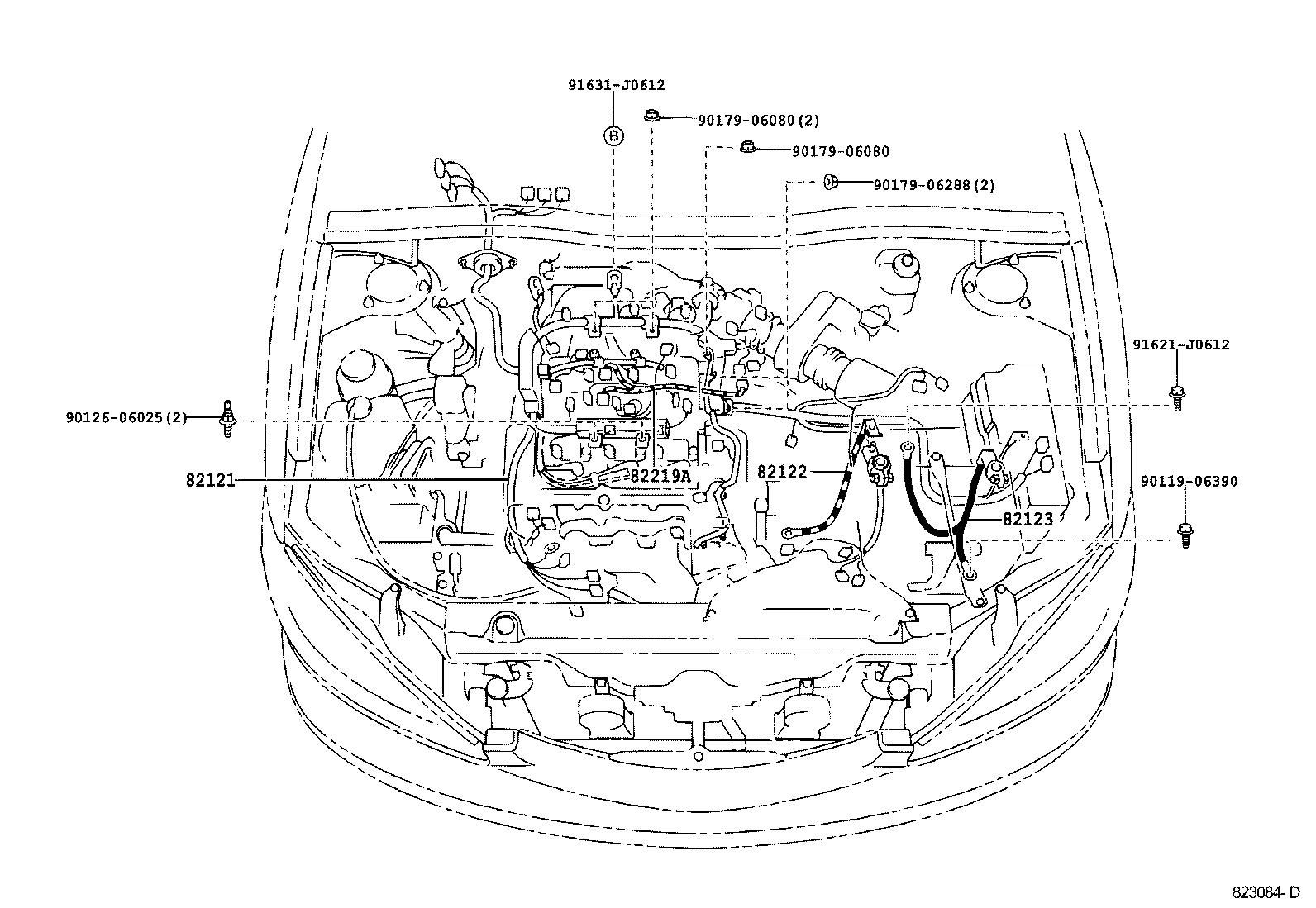

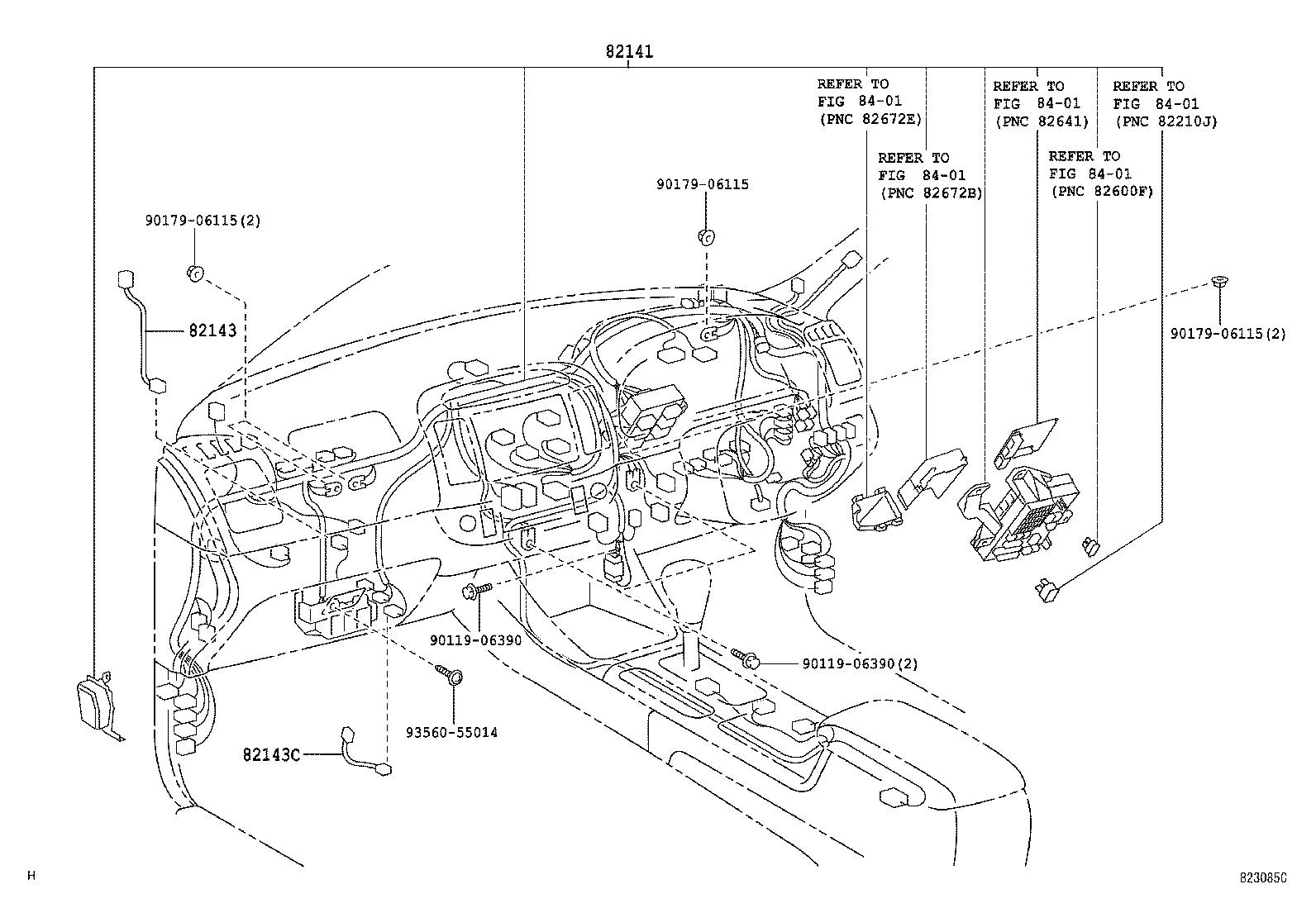

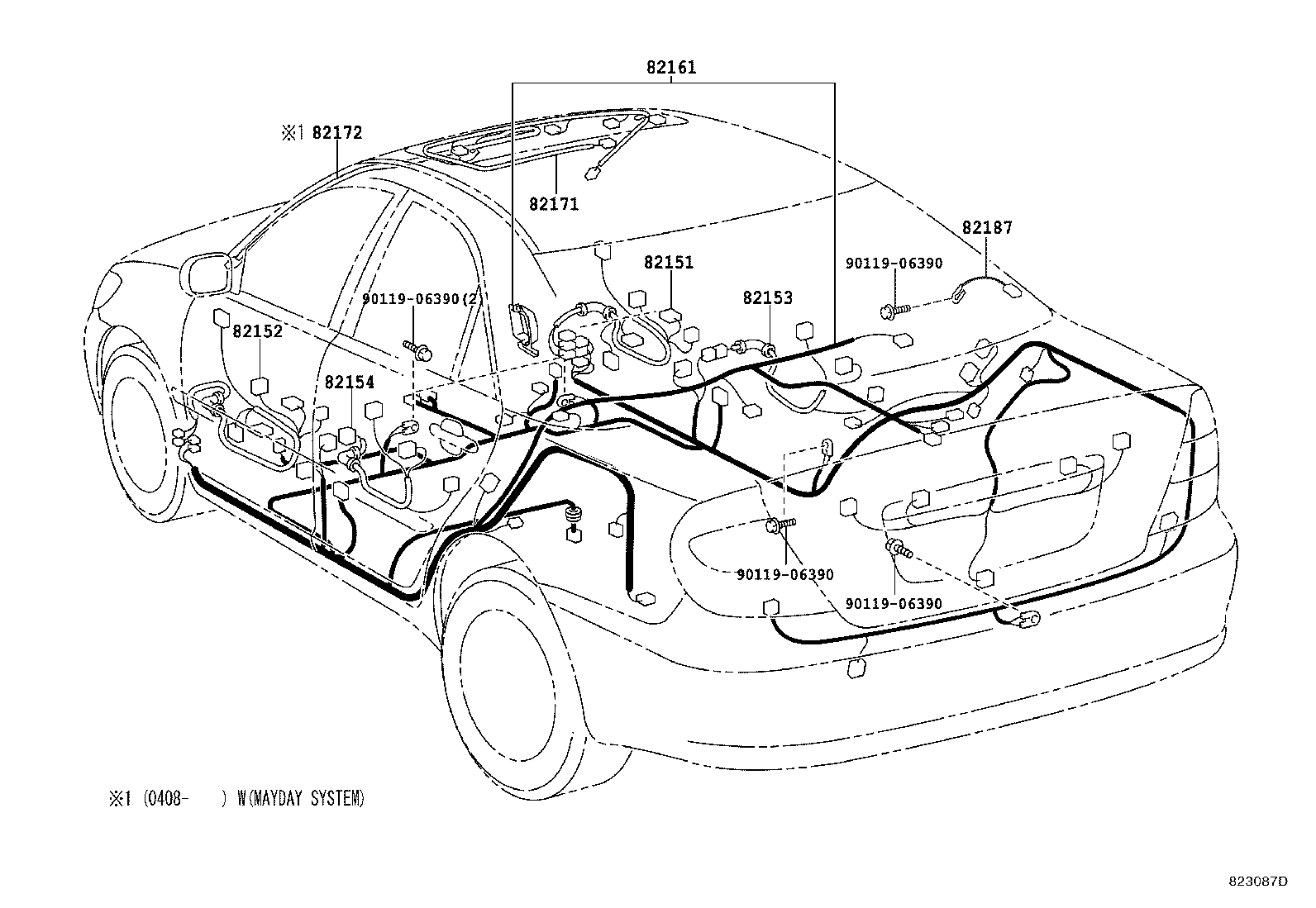

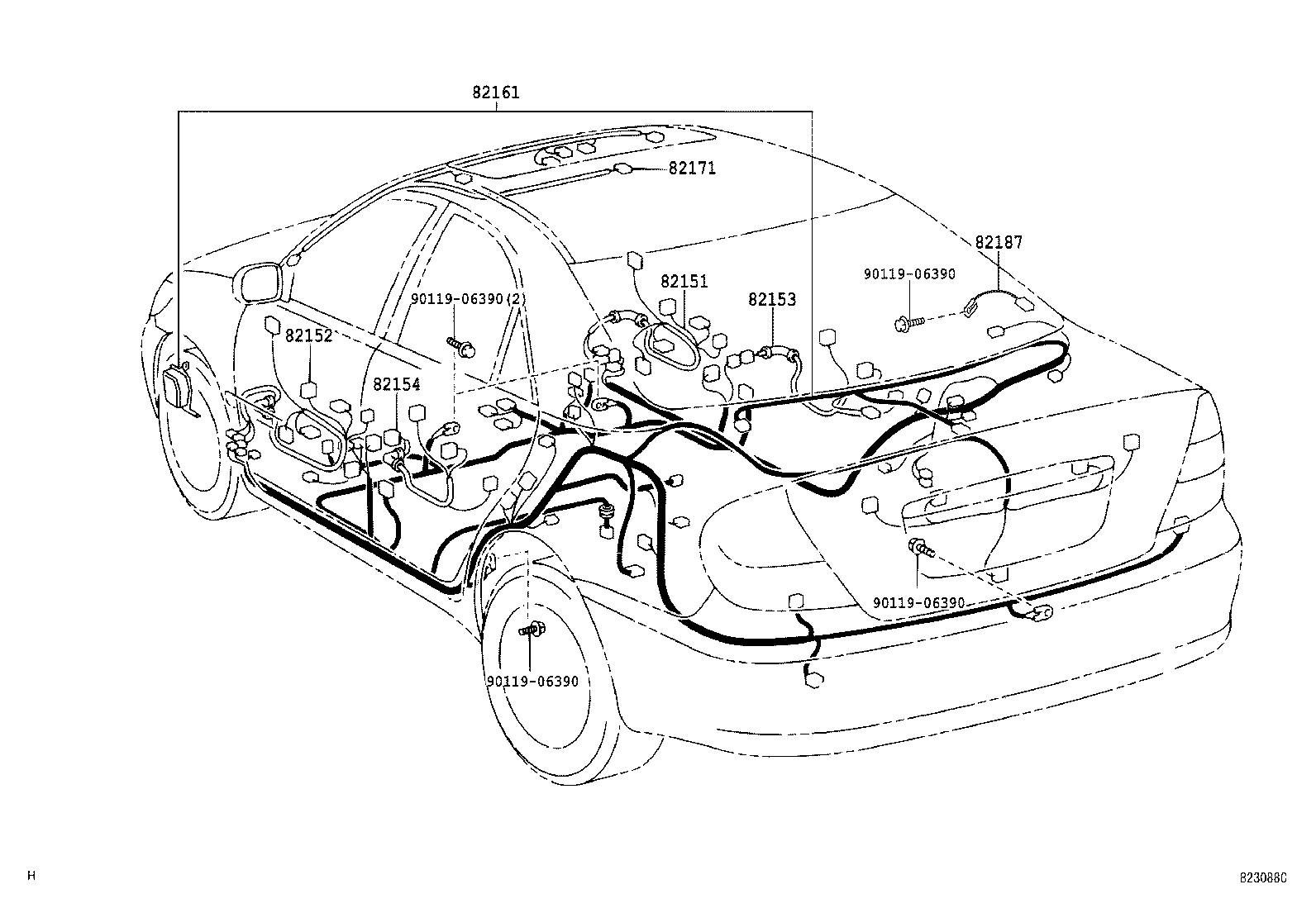

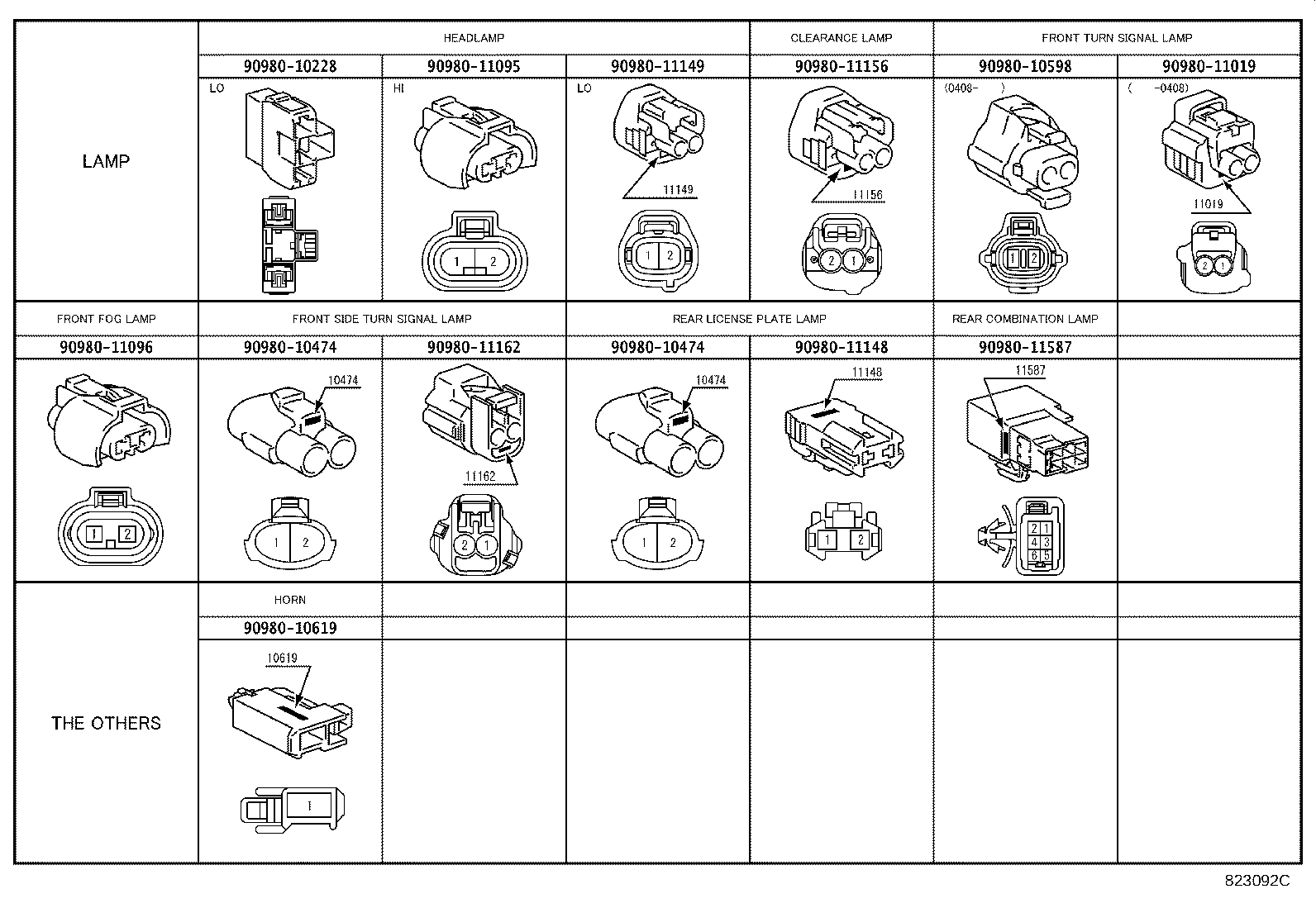

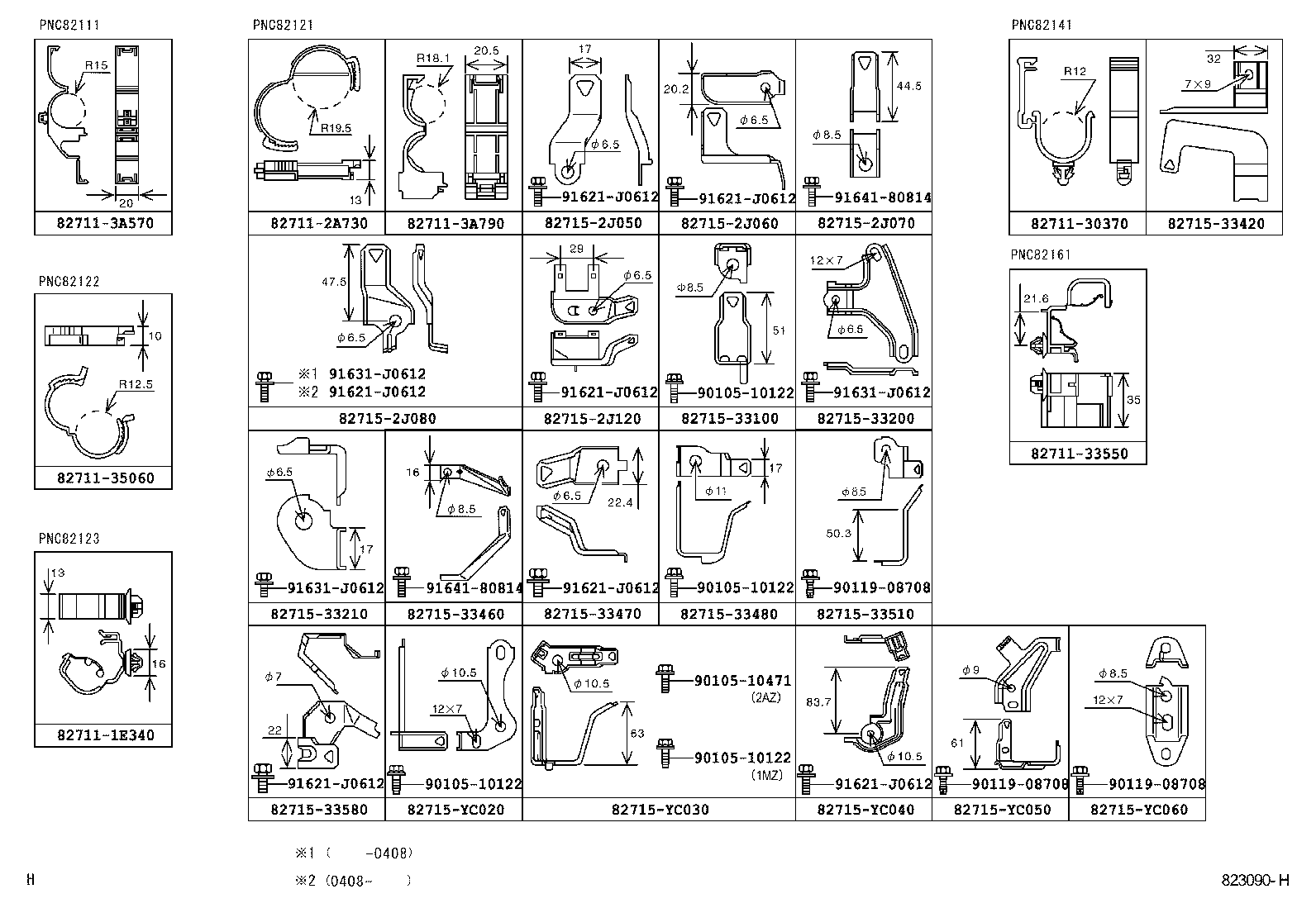

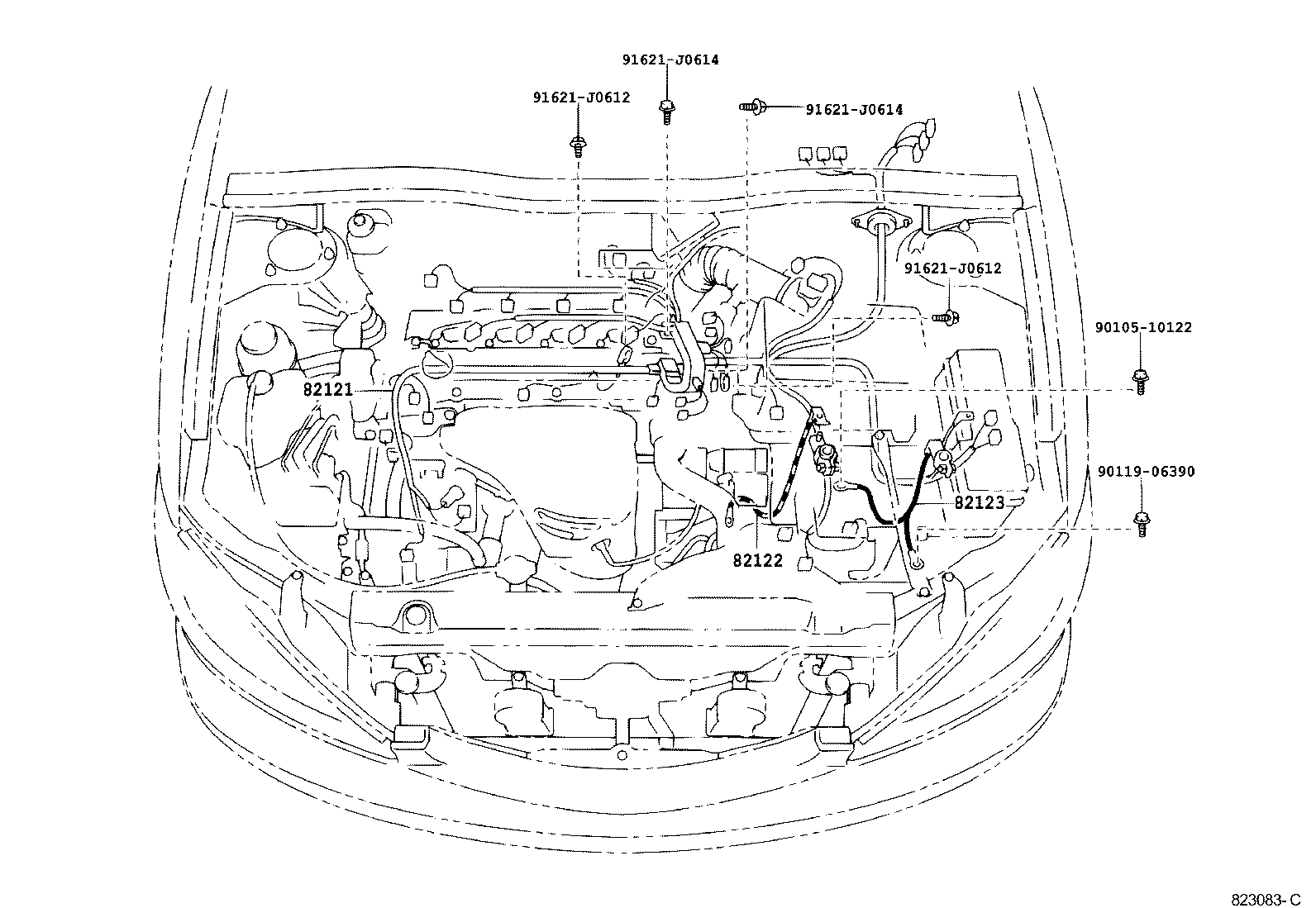

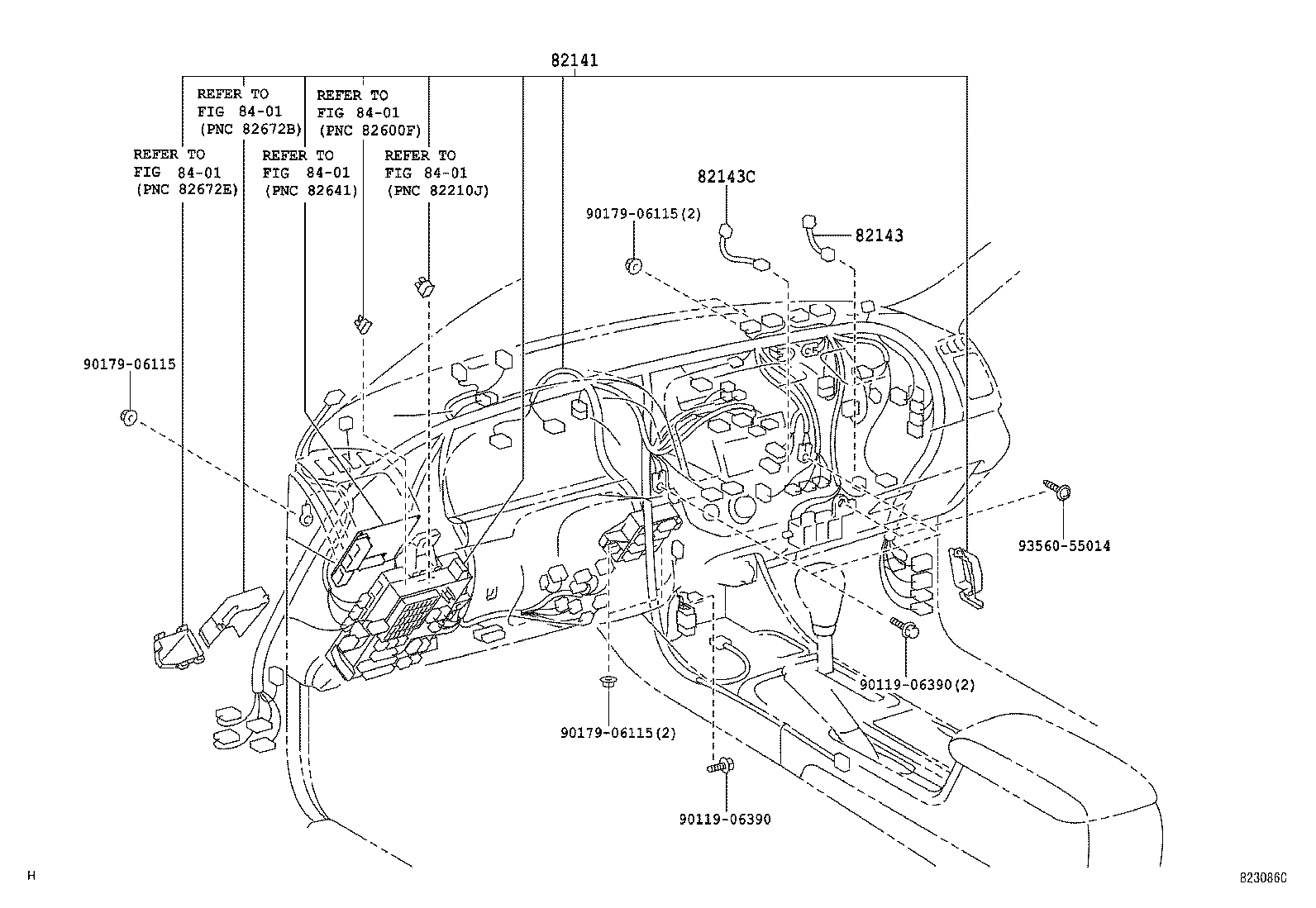

Figure 823082A 823082A 2002-08 → — Figure 823083C 823083C 2002-08 → — Figure 823084D 823084D 2002-08 → — Figure 823085C 823085C 2002-08 → — Figure 823086C 823086C 2002-08 → — Figure 823087D 823087D 2002-08 → — Figure 823088C 823088C 2002-08 → — Figure 823089 823089 2002-08 → — Figure 823090H 823090H 2002-08 → — Figure 823091A 823091A 2002-08 → — Figure 823092C 823092C 2002-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82143 Wire, Instrument Panel, NO.3
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82187 Wire, Rear Window, NO.2
82219A Wire, Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
