Toyota Camry (AUSTRALIA)
2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General
Discontinued model
Data version 2006-10
Switch & Relay & Computer
78 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82641 | Relay, Integration NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |

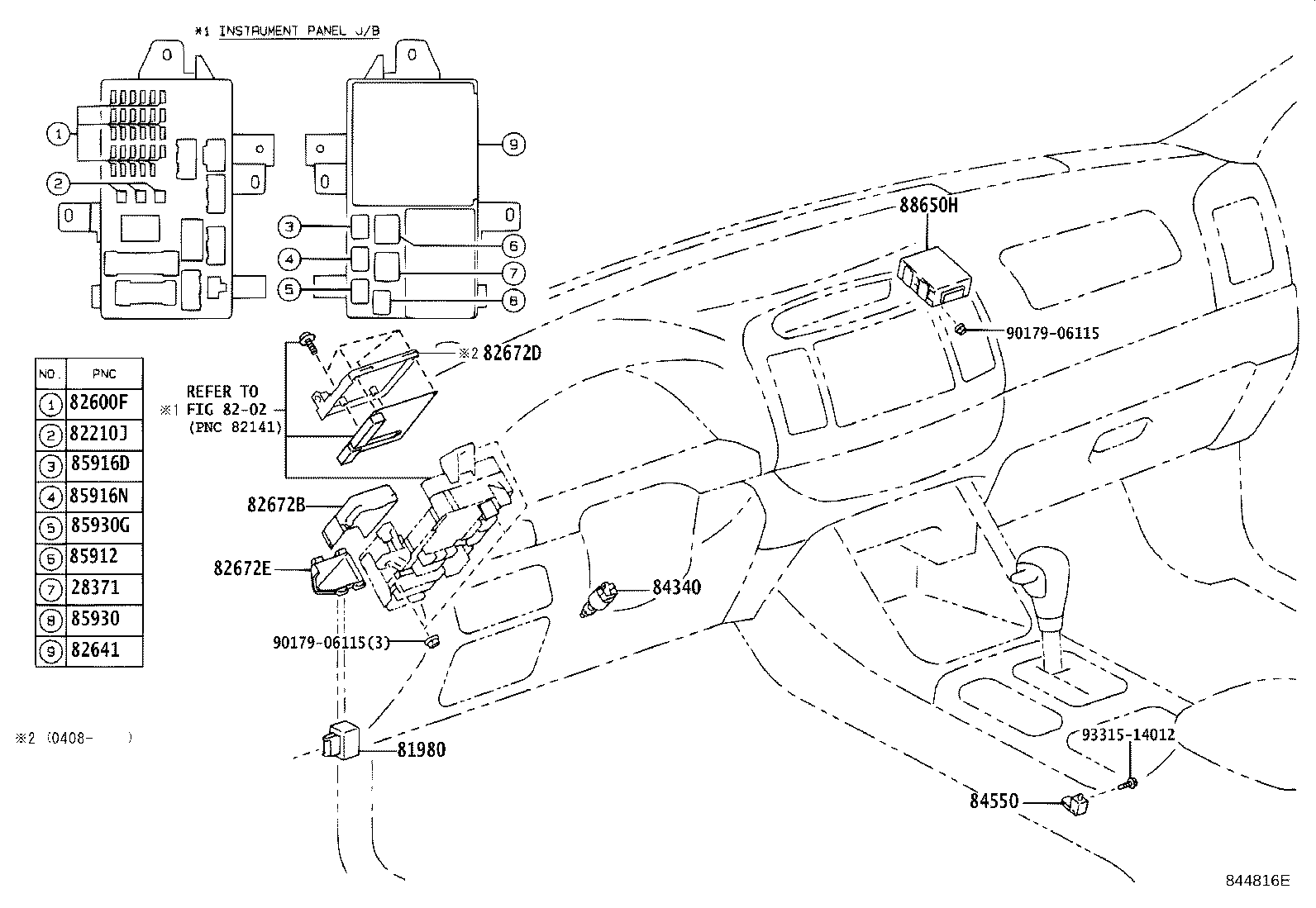

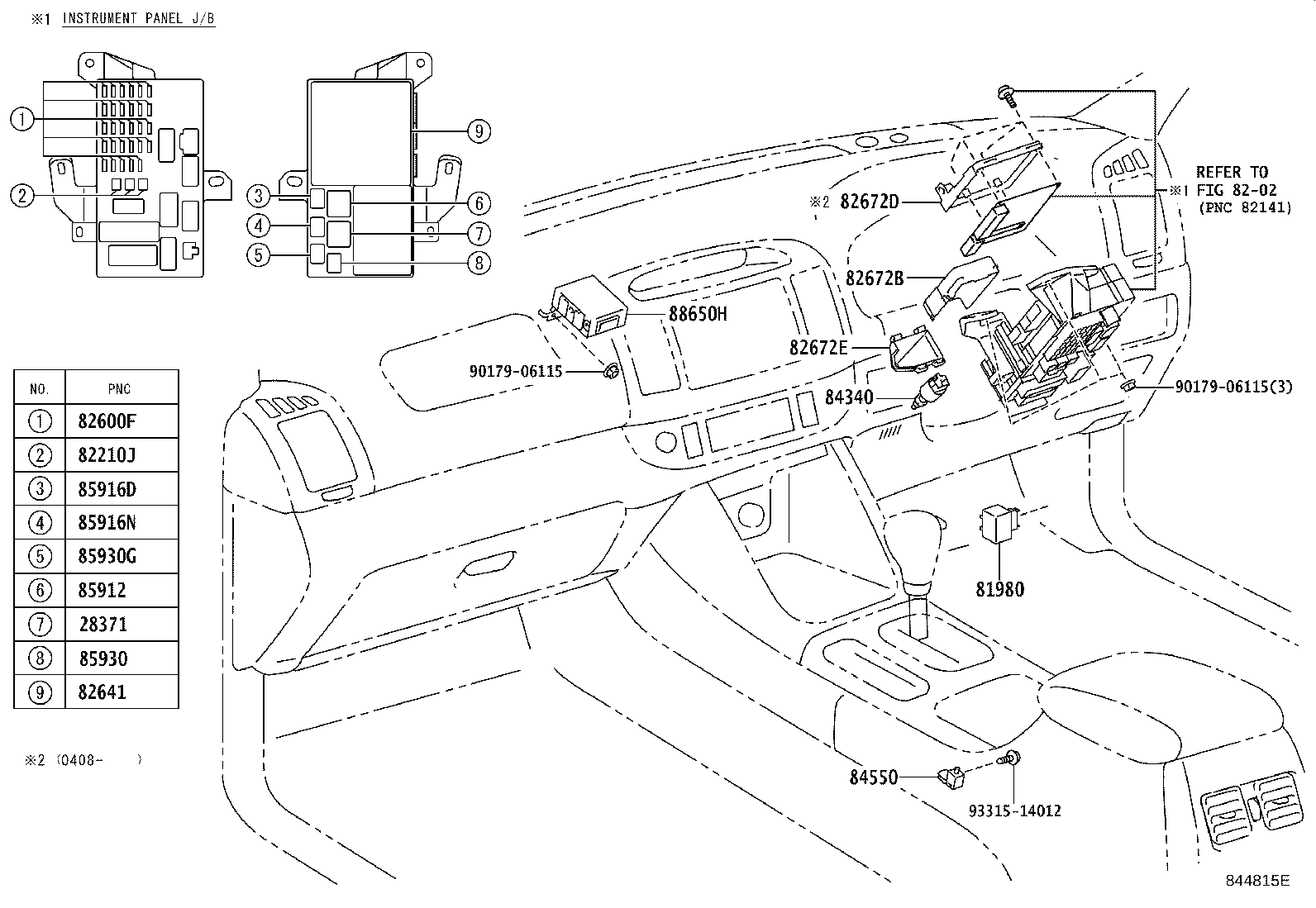

| 82672B | Cover, Junction Block |
| 82672D | Cover, Junction Block |
| 82672E | Cover, Junction Block |

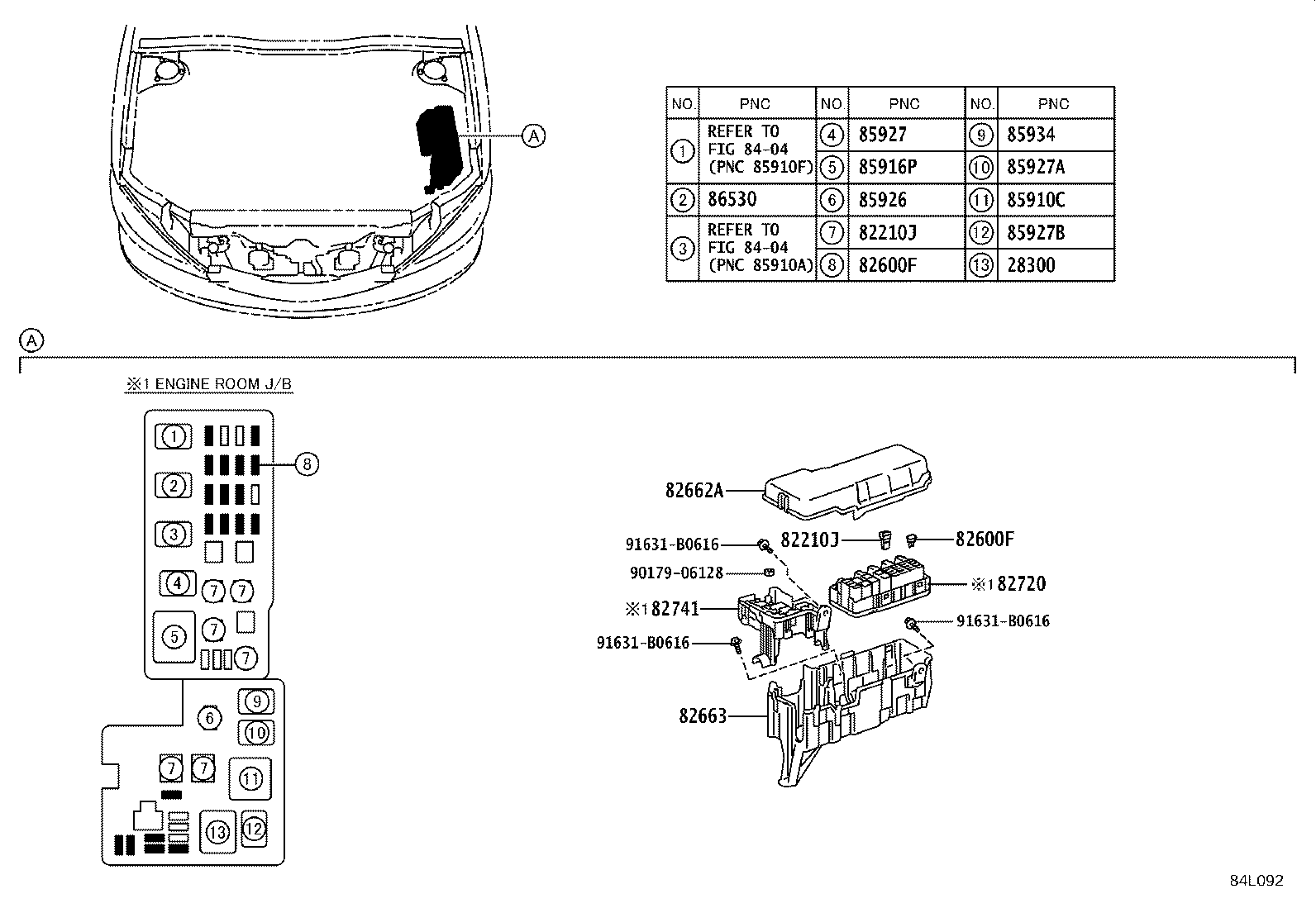

| 82720 | Block Assy, Engine Room Junction |
| 82741 | Block, Engine Room Relay |
| 82821B | Cover, Connector |
| 83181G | Sensor, Speedometer |
| 83181H | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84119 | Rheostat, Light Control |

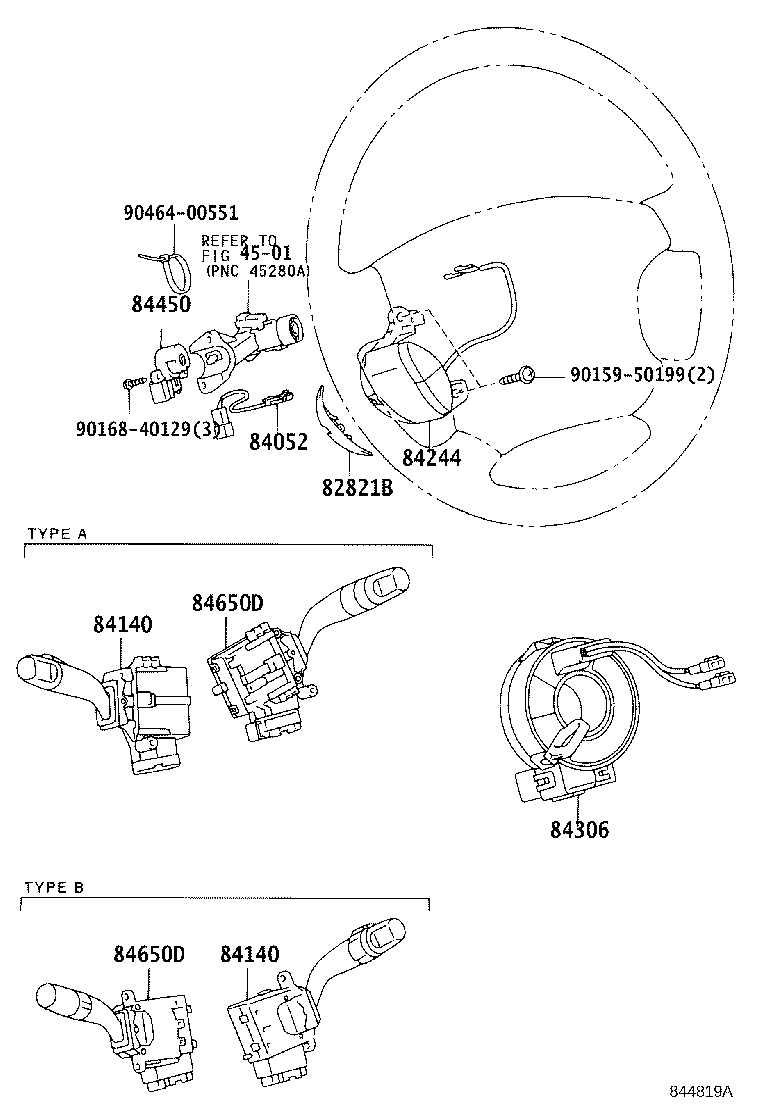

| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

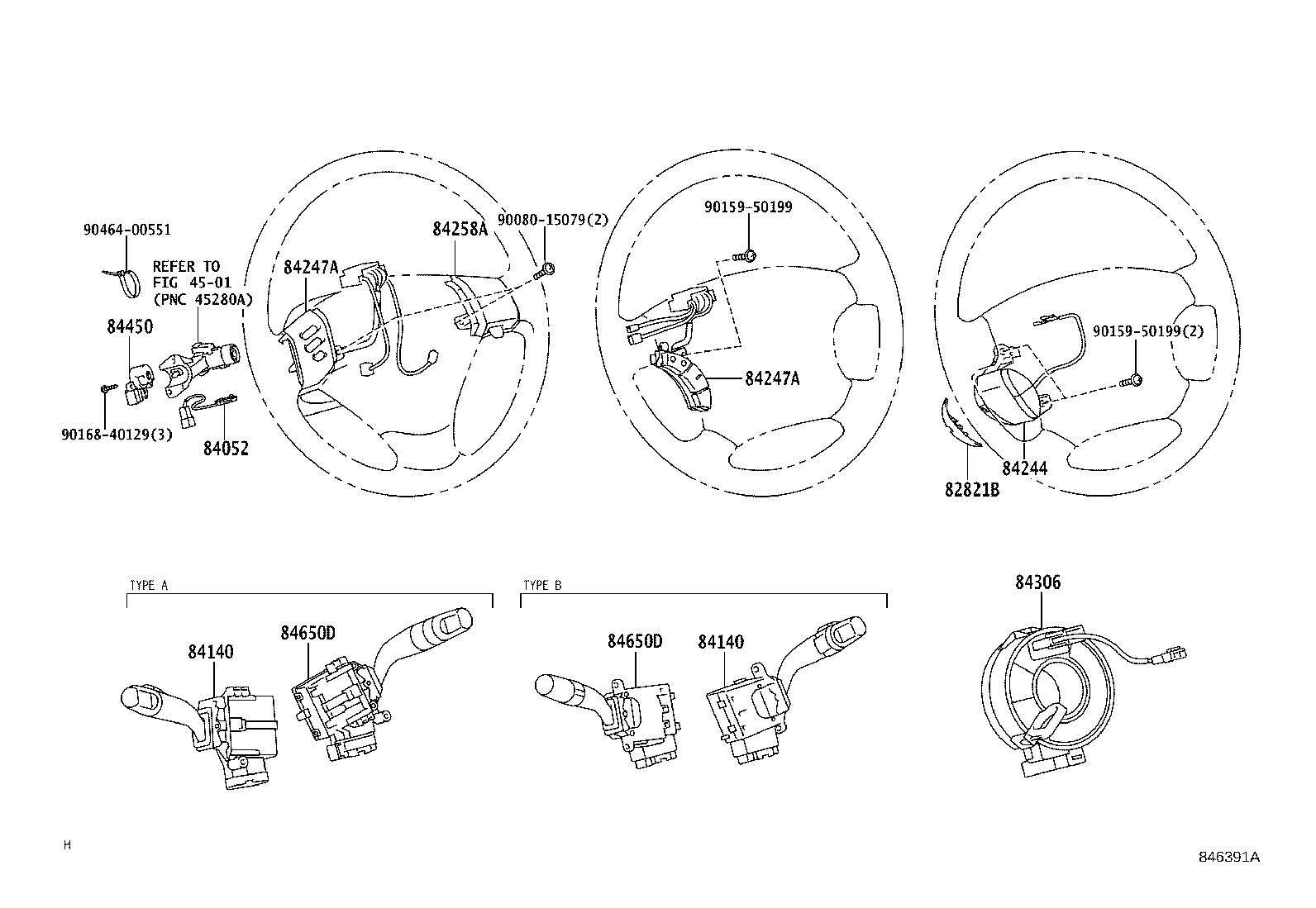

| 84244 | Switch, Steering Pad |
| 84247A | Switch, Steering Pad, LH |
| 84258A | Cover, Steering Pad, RH |
| 84306 | Cable Sub-assy, Spiral |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |

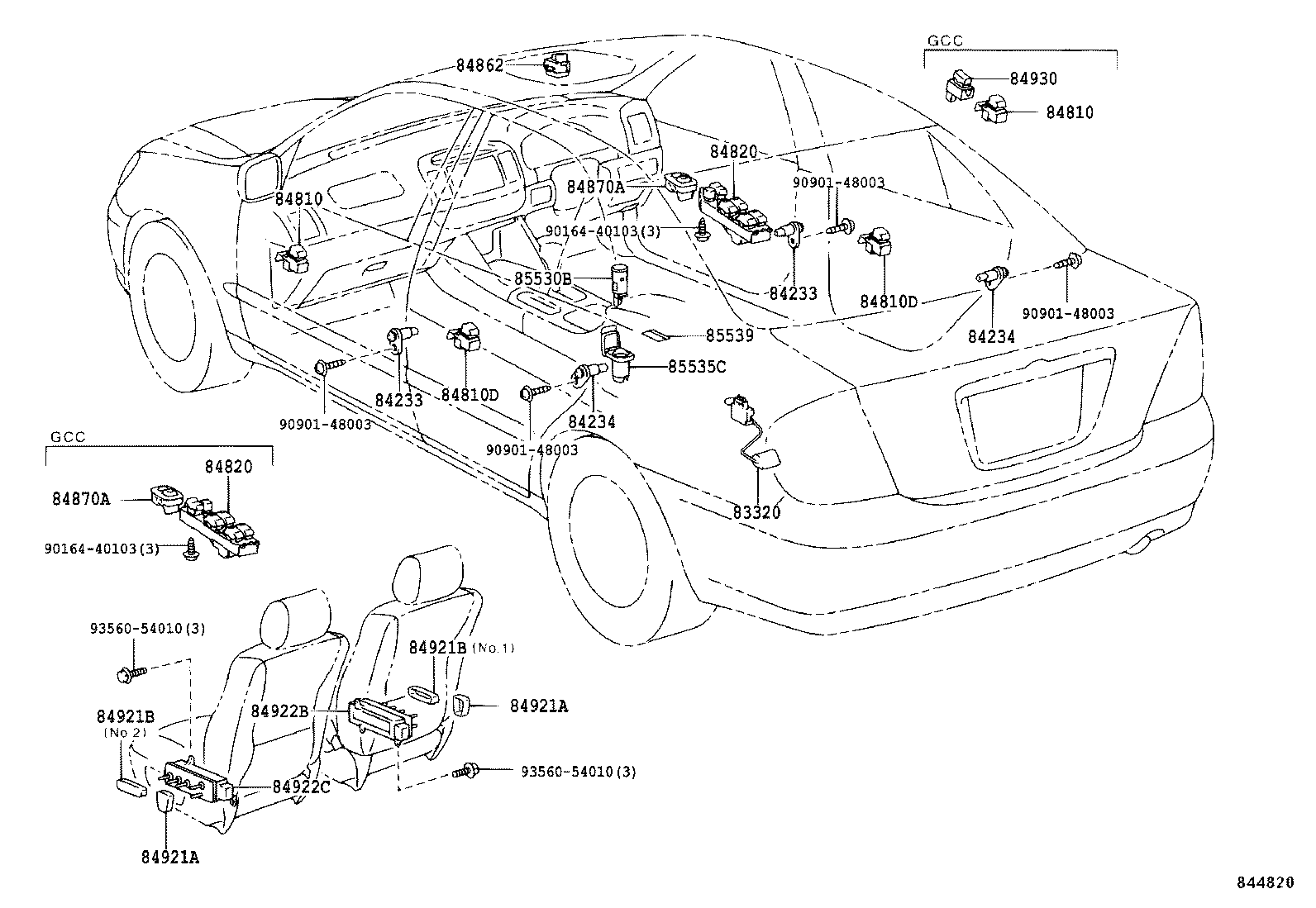

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84862 | Switch, Slide Roof Motor |
| 84870A | Switch Assy, Outer Mirror |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84930 | Switch Assy, Door Control |

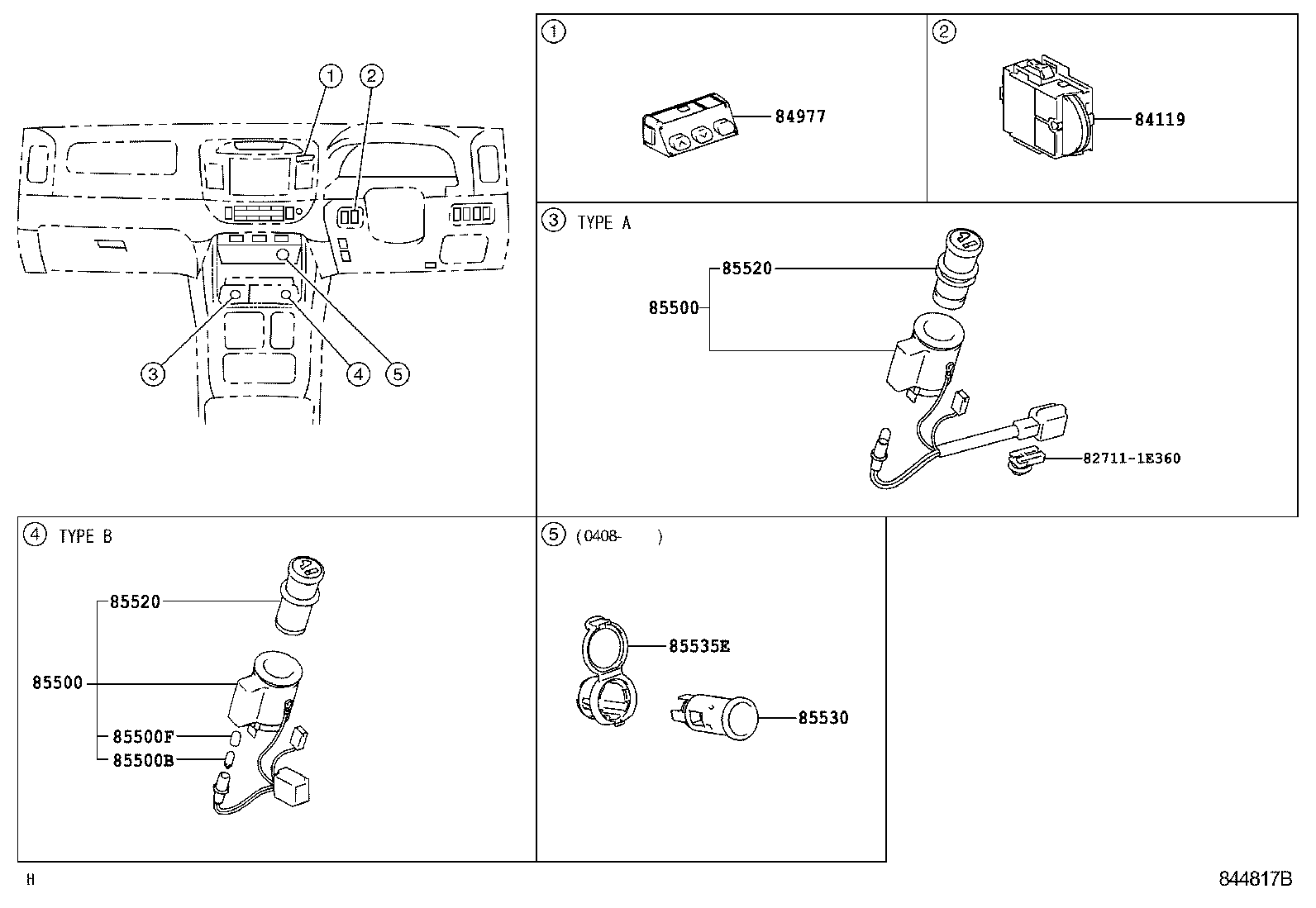

| 84977 | Switch, Drive Monitor |

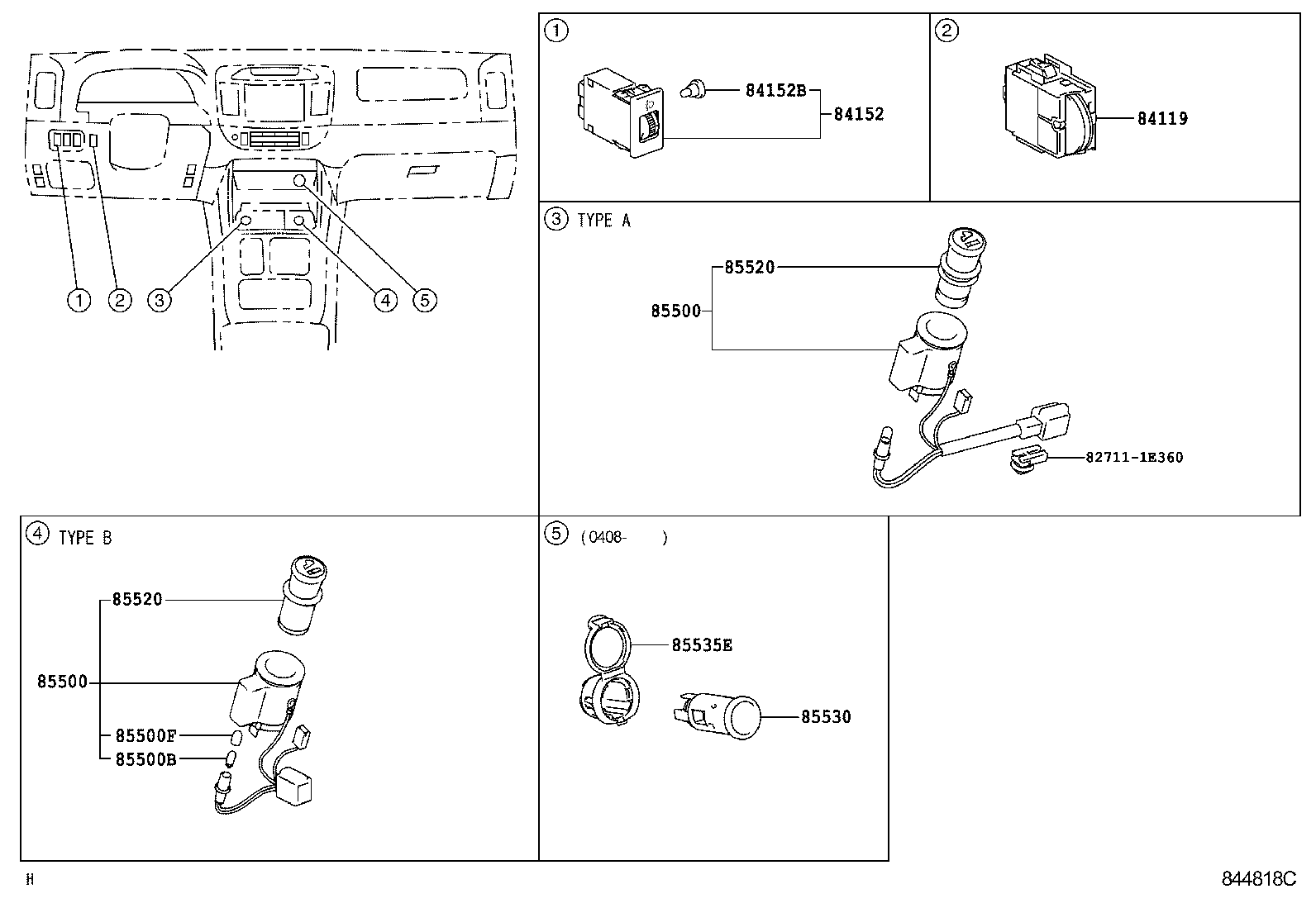

| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539 | Label, Power Outlet Notice |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85930 | Relay Assy, Power Window |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 86530 | Relay Assy, Horn |
| 88650H | Amplifier Assy, Air Conditioner |

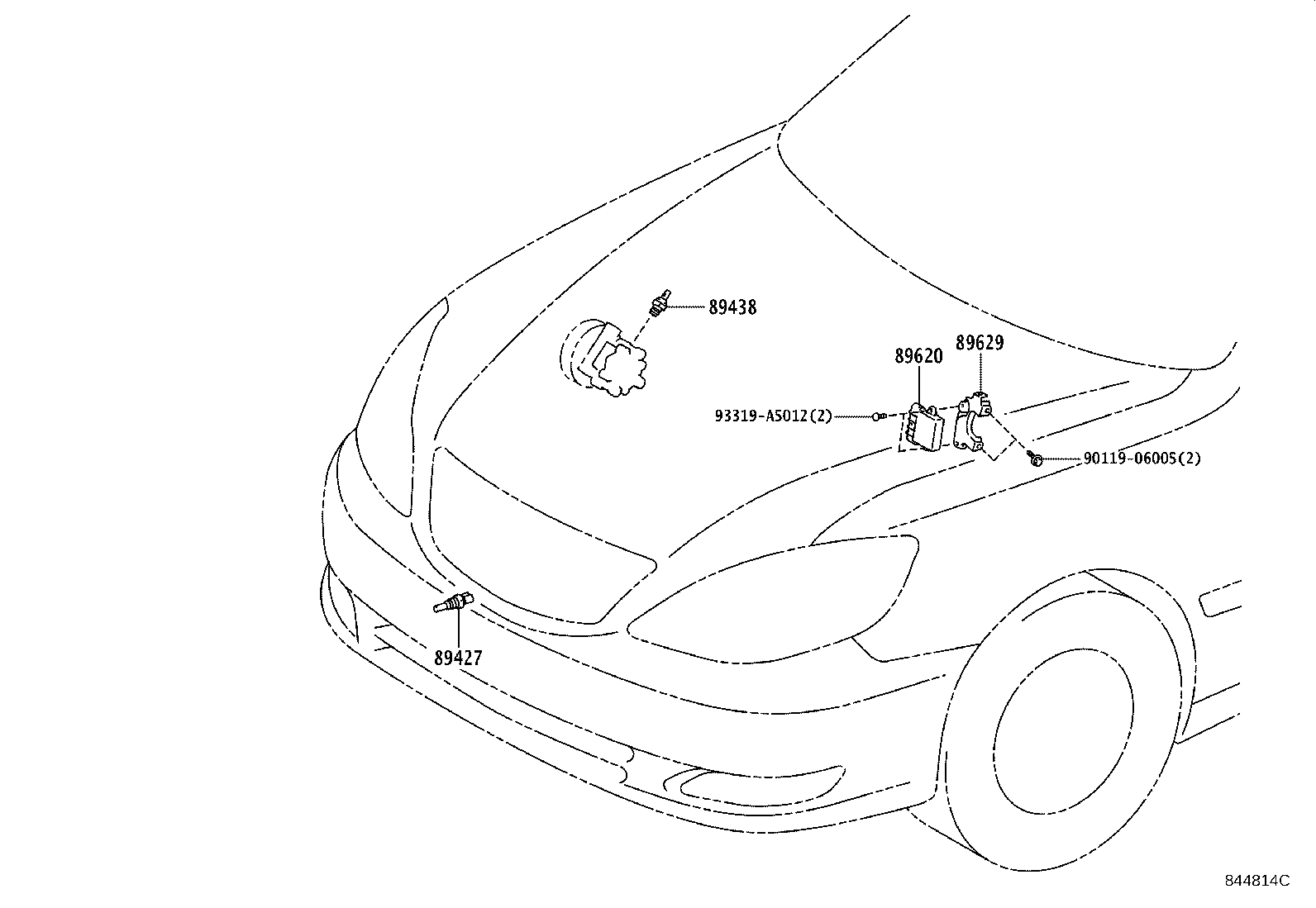

| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |

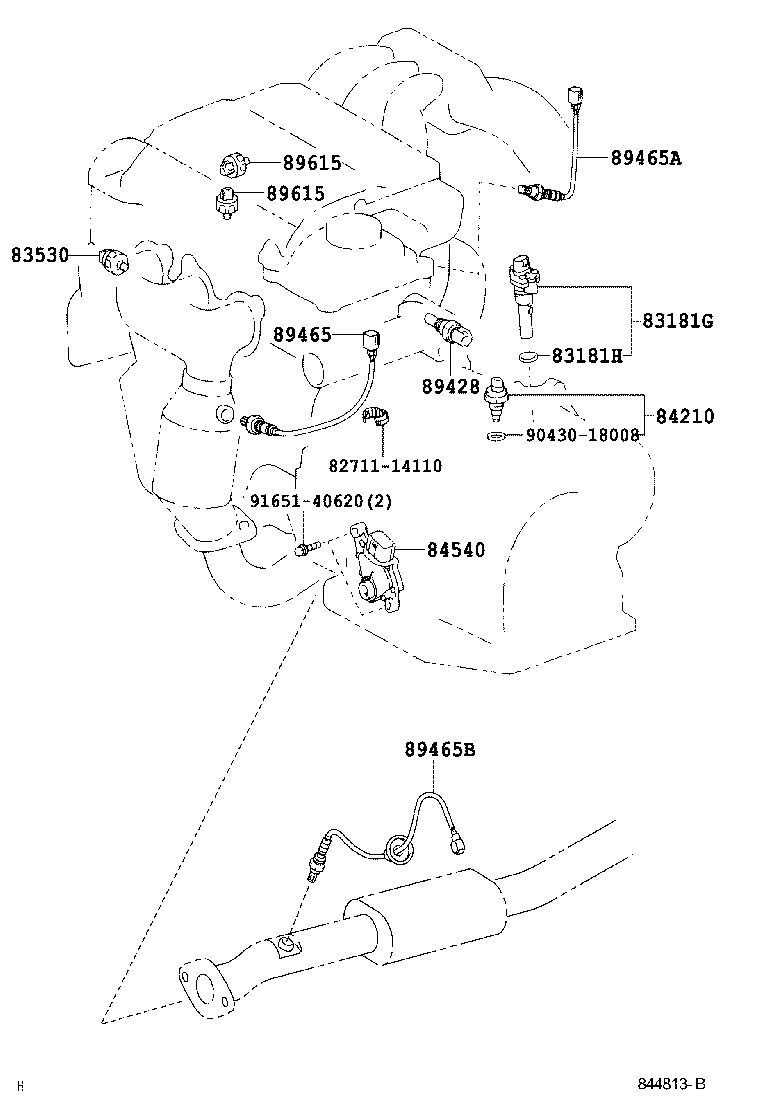

| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89465B | Sensor, Oxygen NO.3 |
| 89615 | Sensor, Knock Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
