Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

8 part groups · 4 illustrations

Illustrations

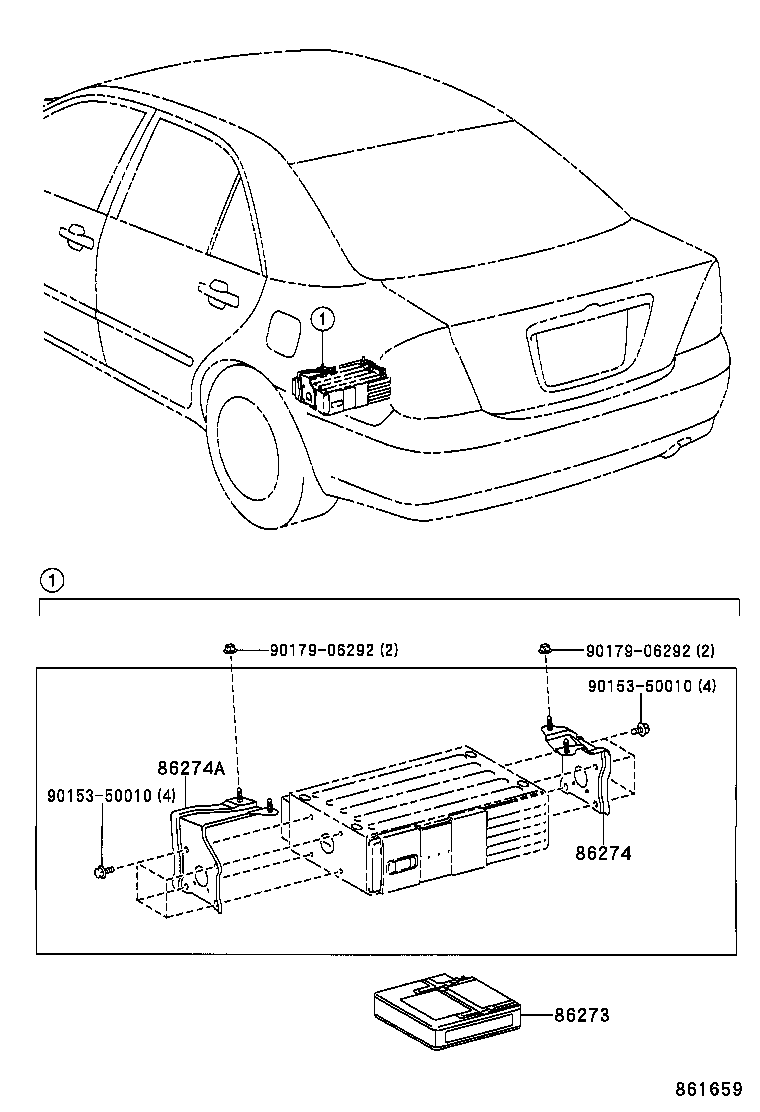

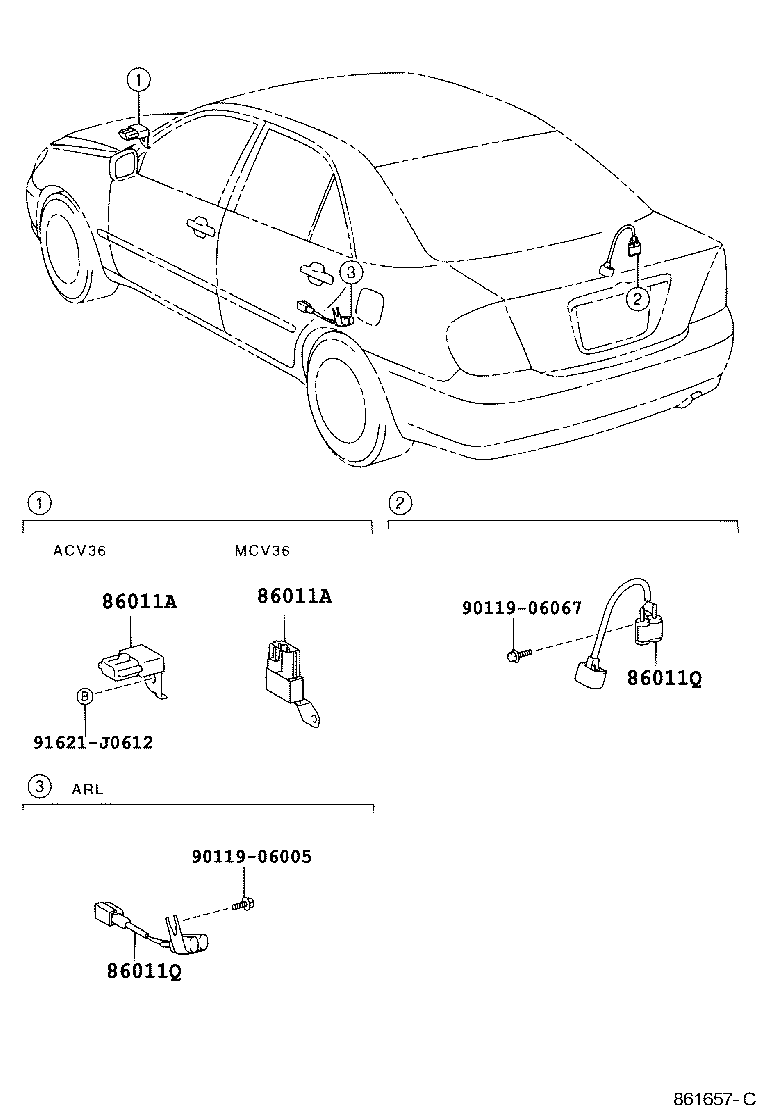

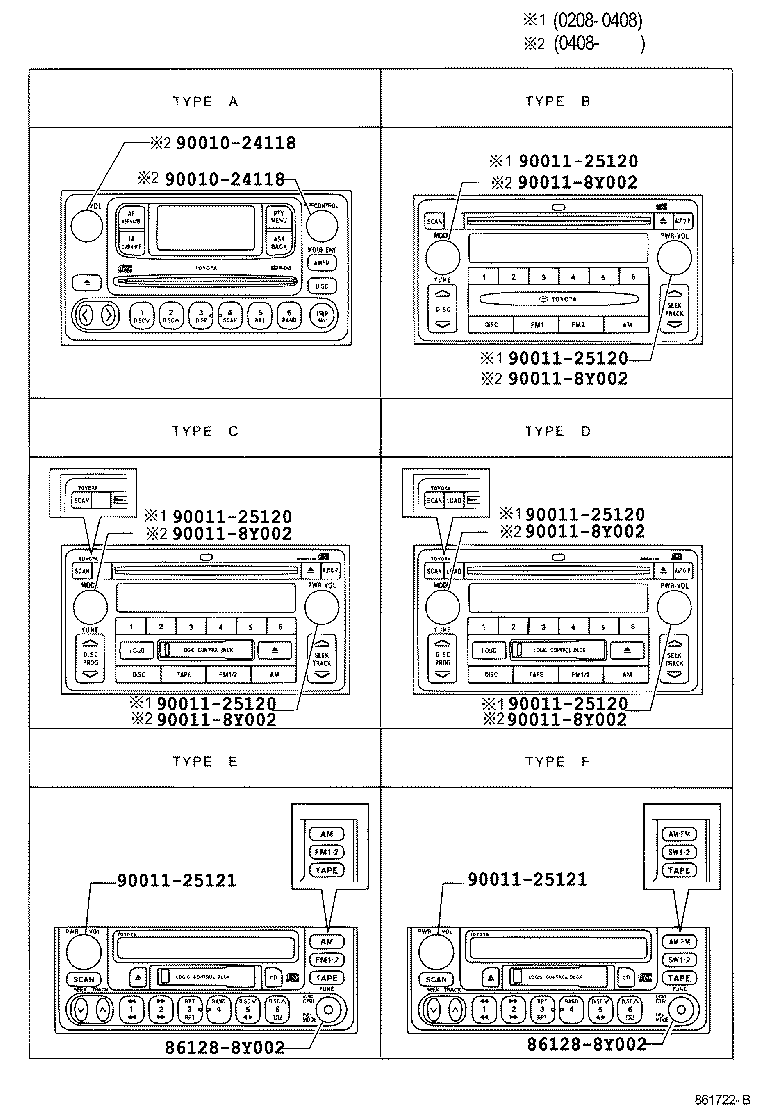

Figure 861656D 861656D 2002-08 → — Figure 861722B 861722B 2002-08 → — Figure 861659 861659 2002-08 → — Figure 861657C 861657C 2002-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86273 Magazine, Disc Player
86274 Bracket, Disc Player
86274A Bracket, Disc Player
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
