Toyota Camry (AUSTRALIA)

2002-08 → 2006-06 · chassis ACV36,MCV36 · catalogue 285370 · General

Discontinued model Data version 2006-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

28 part groups · 6 illustrations

Illustrations

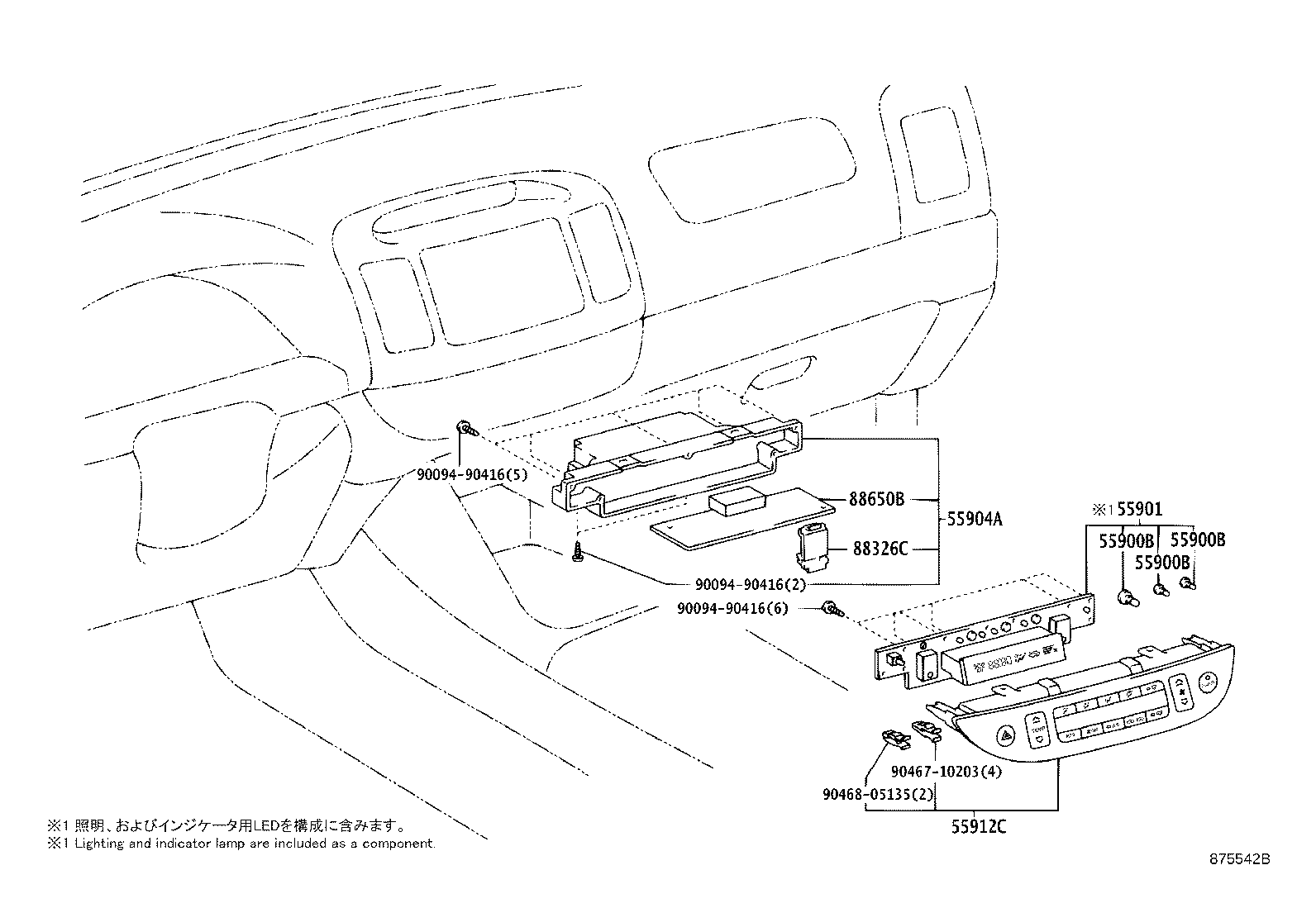

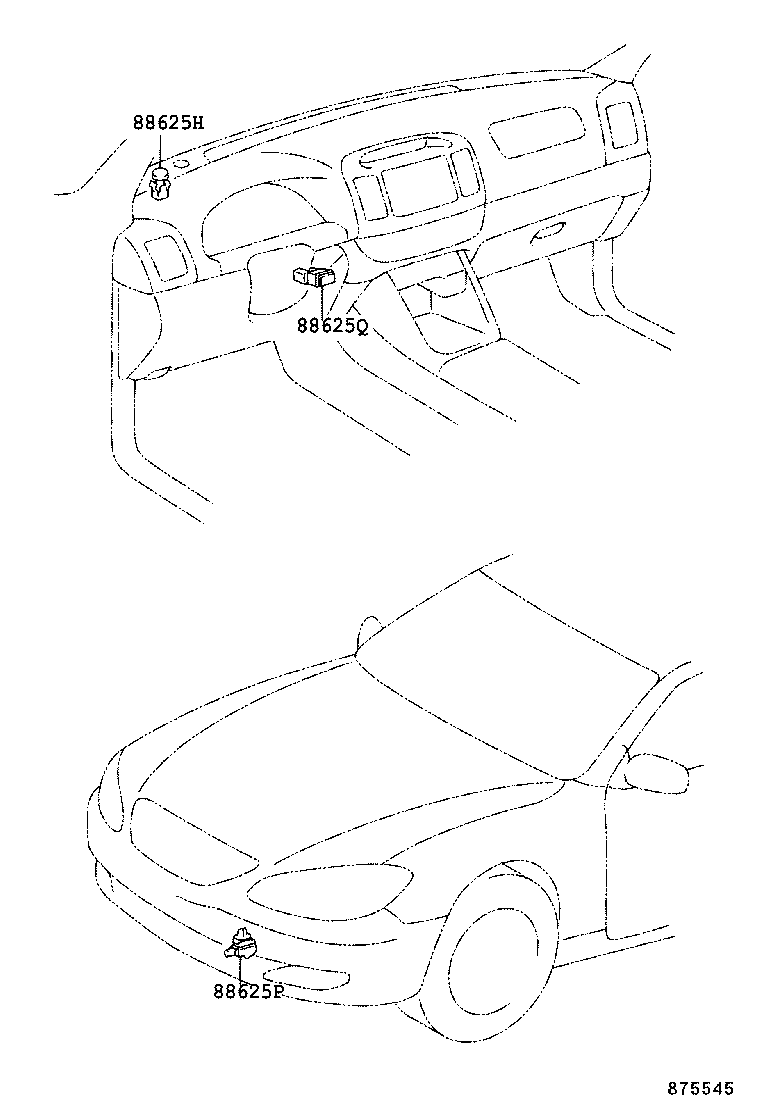

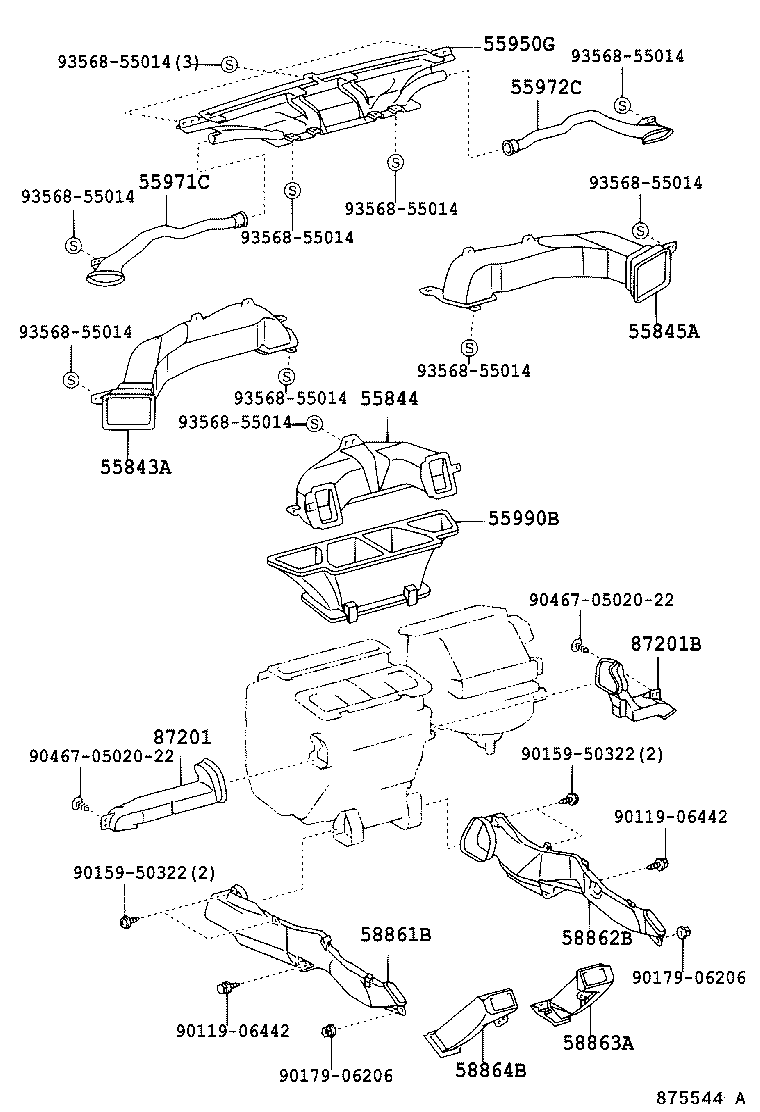

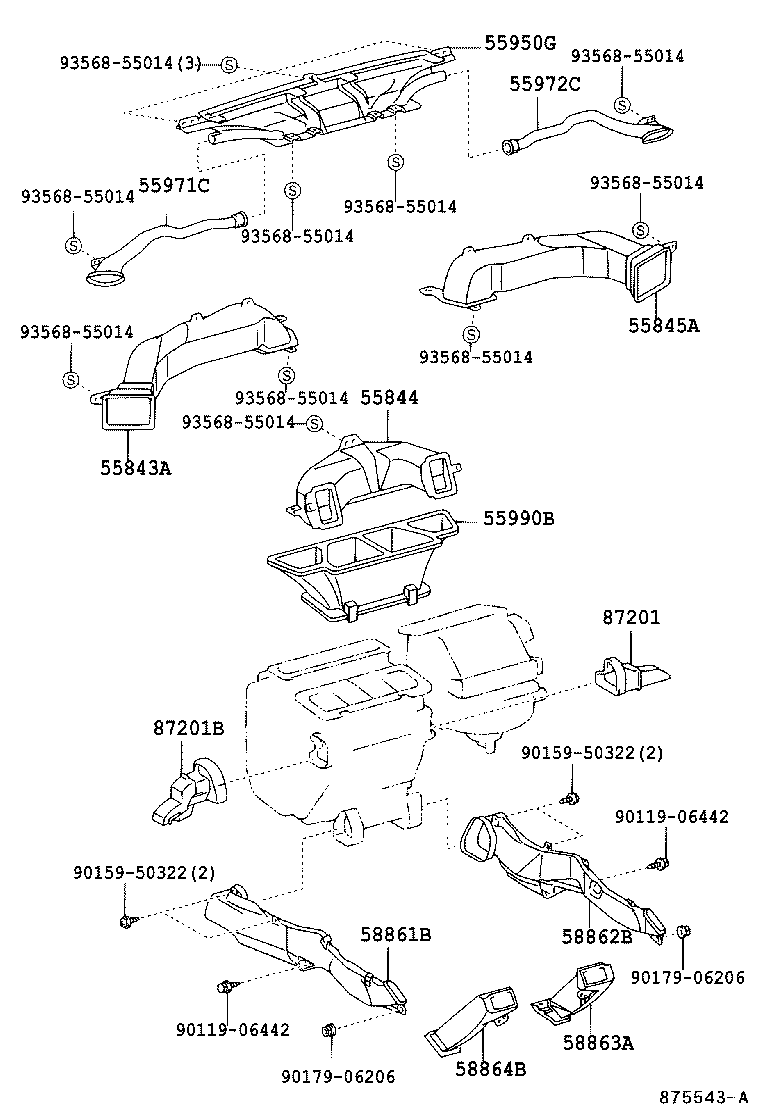

Figure 877271B 877271B 2002-08 → 2004-08 Figure 876966C 876966C 2004-08 → — Figure 875542B 875542B 2002-08 → — Figure 875543A 875543A 2002-08 → — Figure 875544A 875544A 2002-08 → — Figure 875545 875545 2002-08 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55900B Bulb, Air Conditioner Control
55901 Base Sub-assy, Heater Control
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55912C Housing, Heater Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58862B Duct, Console Box, NO.2
58863A Duct, Console Box, NO.3
58864B Duct, Console Box, NO.4
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
88326C Plate, Cover
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
