Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 5 illustrations

Illustrations

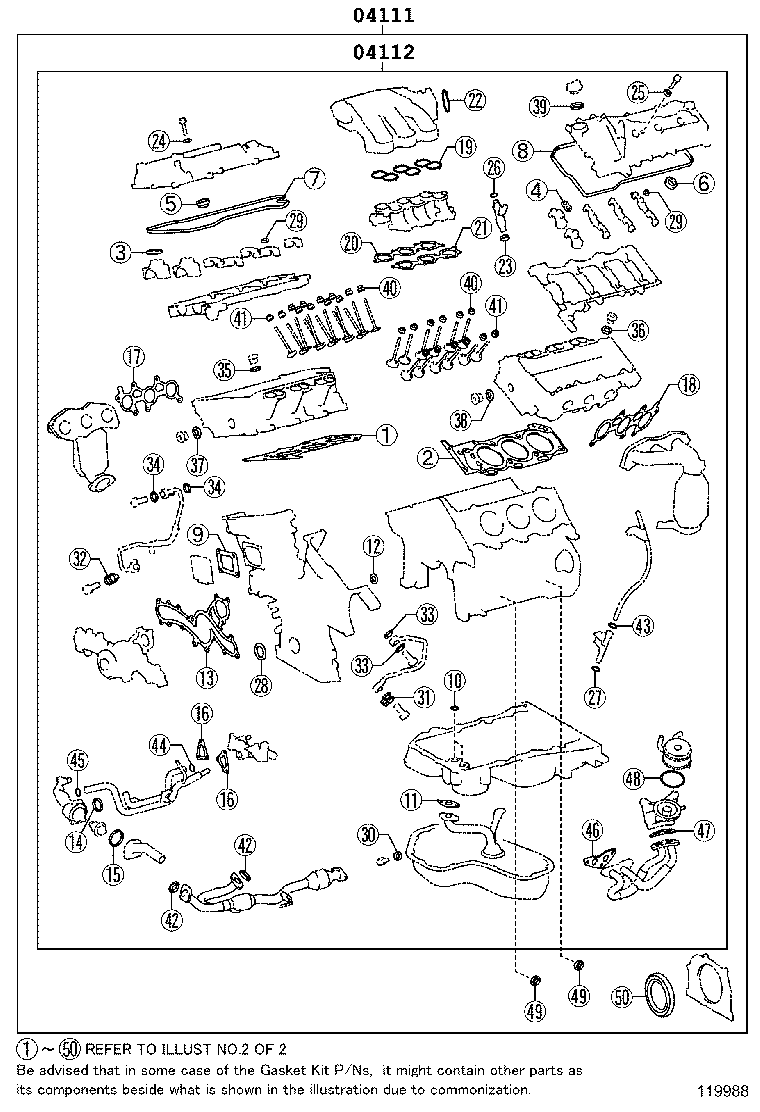

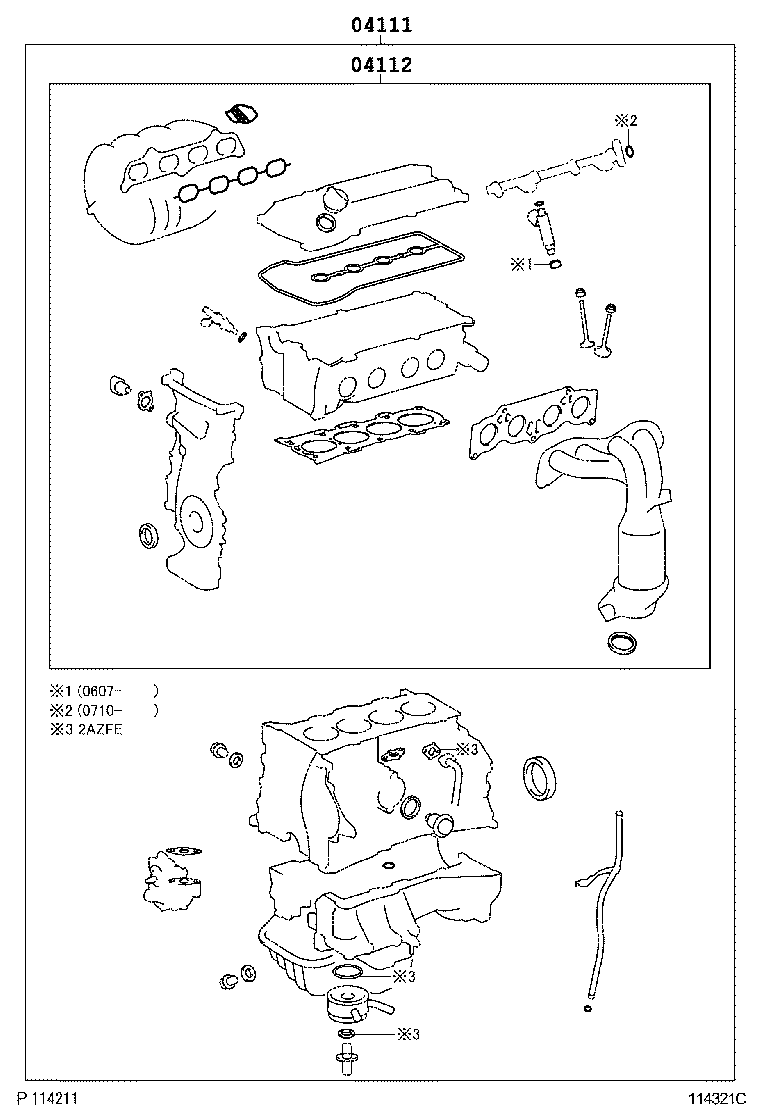

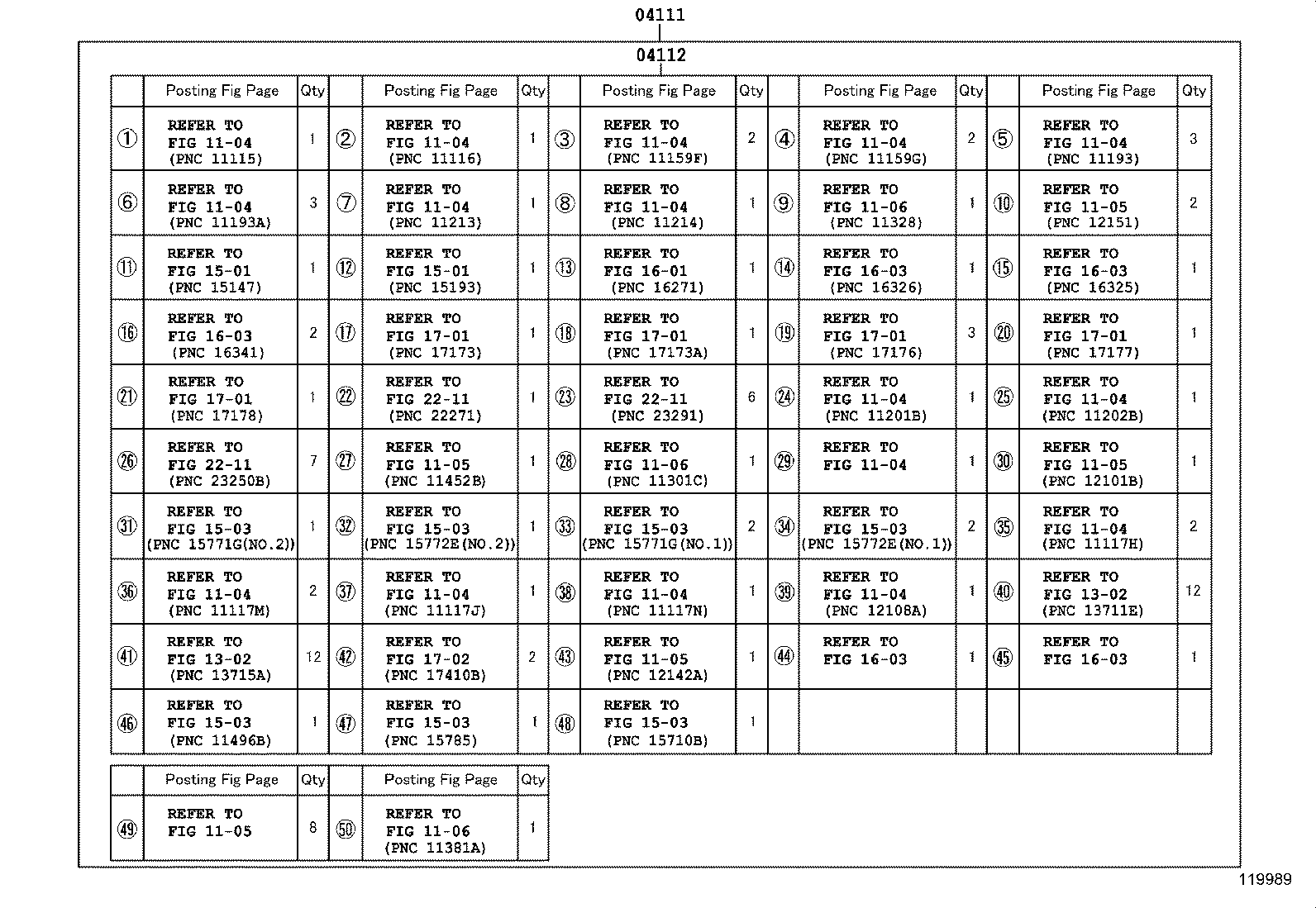

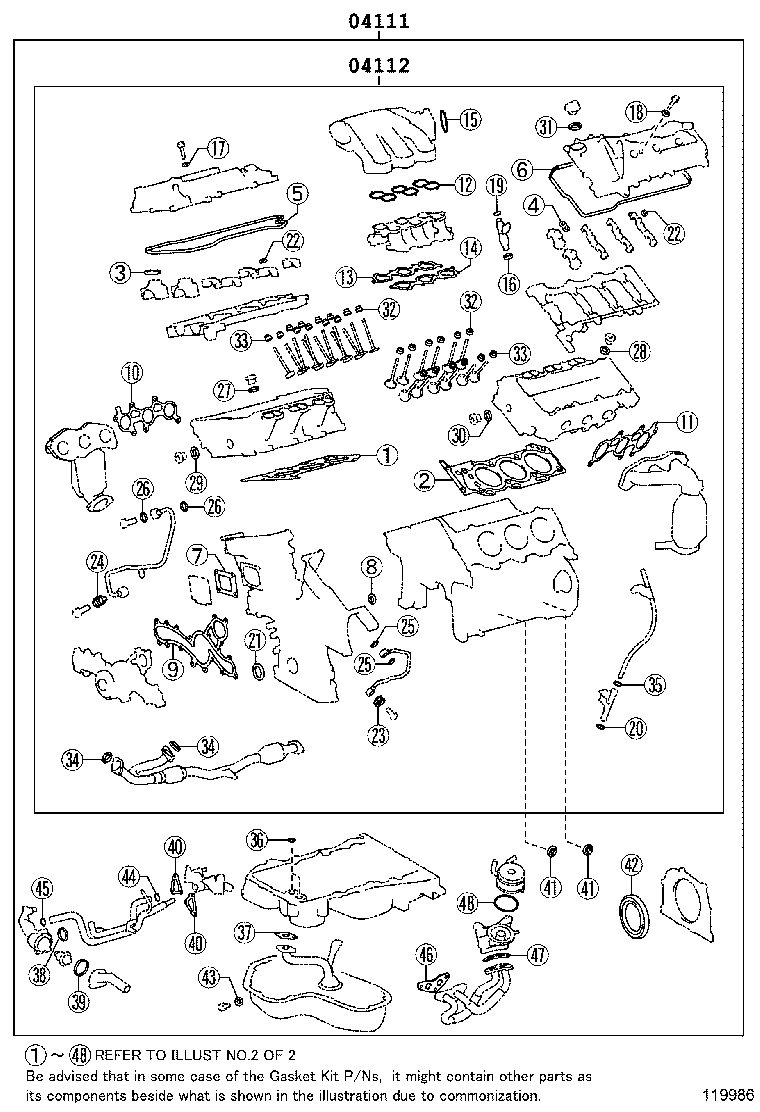

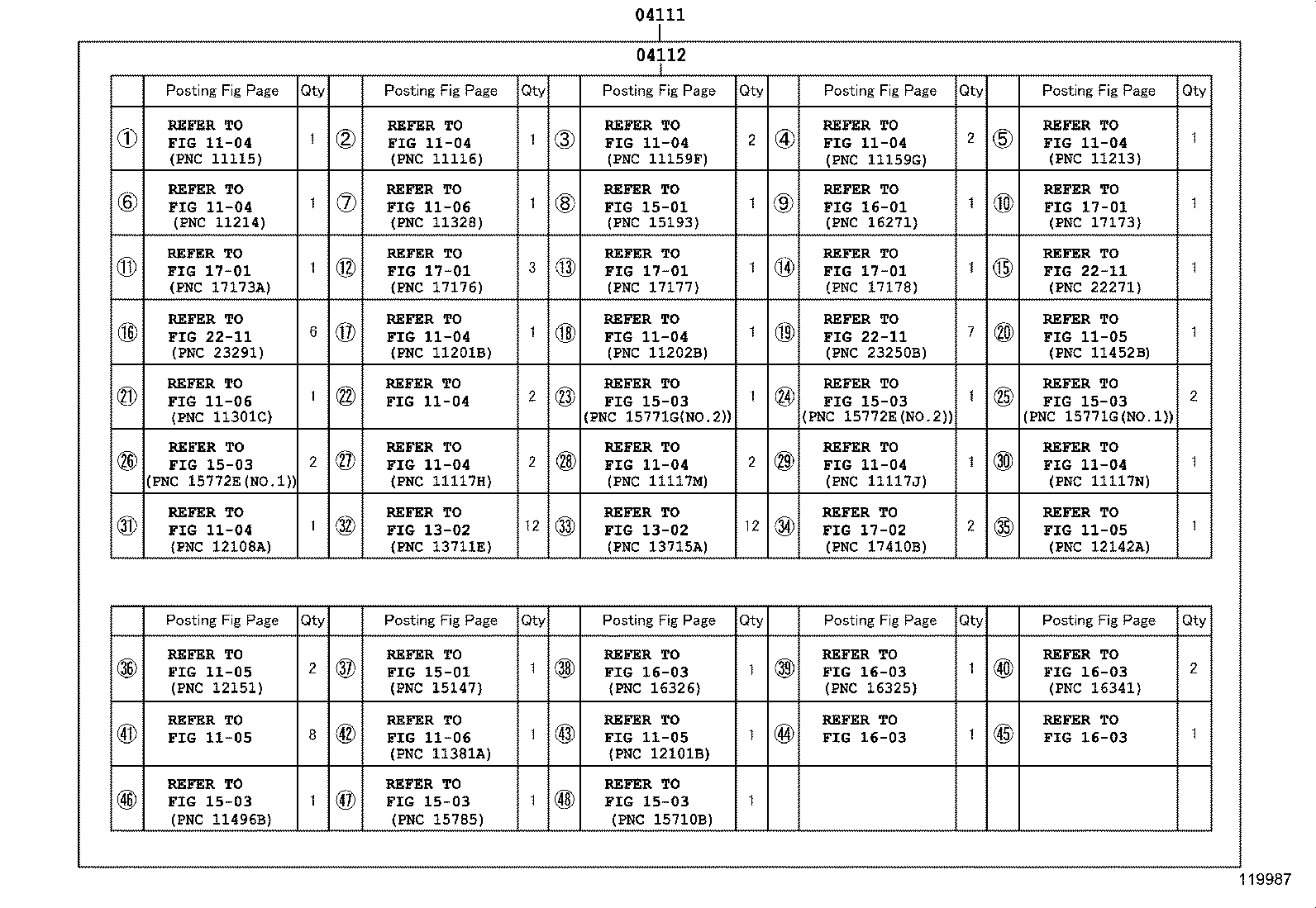

Figure 114321C 114321C 2006-06 → — Figure 119986 119986 2006-10 → 2011-08 Figure 119987 119987 2006-10 → 2011-08 Figure 119988 119988 2011-08 → 2011-10 Figure 119989 119989 2011-08 → 2011-10

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
