Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

10 part groups · 5 illustrations

Illustrations

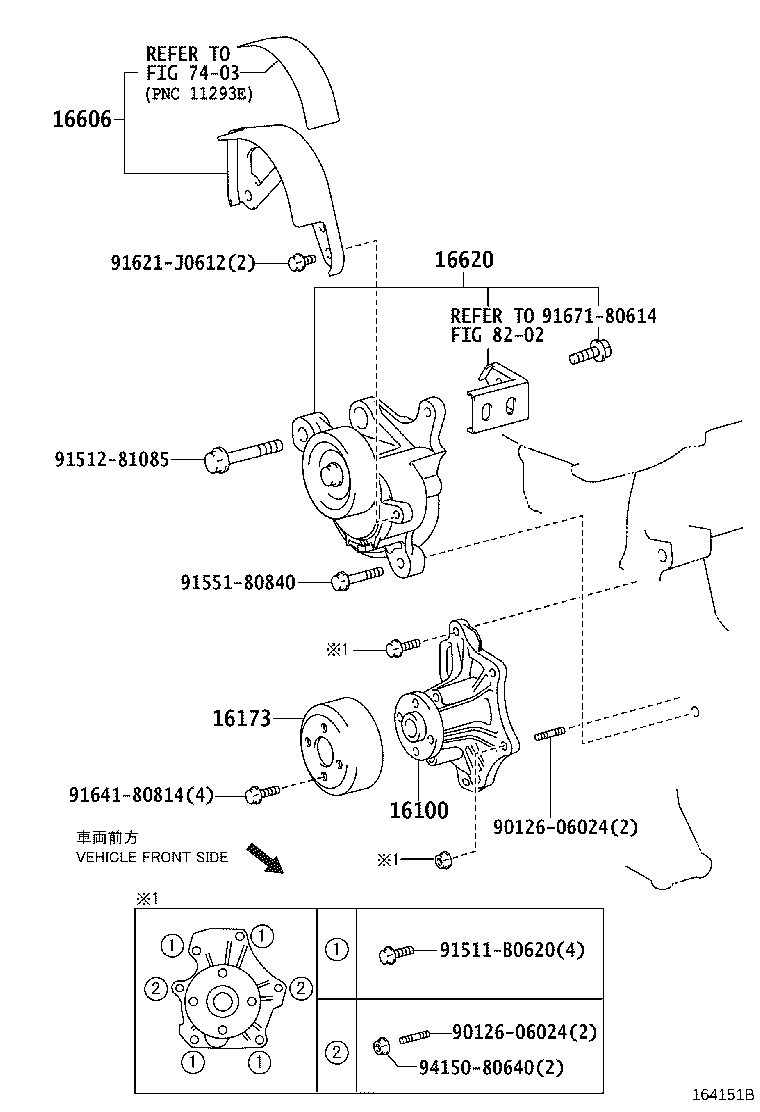

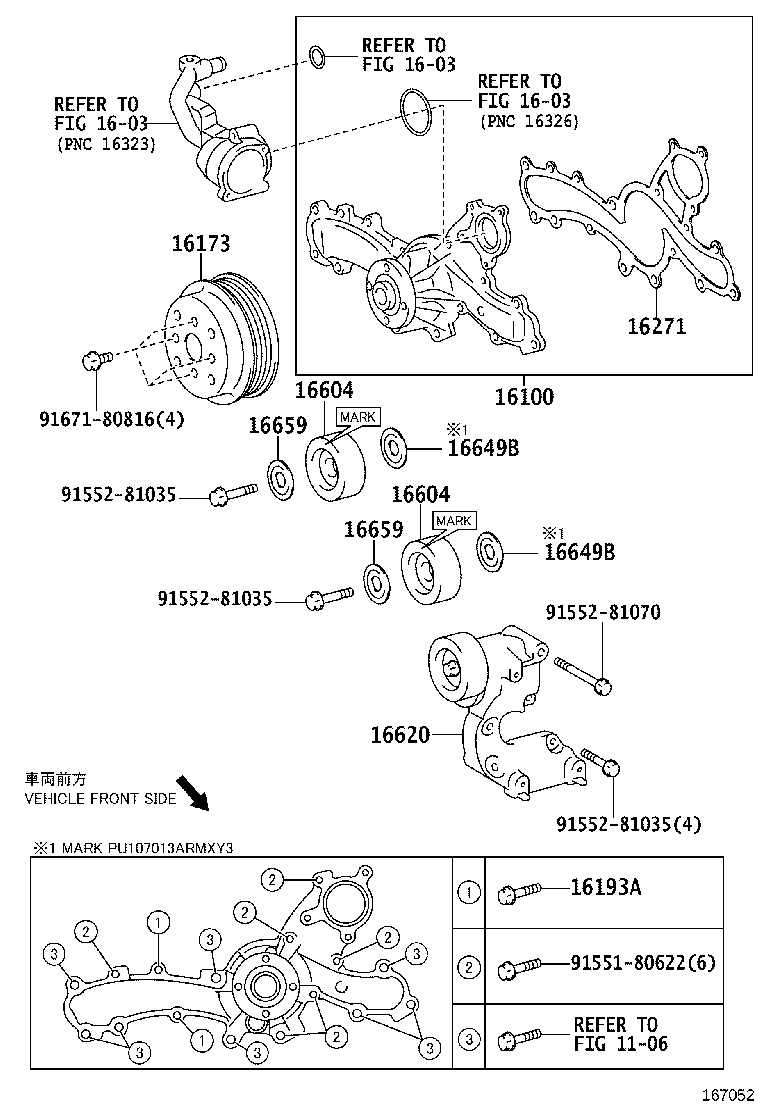

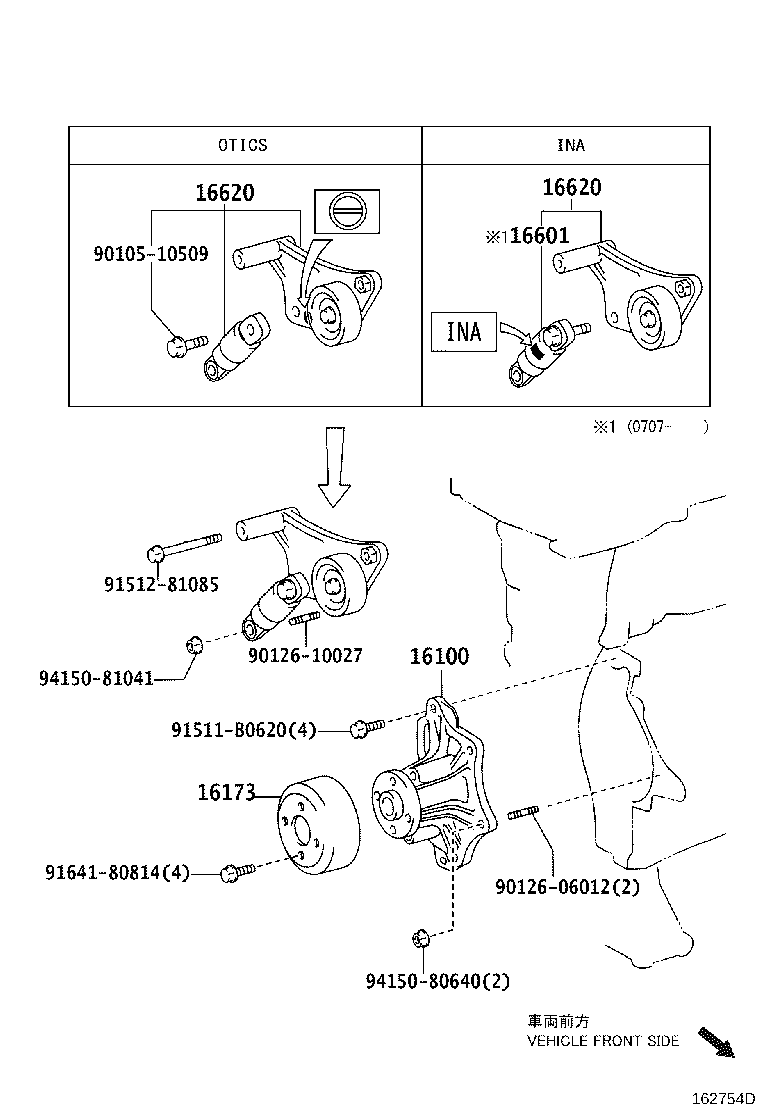

Figure 162754D 162754D 2006-06 → 2009-06 Figure 162754D 162754D 2009-06 → — Figure 164032A 164032A 2009-06 → — Figure 164151B 164151B 2010-01 → — Figure 167052 167052 2006-10 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16601 Tensioner Sub-assy, V-ribbed Belt
16604 Pulley Sub-assy, Idler, NO.2
16606 Cover Sub-assy, V-ribbed Belt Tensioner
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
