Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

14 part groups · 3 illustrations

Illustrations

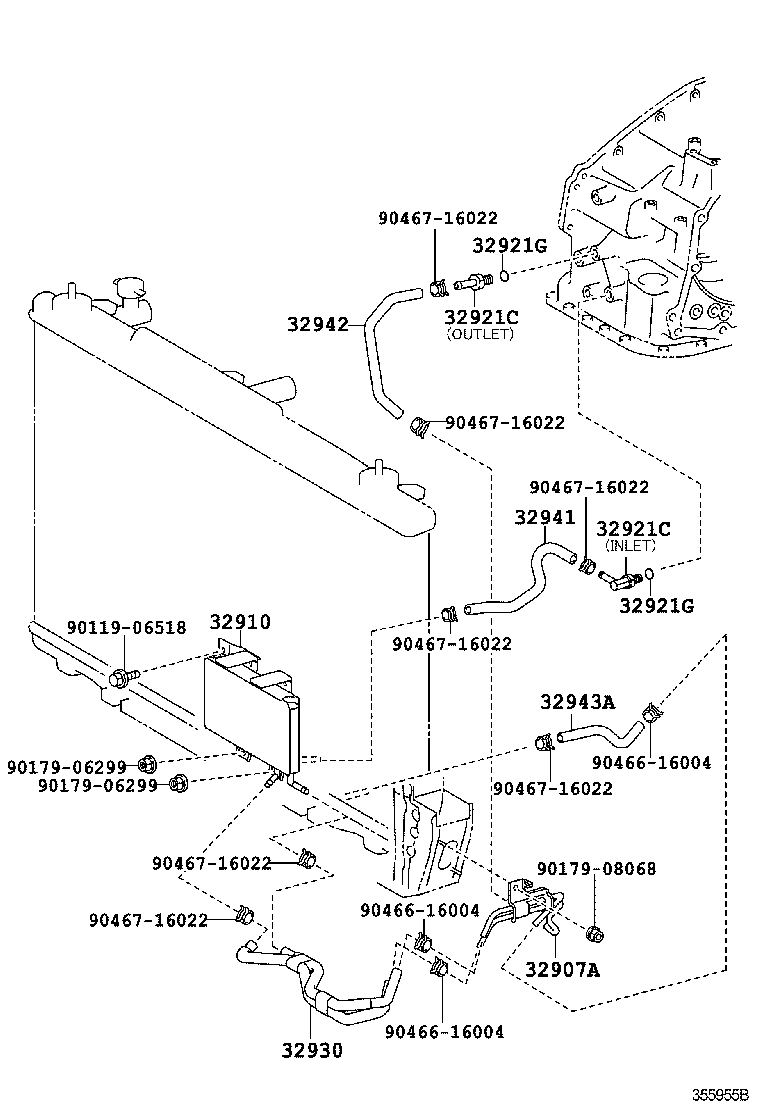

Figure 357349 357349 2006-06 → — Figure 355716A 355716A 2006-10 → — Figure 355955B 355955B 2006-10 → —

Part groups

PNCDescription
32907A Tube, Oil Cooler
32910 Cooler Assy, Oil
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923A Clamp, Automatic Transmission Oil Cooler Tube
32926 Cushion, Oil Cooler Tube(ATM)
32930 Accessory Assy, Oil Cooler
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
