Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 6 illustrations

Illustrations

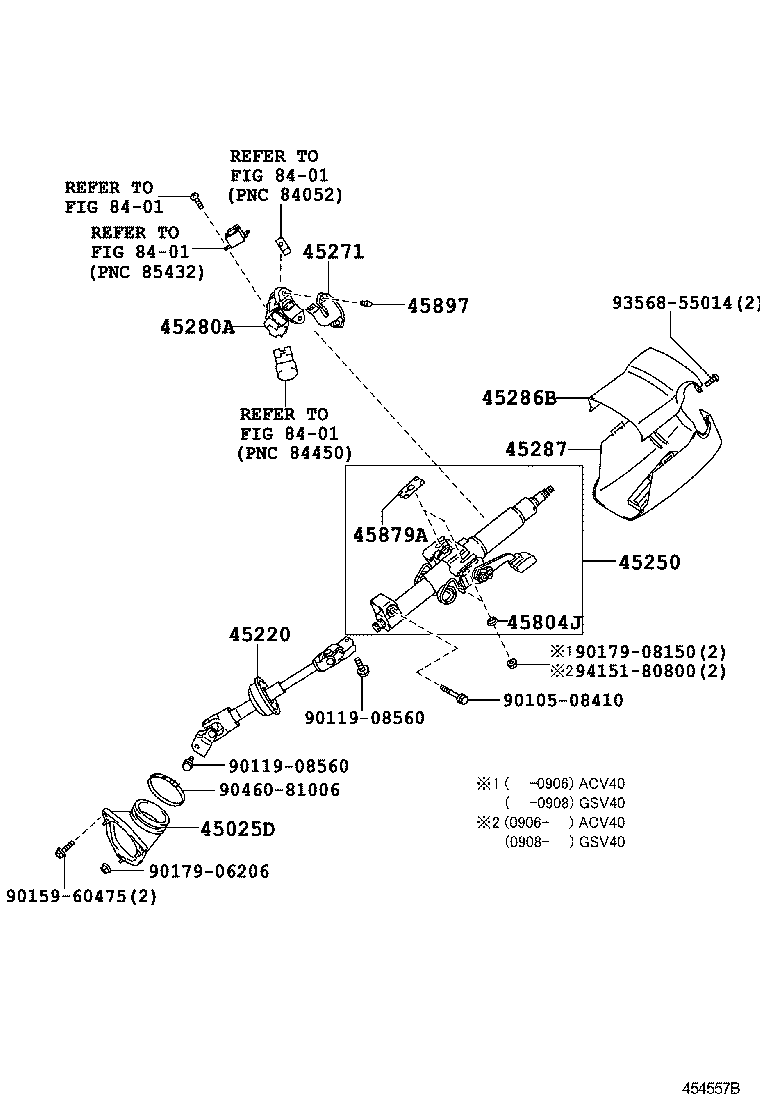

Figure 454557B 454557B 2006-06 → 2009-06 Figure 454557B 454557B 2006-06 → — Figure 454557B 454557B 2006-10 → — Figure 454776C 454776C 2006-10 → — Figure 454776C 454776C 2009-06 → — Figure 454776C 454776C 2010-01 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45220 Shaft Assy, Steering Intermediate
45250 Column Assy, Steering
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45804J Collar Sub-assy, Break Away
45879A Capsule, Break Away
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
