Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 8 illustrations

Illustrations

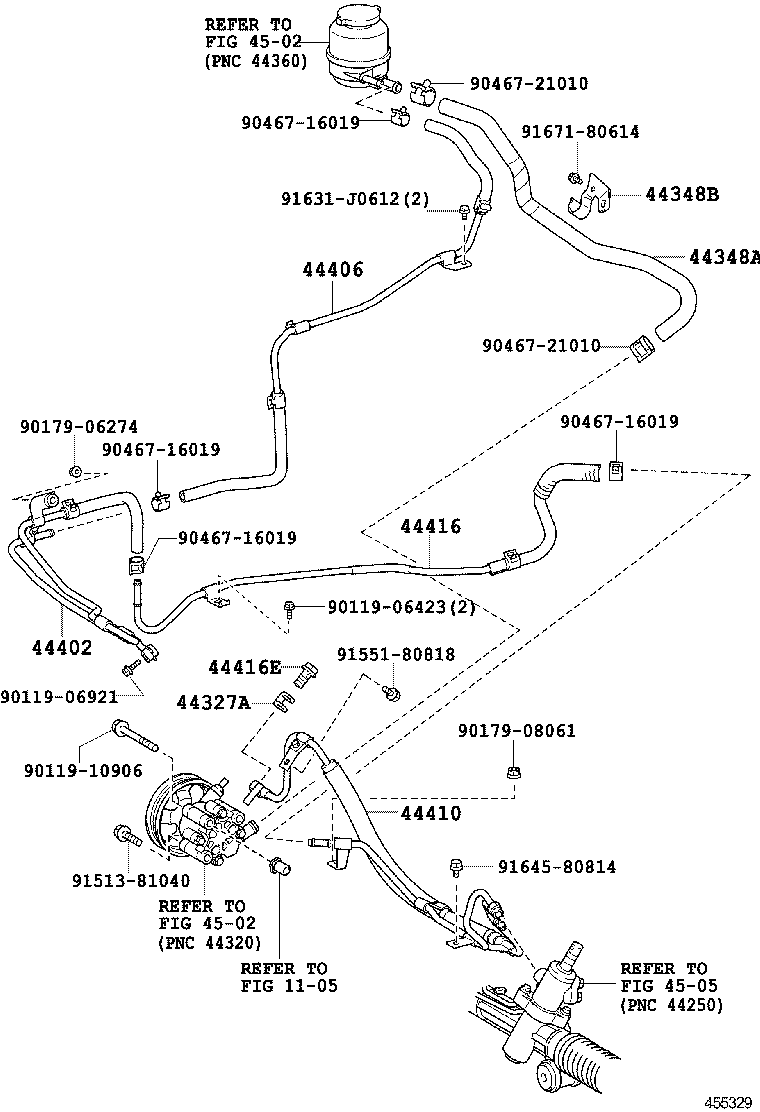

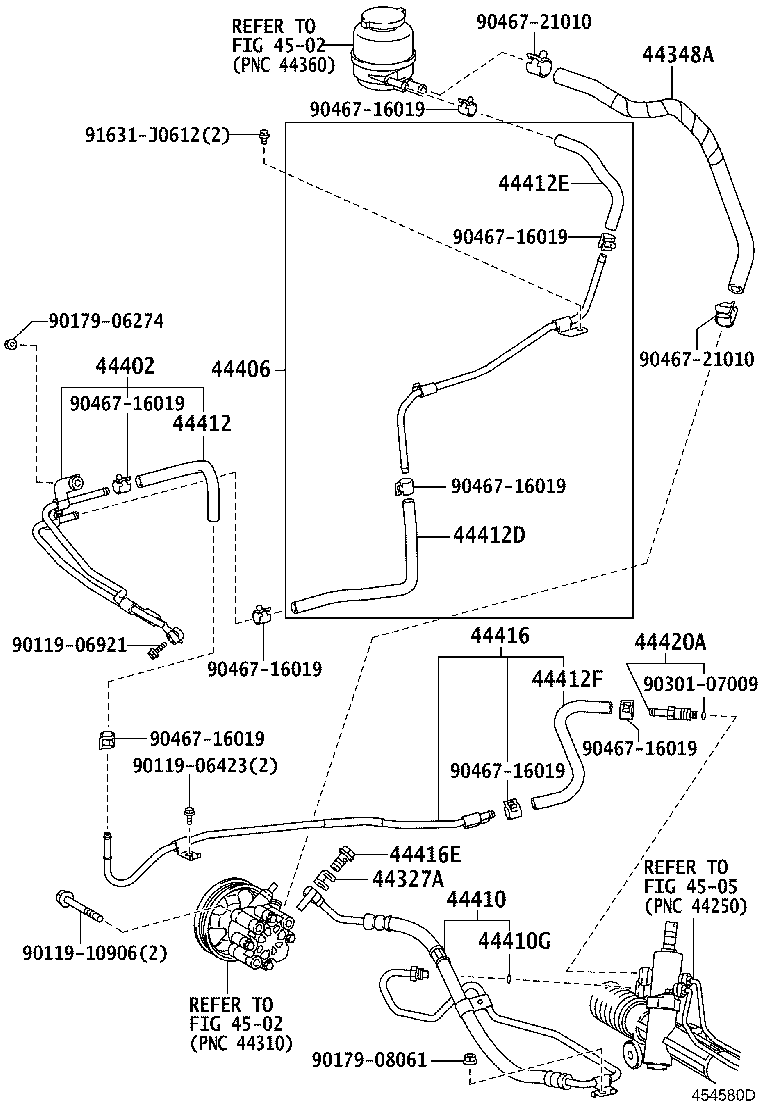

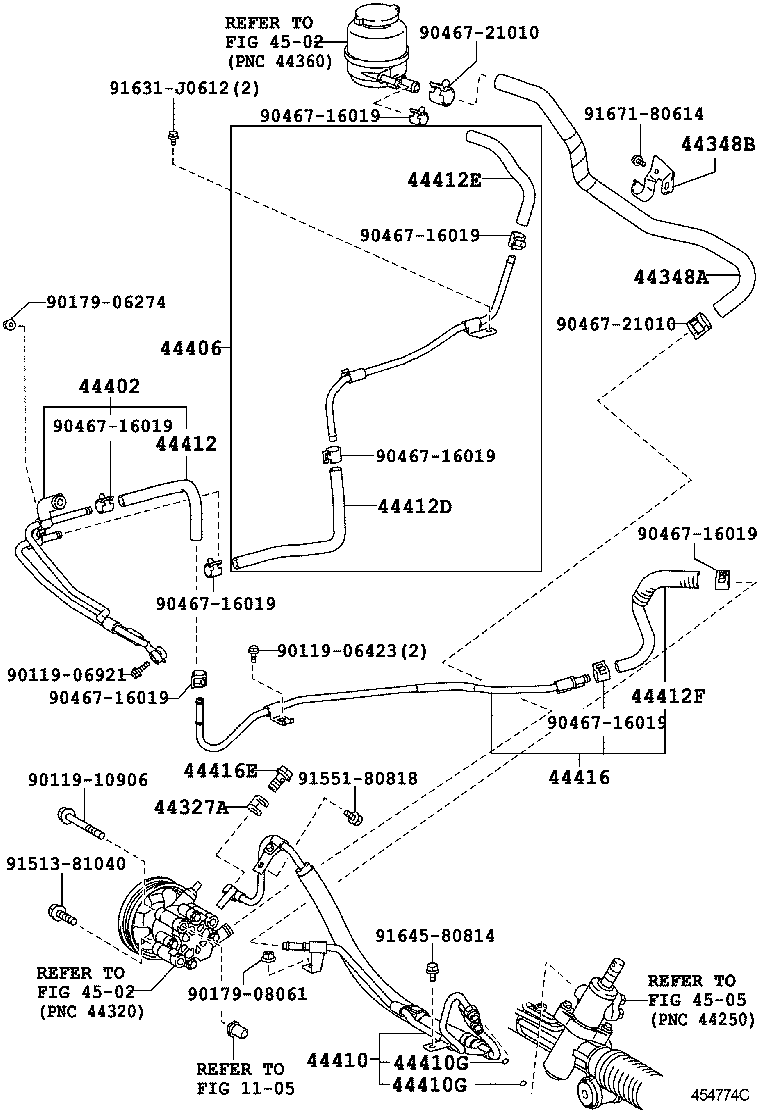

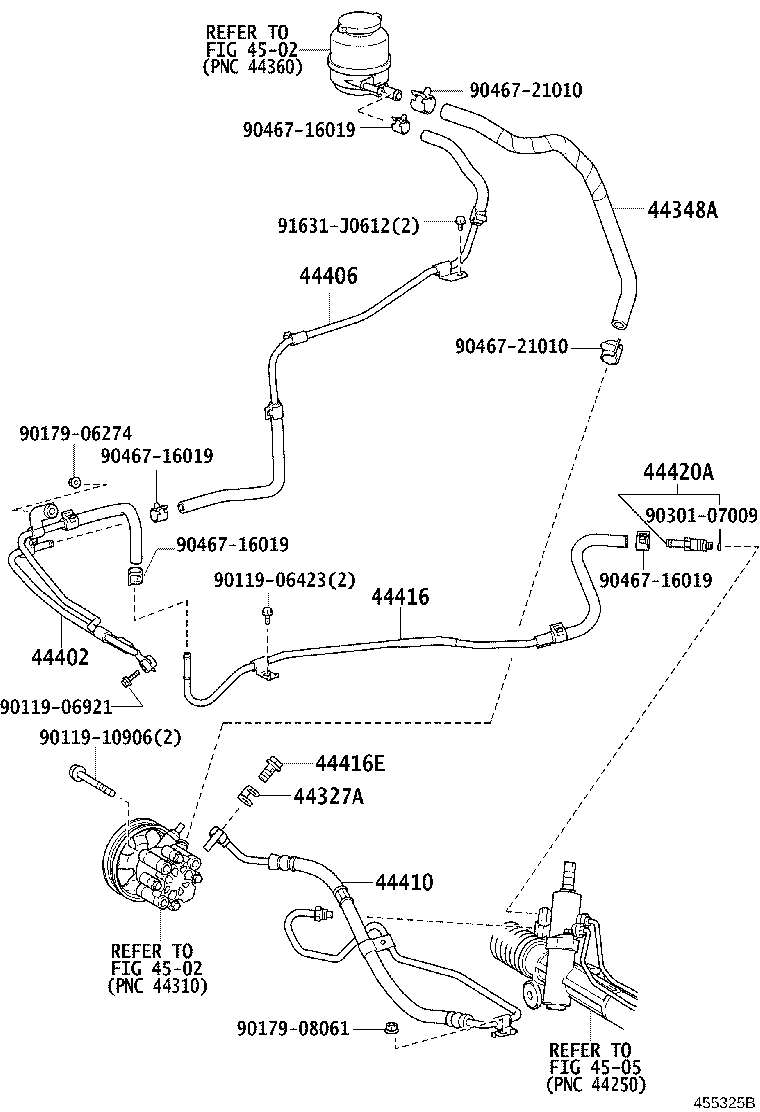

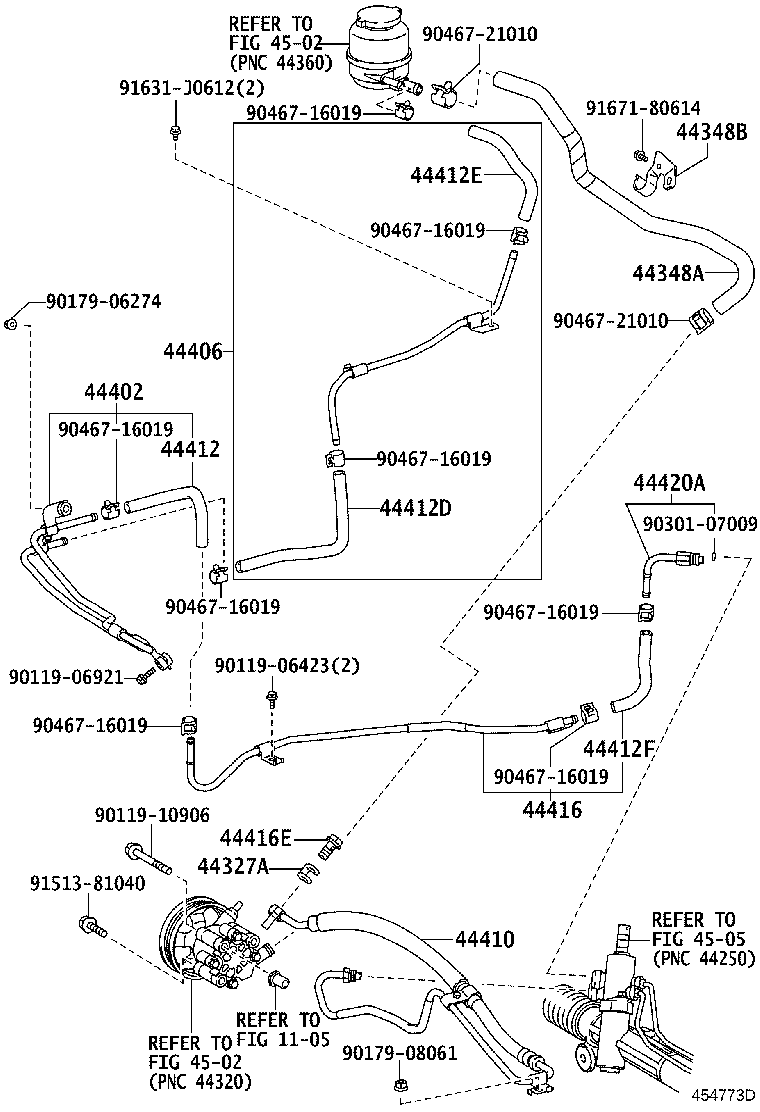

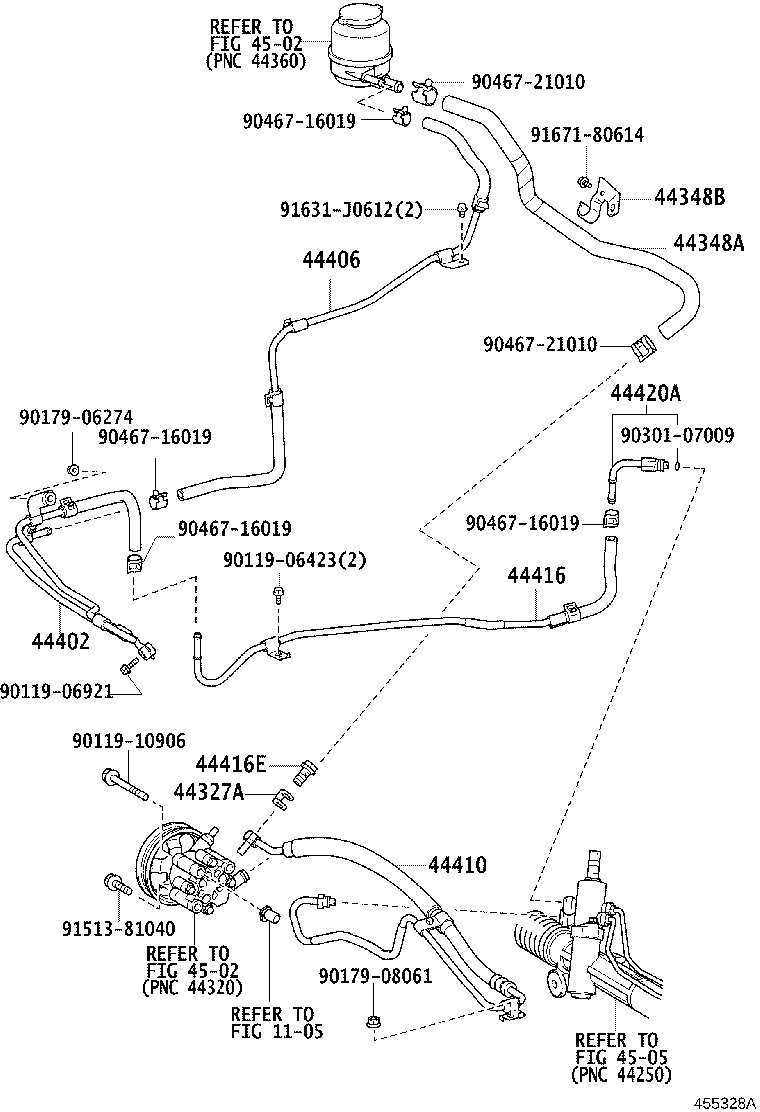

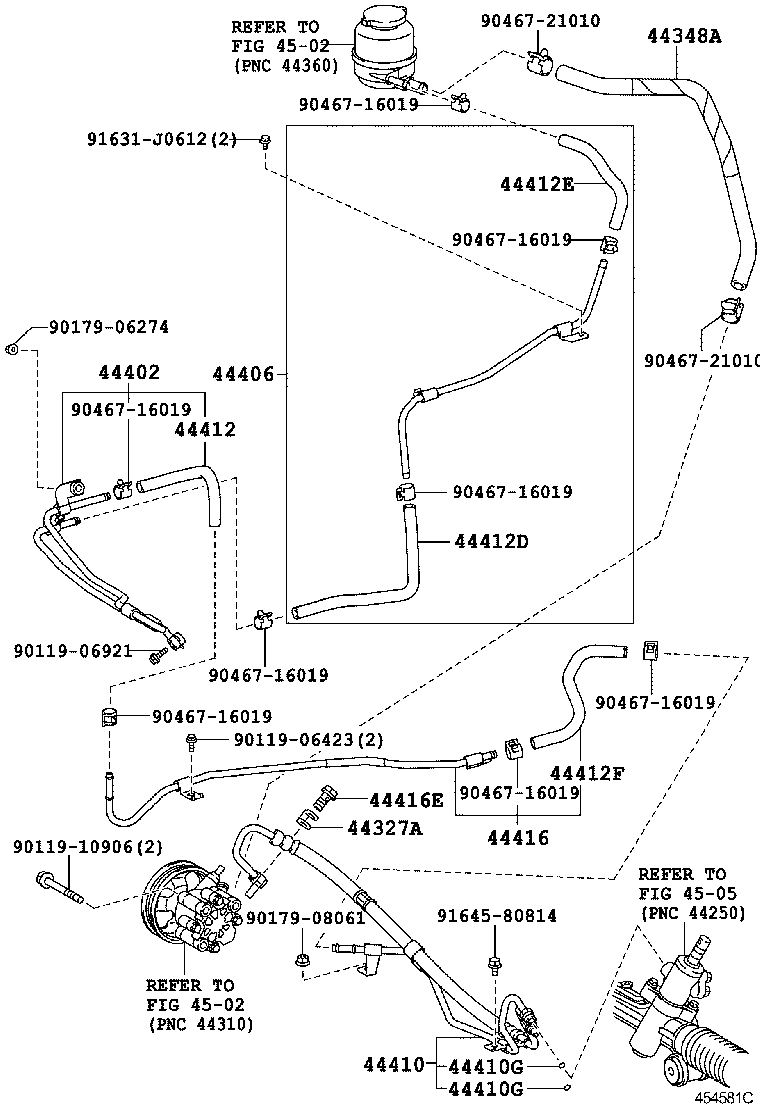

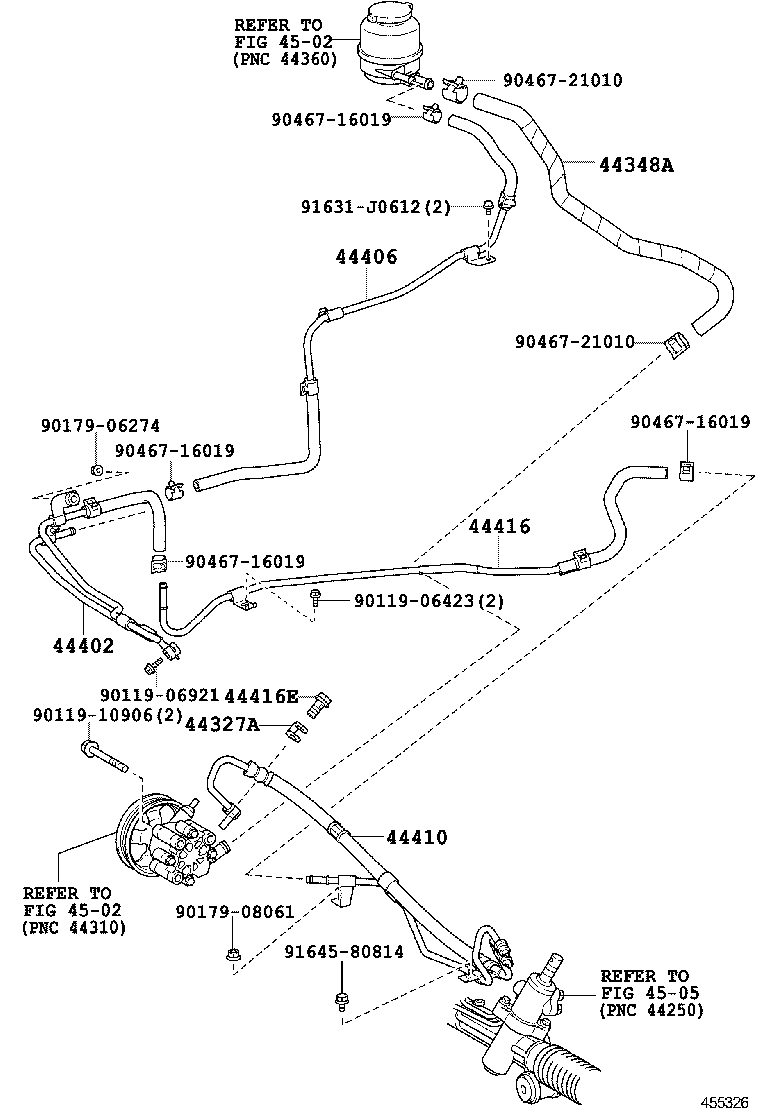

Figure 454580D 454580D 2006-06 → 2009-04 Figure 455325B 455325B 2009-04 → — Figure 454581C 454581C 2006-06 → 2009-04 Figure 455326 455326 2009-04 → — Figure 454773D 454773D 2006-10 → 2009-04 Figure 455328A 455328A 2009-04 → — Figure 454774C 454774C 2006-10 → 2009-04 Figure 455329 455329 2009-04 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410G Ring, O(FOR PRESSURE FEED TUBE)
44412 Hose, Return
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44412F Hose, Return, NO.3
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416E Bolt, Union(FOR RETURN TUBE)
44420A Tube Assy, Return
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
