Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

17 part groups · 6 illustrations

Illustrations

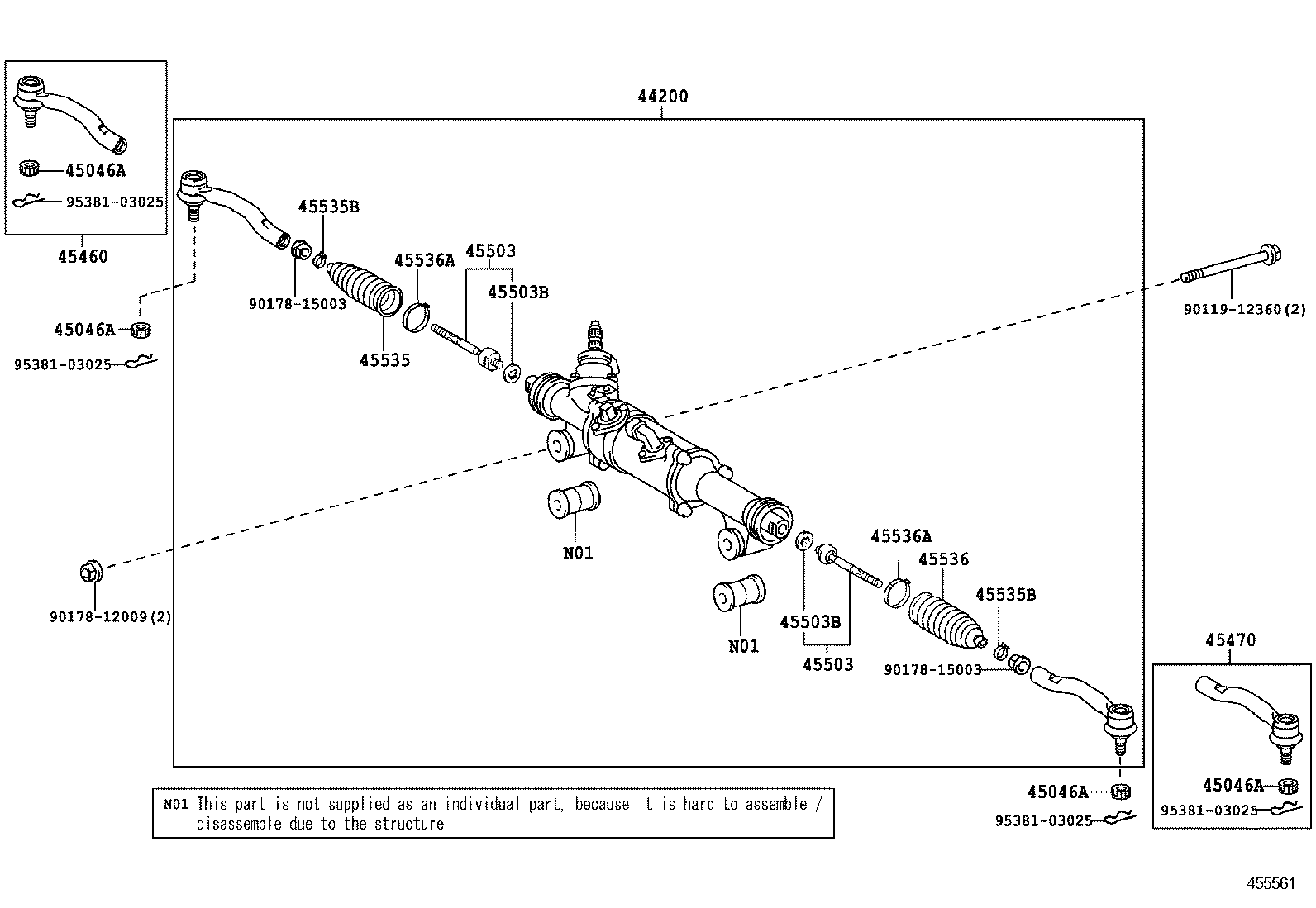

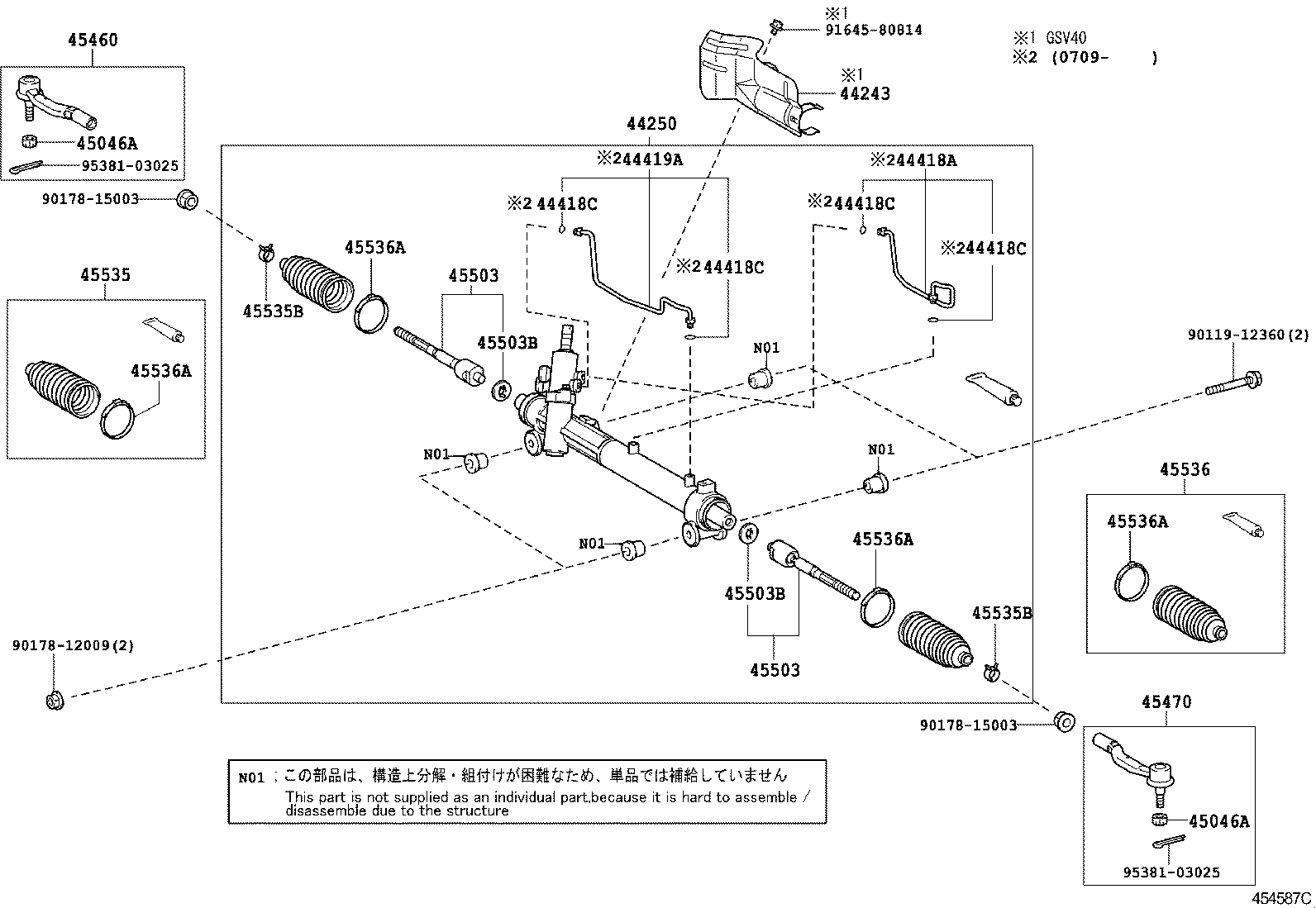

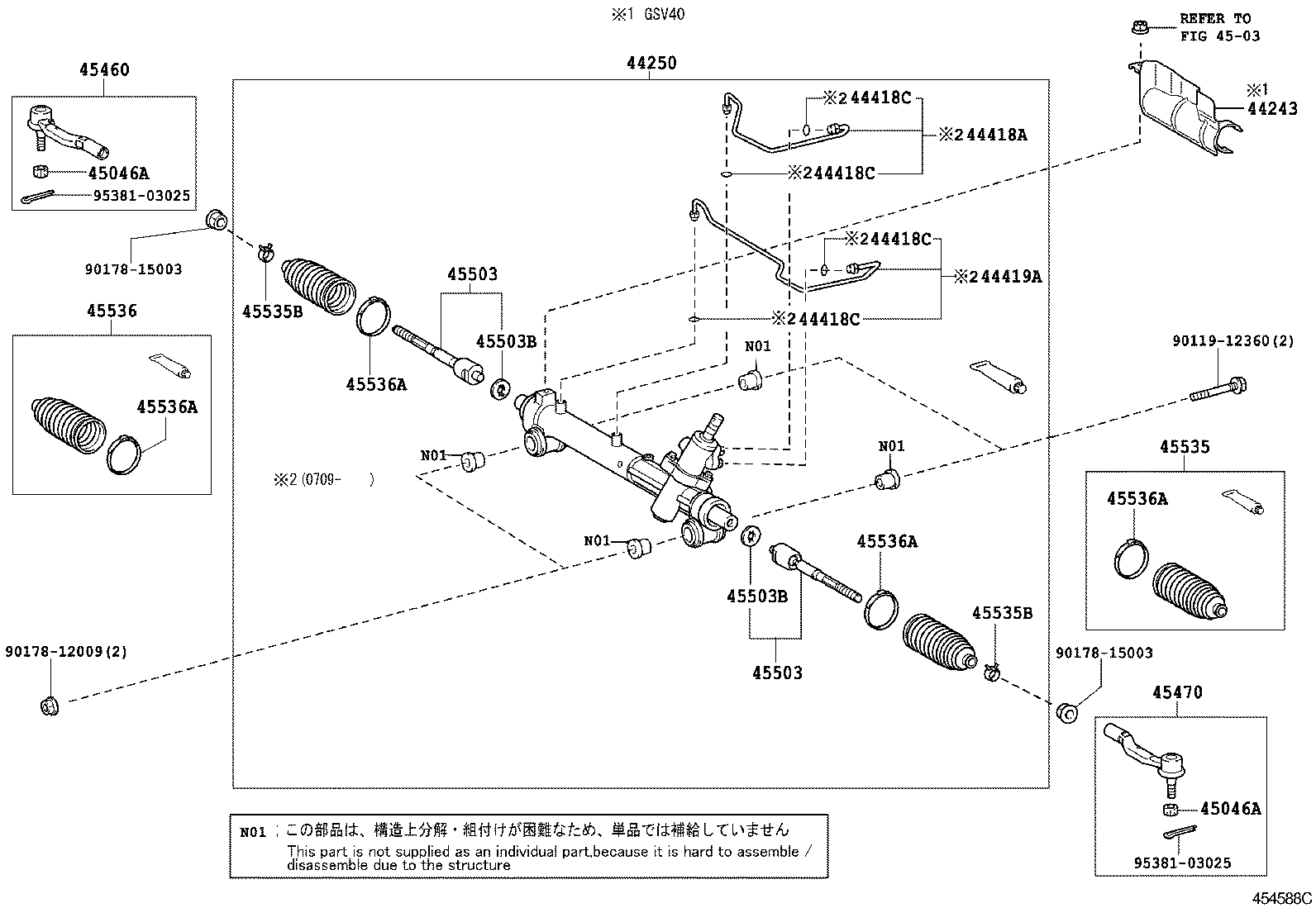

Figure 454587C 454587C 2006-06 → — Figure 454588C 454588C 2006-06 → — Figure 455561 455561 2010-01 → — Figure 454599 454599 2006-06 → 2007-09 Figure 455121A 455121A 2007-09 → 2008-04 Figure 455237 455237 2008-04 → —

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
44200 Link Assy, Power Steering
44243 Insulator, Power Steering Rack Housing Heat
44250 Gear Assy, Power Steering(FOR RACK & PINION)
44418A Tube, Steering Right Turn Pressure
44418C Ring, O(FOR STEERING TURN PRESSURE TUBE)
44419A Tube, Steering Left Turn Pressure
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
