Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 10 illustrations

Illustrations

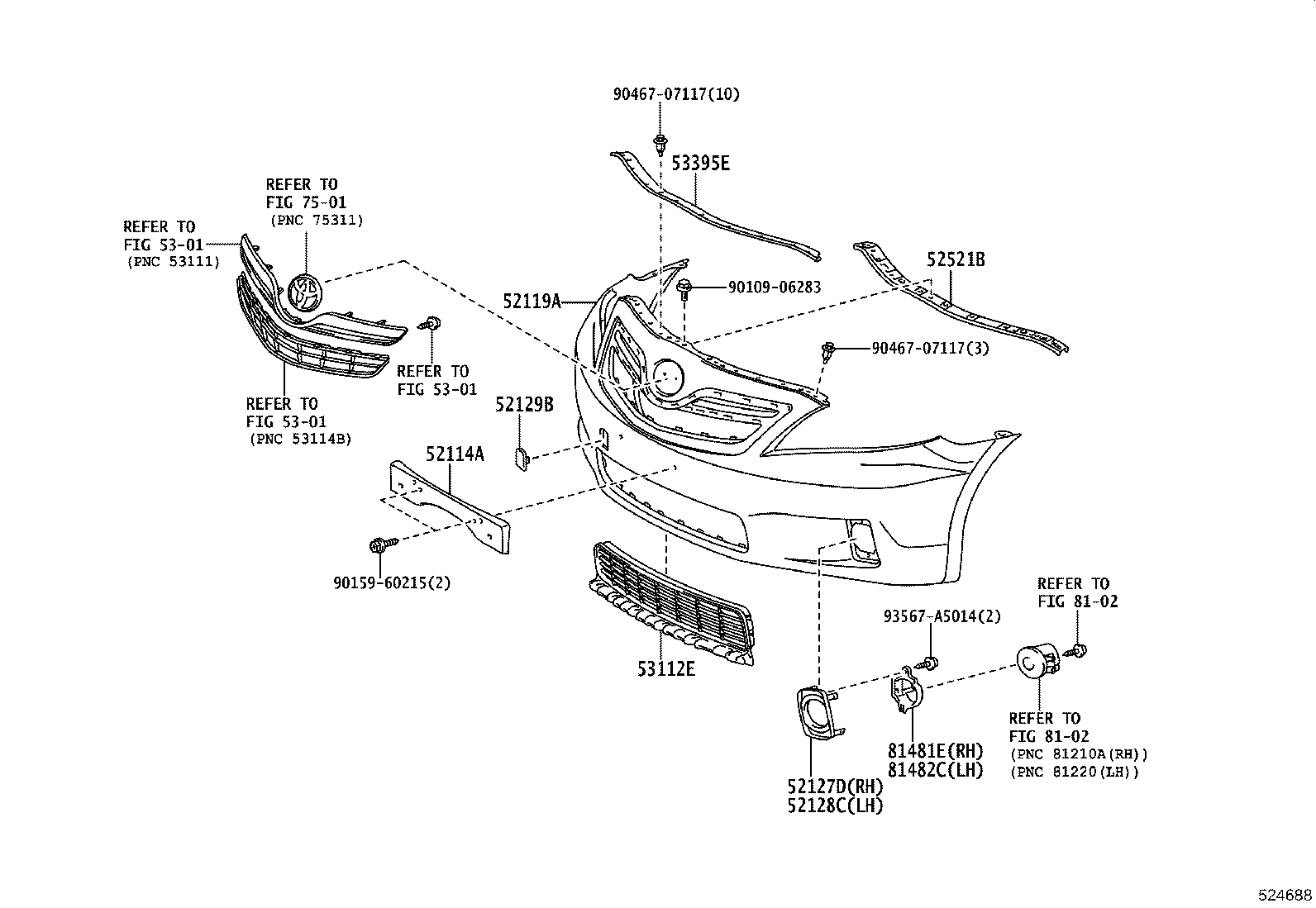

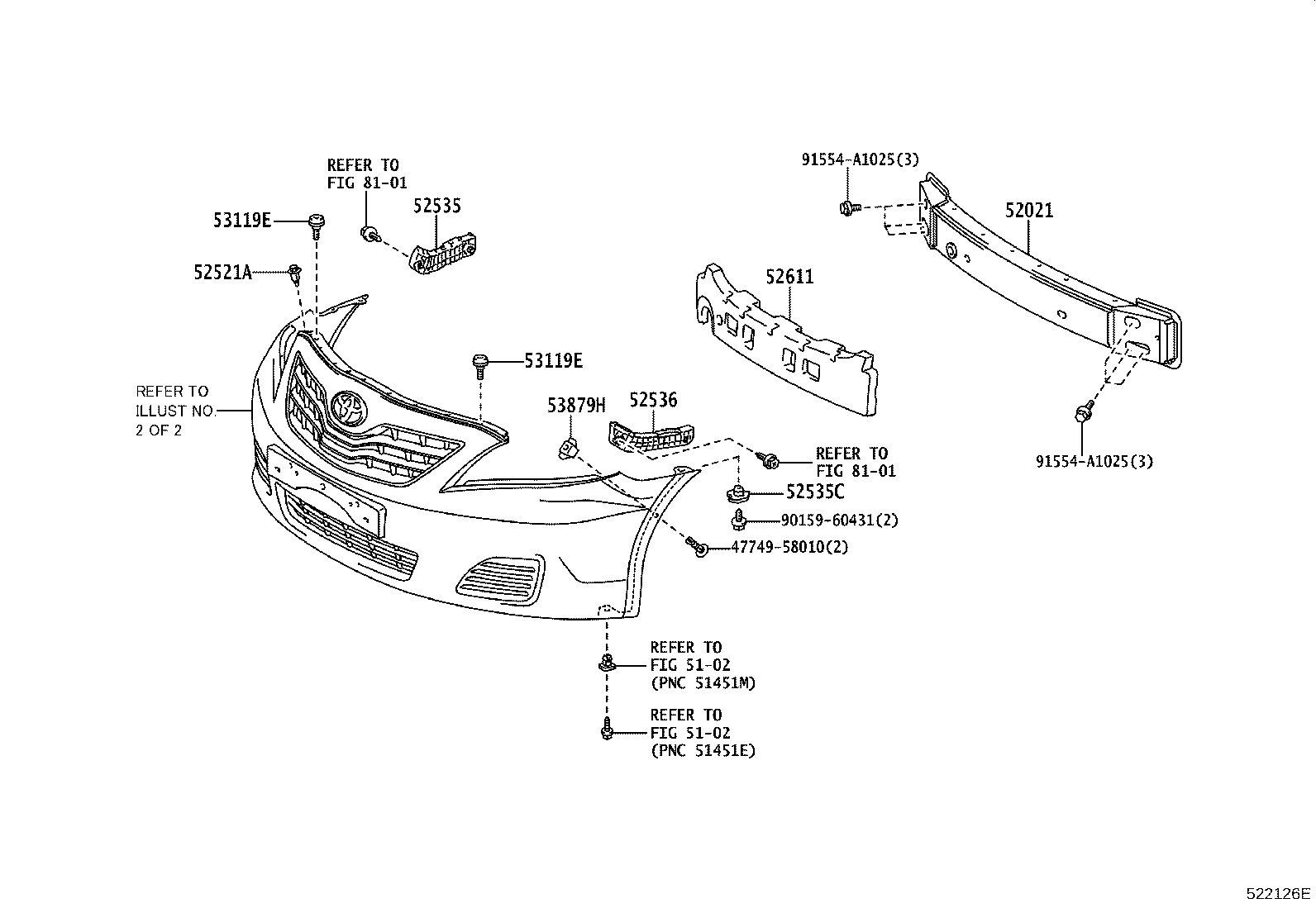

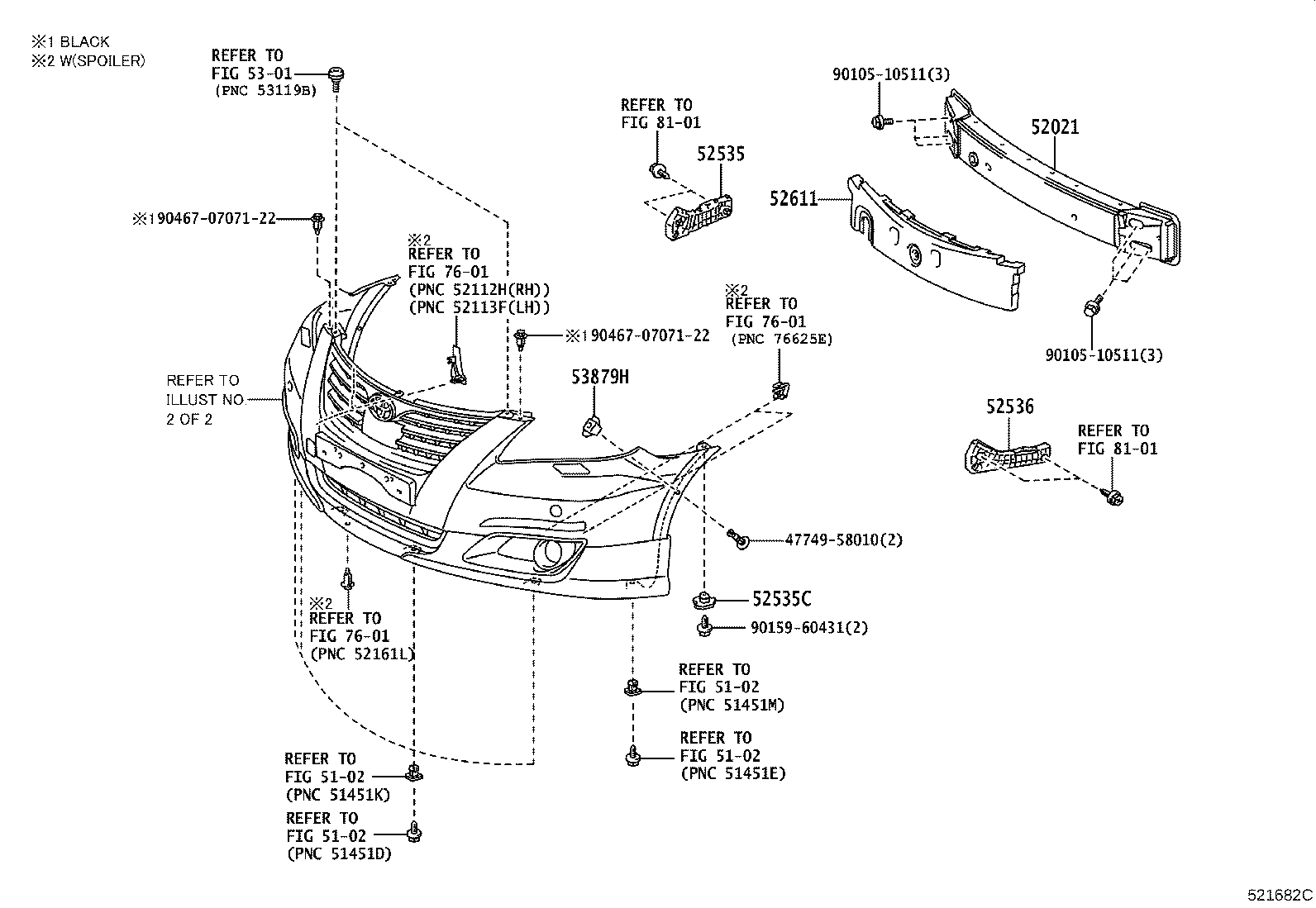

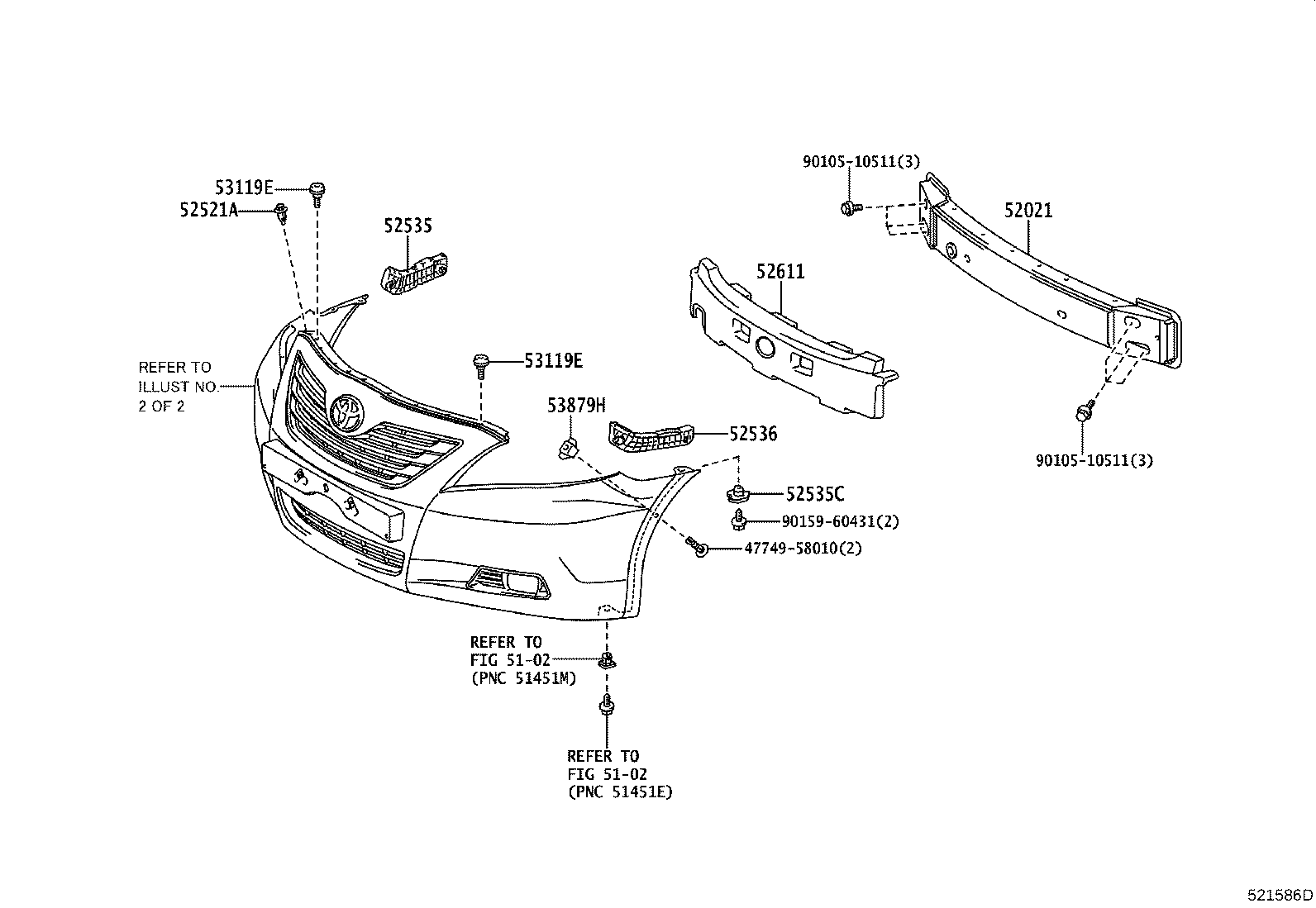

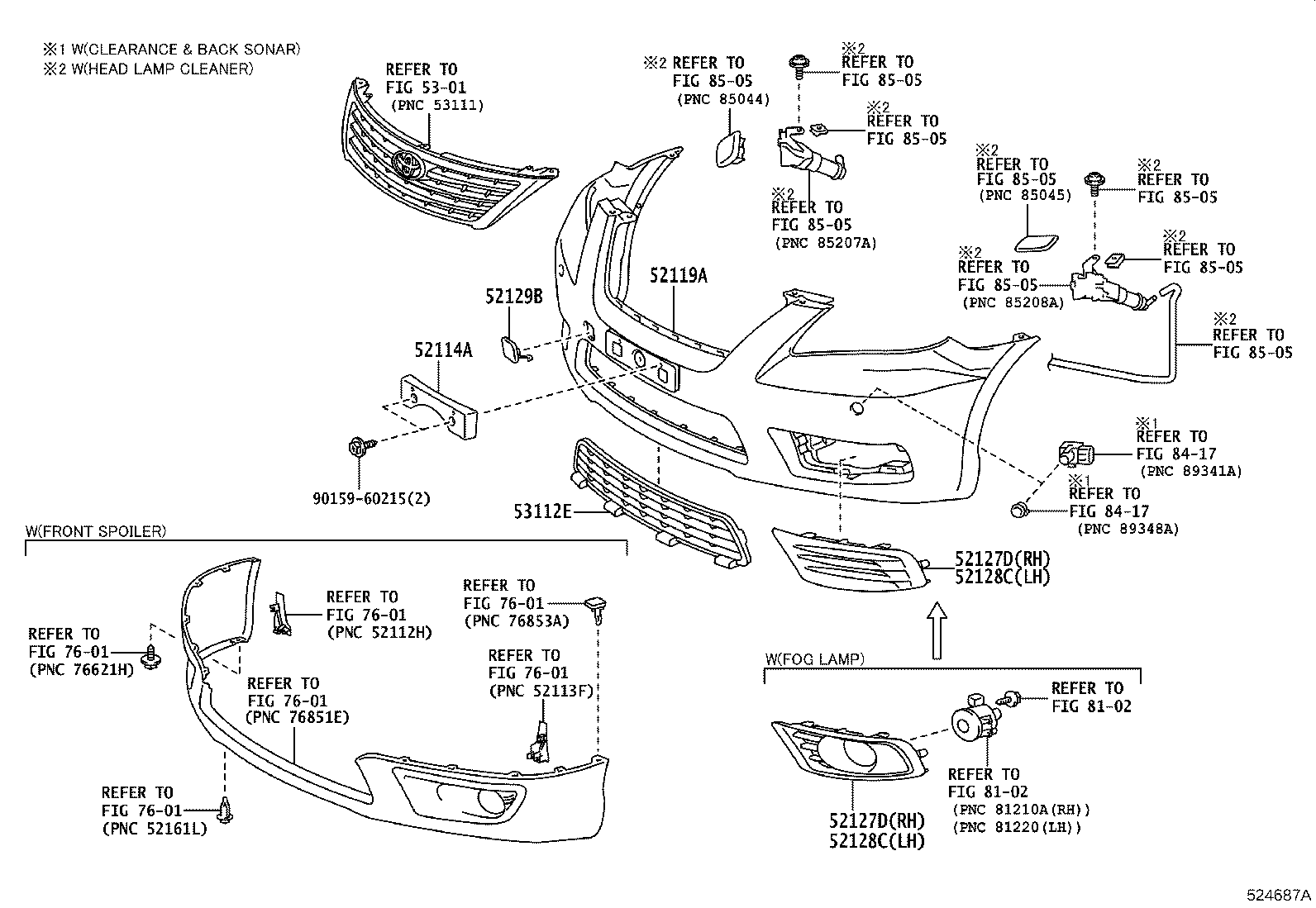

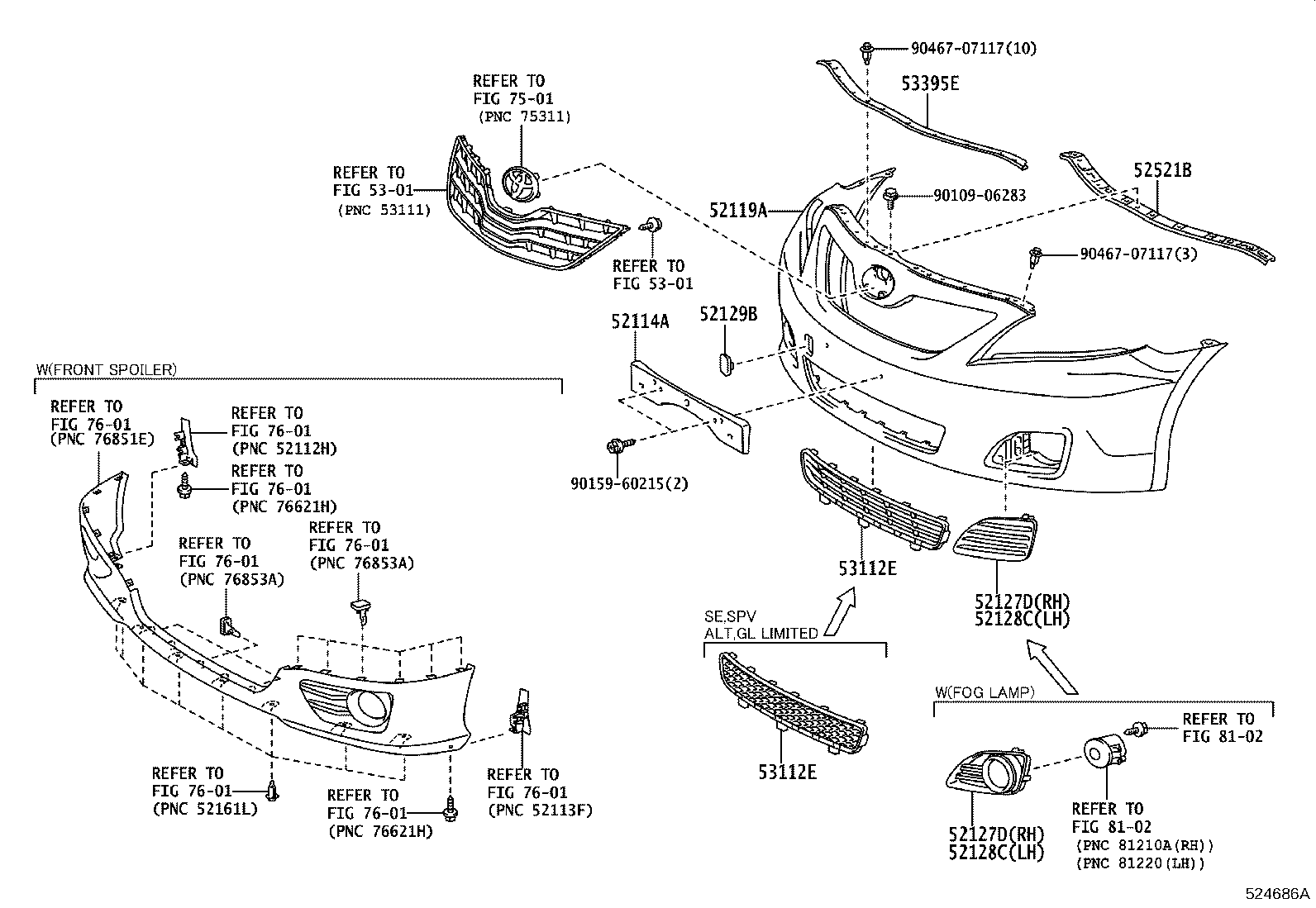

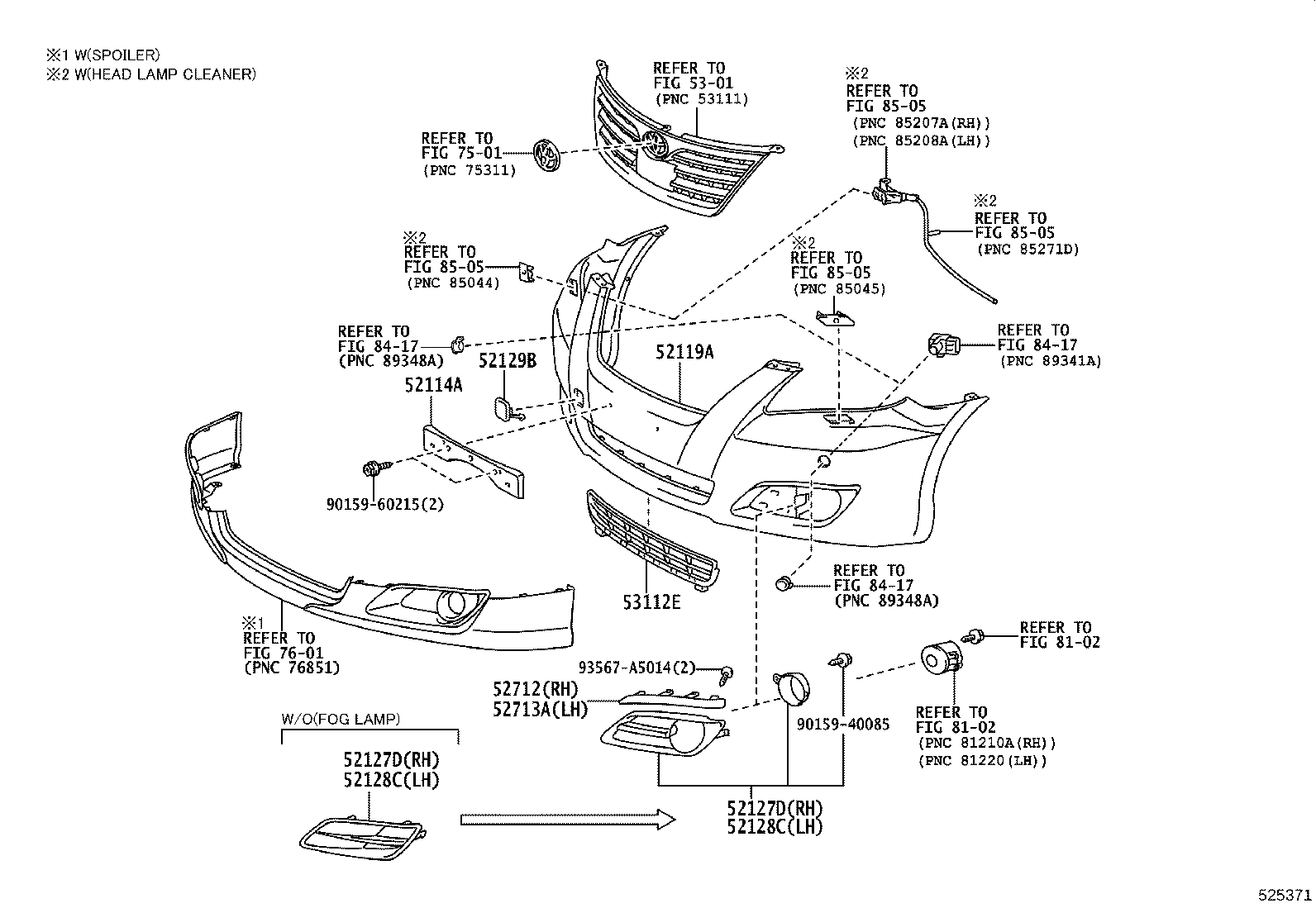

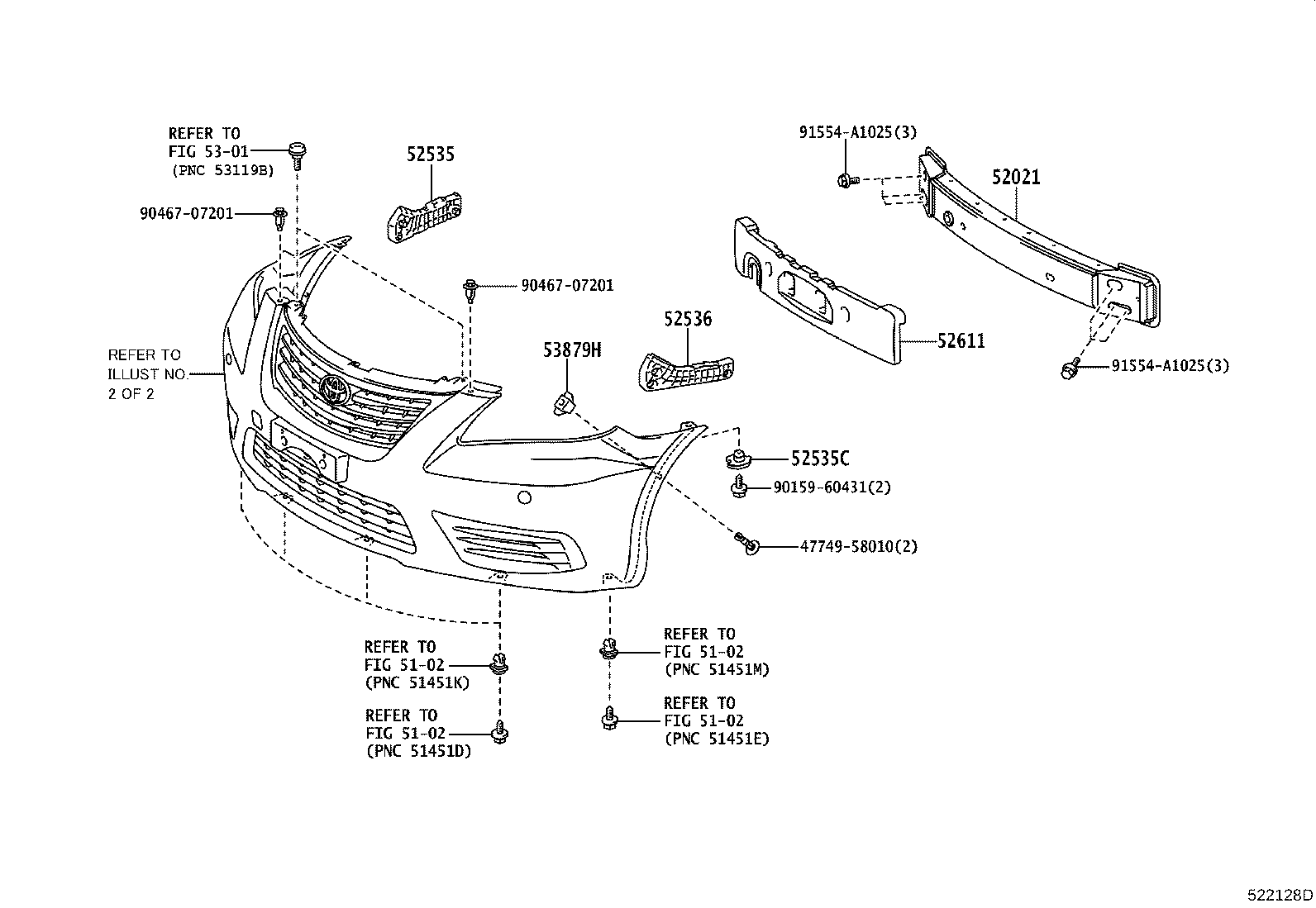

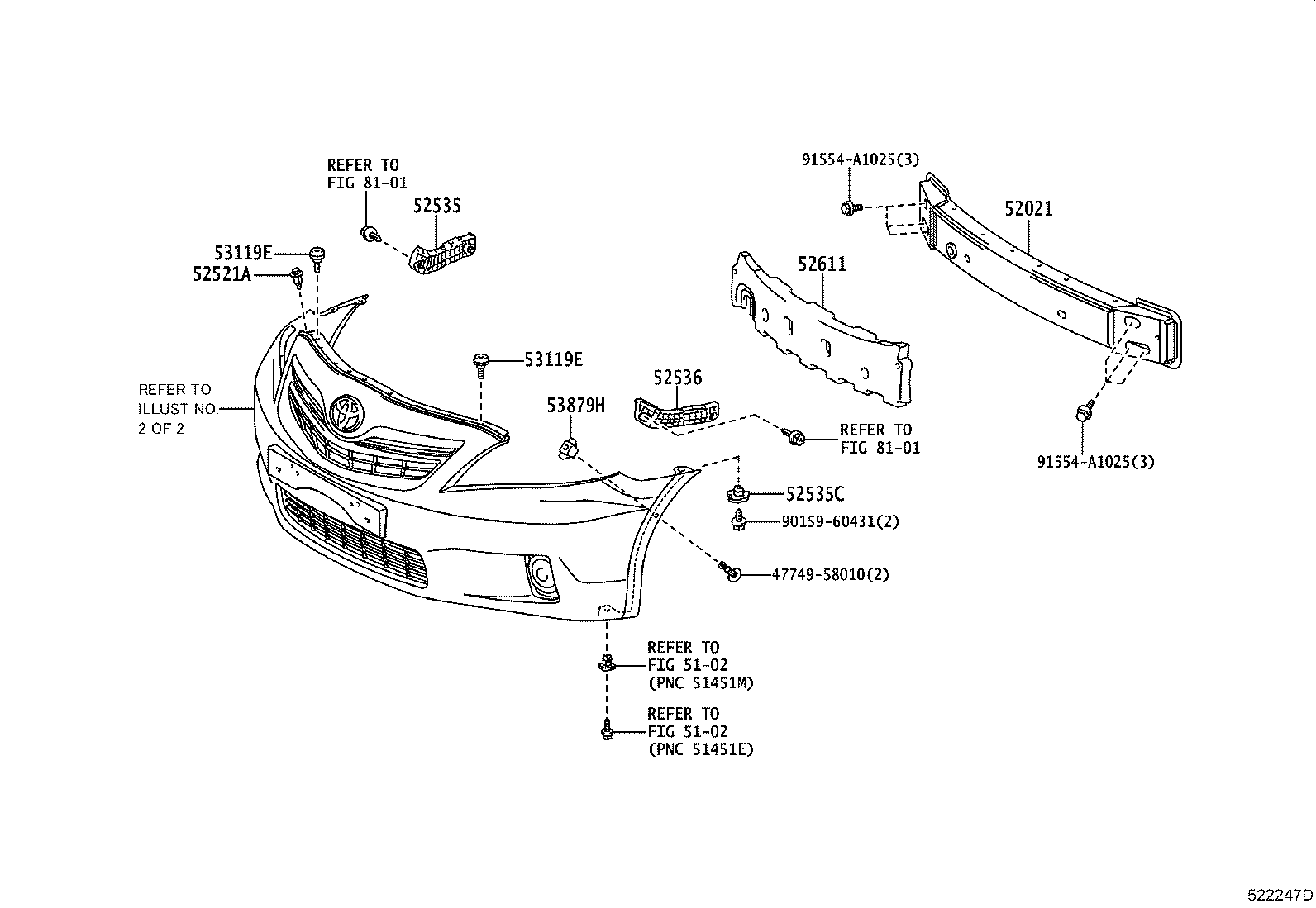

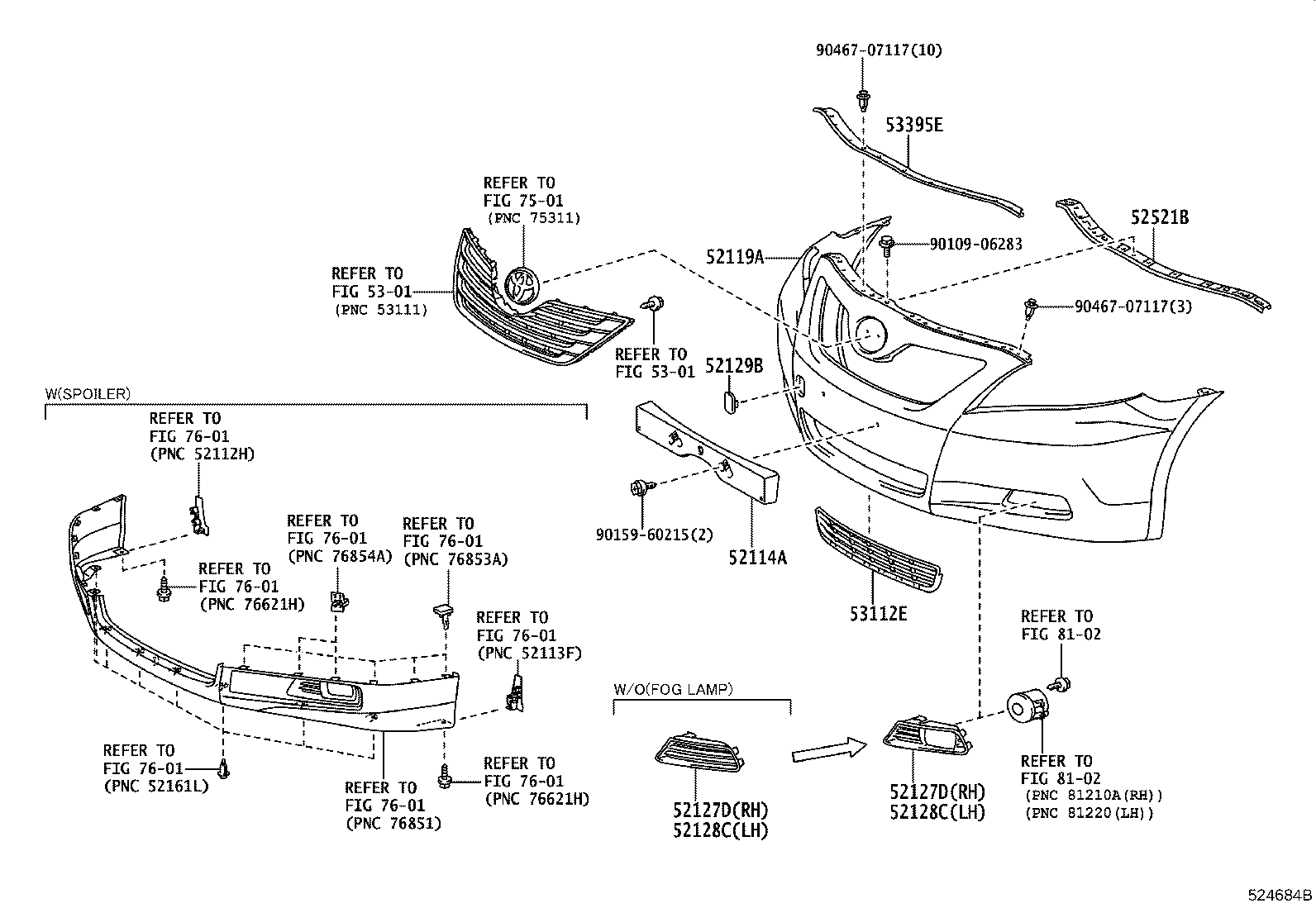

Figure 521586D 521586D 2006-06 → 2009-06 Figure 524684B 524684B 2006-06 → 2009-06 Figure 521682C 521682C 2006-10 → 2009-08 Figure 525371 525371 2006-10 → 2009-08 Figure 522126E 522126E 2009-06 → — Figure 524686A 524686A 2009-06 → — Figure 522128D 522128D 2009-08 → — Figure 524687A 524687A 2009-08 → — Figure 522247D 522247D 2010-01 → — Figure 524688 524688 2010-01 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52521A Clip(FOR FRONT BUMPER RETAINER)
52521B Retainer, Front Bumper, Upper
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53119E Protector, Radiator Grille
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
