Factory parts data · Europe

Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 4 illustrations

Illustrations

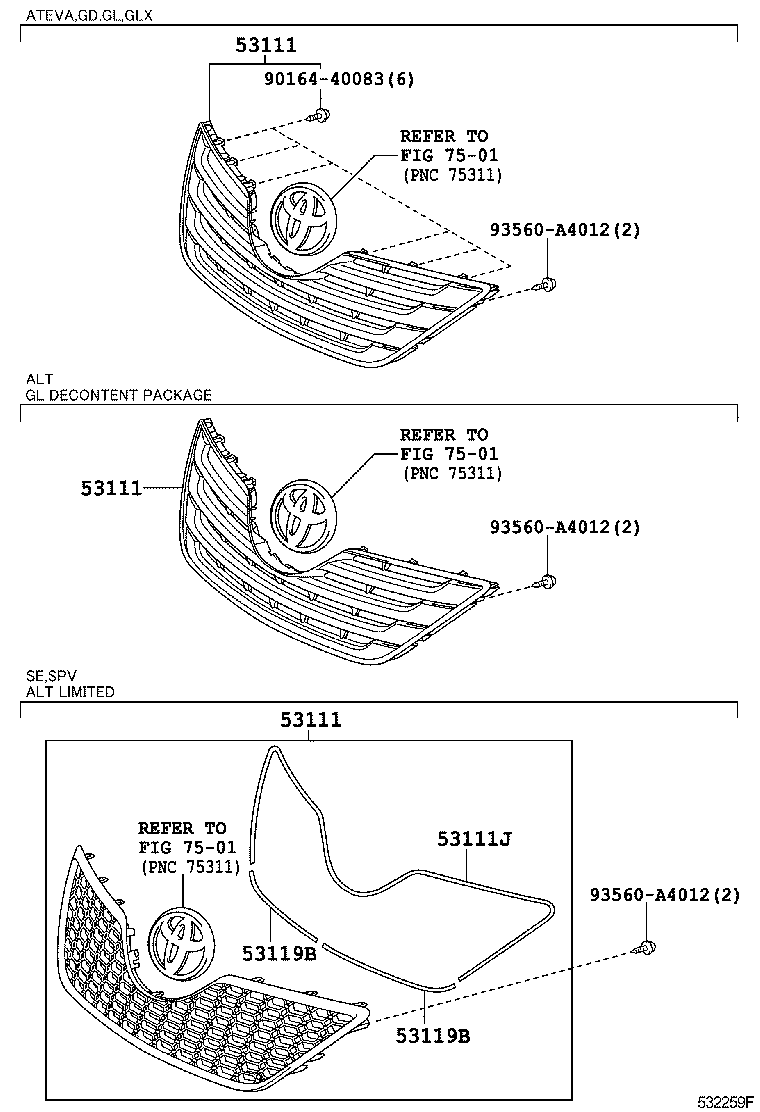

Figure 532259F

532259F 2006-06 → 2009-06

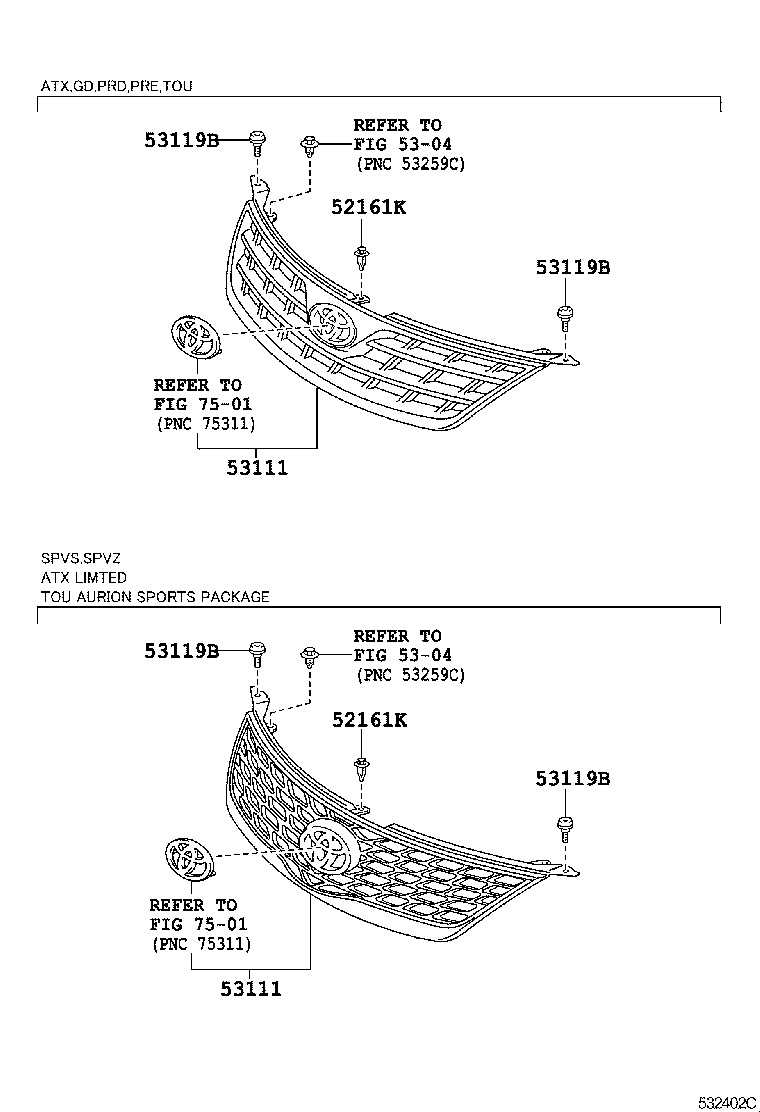

Figure 532402C

532402C 2006-10 → —

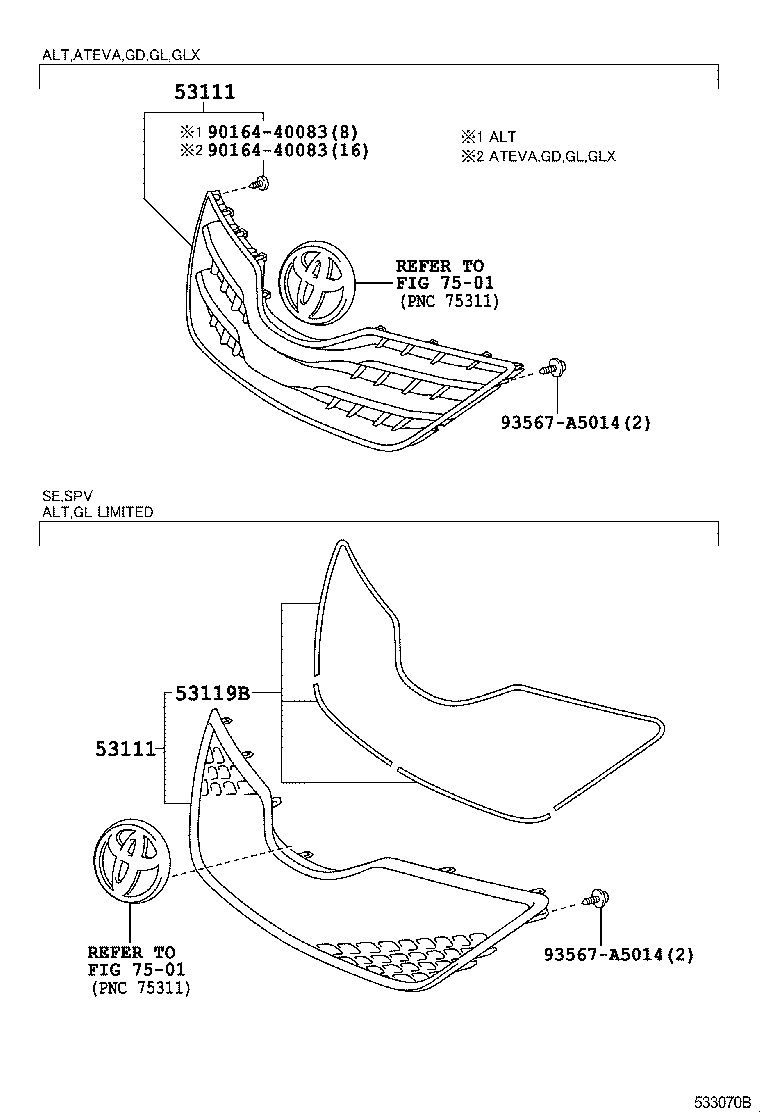

Figure 533070B

533070B 2009-06 → —

533223 2010-01 → —

Part groups

PNC	Description
52161K	Piece, Front Bumper
53111	Grille, Radiator
53111J	Protector, Radiator Grille
53114B	Grille, Radiator, Upper
53119B	Protector, Radiator Grille

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
