Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

26 part groups · 3 illustrations

Illustrations

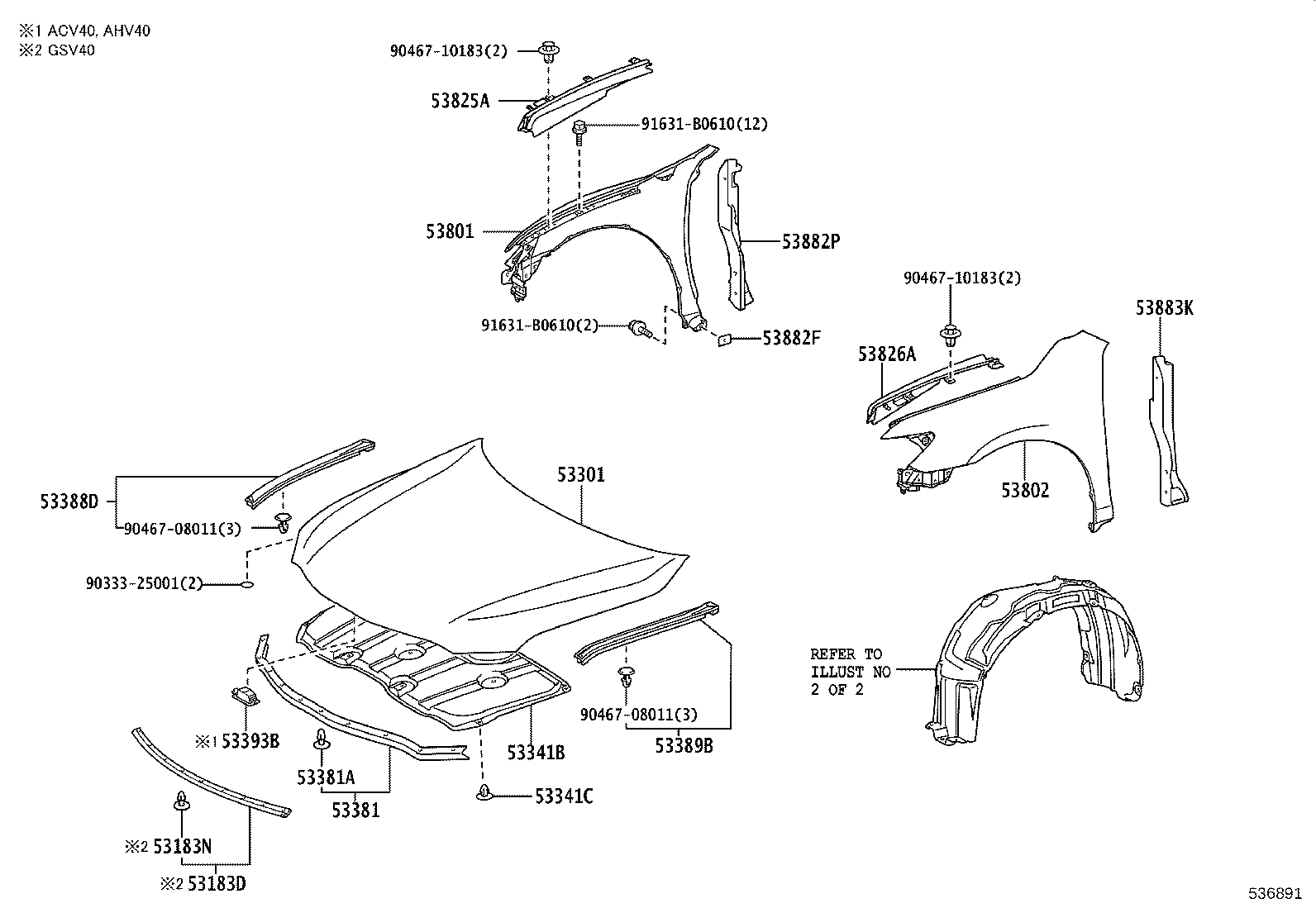

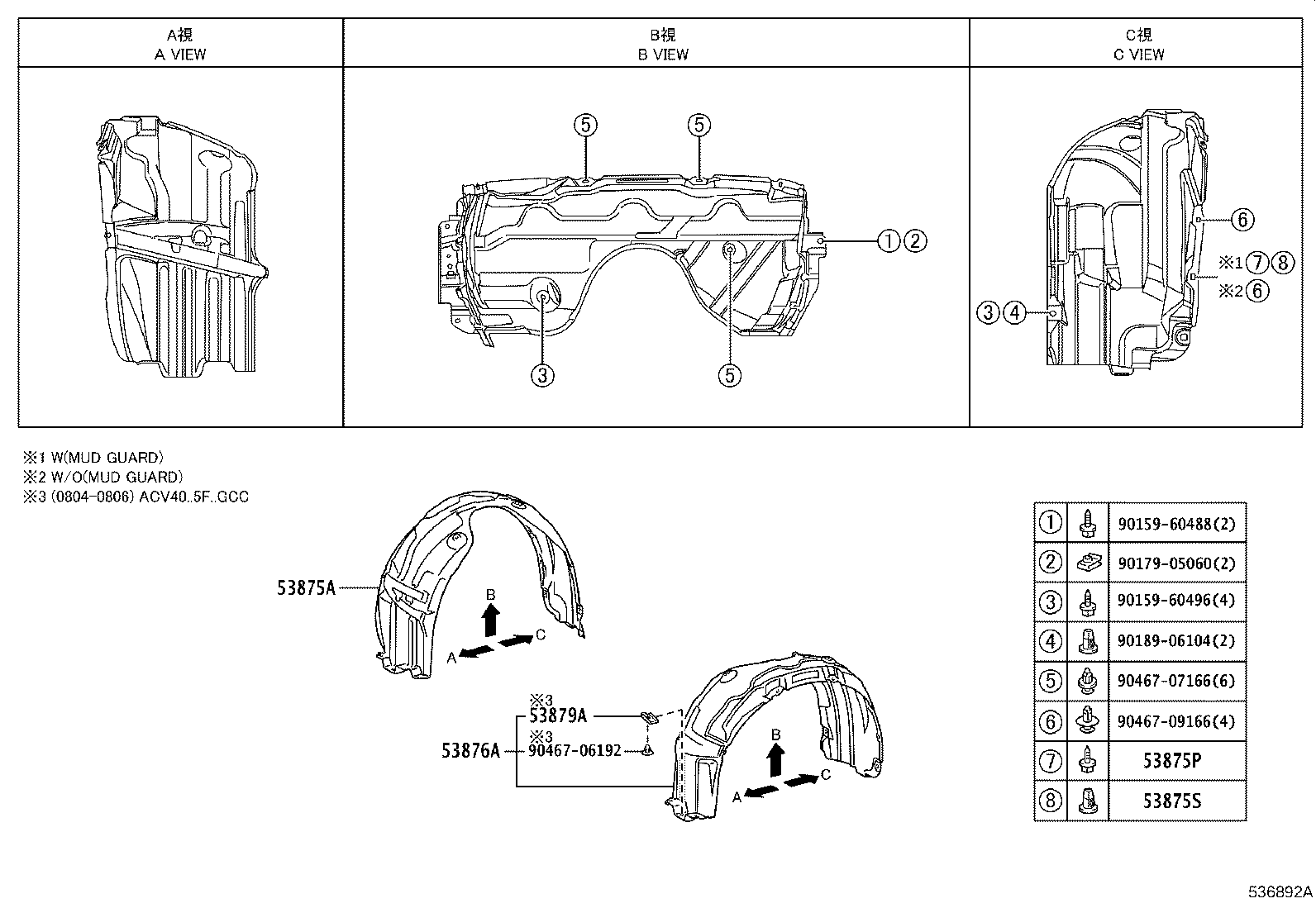

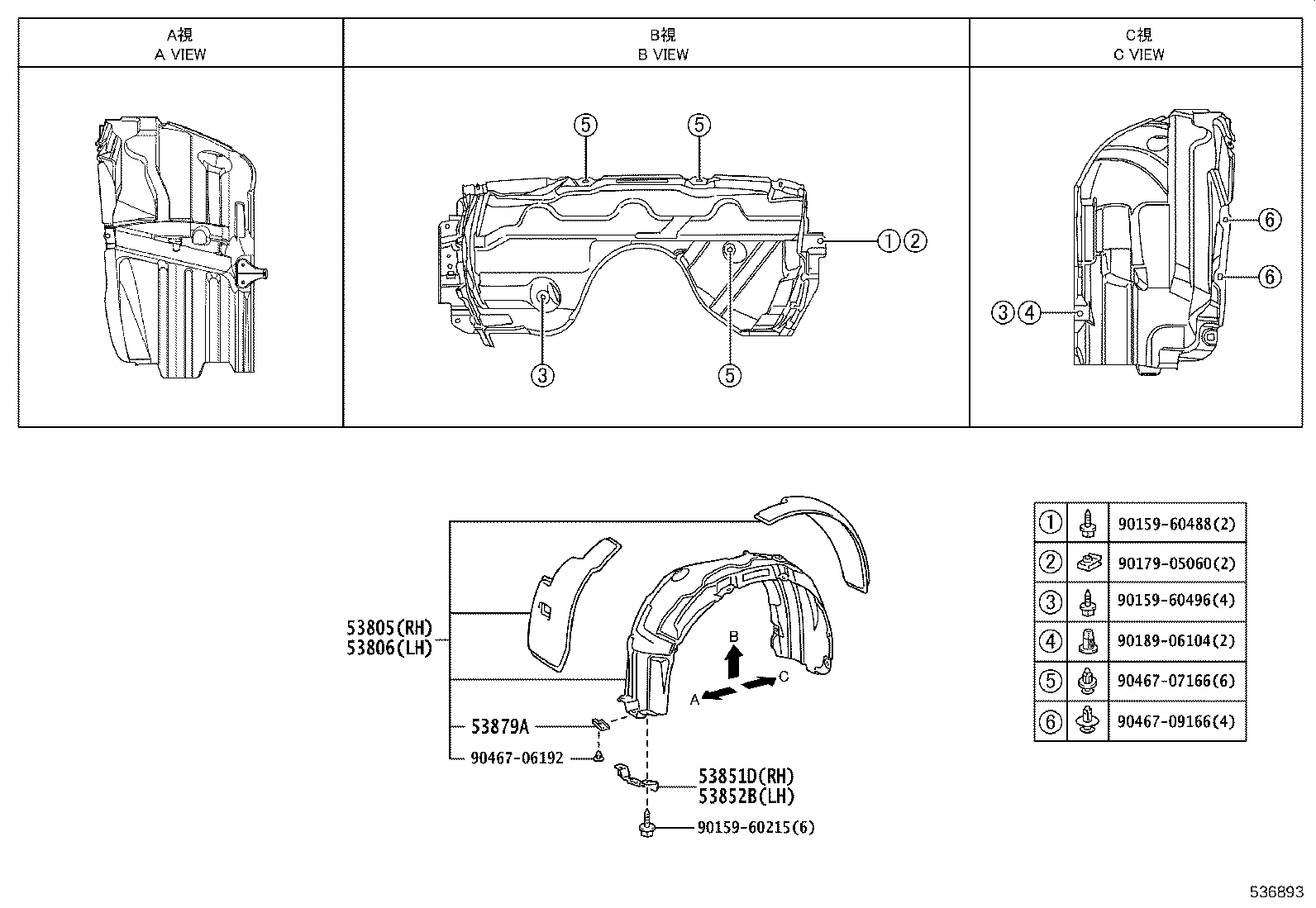

Figure 536891 536891 2006-06 → — Figure 536892A 536892A 2006-06 → — Figure 536893 536893 2010-01 → —

Part groups

PNCDescription
53183D Seal, Headlamp Cover TO Hood
53183N Clip(FOR HEADLAMP COVER SEAL)
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53393B Protector, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53875S Grommet, NO.1
53876A Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
53882P Seal, Front Fender, RH
53883K Seal, Front Fender, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
