Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

9 part groups · 2 illustrations

Illustrations

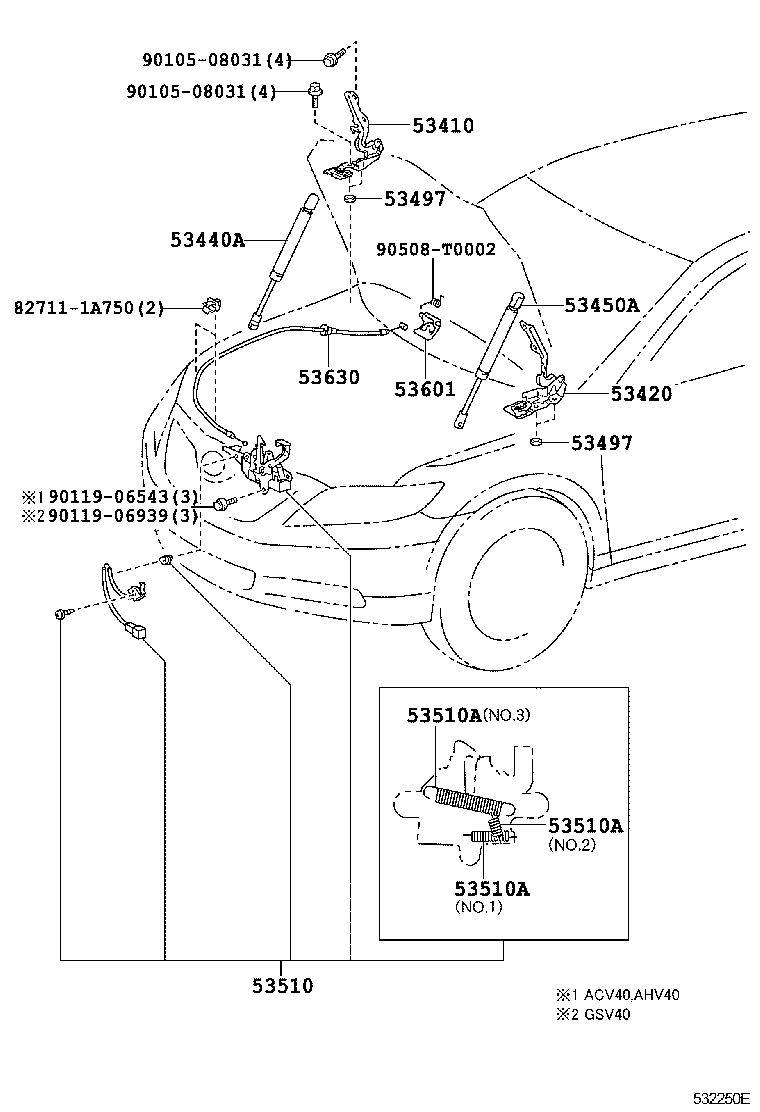

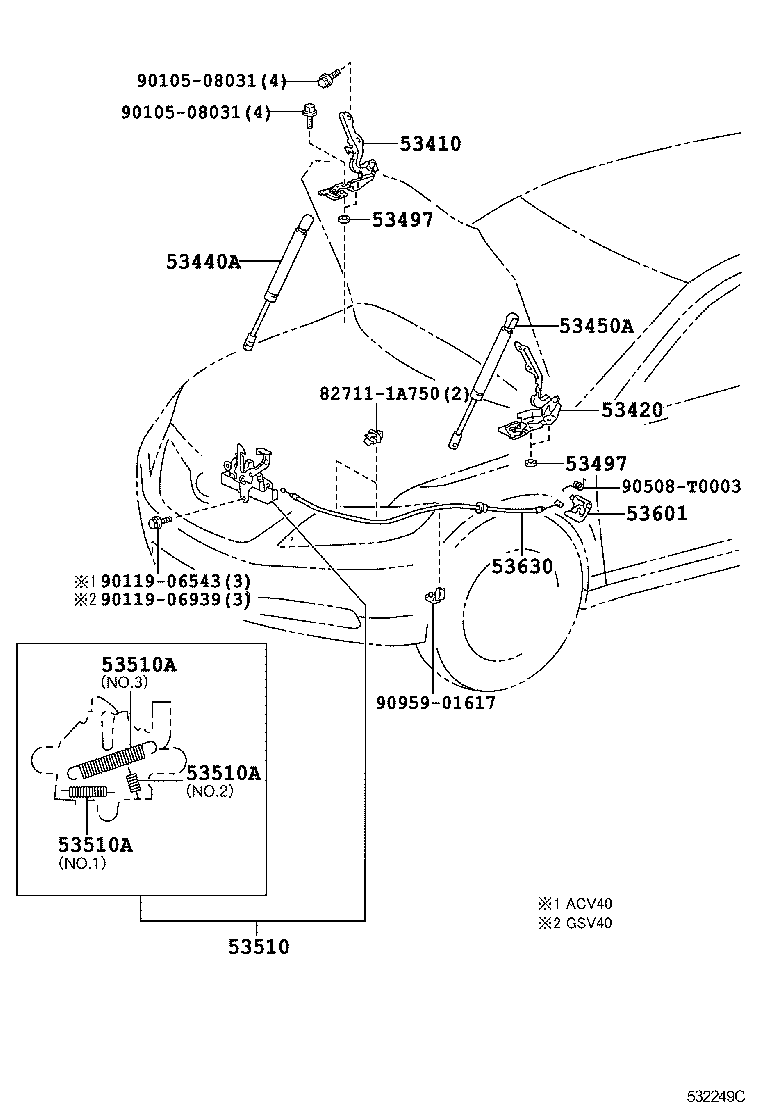

Figure 532249C 532249C 2006-06 → — Figure 532250E 532250E 2006-06 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440A Support Assy, Hood, RH
53450A Support Assy, Hood, LH
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
