Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

37 part groups · 13 illustrations

Illustrations

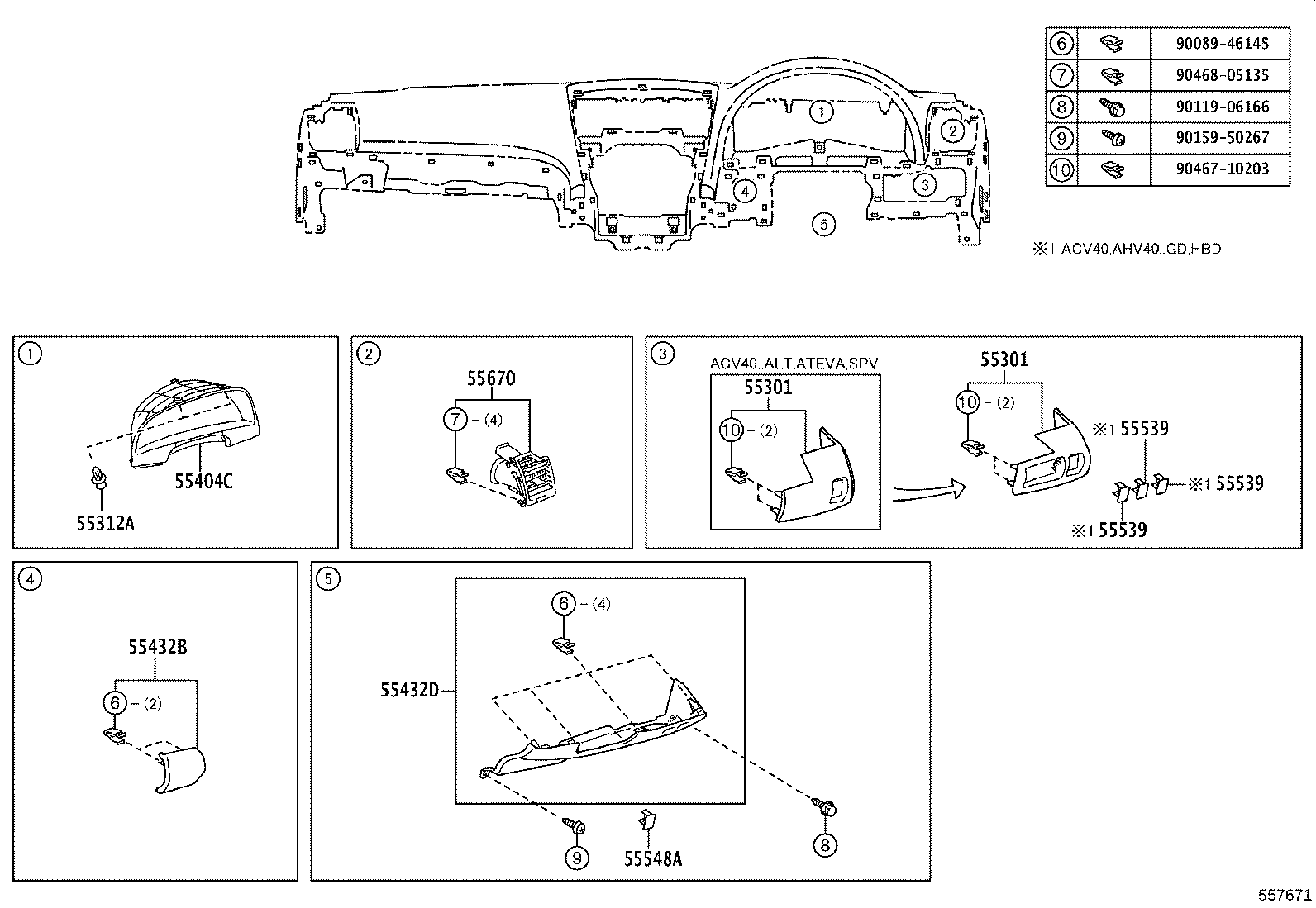

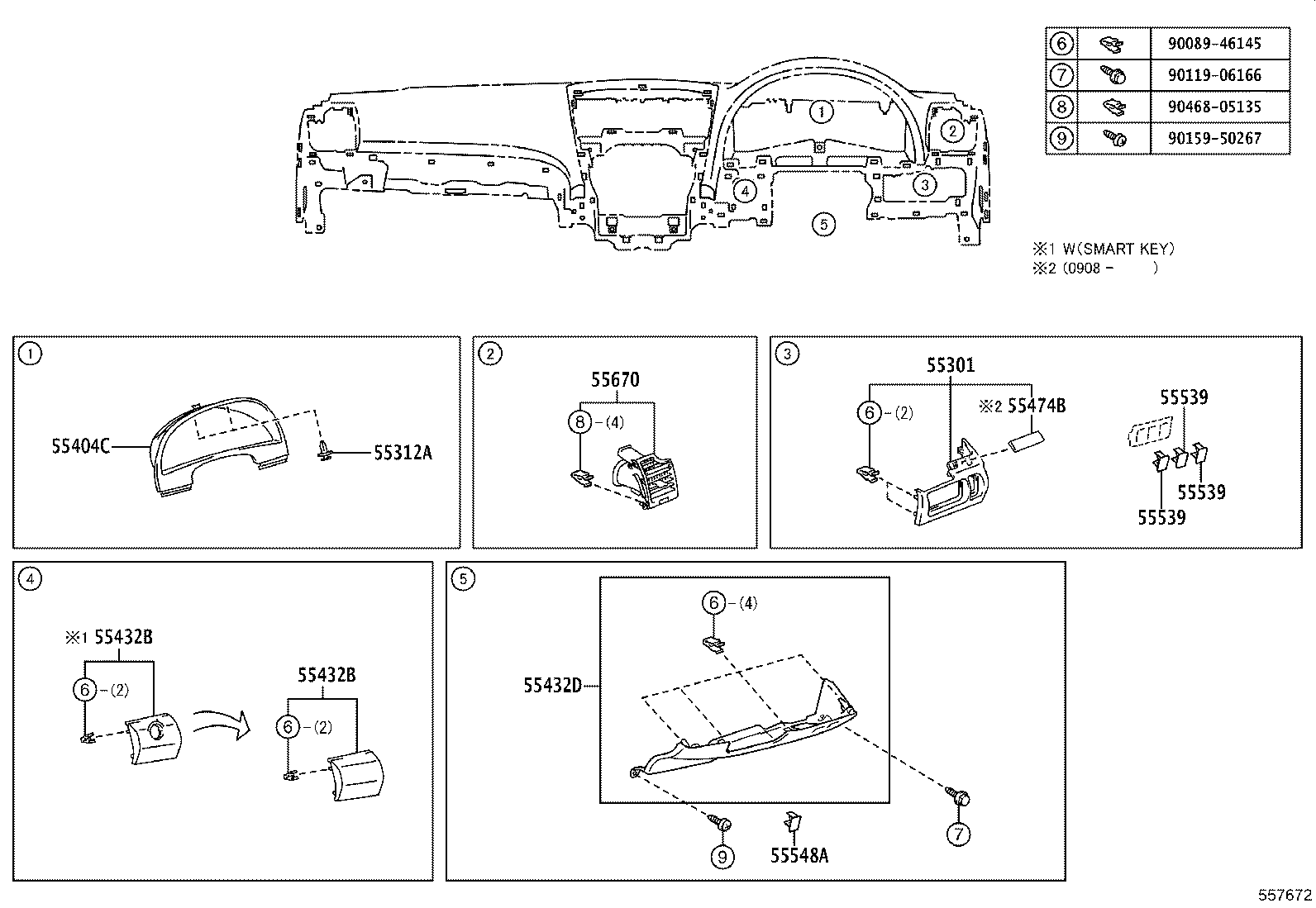

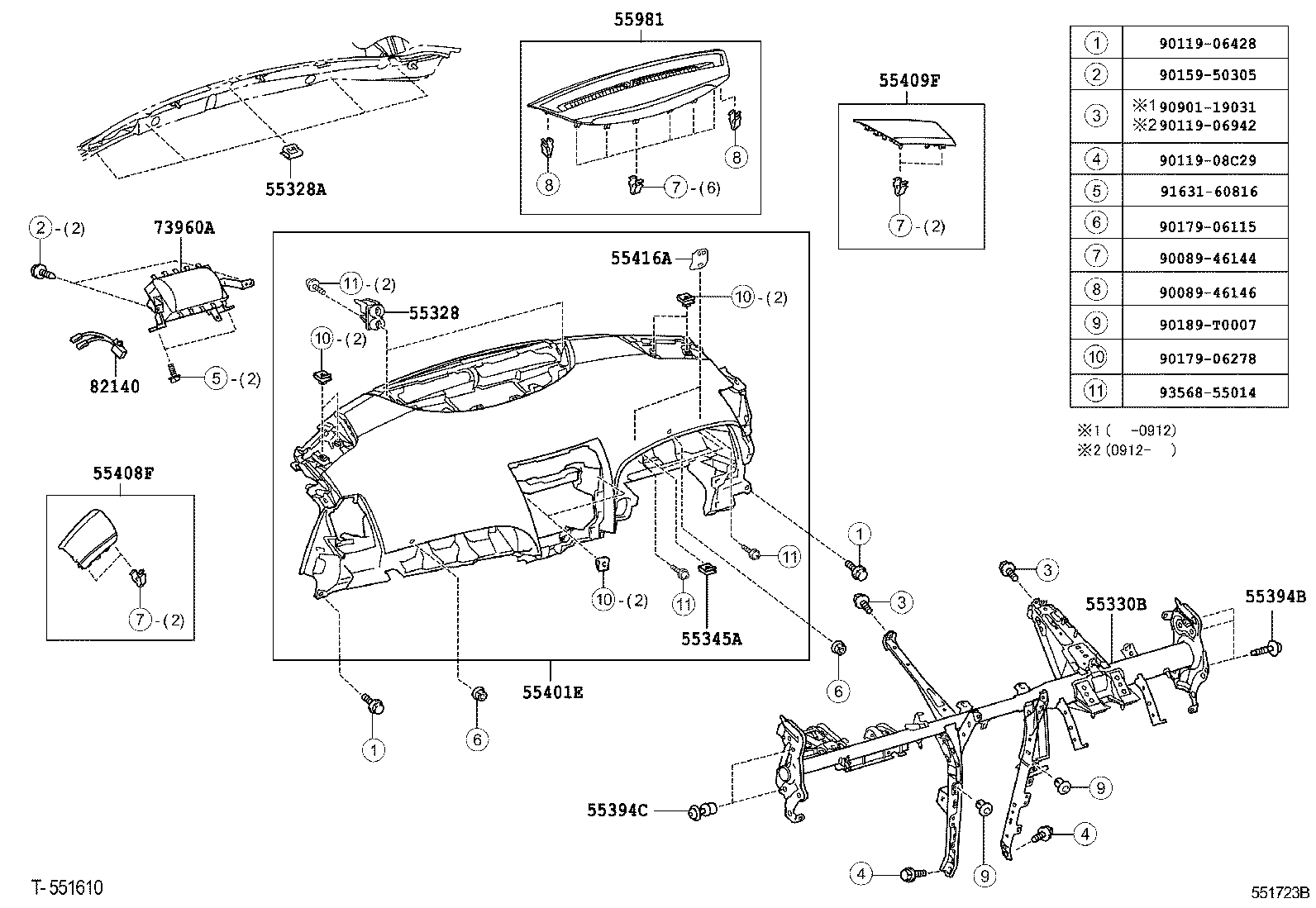

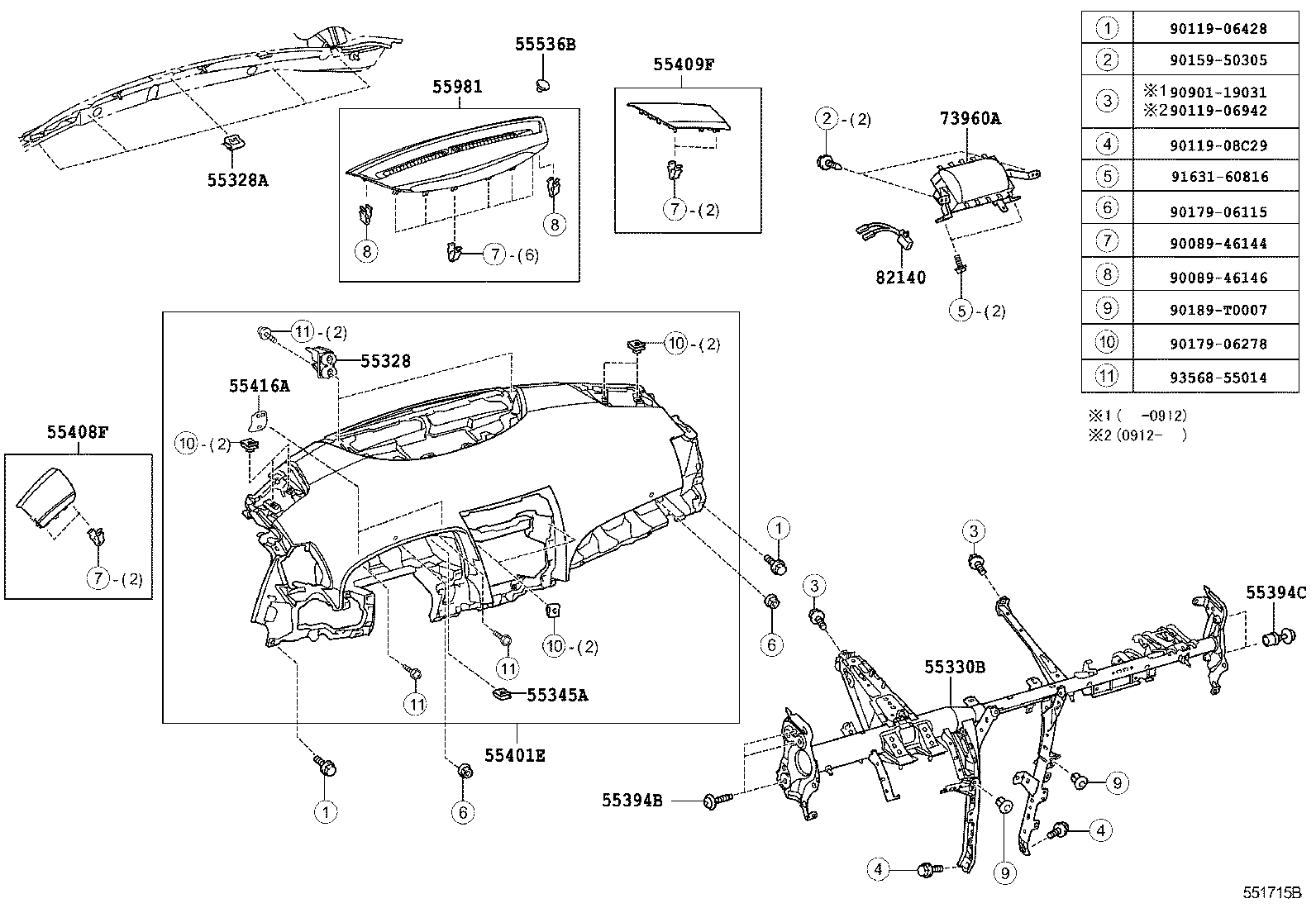

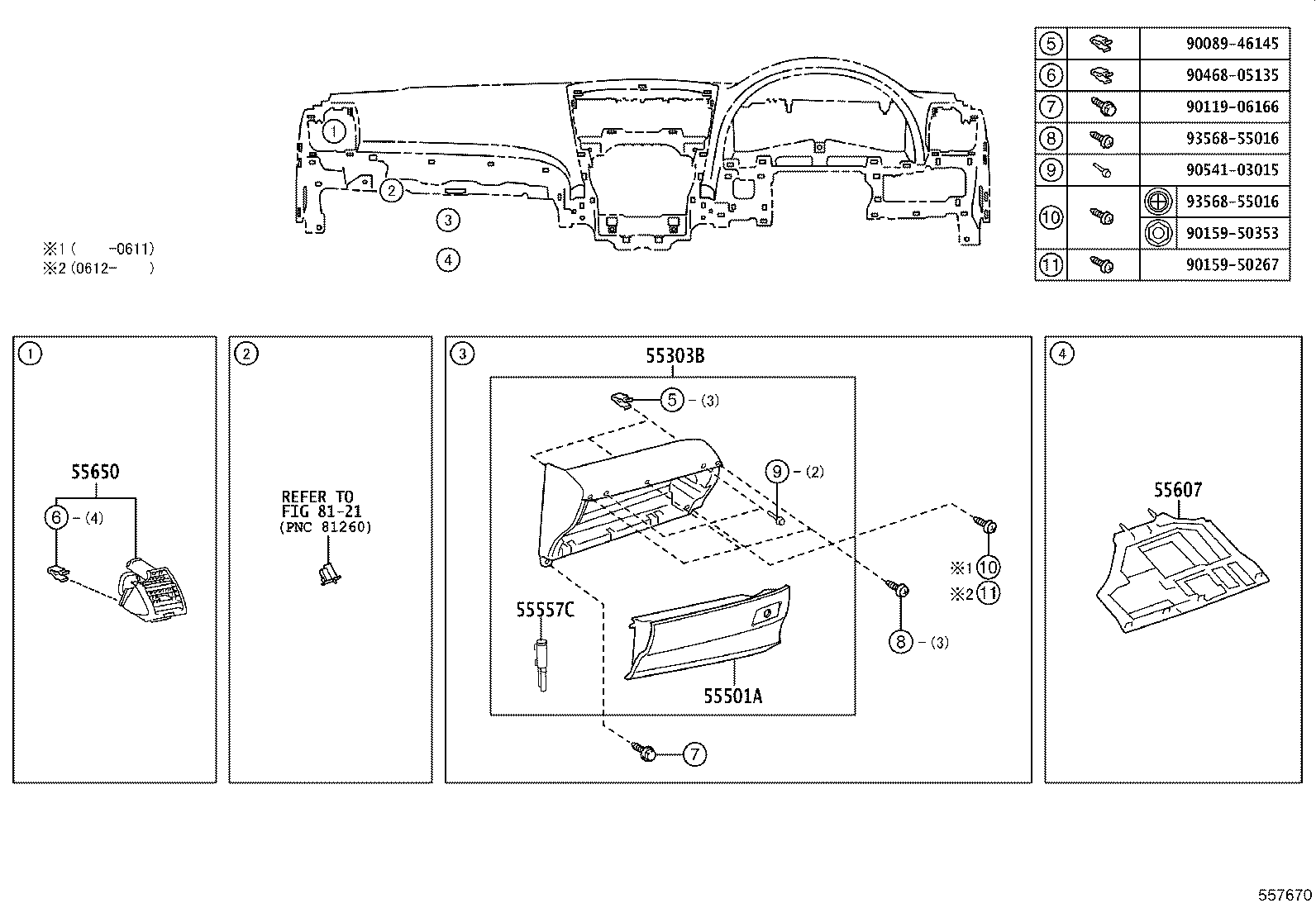

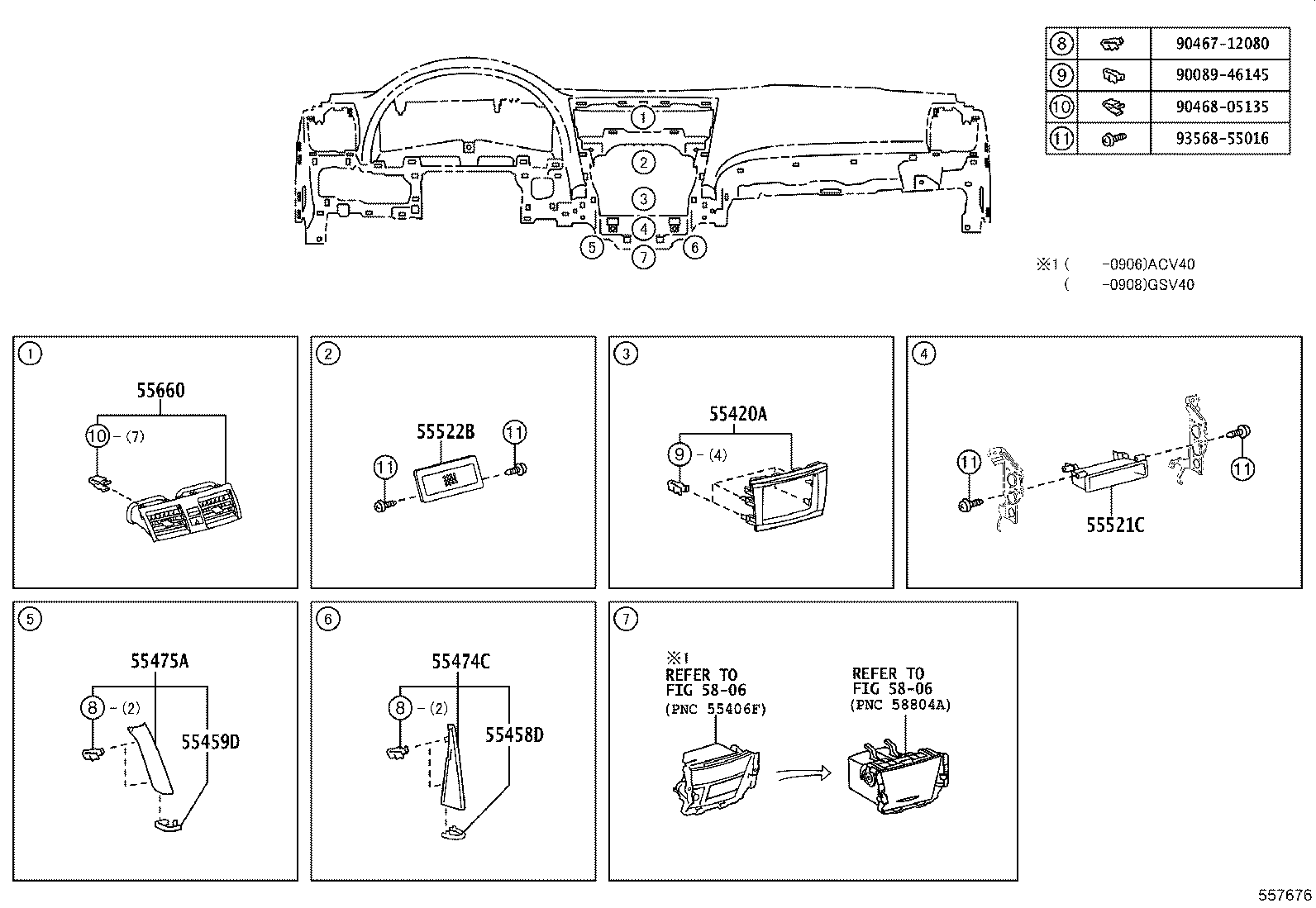

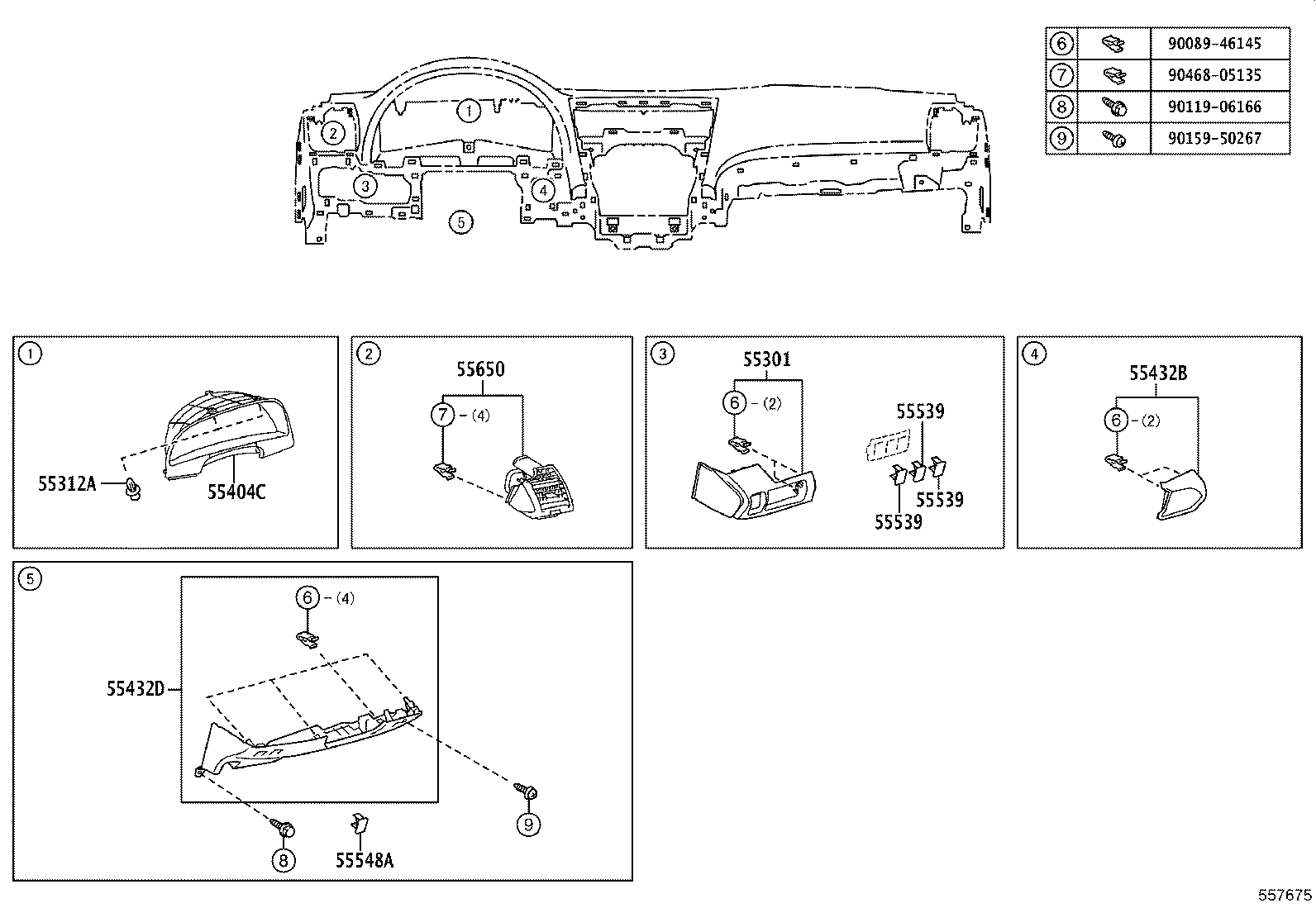

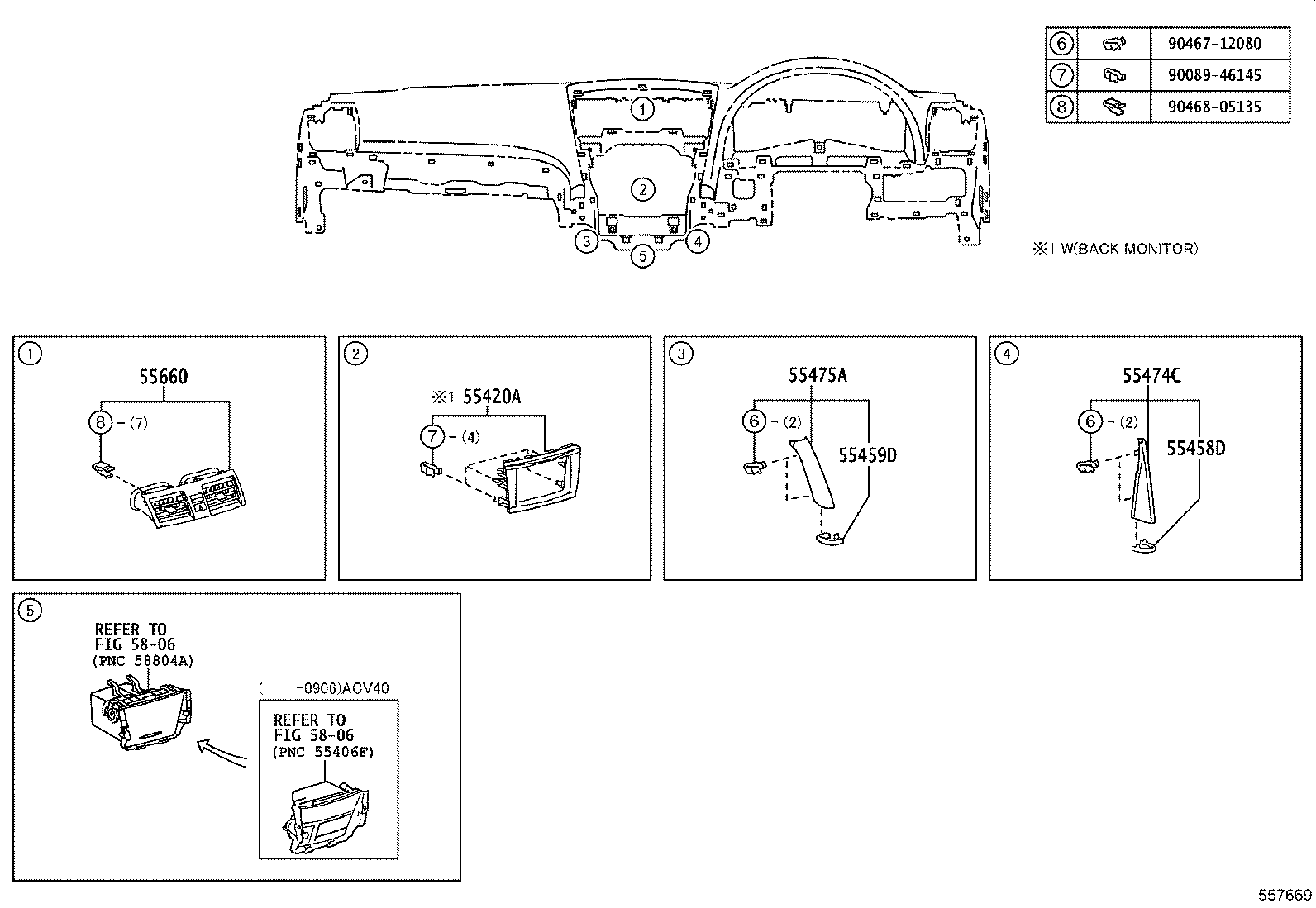

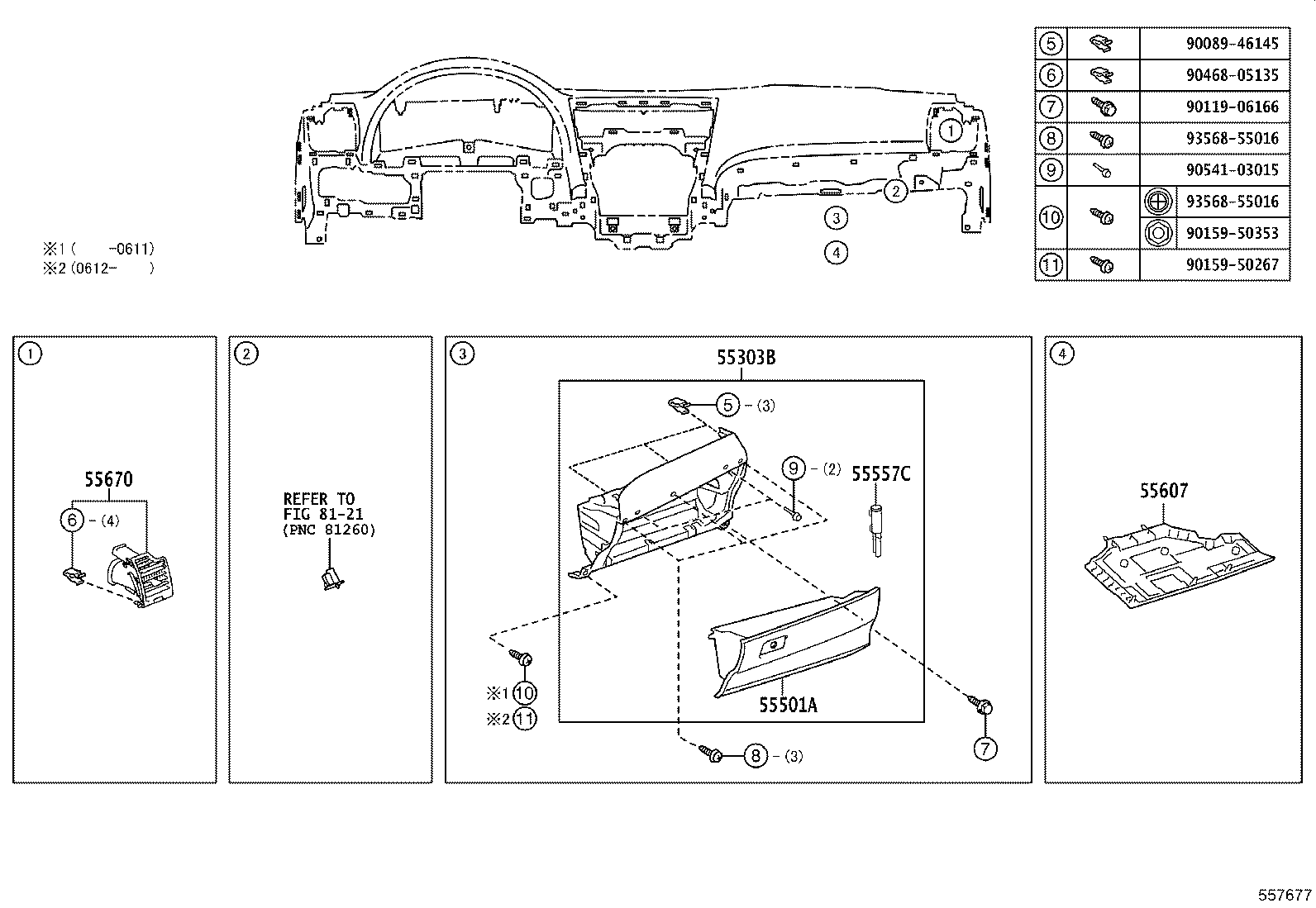

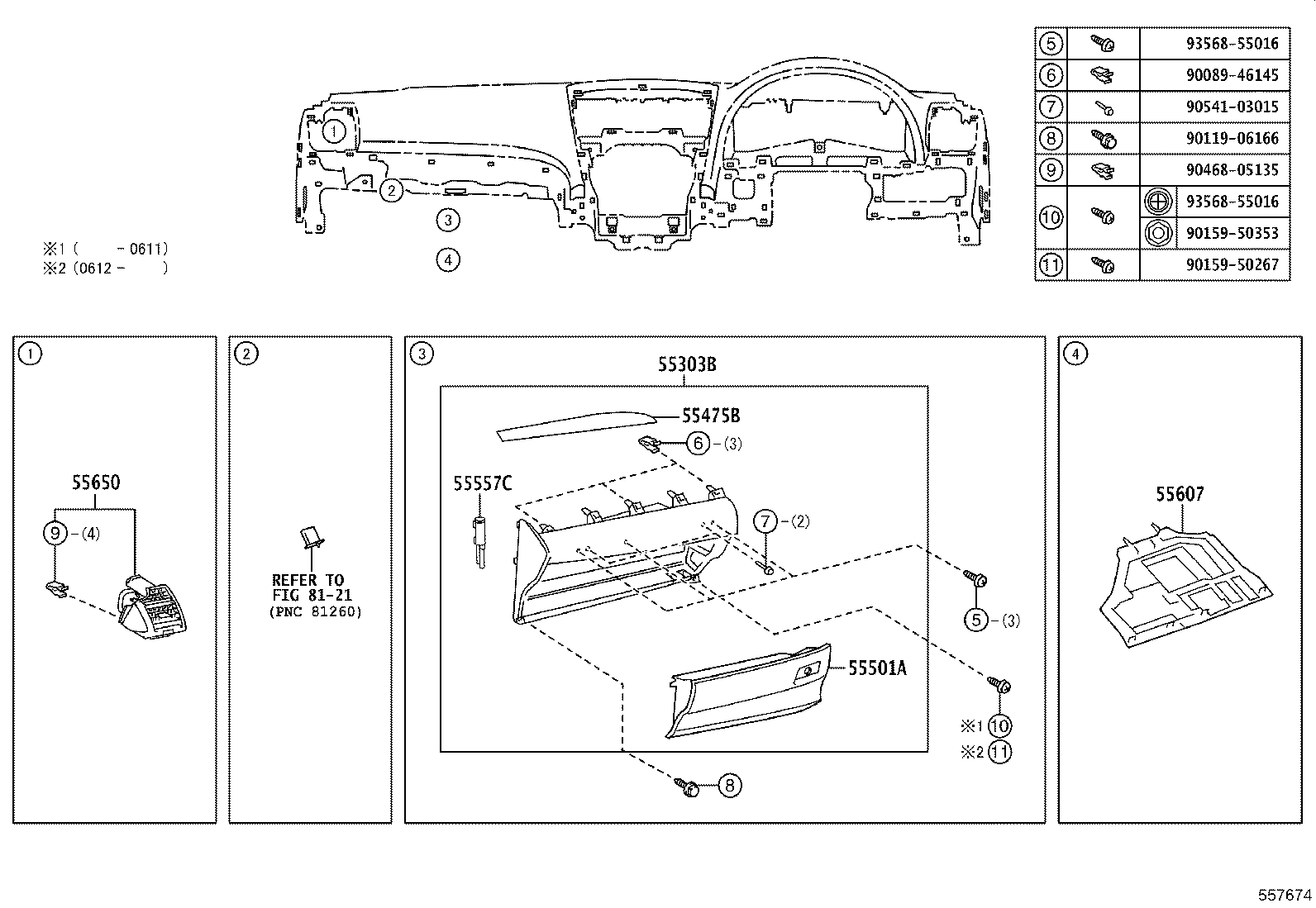

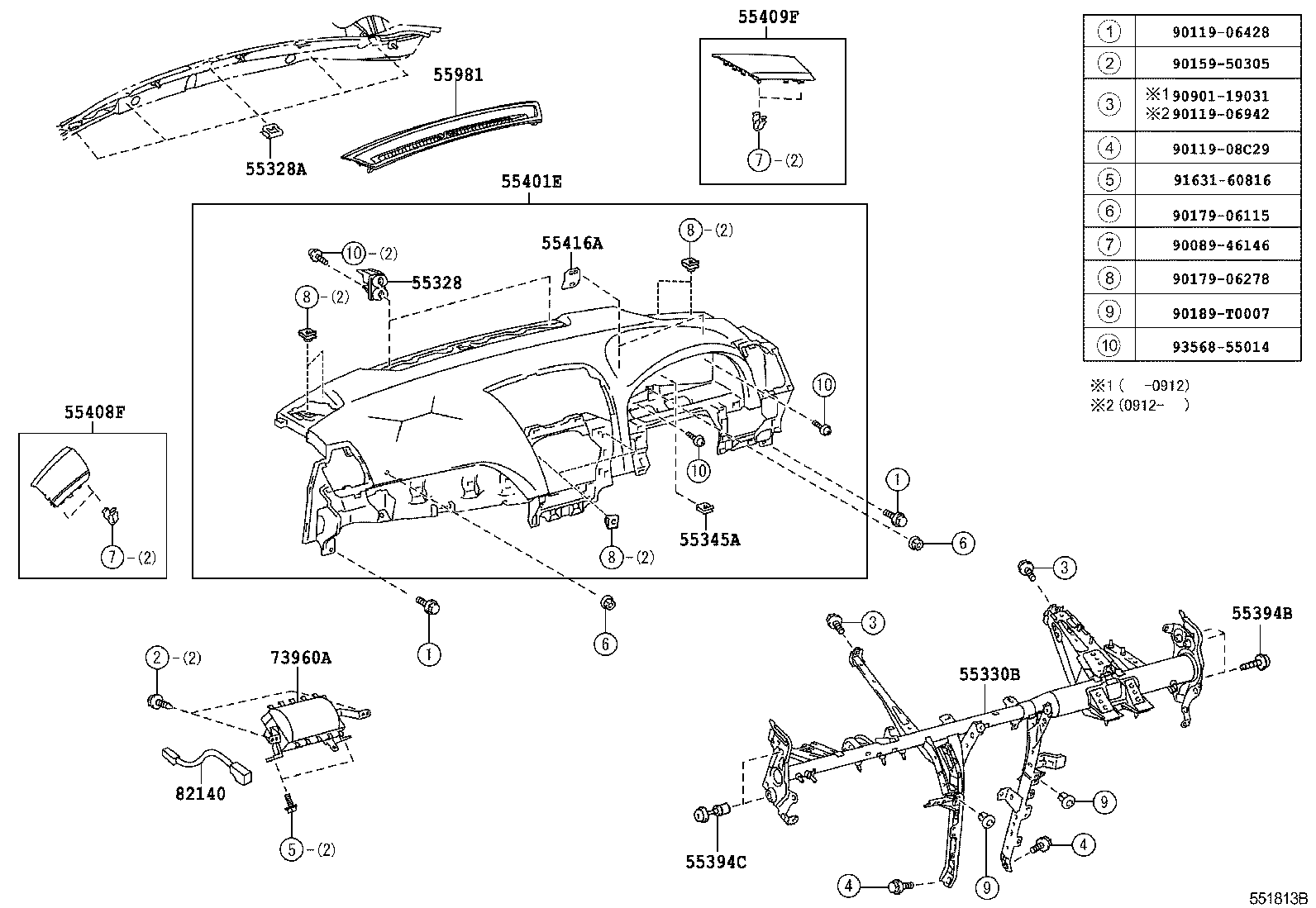

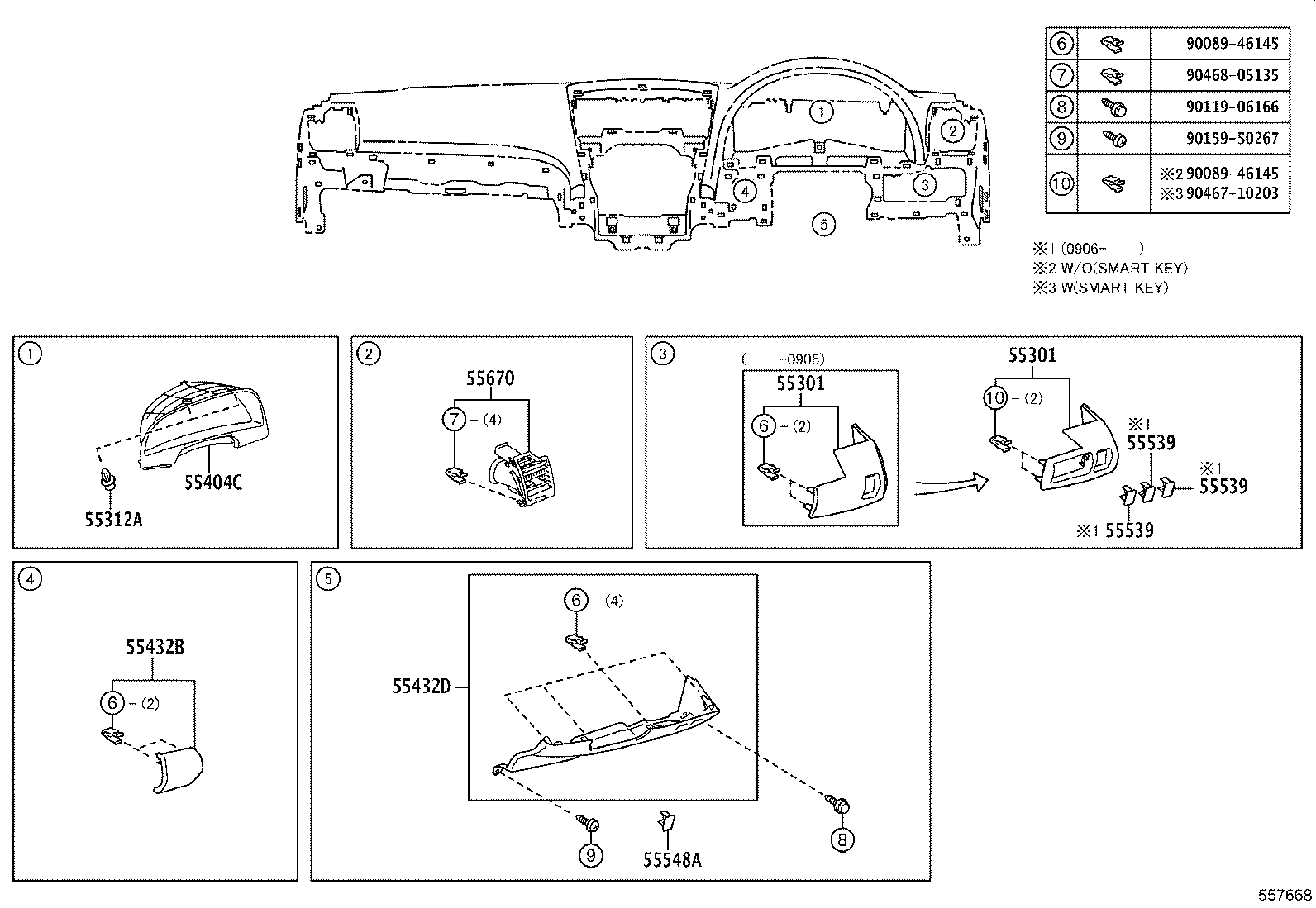

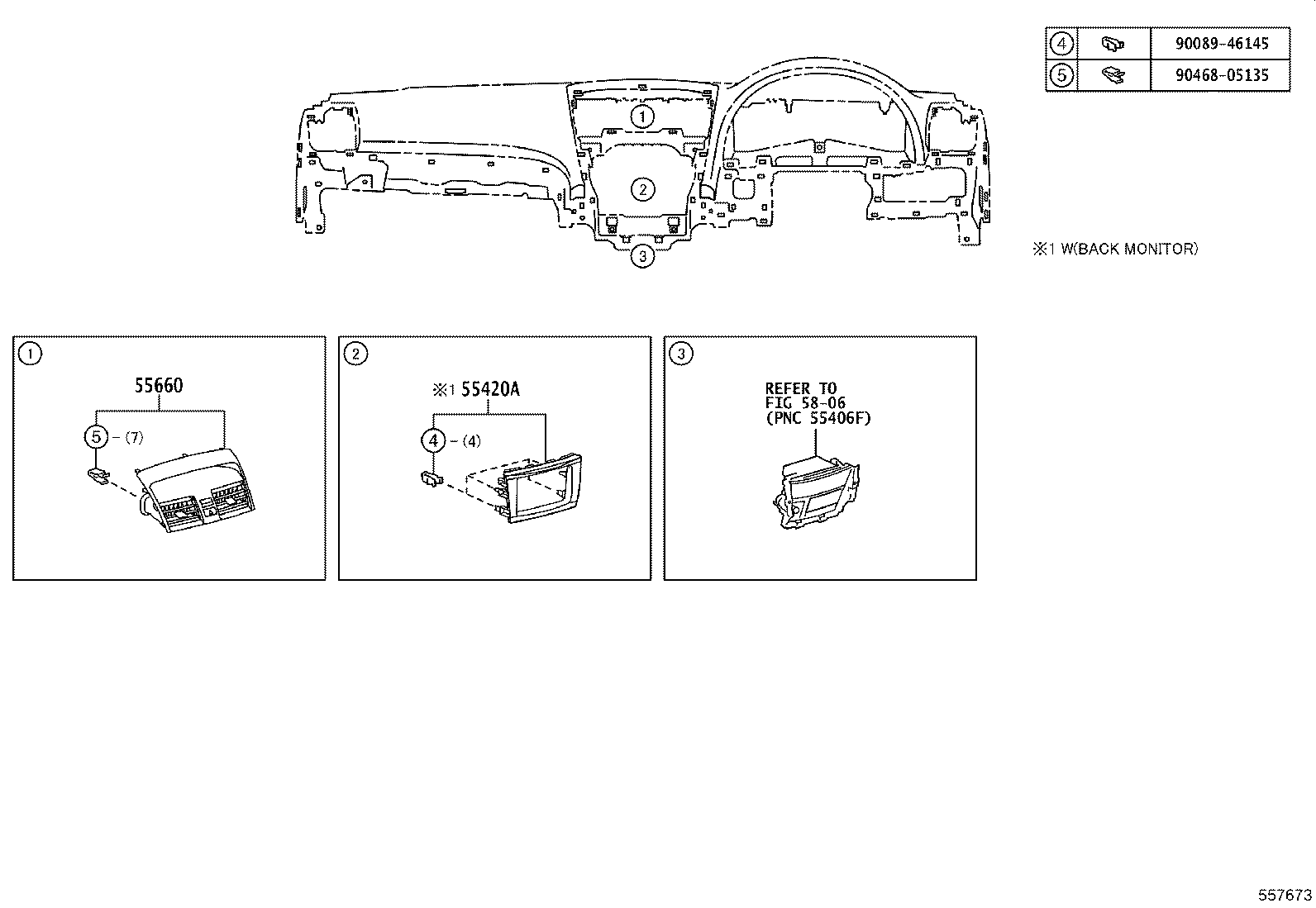

Figure 551723B 551723B 2006-06 → — Figure 557668 557668 2006-06 → 2010-02 Figure 557671 557671 2010-02 → — Figure 557669 557669 2006-06 → — Figure 557670 557670 2006-06 → — Figure 551715B 551715B 2006-06 → — Figure 557675 557675 2006-06 → — Figure 557676 557676 2006-06 → — Figure 557677 557677 2006-06 → — Figure 551813B 551813B 2006-10 → — Figure 557672 557672 2006-10 → — Figure 557673 557673 2006-10 → — Figure 557674 557674 2006-10 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55303B Panel Sub-assy, Instrument, Lower
55312A Clip, Instrument Panel
55328 Pin, Instrument Panel, NO.1
55328A Stay, Instrument Panel, NO.3
55330B Reinforcement Assy, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55401E Pad Sub-assy, Instrument Panel Safety
55404C Panel Sub-assy, Instrument Cluster Finish, NO.2
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55416A Retainer, Meter Hood, NO.1
55420A Panel Assy, Instrument Cluster Finish, Center
55432B Panel, Instrument Panel Finish, Lower
55432D Panel, Instrument Panel Finish, Lower NO.1
55458D Cover, Instrument Lower, RH
55459D Cover, Instrument, Lower LH
55474B Garnish, Instrument Cluster Finish Panel
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55475B Garnish, Instrument Cluster Finish Panel, Center
55501A Door Sub-assy, Glove Compartment
55521C Cover, Stereo Opening
55522B Cover, Radio Tuner Opening
55536B Cover, Light Control Switch Hole
55539 Cover, Spare Switch Hole
55548A Cover, Instrument Panel Hole
55557C Damper, Glove Compartment Door
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55981 Garnish, Defroster Nozzle, NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
82140 Wire Assy, Instrument Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
