Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

32 part groups · 9 illustrations

Illustrations

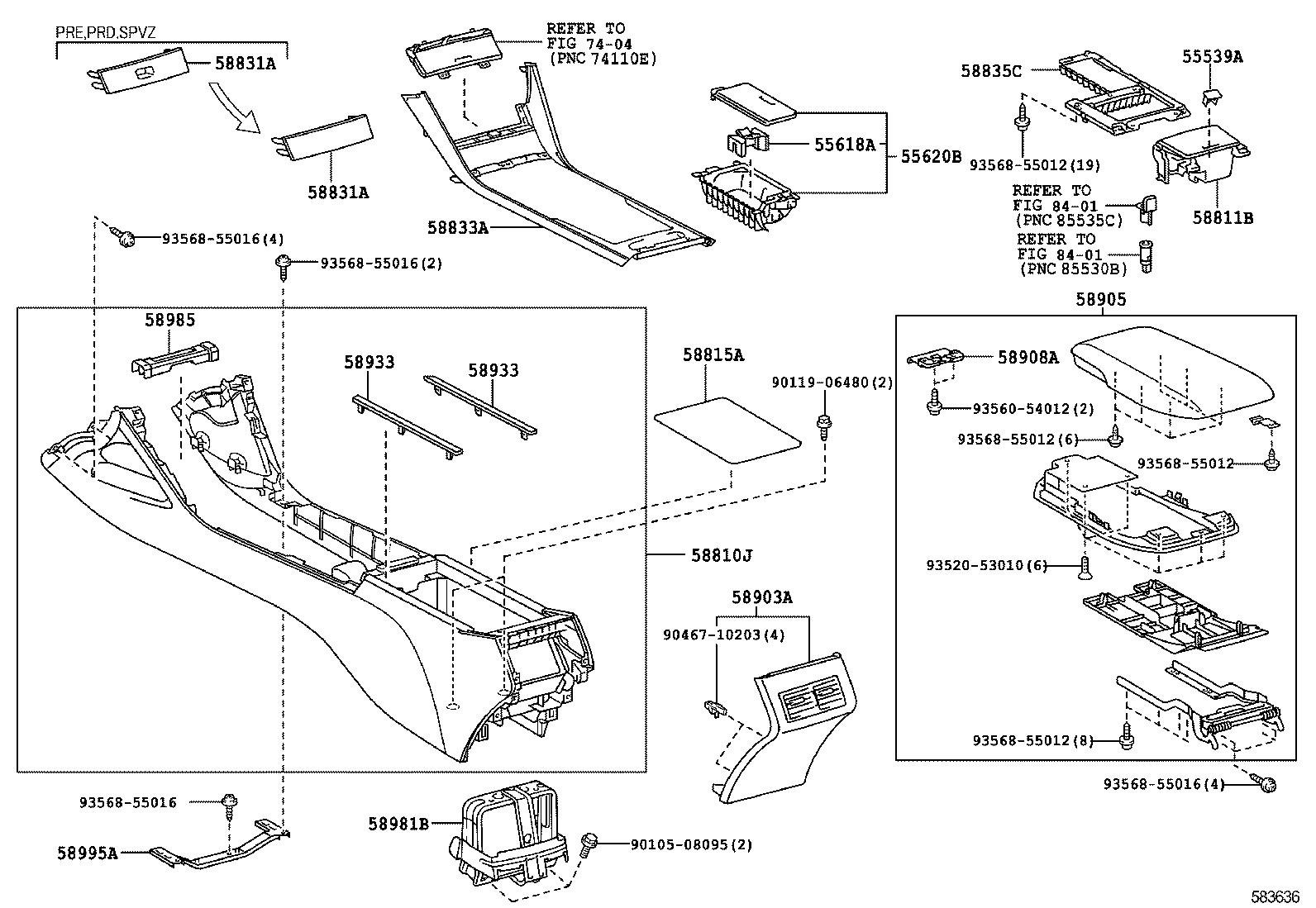

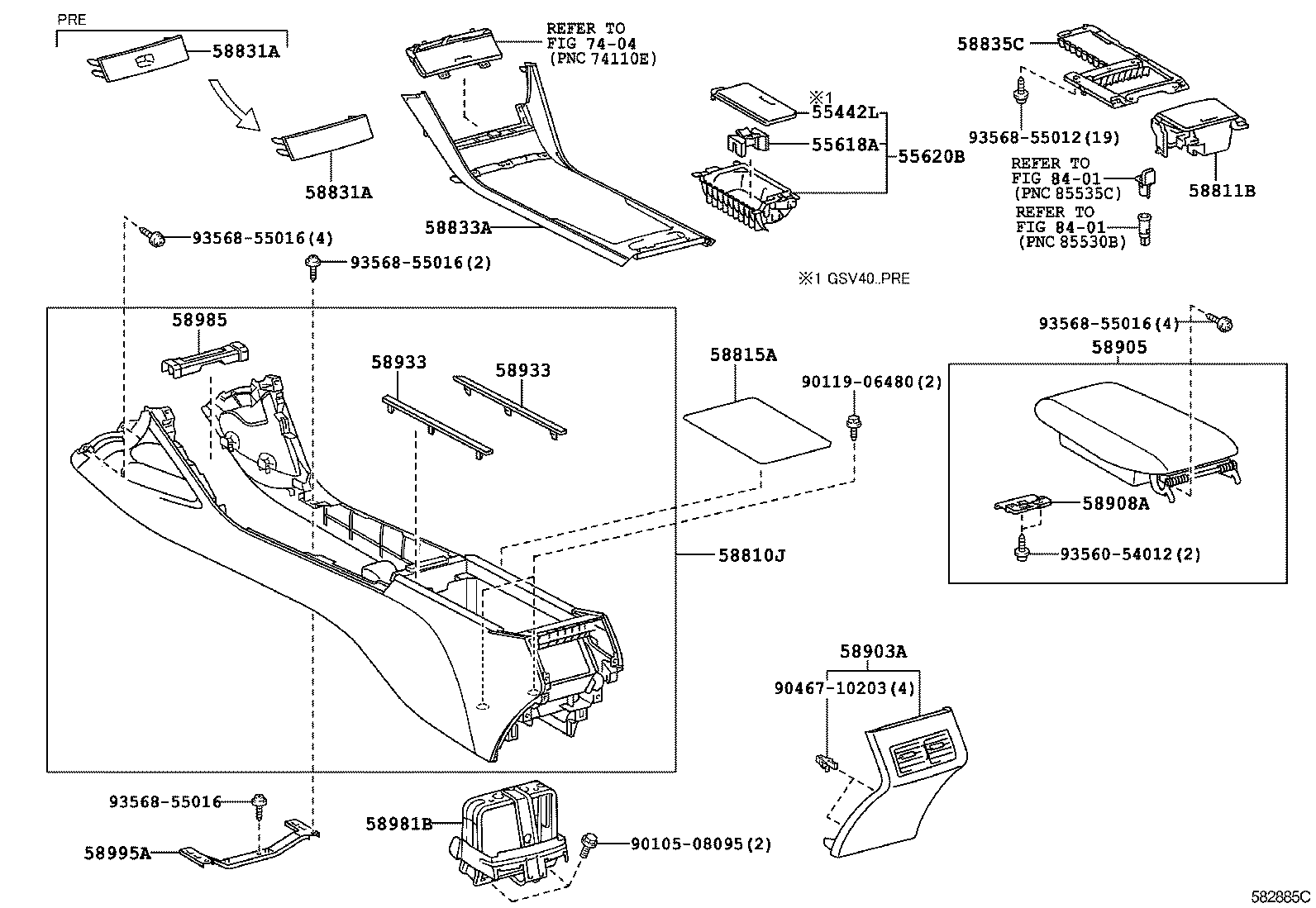

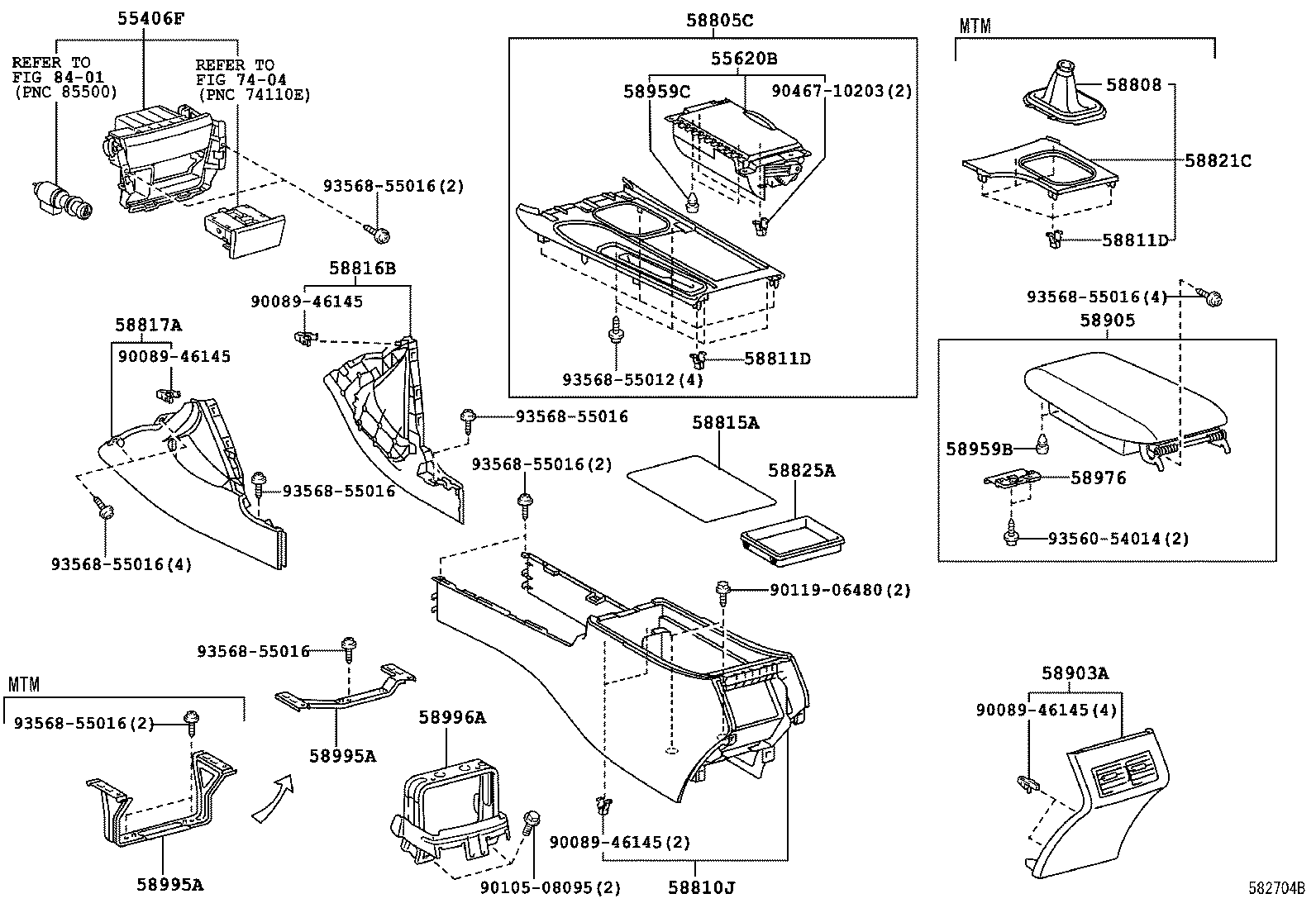

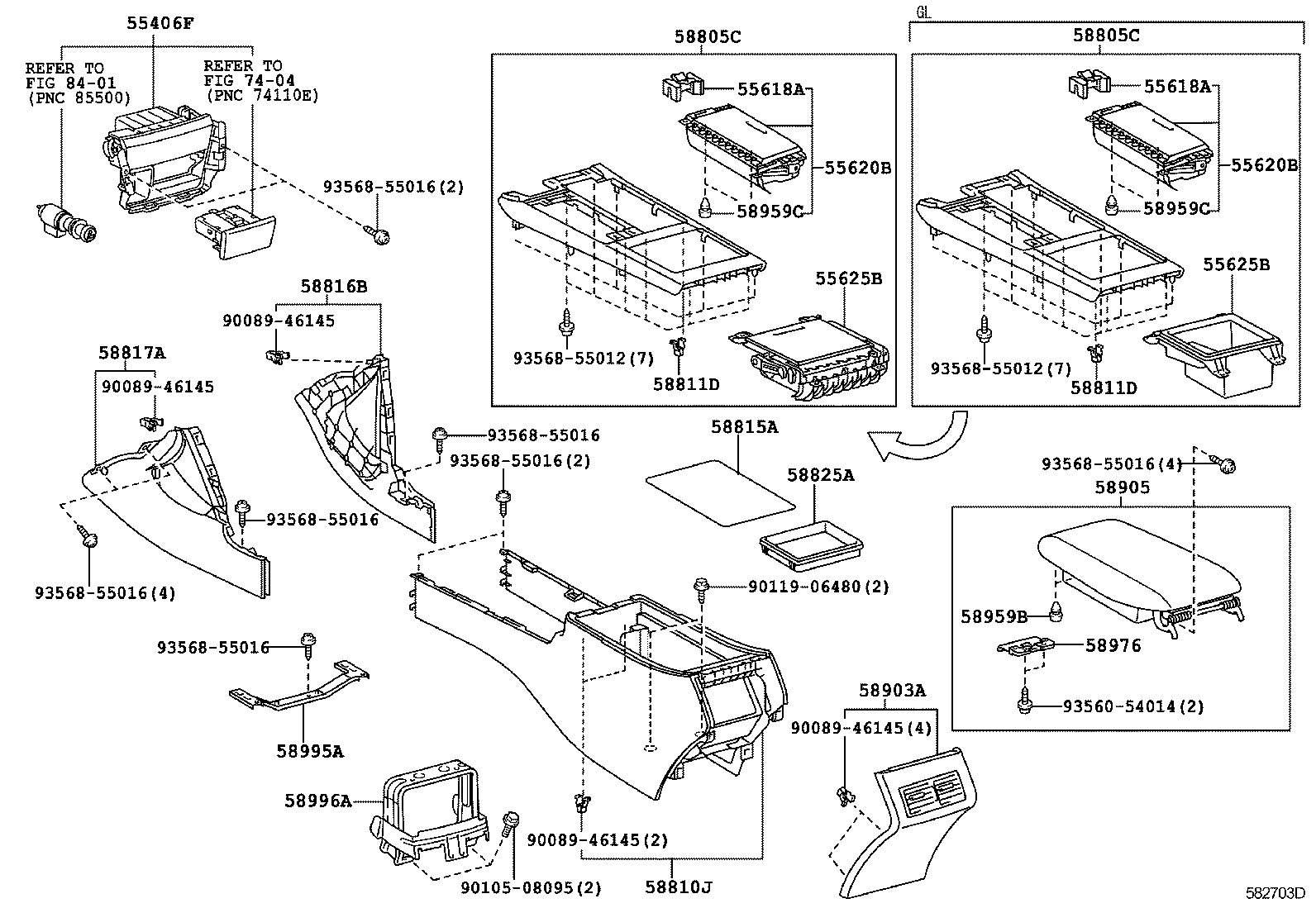

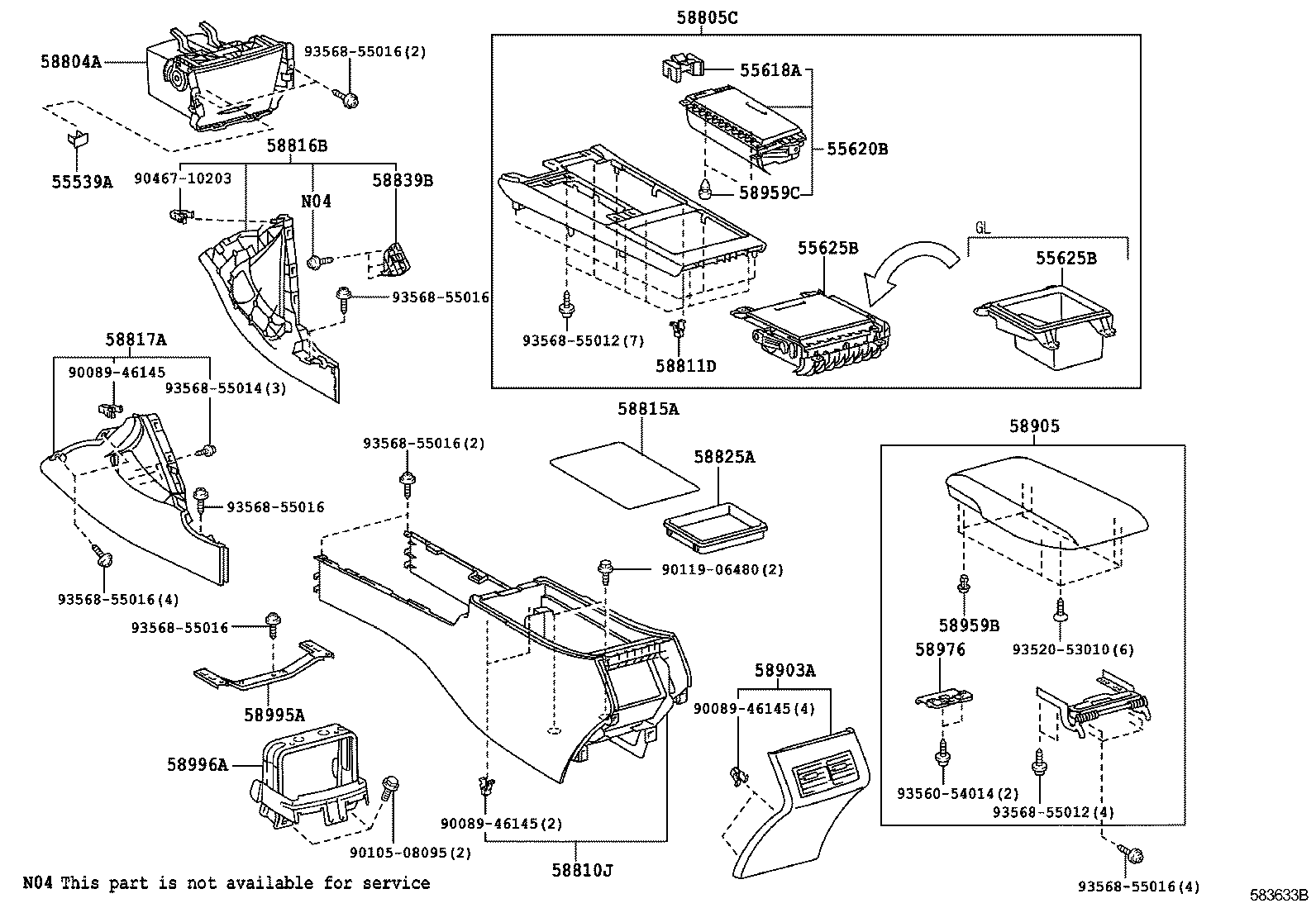

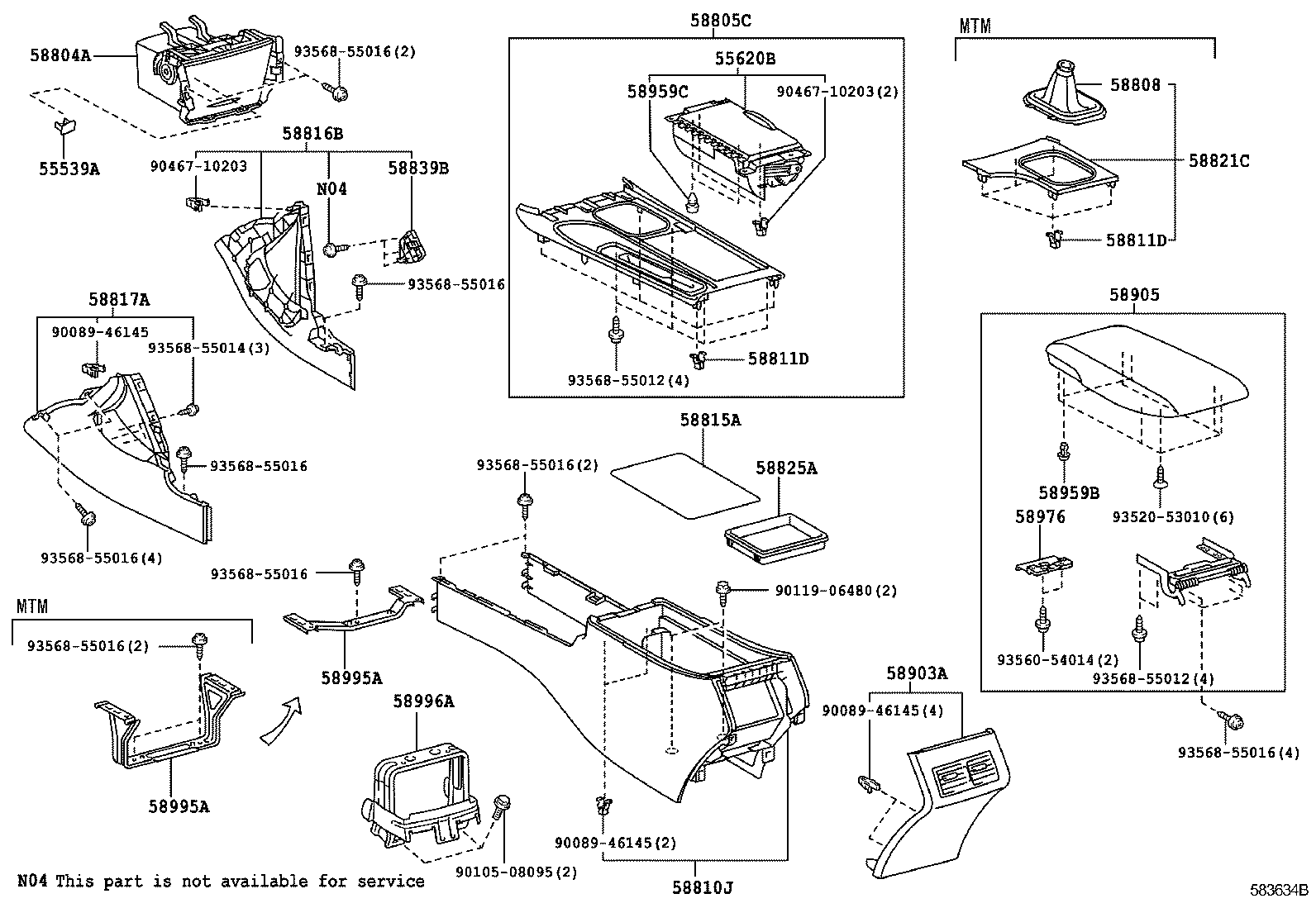

Figure 582703D 582703D 2006-06 → 2009-06 Figure 582703D 582703D 2006-06 → 2009-08 Figure 583633B 583633B 2009-06 → — Figure 583633B 583633B 2009-08 → — Figure 582704B 582704B 2006-06 → 2009-06 Figure 583634B 583634B 2009-06 → — Figure 583634B 583634B 2010-01 → — Figure 582885C 582885C 2006-10 → 2009-08 Figure 583636 583636 2009-08 → —

Part groups

PNCDescription
55406F Panel Sub-assy, Instrument Cluster Finish, Lower Center
55442L Door, Instrument Panel
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
55620B Holder, Instrument Panel Cup
55625B Tray, Instrument Panel Cup Holder
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811B Box, Console
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58825A Pocket, Console Box
58831A Garnish, Console Upper Panel, Front
58833A Cover, Console, Upper
58835C Ornament, Console Box
58839B Cover, Console Box Hole, NO.2
58903A Panel Sub-assy, Console Rear End
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58933 Garnish, Console Rear End Panel
58959B Cushion, Console Compartment Door
58959C Cushion, Console Compartment Door
58976 Striker, Console Compartment Door Lock
58981B Retainer, Console Mounting, NO.1
58985 Retainer, Console Box
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
