Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

18 part groups · 2 illustrations

Illustrations

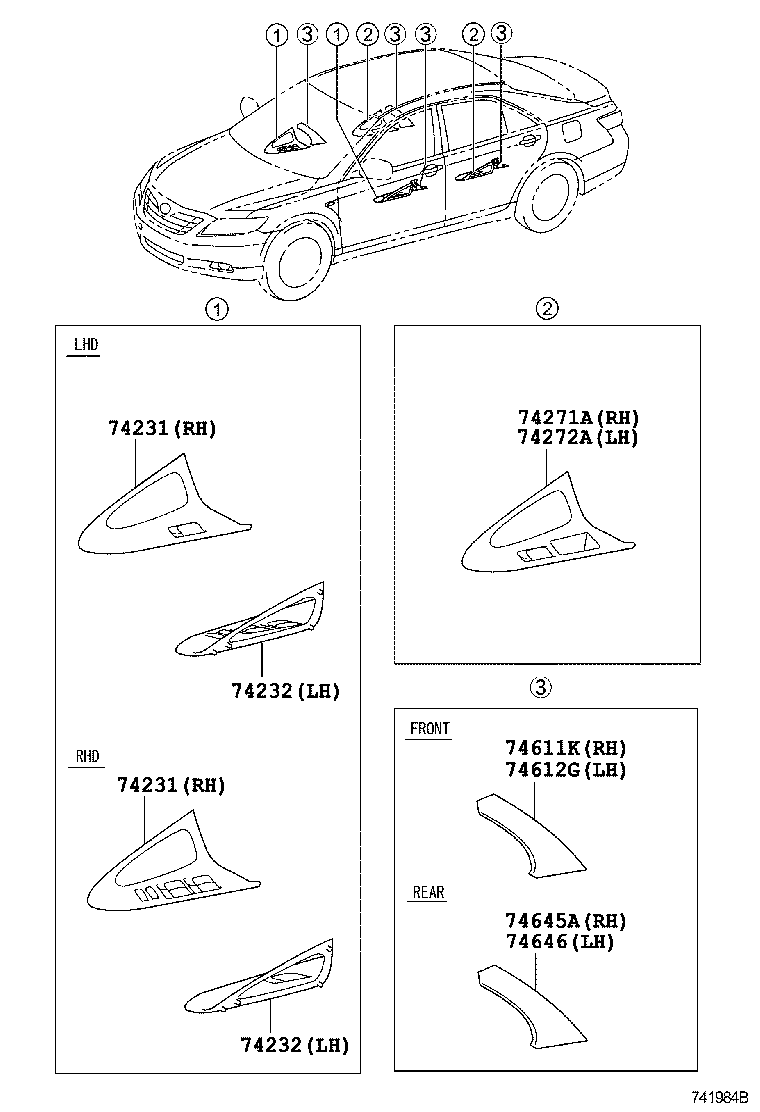

Figure 741984B 741984B 2006-06 → — Figure 741985C 741985C 2006-06 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74611C Cover, Assist Grip, LH
74611K Cover, Assist Grip, RH Front Side
74612C Cover, Assist Grip, RH
74612G Cover, Assist Grip, LH Front Side
74620B Grip Assy, Assist, Rear
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
