Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

11 part groups · 5 illustrations

Illustrations

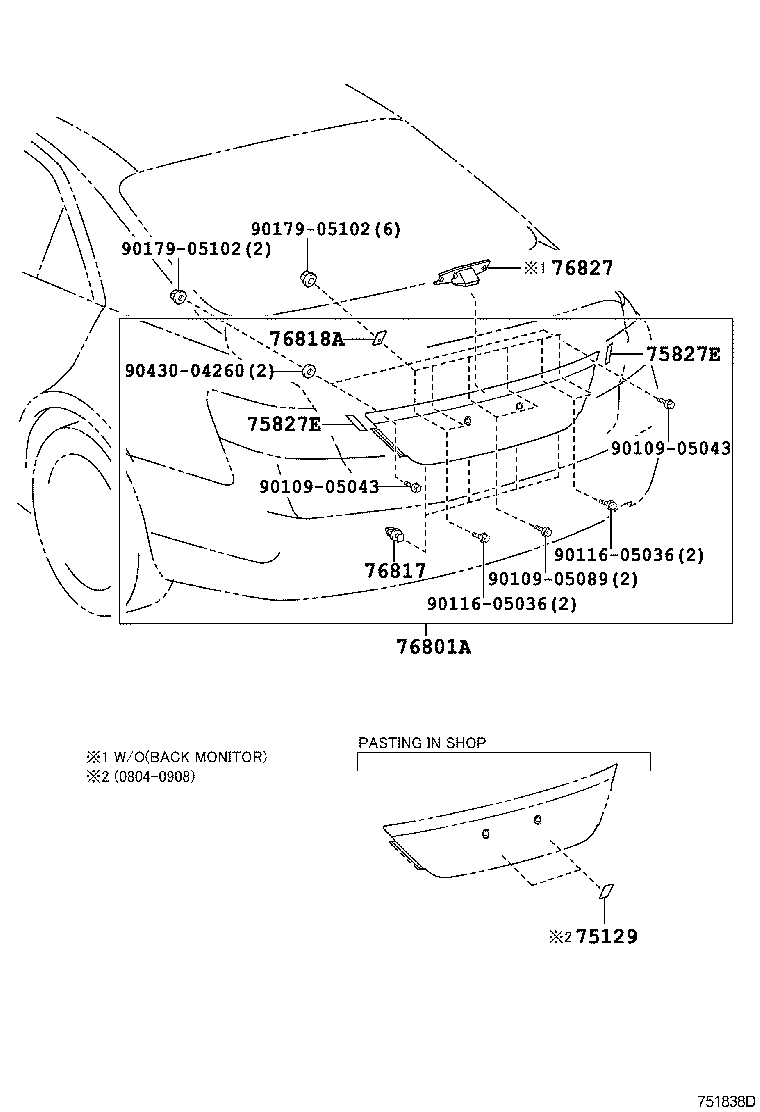

Figure 751729B 751729B 2006-06 → 2009-06 Figure 751729B 751729B 2006-06 → — Figure 752222 752222 2009-06 → — Figure 751838D 751838D 2006-10 → — Figure 752316 752316 2010-01 → —

Part groups

PNCDescription
75129 Cushion, Rear License Plate
75819 Clip, Luggage Compartment Door Moulding
75827E Protector, Luggage Door Moulding
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76812A Garnish, Back Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76818A Pad, Luggage Garnish, NO.1
76825 Protector, Back Door Outside Garnish
76826 Retainer, Back Door Garnish, NO.1
76827 Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
