Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

24 part groups · 5 illustrations

Illustrations

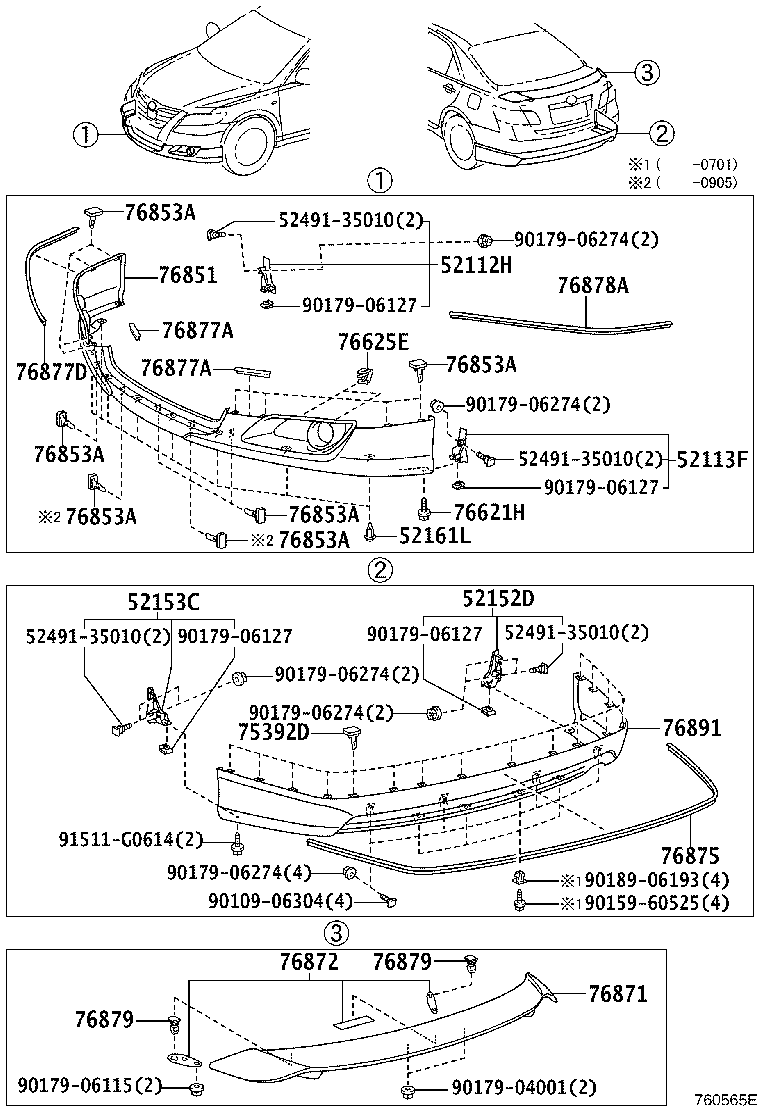

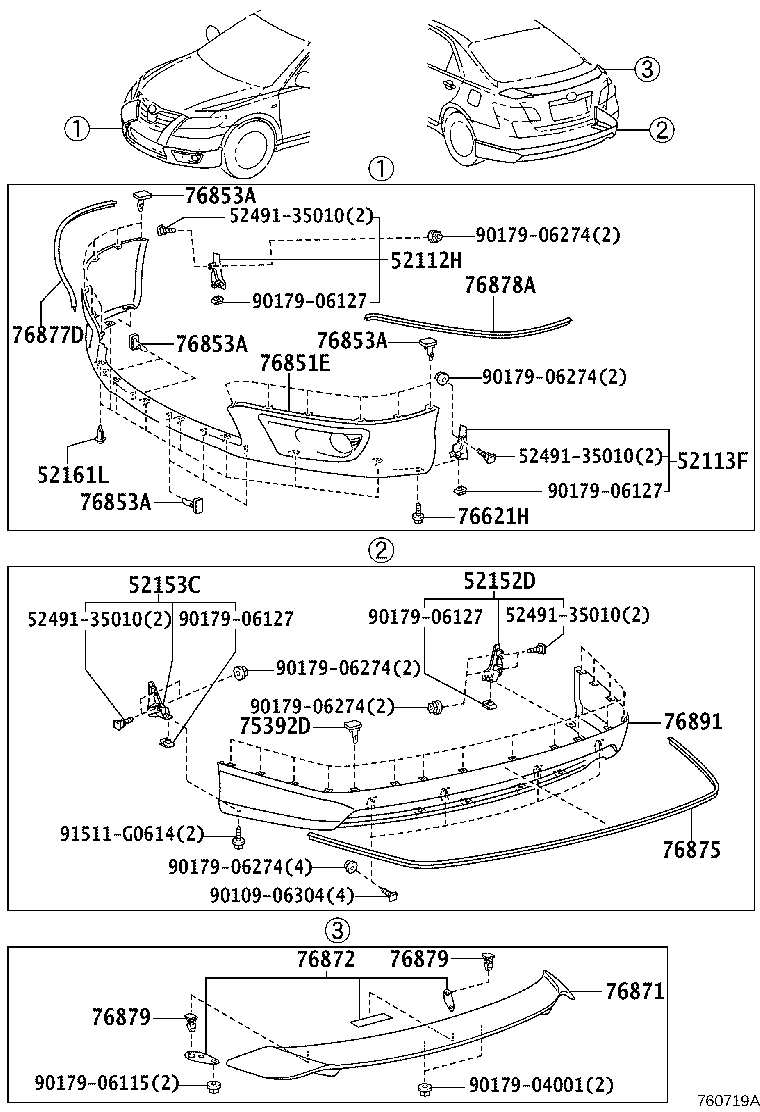

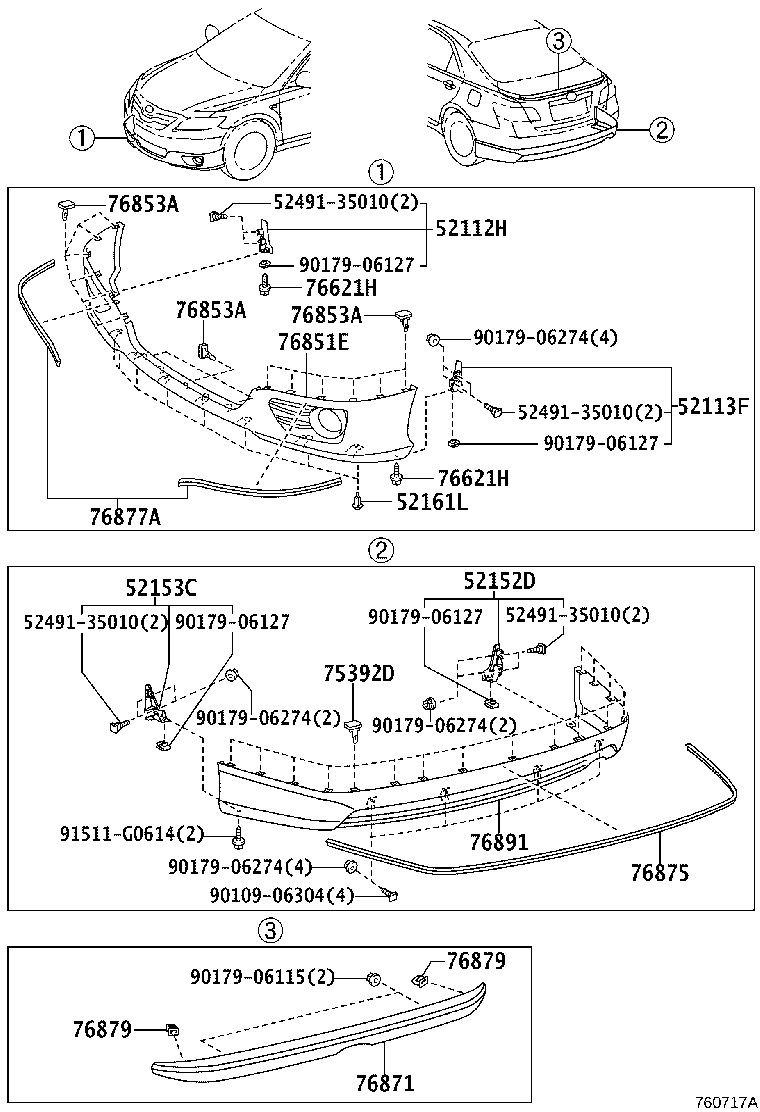

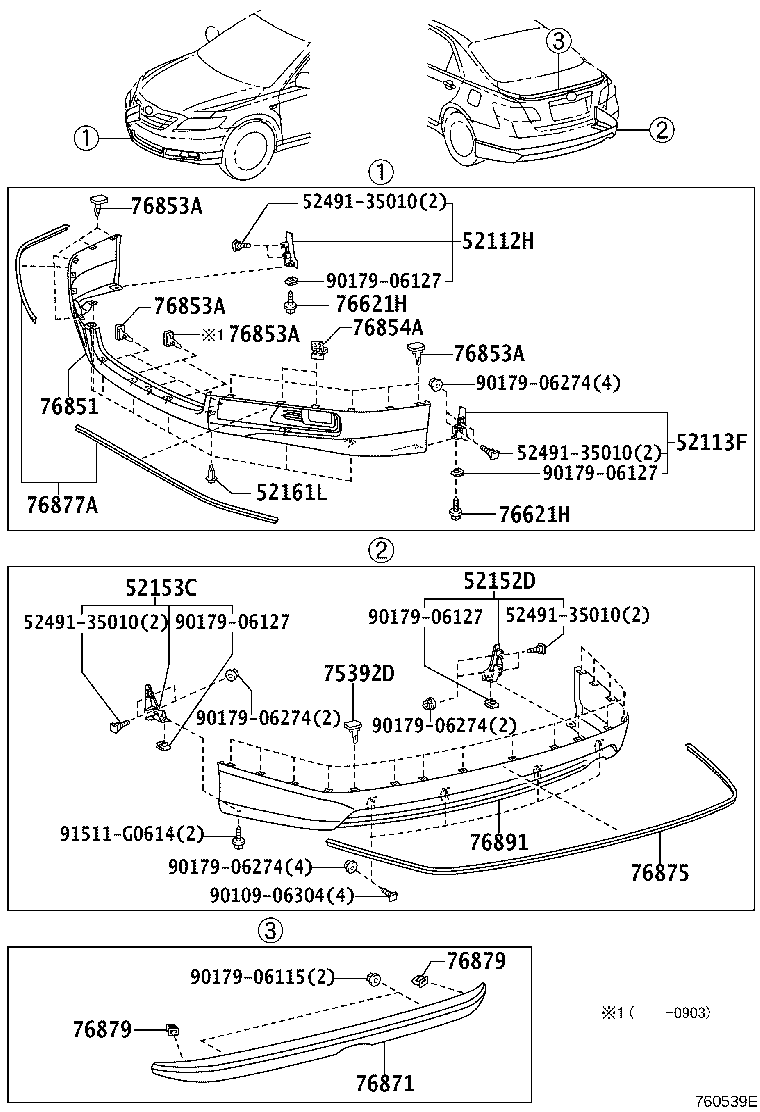

Figure 760539E 760539E 2006-06 → 2009-06 Figure 760565E 760565E 2006-10 → 2009-08 Figure 760717A 760717A 2009-06 → — Figure 760719A 760719A 2009-08 → — Figure 760540B 760540B 2006-06 → —

Part groups

PNCDescription
52112H Extension, Front Bumper, RH
52113F Extension, Front Bumper, LH
52152D Extension, Rear Bumper, RH
52153C Extension, Rear Bumper, LH
52161L Piece, Front Spoiler
75392D Retainer, Outside Moulding
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76621H Bolt, NO.1
76625E Clip
76851 Cover, Front Spoiler
76851E Spoiler, Front
76853A Retainer, Front Spoiler, Upper NO.1
76854A Retainer, Front Spoiler, NO.2
76871 Spoiler, Rear
76872 Protector, Rear Spoiler, NO.1
76875 Protector, Rear Spoiler, NO.4
76877A Protector, Front Spoiler
76877D Protector, Front Spoiler Side, RH
76878A Protector, Front Spoiler Side, LH
76879 Clip, Rear Spoiler, NO.1
76891 Spoiler, Rear NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
