Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

3 part groups · 5 illustrations

Illustrations

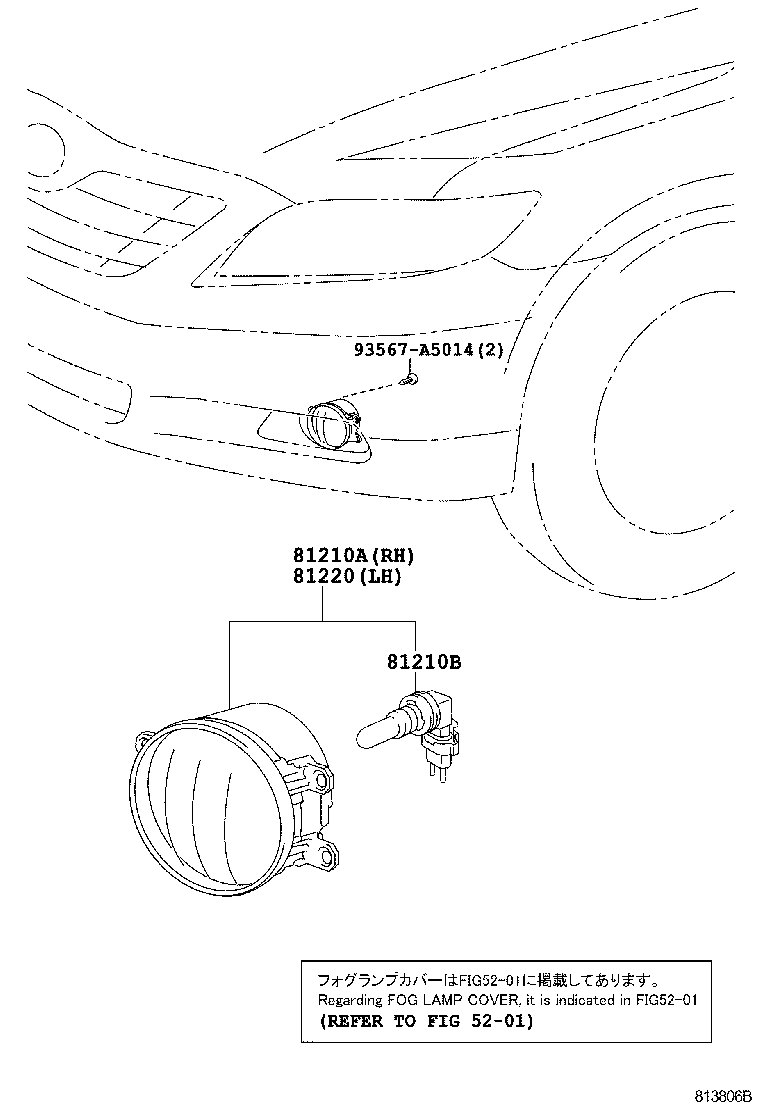

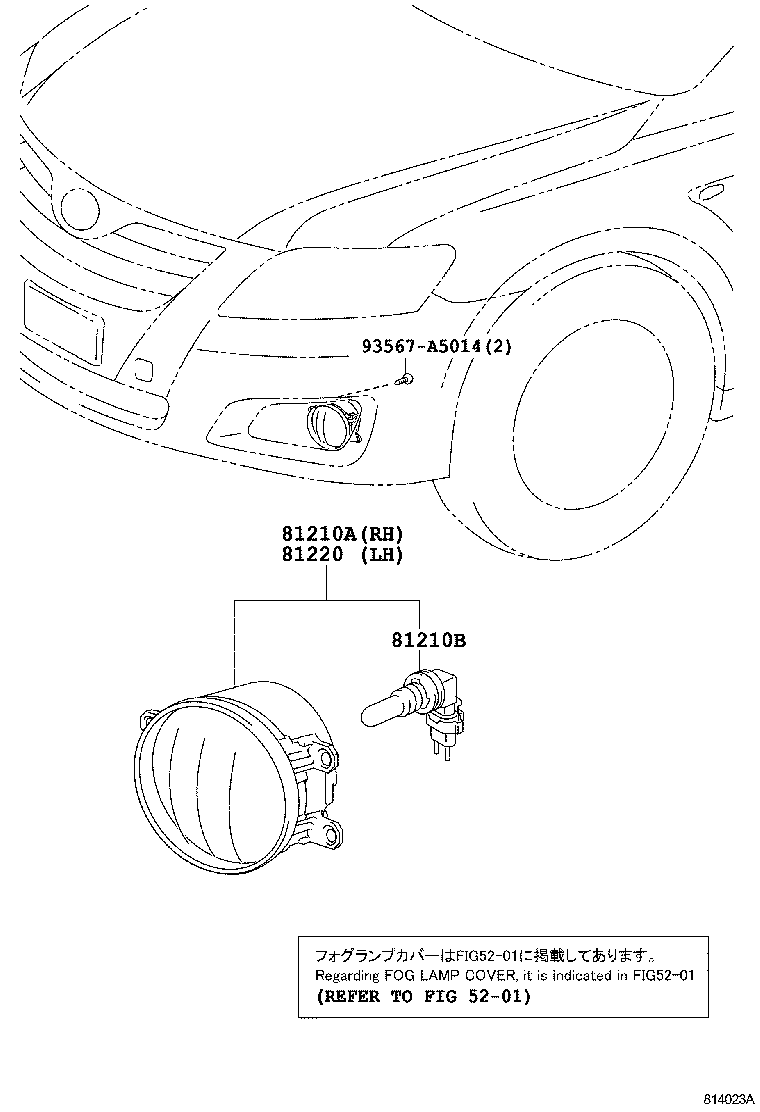

Figure 813806B 813806B 2006-06 → — Figure 813806B 813806B 2009-04 → — Figure 813806B 813806B 2010-01 → — Figure 814023A 814023A 2006-10 → — Figure 814023A 814023A 2007-04 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81220 Lamp Assy, Fog, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
