Toyota Camry/Aurion/HV(ARL)
2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General
Supported model
Data version 2011-10
Interior Lamp
13 part groups · 2 illustrations
Part groups

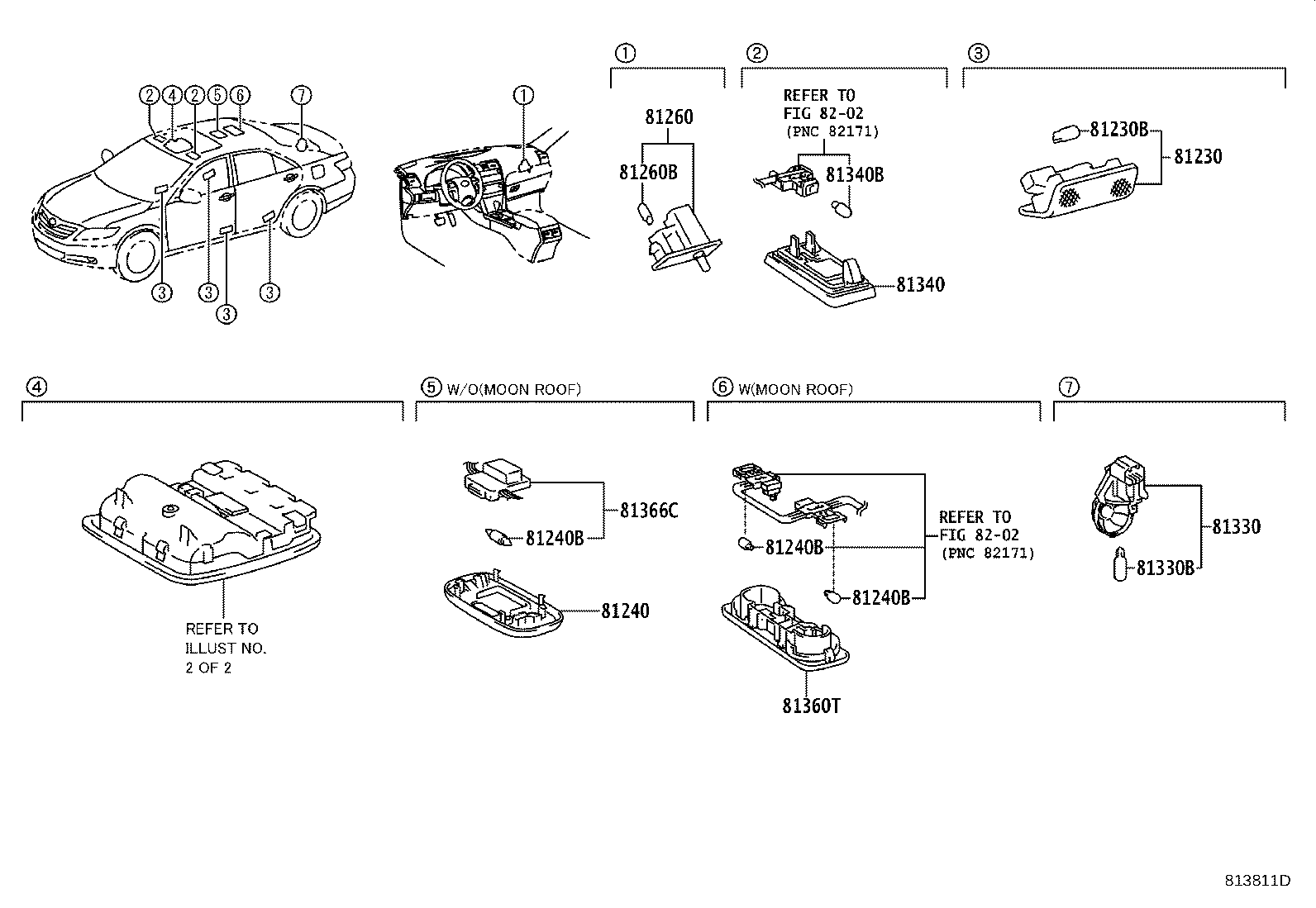

| PNC | Description |
|---|---|
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81260 | Lamp Assy, Glove Box |
| 81260B | Bulb(FOR GLOVE BOX) |

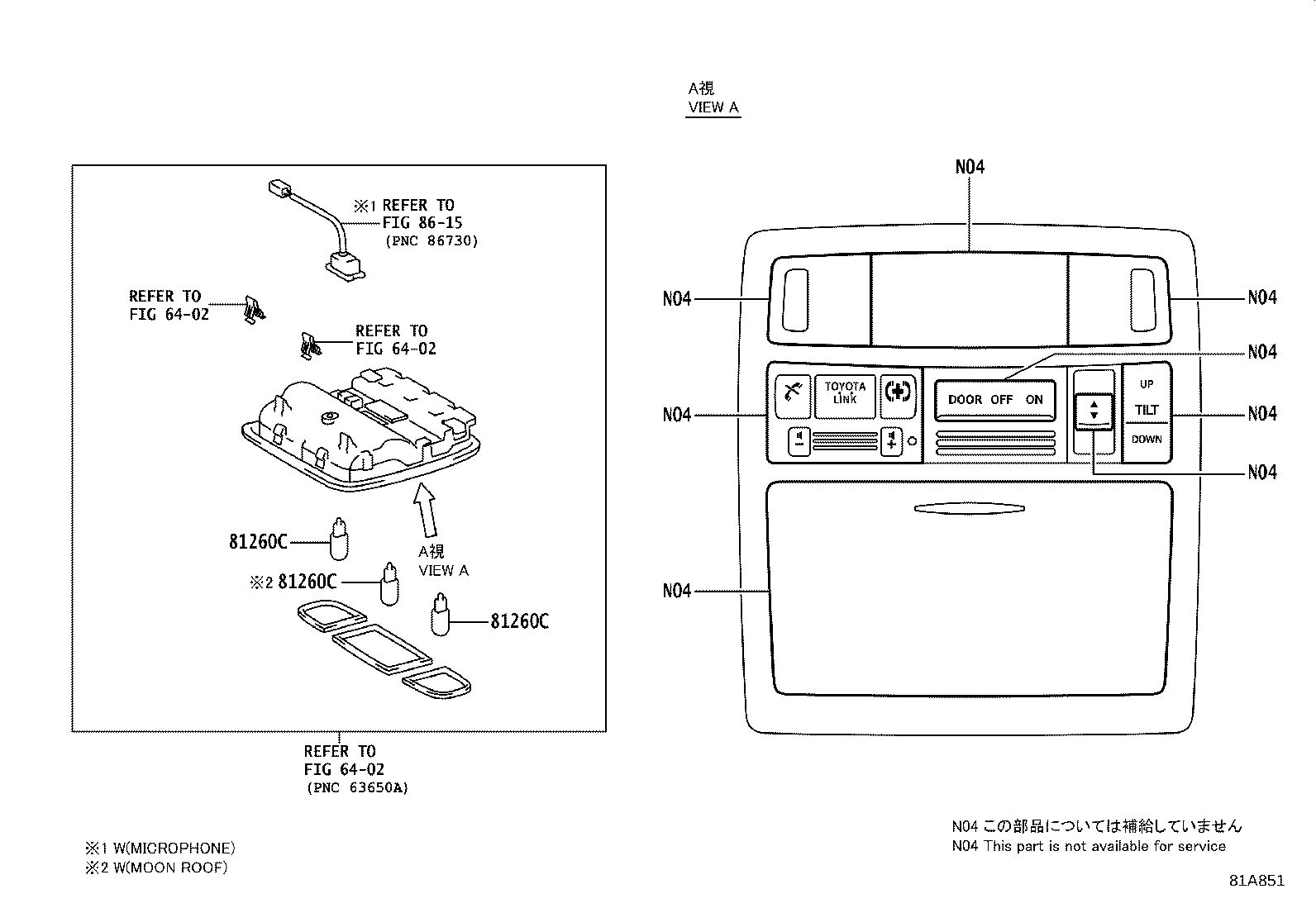

| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
| 81366C | Base, Room Lamp Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
