Factory parts data · Europe

Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

3 part groups · 2 illustrations

Illustrations

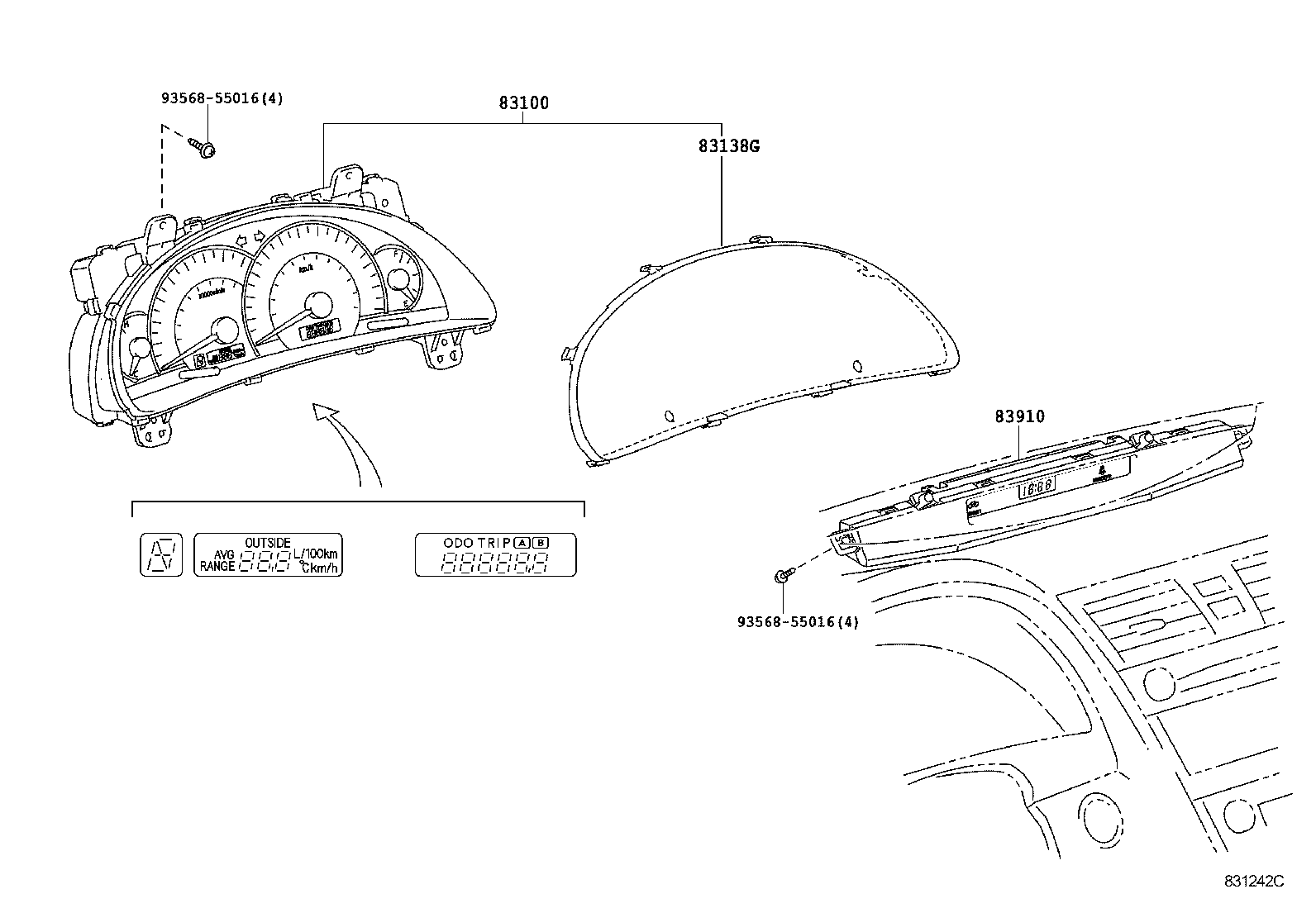

Figure 831242C

831242C 2006-06 → —

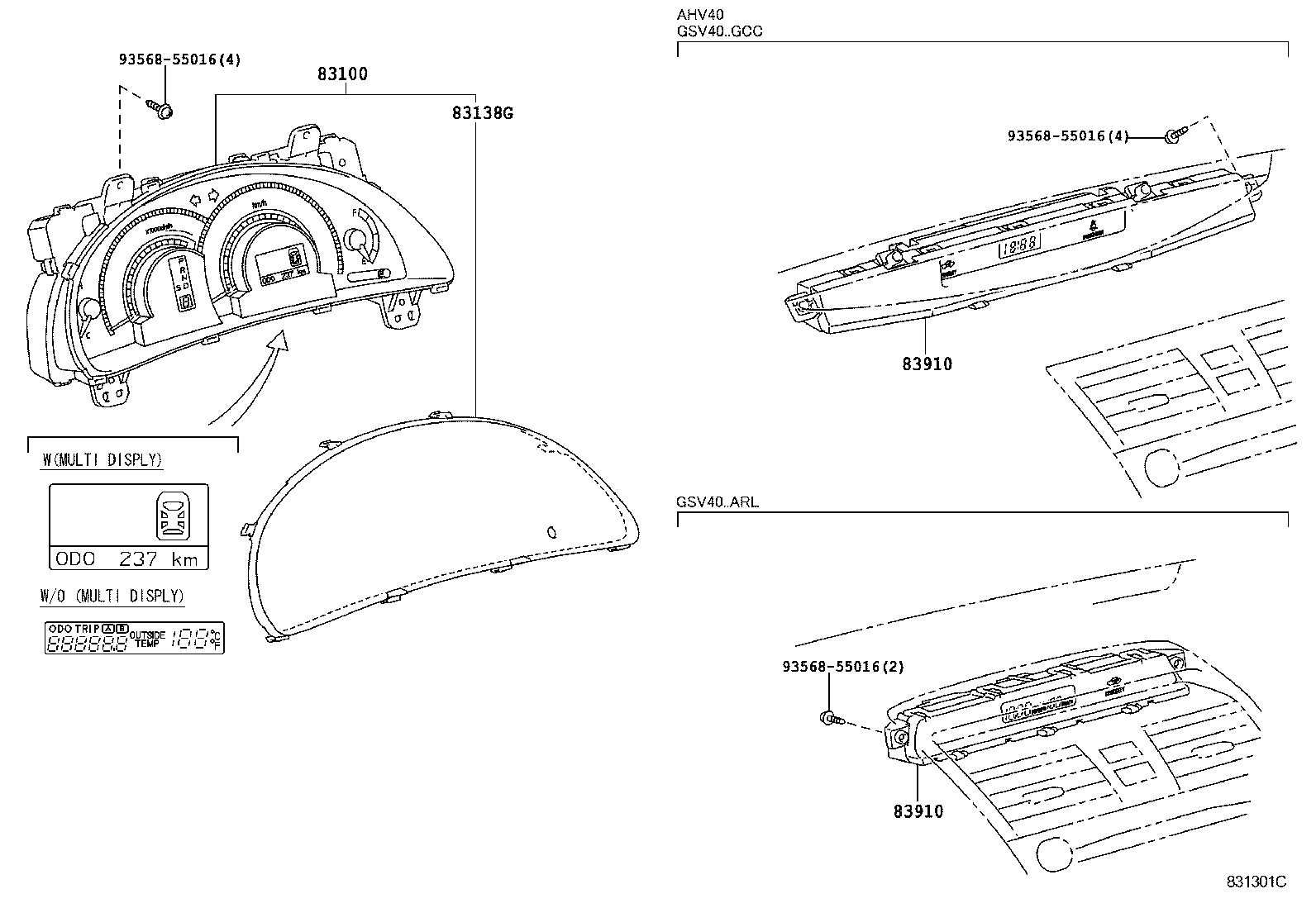

Figure 831301C

831301C 2006-10 → —

Part groups

PNC	Description
83100	Meter Assy, Combination
83138G	Glass, Combination Meter
83910	Clock Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
