Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

106 part groups · 22 illustrations

Illustrations

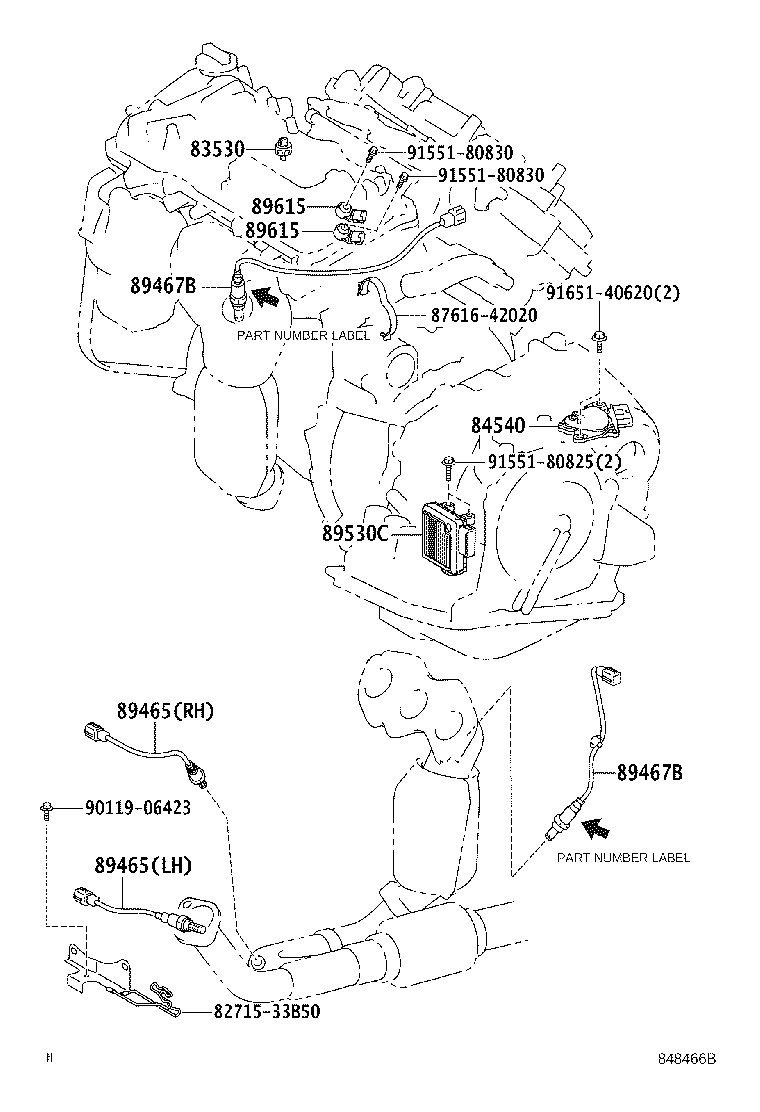

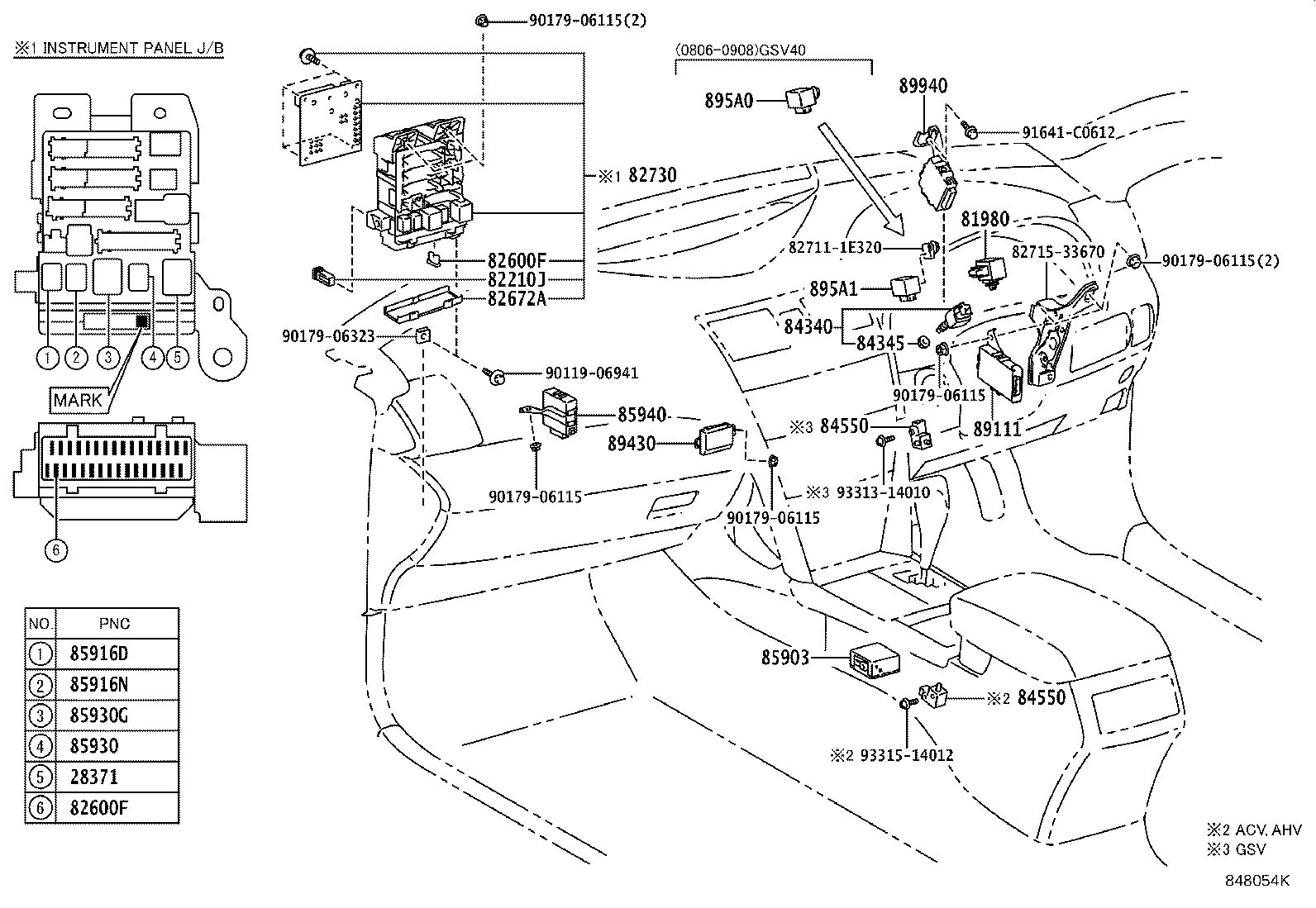

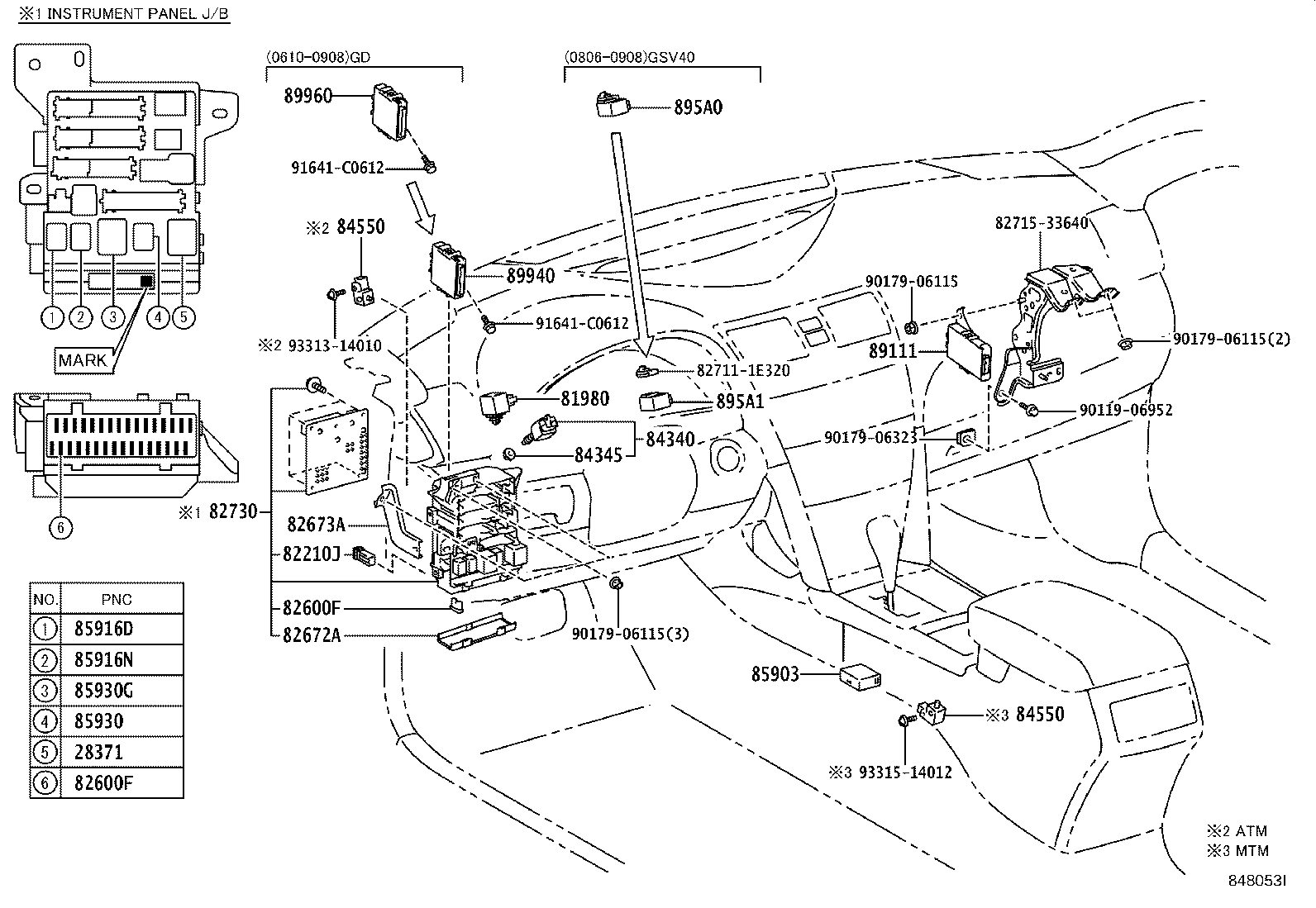

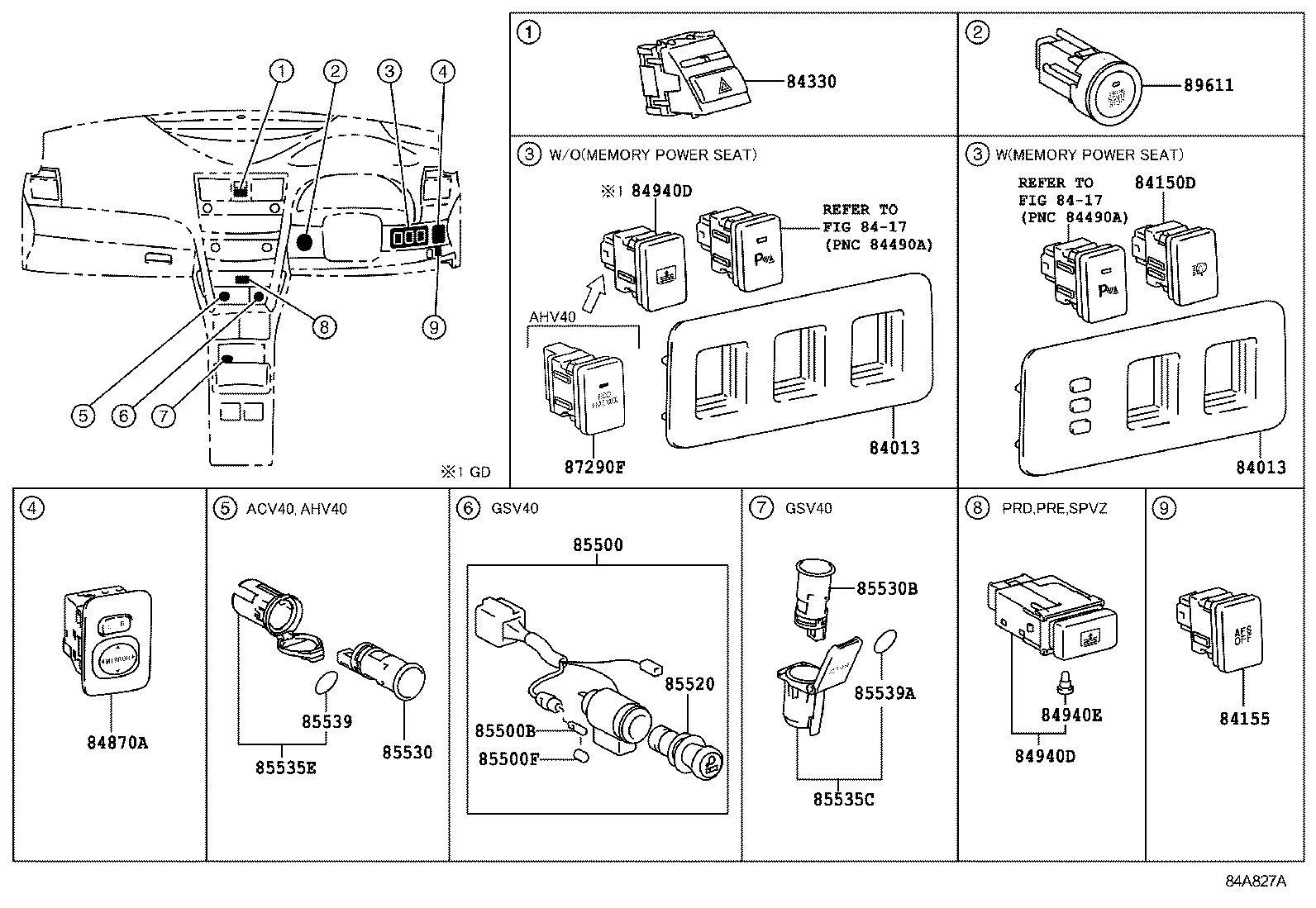

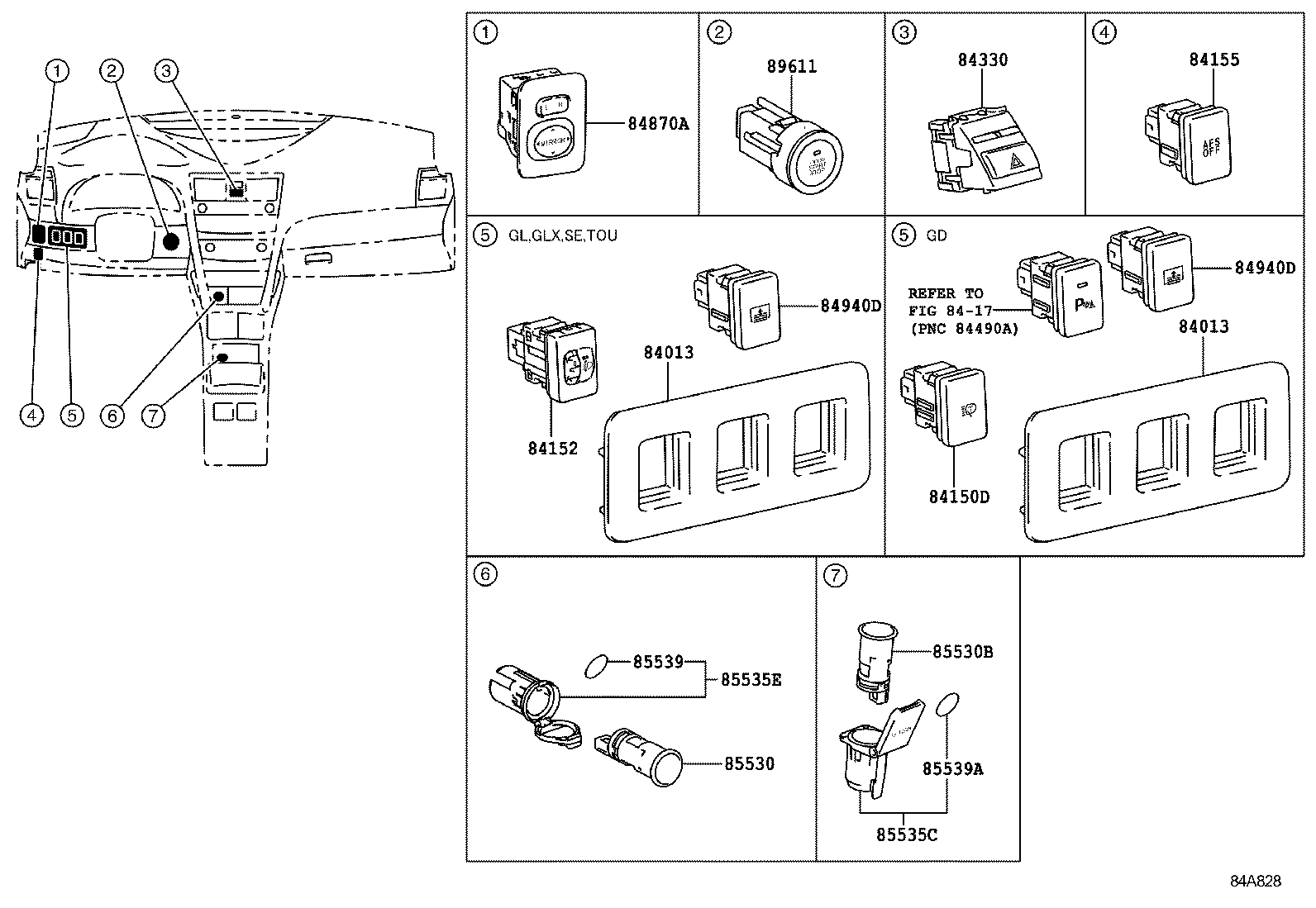

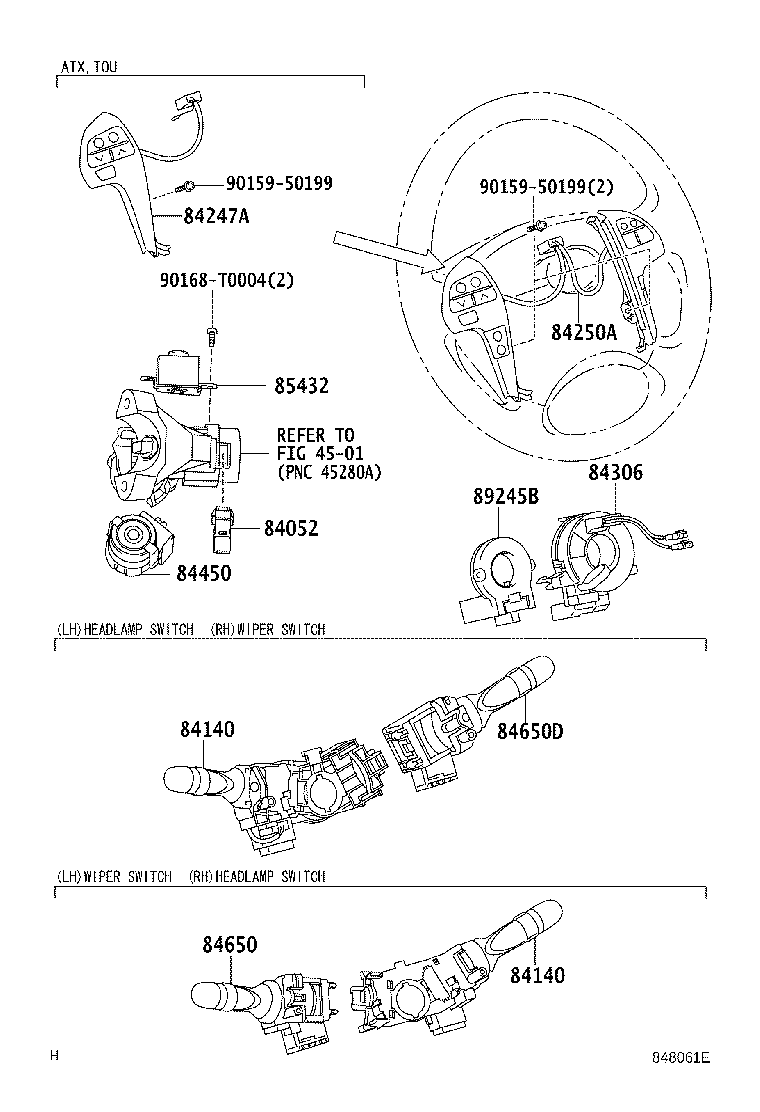

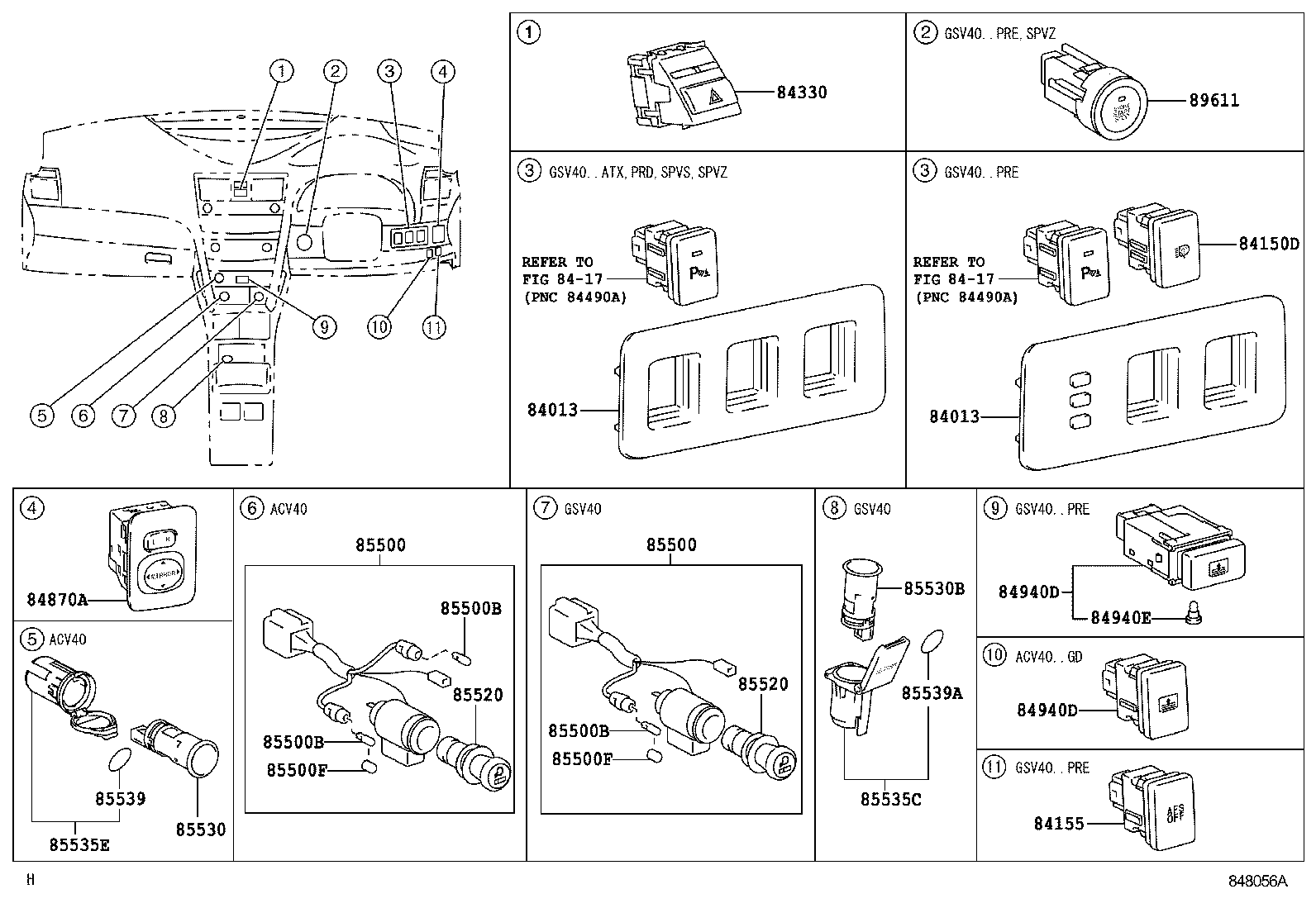

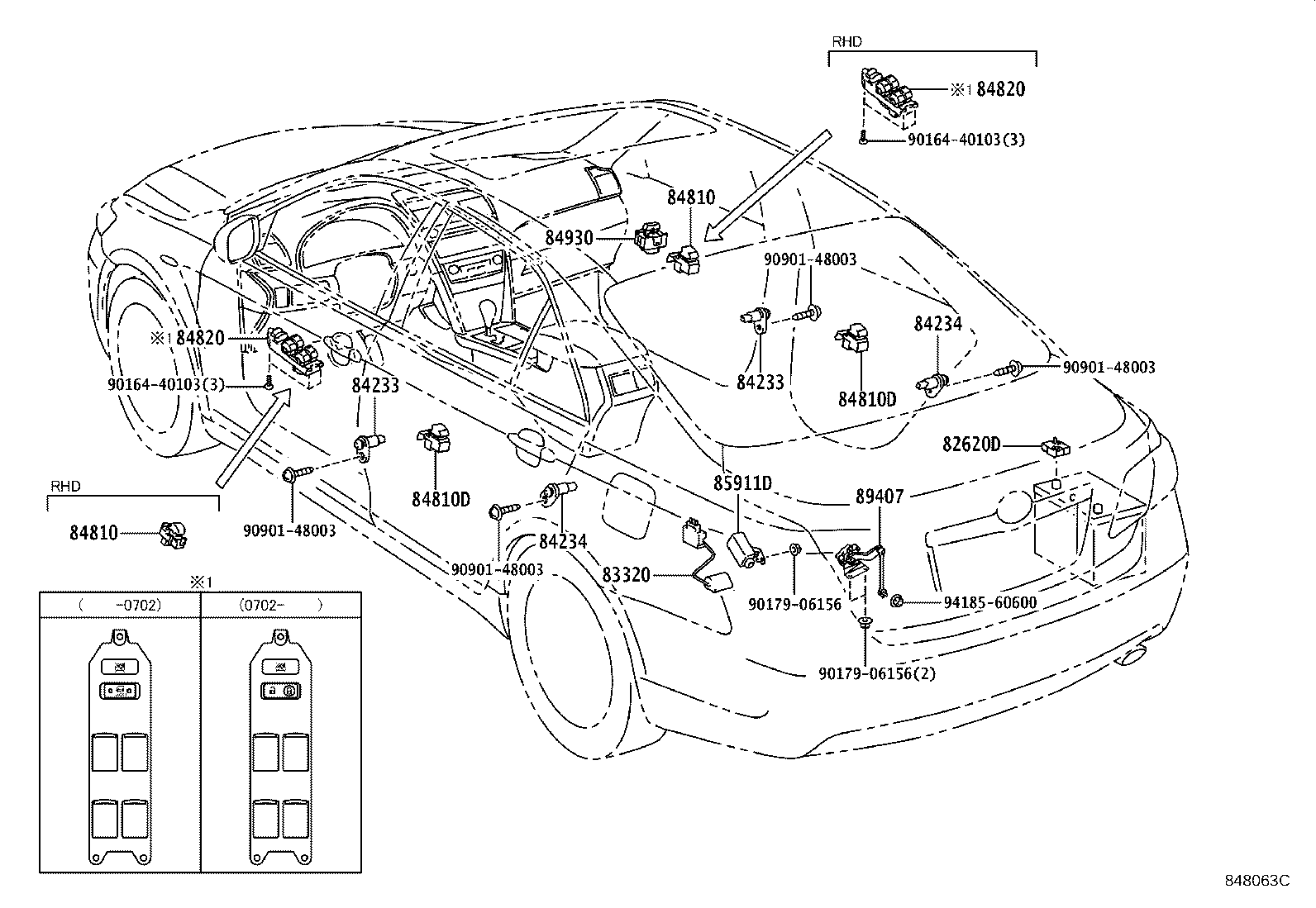

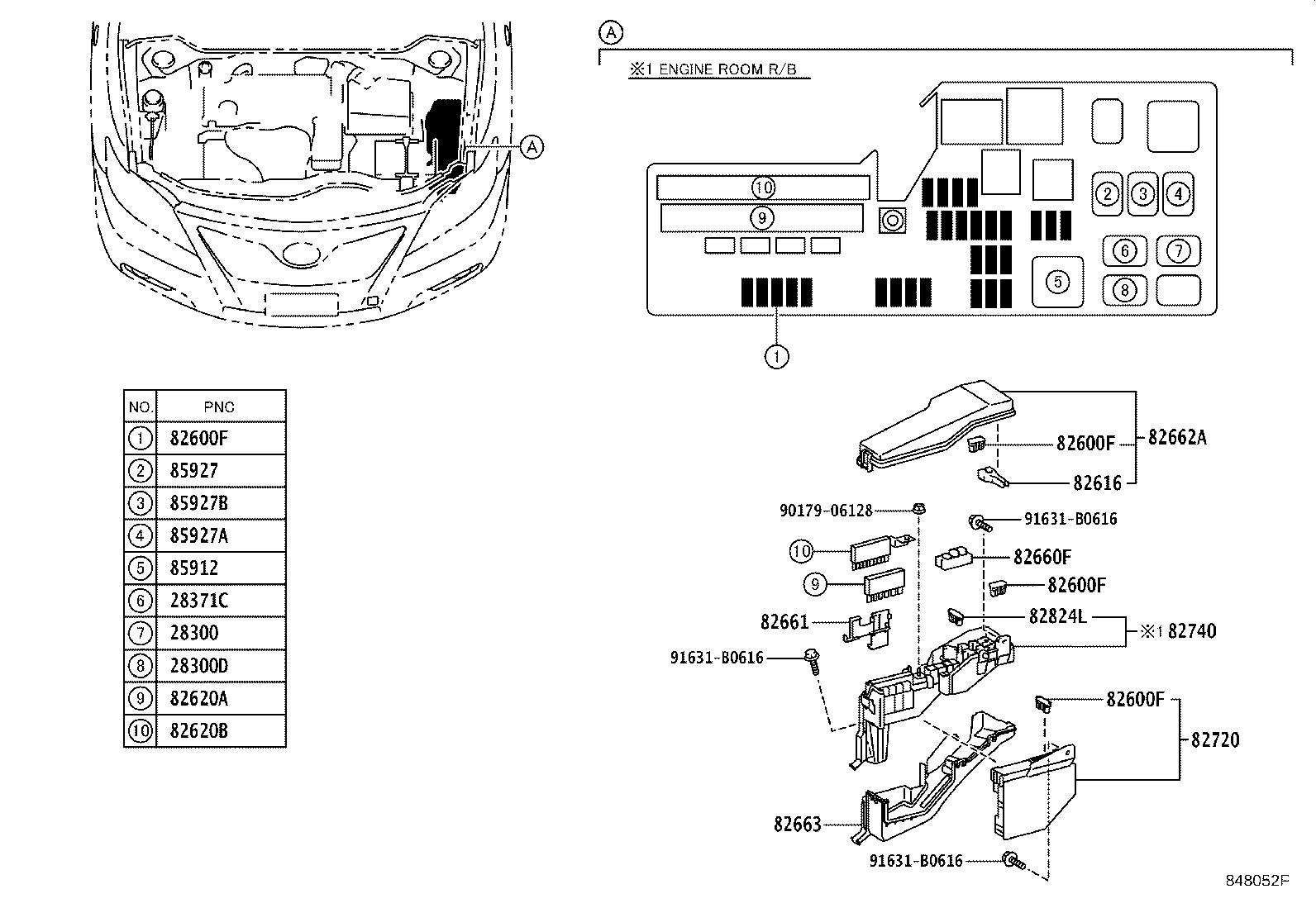

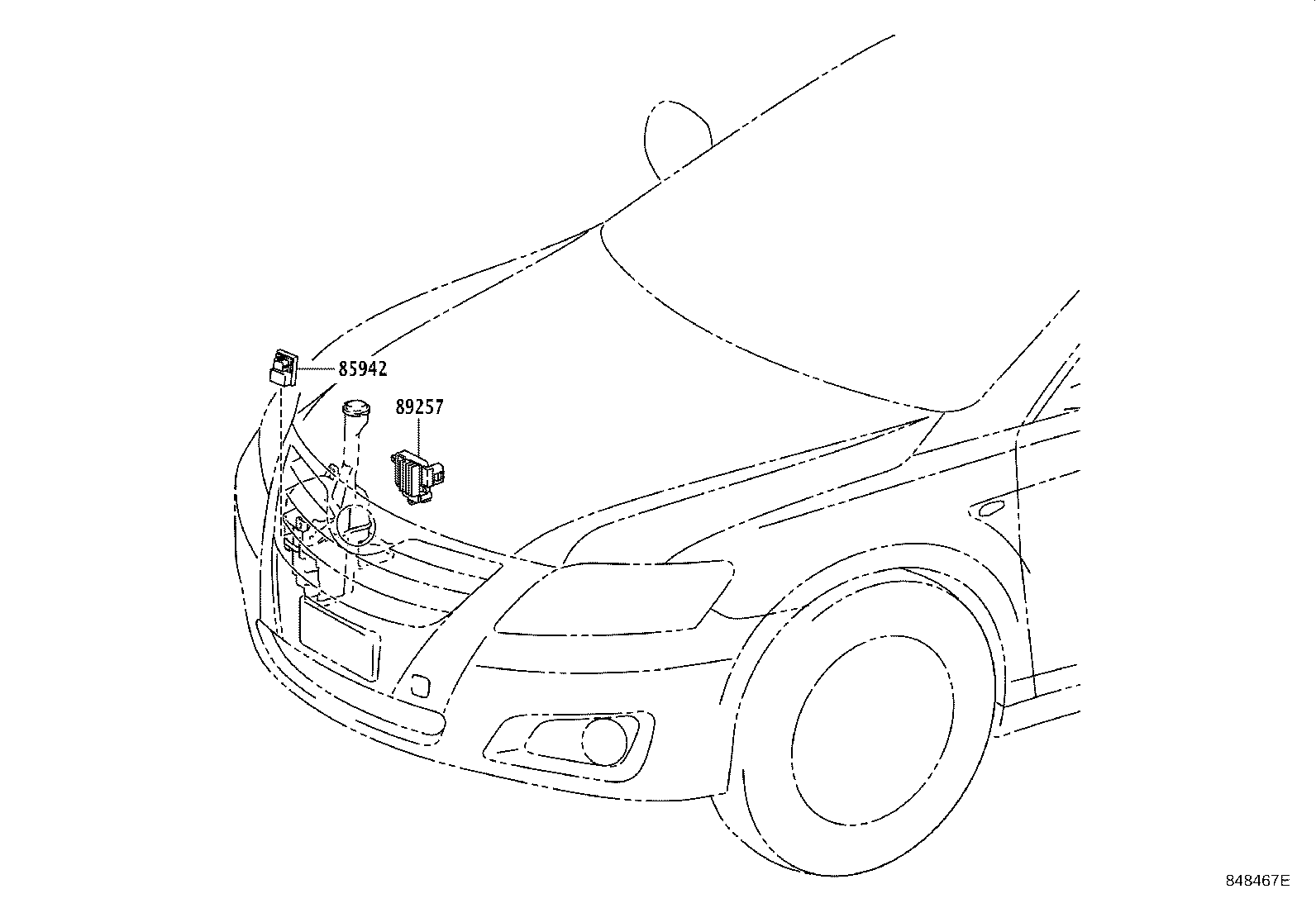

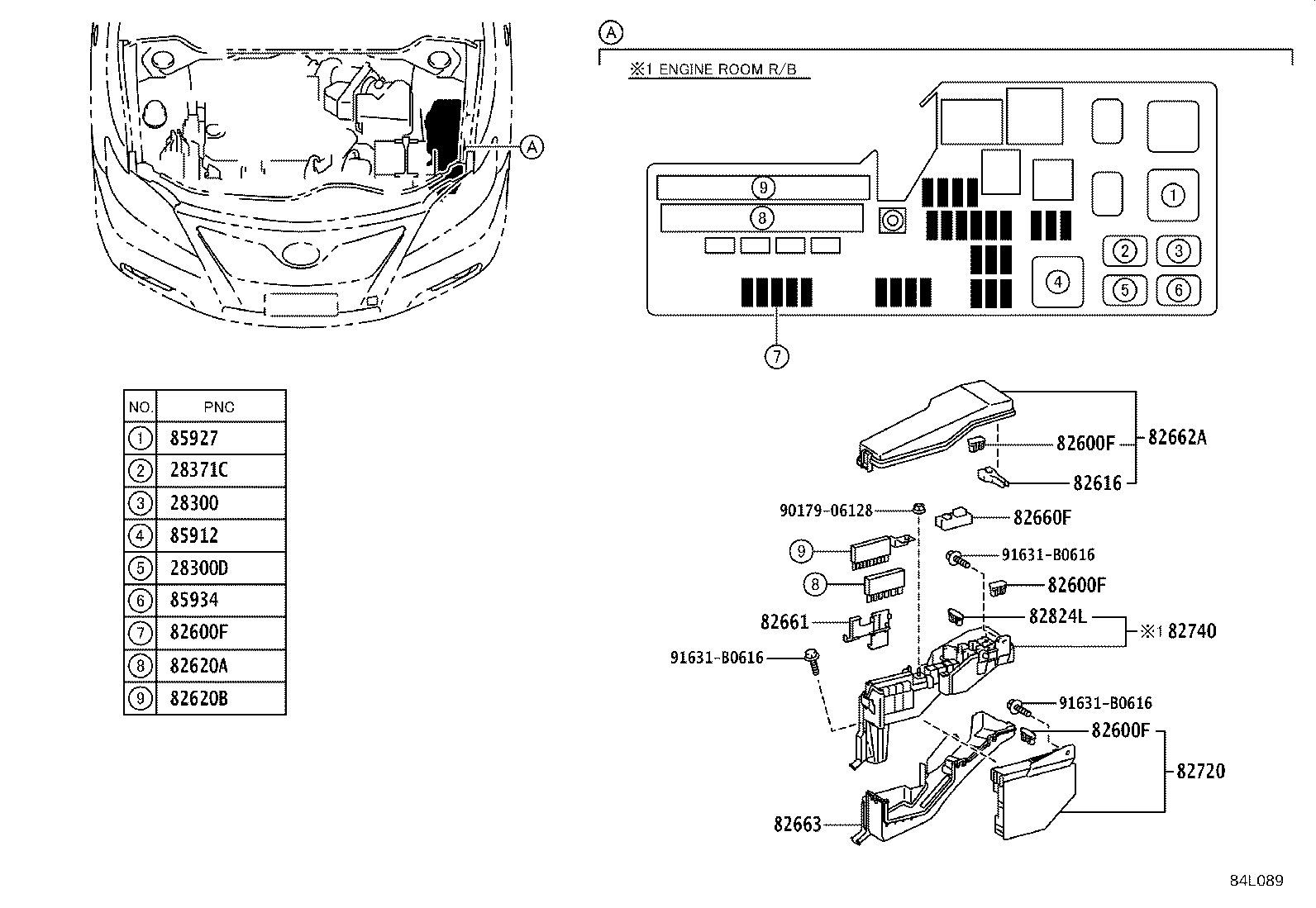

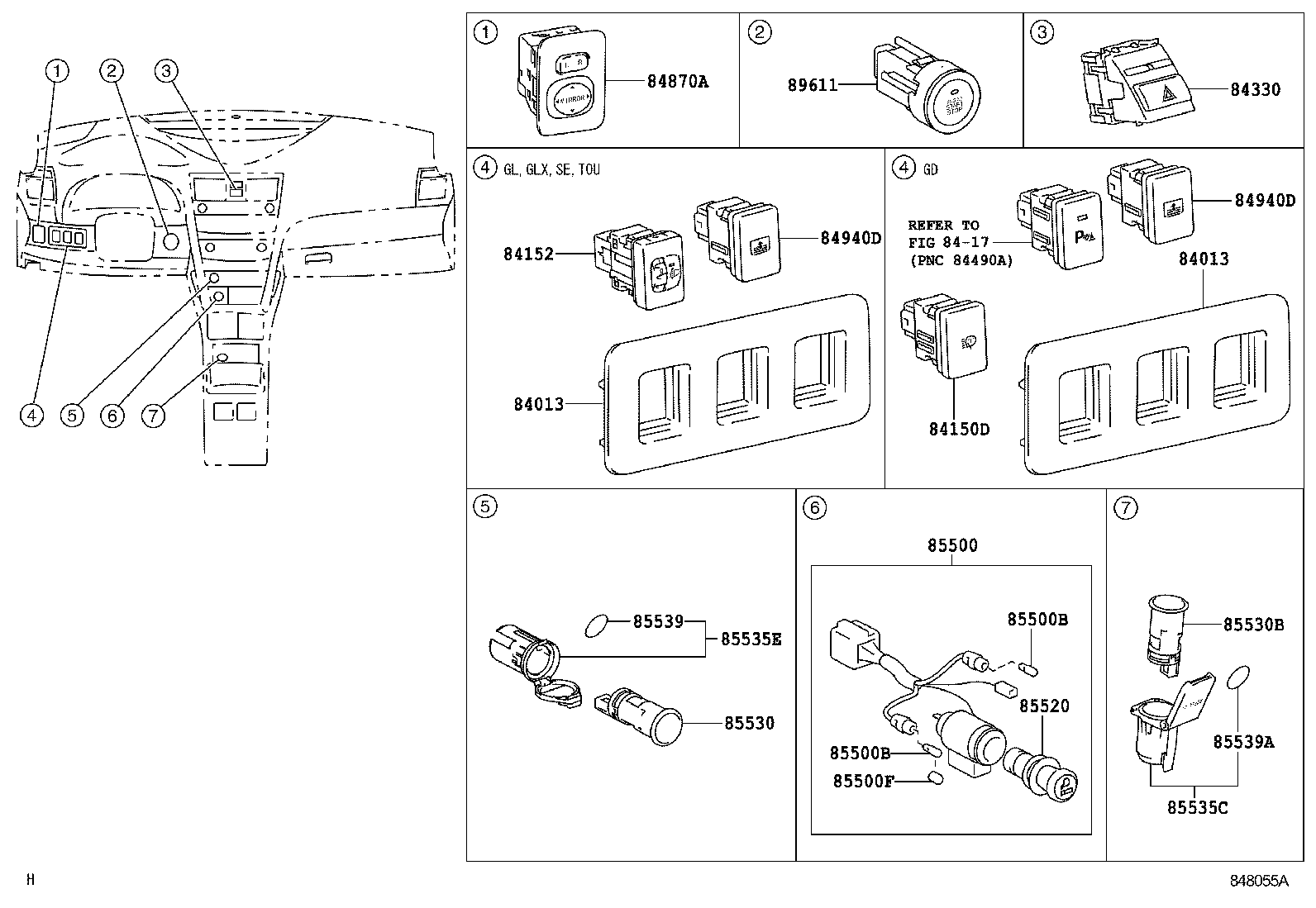

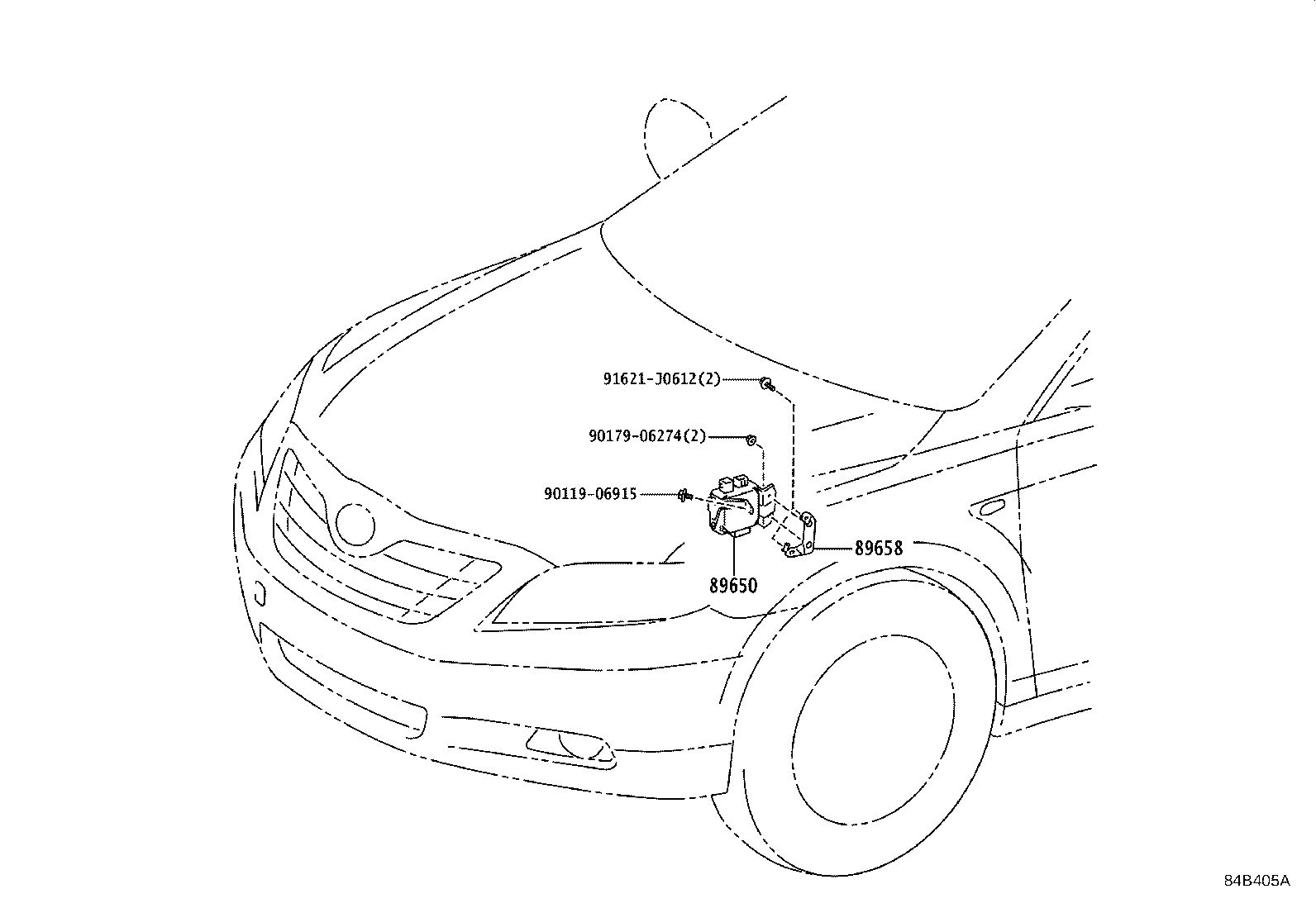

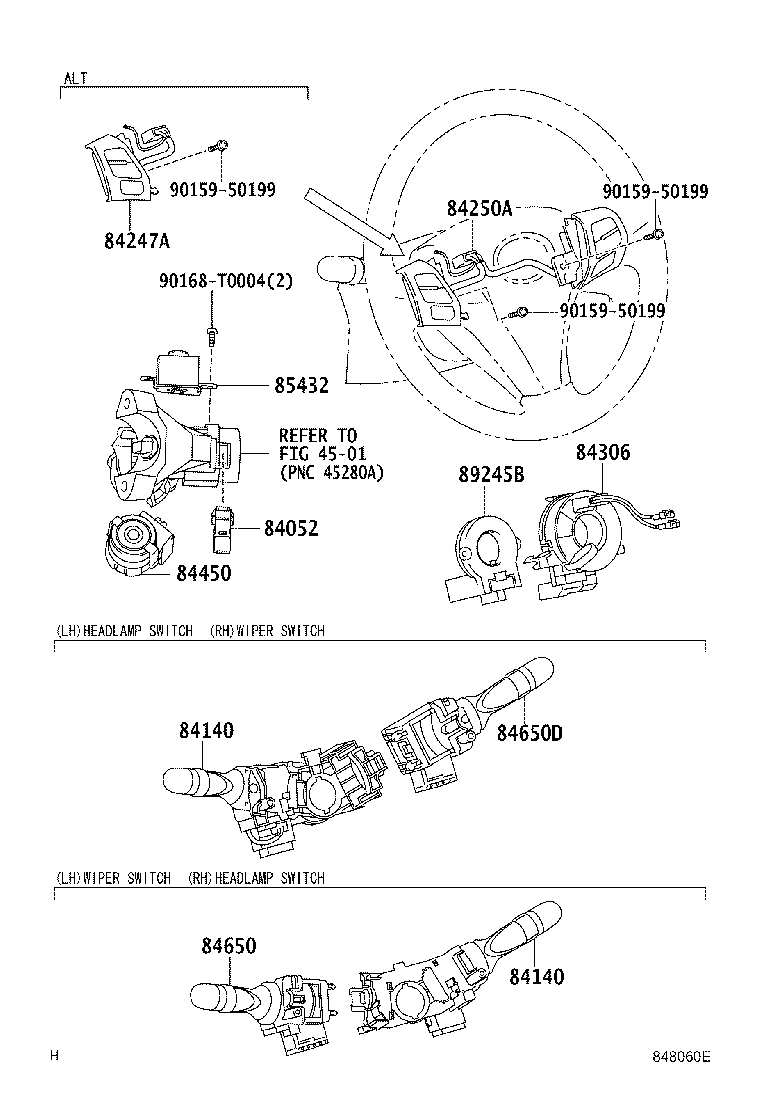

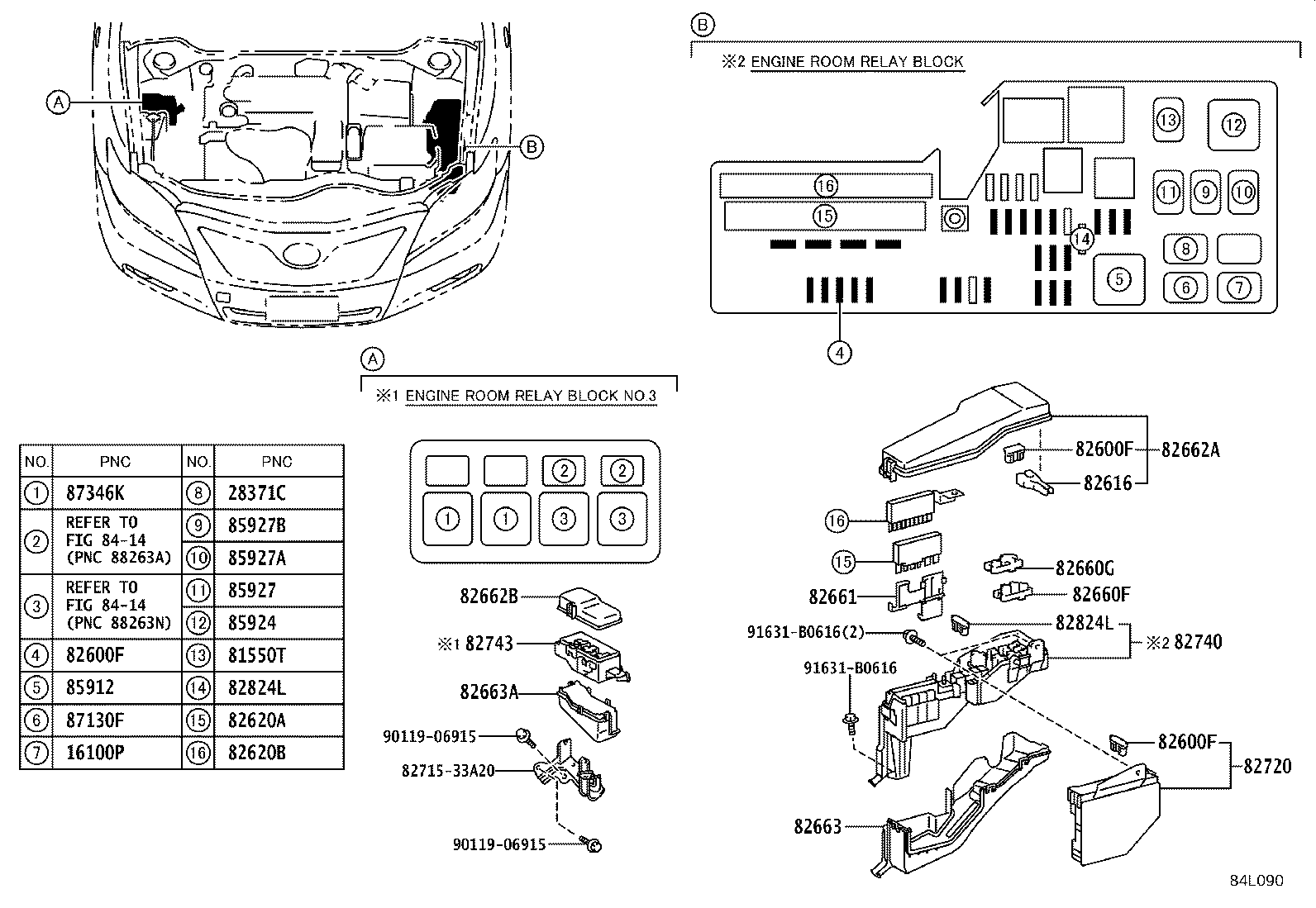

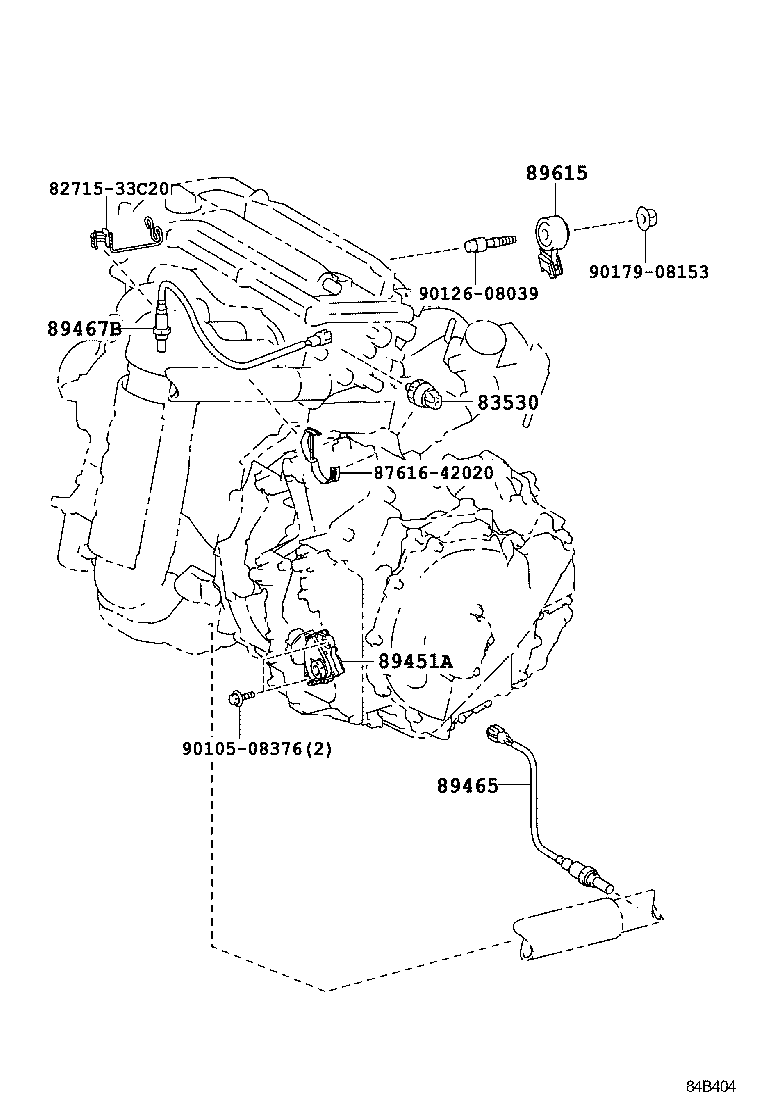

Figure 847608 847608 2006-06 → — Figure 848466B 848466B 2006-10 → — Figure 84B404 84B404 2010-01 → — Figure 848467E 848467E 2006-10 → — Figure 84B405A 84B405A 2010-01 → — Figure 848052F 848052F 2006-06 → — Figure 84L089 84L089 2006-10 → — Figure 84L090 84L090 2010-01 → — Figure 848054K 848054K 2006-06 → — Figure 848053I 848053I 2006-06 → — Figure 848056A 848056A 2006-06 → 2009-06 Figure 848056A 848056A 2006-10 → 2009-08 Figure 848055A 848055A 2006-06 → 2009-06 Figure 848055A 848055A 2006-10 → 2009-08 Figure 84A827A 84A827A 2009-06 → — Figure 84A827A 84A827A 2009-08 → — Figure 84A828 84A828 2009-06 → — Figure 84A828 84A828 2009-08 → — Figure 848060E 848060E 2006-06 → — Figure 848061E 848061E 2006-06 → — Figure 848062C 848062C 2006-06 → — Figure 848063C 848063C 2006-06 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28371C Relay, Ignition, NO.2
81550T Relay, Back UP Lamp
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82660F Block Assy, Relay
82660G Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82743 Block, Engine Room Relay, NO.3
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84013 Panel Sub-assy, Integration
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84155 Switch, Headlamp Swivel Main
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control
84940D Switch Assy, Rear Sun Shade
84940E Bulb, Rear Sun Shade
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85539 Label, Power Outlet Notice
85539A Label, Power Outlet Notice, Rear
85903 Computer Sub-assy, Shift Lock Control
85911D Relay, Rear Sunshade
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916N Relay, Taillamp
85924 Relay, Ignition Control
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930 Relay Assy, Power Window
85930G Relay, Acc
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
87130F Relay, Battery Blower, NO.1
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
89111 Computer, Network Gateway
89245B Sensor, Steering
89257 Computer, Cooling Fan
89407 Sensor Sub-assy, Height Control, Rear RH
89430 Computer Assy, Outer Mirror Control
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89530C Computer Assy, Transmission Control
895A0 Relay Assy, Stop Lamp Control
895A1 Relay, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89658 Bracket, Power Steering Computer
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
