Toyota Camry/Aurion/HV(ARL)
2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General
Supported model
Data version 2011-10
Electronic Fuel Injection System
5 part groups · 2 illustrations

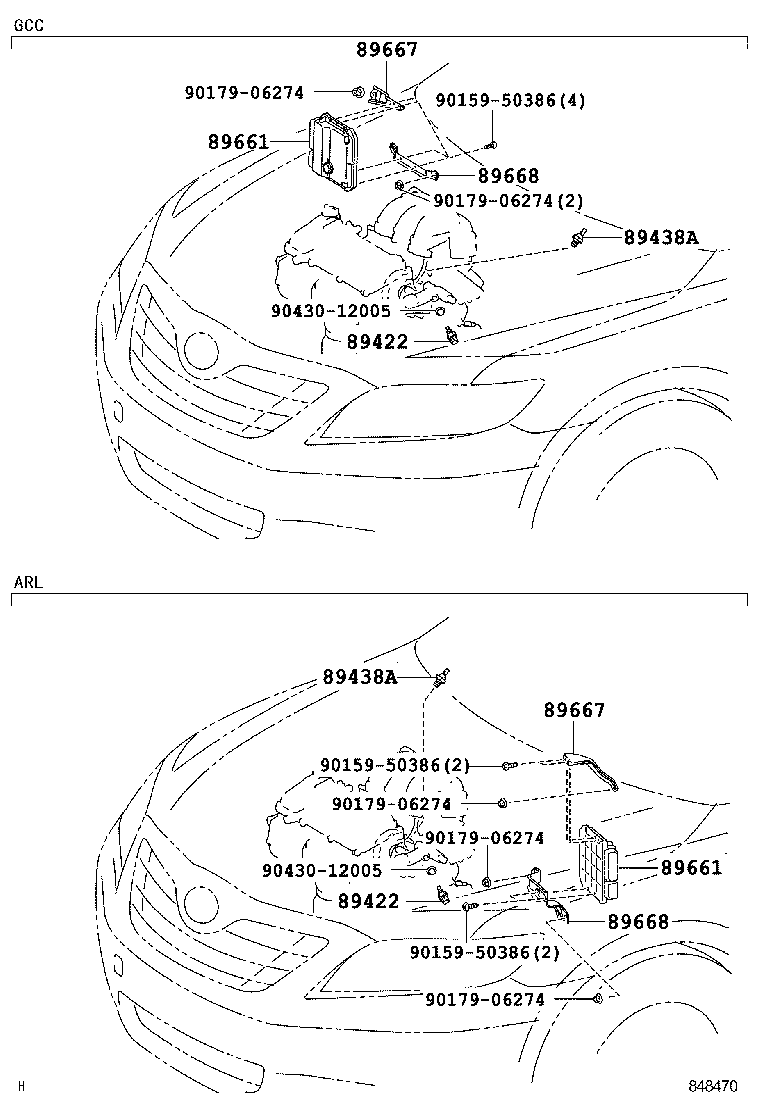

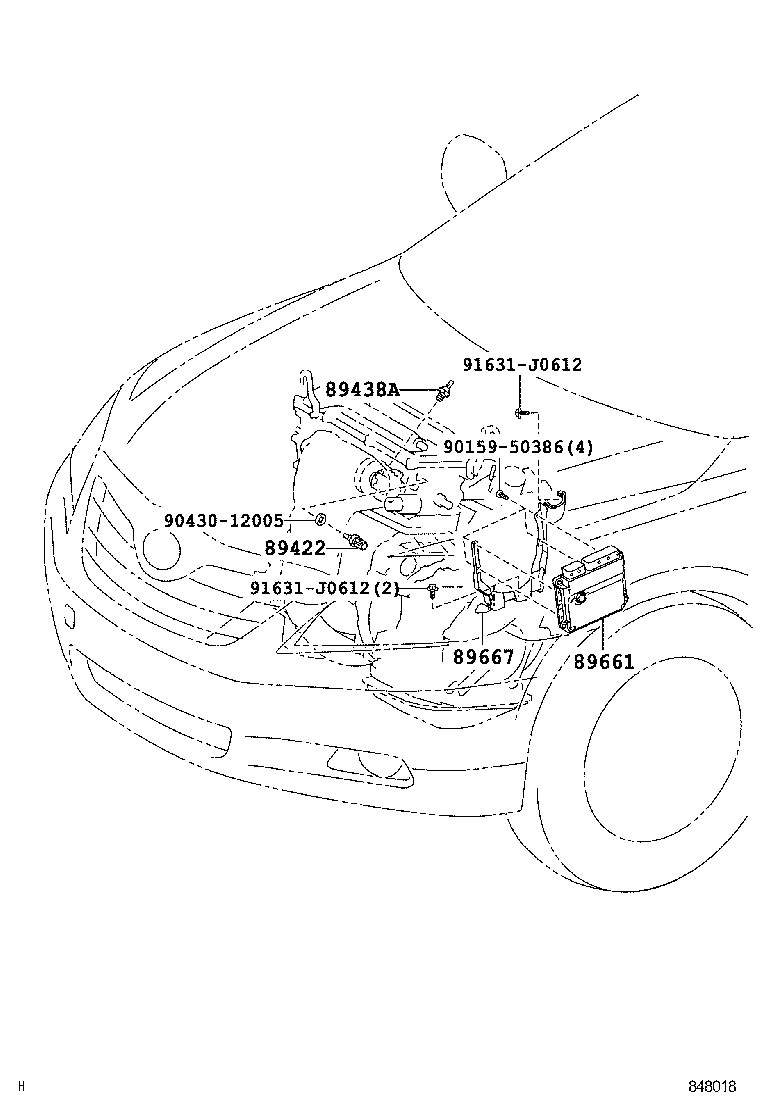

Part groups
| PNC | Description |
|---|---|
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
