Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

13 part groups · 3 illustrations

Illustrations

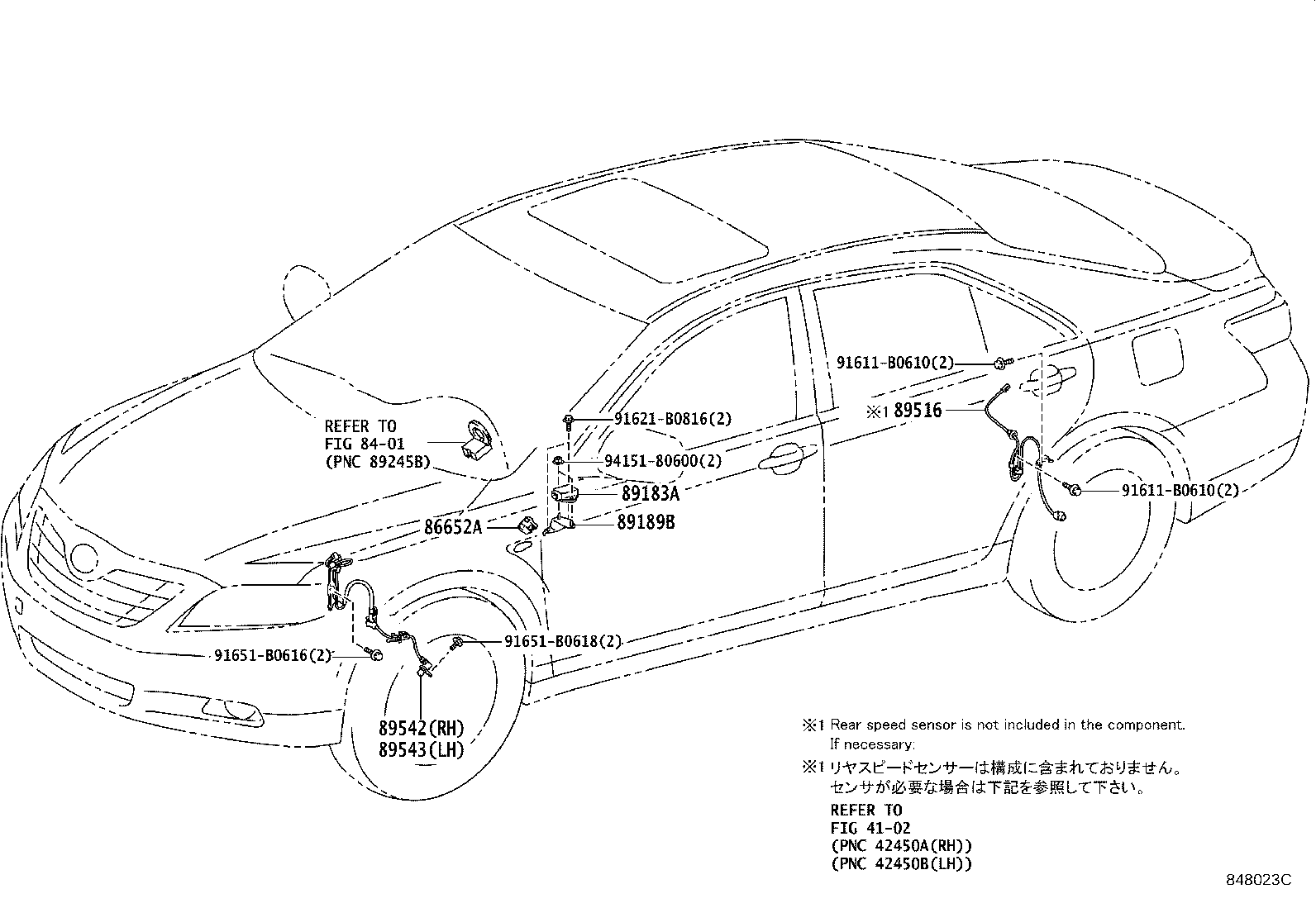

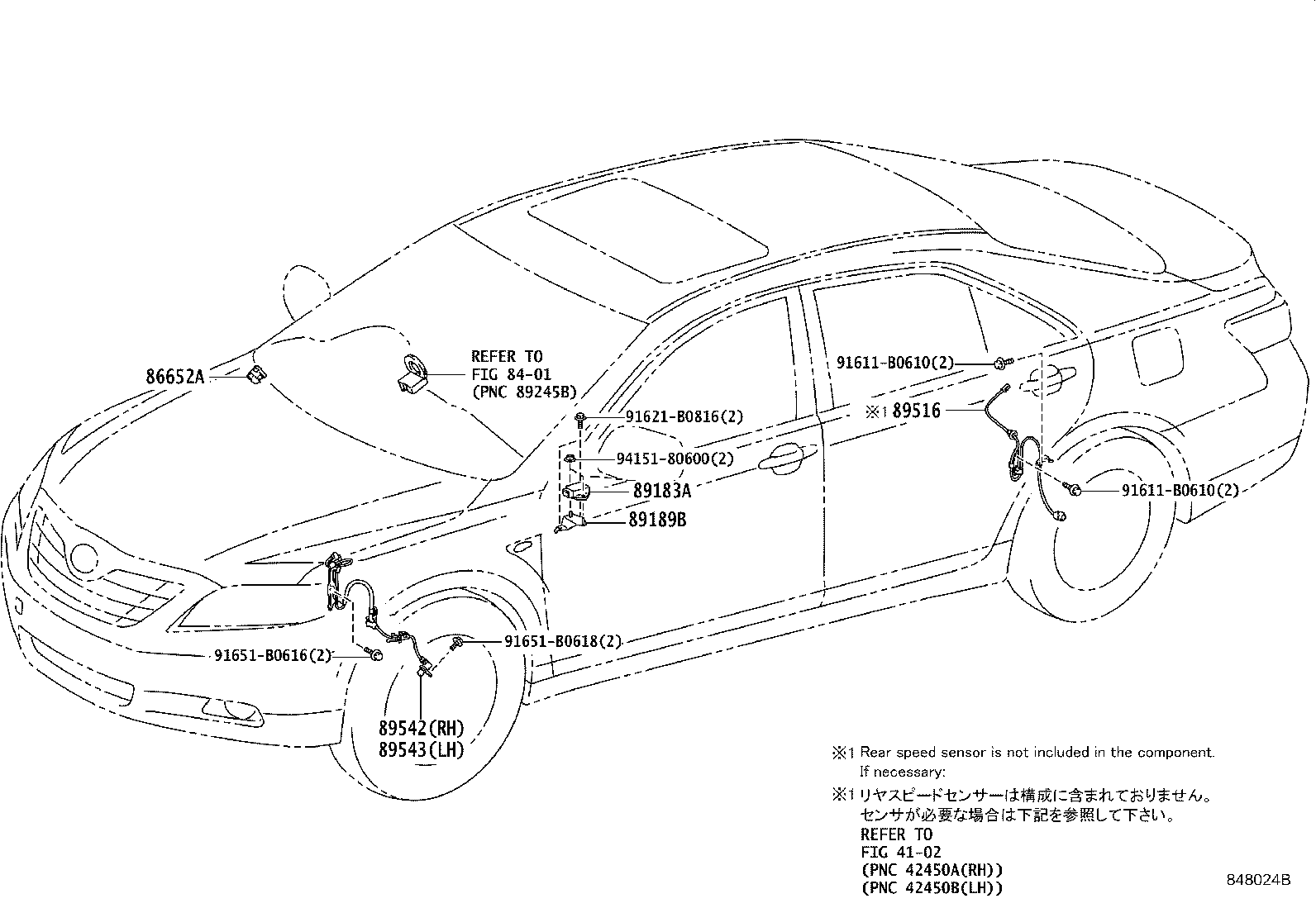

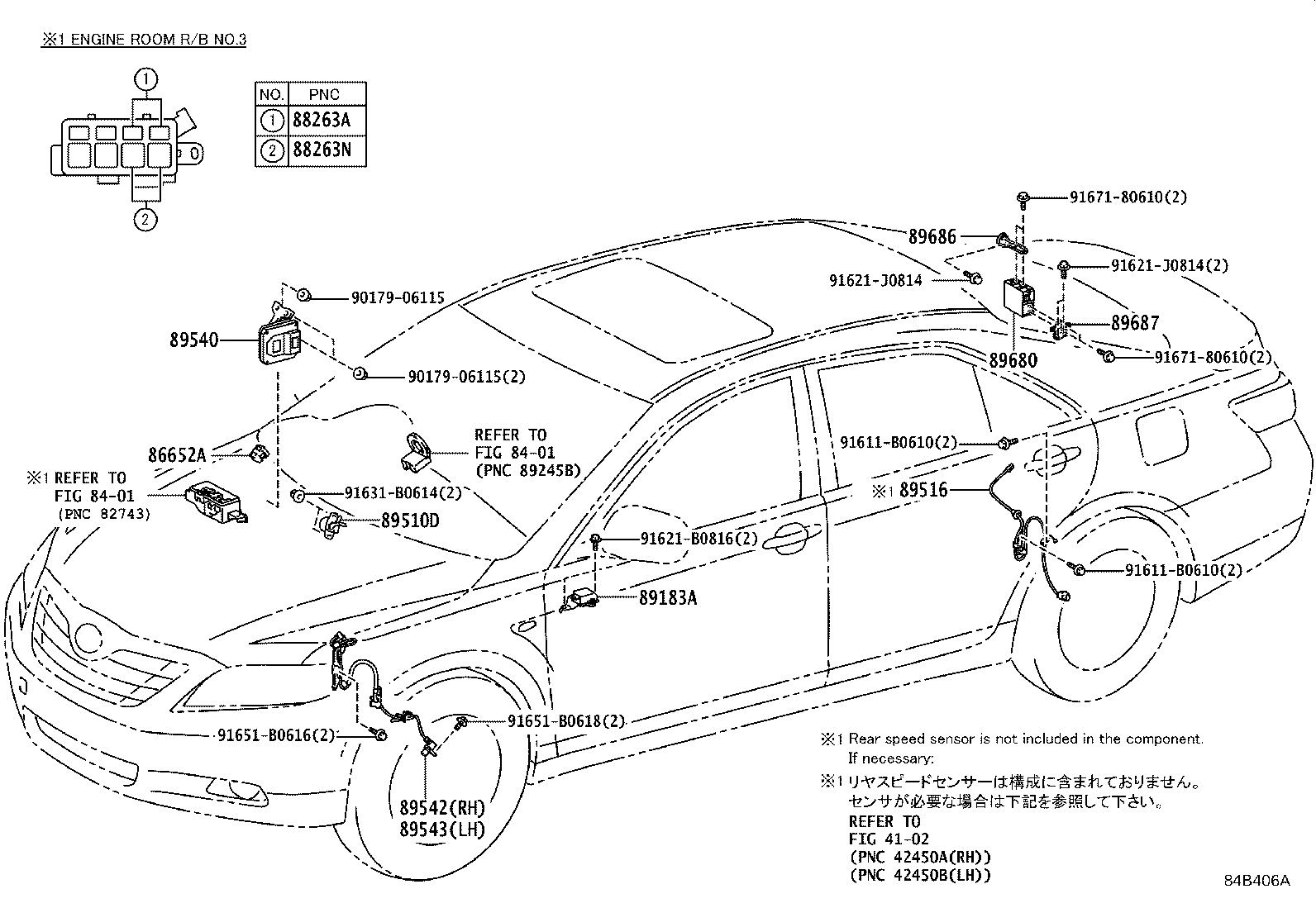

Figure 848024B 848024B 2006-06 → — Figure 848023C 848023C 2006-06 → — Figure 84B406A 84B406A 2010-01 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263N Relay, Abs Motor
89183A Sensor, Yawrate
89189B Bracket, Yawrate Sensor
89510D Sensor Assy, Brake Pedal Stroke
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
89687 Bracket, Brake Control Power Supply, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
