Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

16 part groups · 1 illustrations

Illustrations

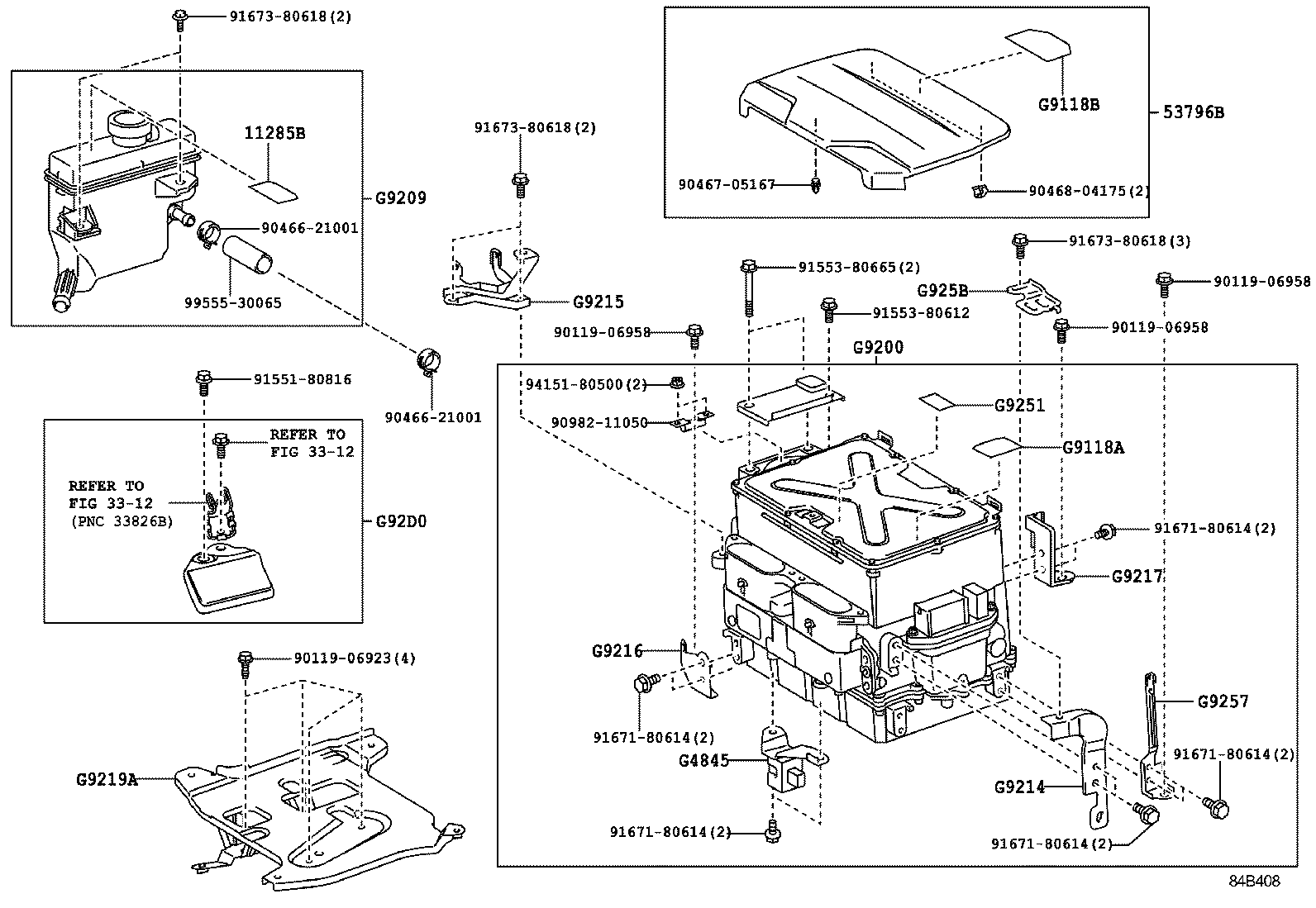

Figure 84B408 84B408 2010-01 → —

Part groups

PNCDescription
11285B Label, Coolant System Notice
53796B Cover, Engine Room Side, LH NO.2
G4845 Sensor, Circuit Breaker, NO.1
G9118A Label, HV Motor Control Inverter Caution
G9118B Label, Power Control Unit Caution
G9200 Inverter Assy, W/Converter
G9209 Tank Sub-assy, Inverter Reserve
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G9216 Bracket, Inverter, NO.3
G9217 Bracket, Inverter, NO.4
G9219A Bracket, Inverter Tray
G9251 Seat, Inverter Name
G9257 Bracket, Inverter, NO.5
G925B Bracket, Inverter, NO.6
G92D0 Protector Assy, Hybrid Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
