Toyota Camry/Aurion/HV(ARL)
2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General
Supported model
Data version 2011-10
Inverter Cooling
8 part groups · 1 illustrations

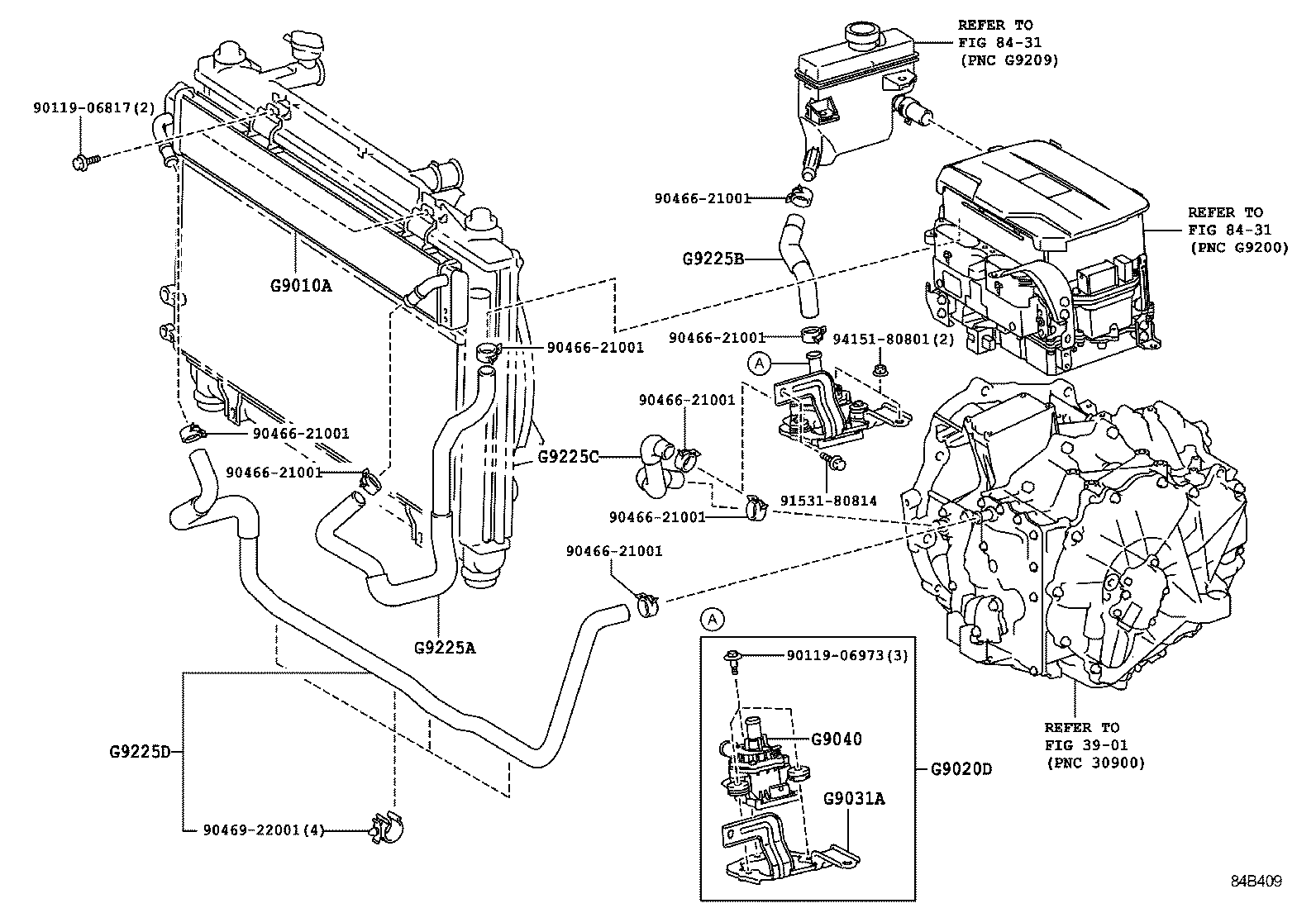

Illustrations
Part groups
| PNC | Description |
|---|---|
| G9010A | Radiator Assy |
| G9020D | Pump Assy, Water W/Motor & Bracket |
| G9031A | Bracket Sub-assy, HV Water Pump |
| G9040 | Inverter Water Pump Assy(W/MOTOR) |
| G9225A | Hose, Inverter Cooling, NO.7 |
| G9225B | Hose, Inverter Cooling, NO.8 |
| G9225C | Hose, Inverter Cooling, NO.9 |
| G9225D | Hose, Inverter Cooling, NO.10 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
