Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

14 part groups · 2 illustrations

Illustrations

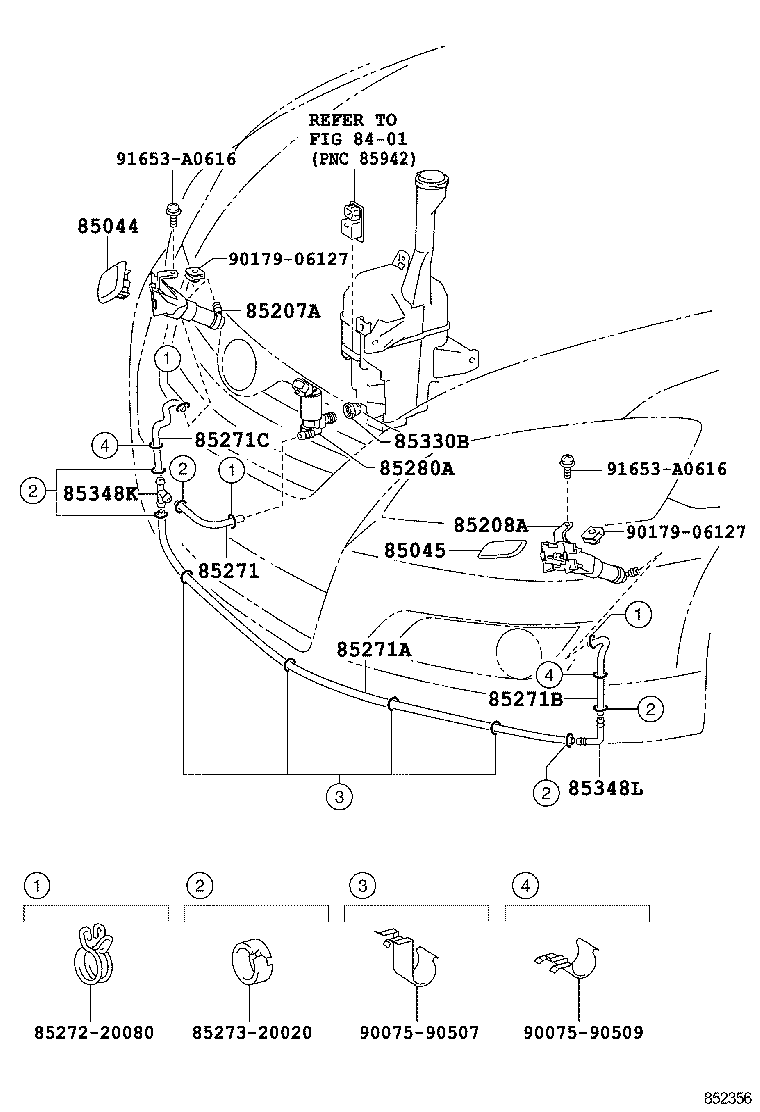

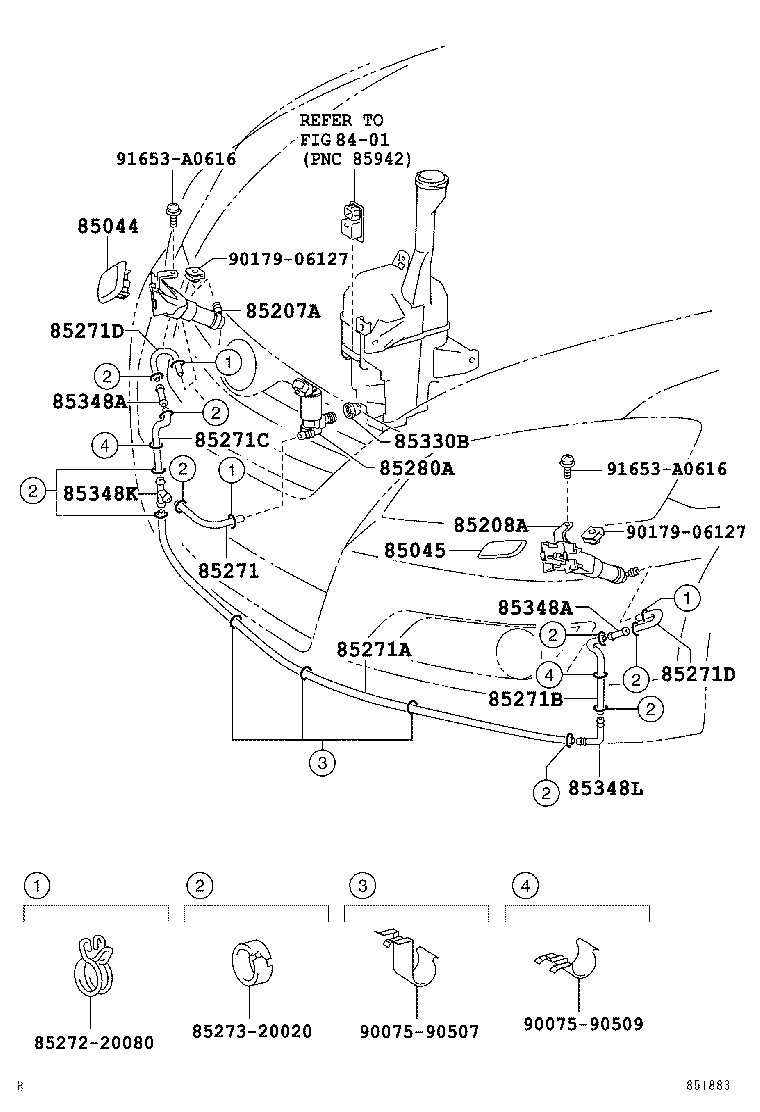

Figure 851883 851883 2006-10 → 2009-08 Figure 852356 852356 2009-08 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85280A Motor And Pump Assy, Headlamp Cleaner
85330B Bush, Headlamp Cleaner Washer Jar
85348A Joint, Headlamp Cleaner Hose, NO.1
85348K Joint, Headlamp Cleaner Elbow, NO.1
85348L Joint, Headlamp Cleaner Elbow, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
