Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

10 part groups · 1 illustrations

Illustrations

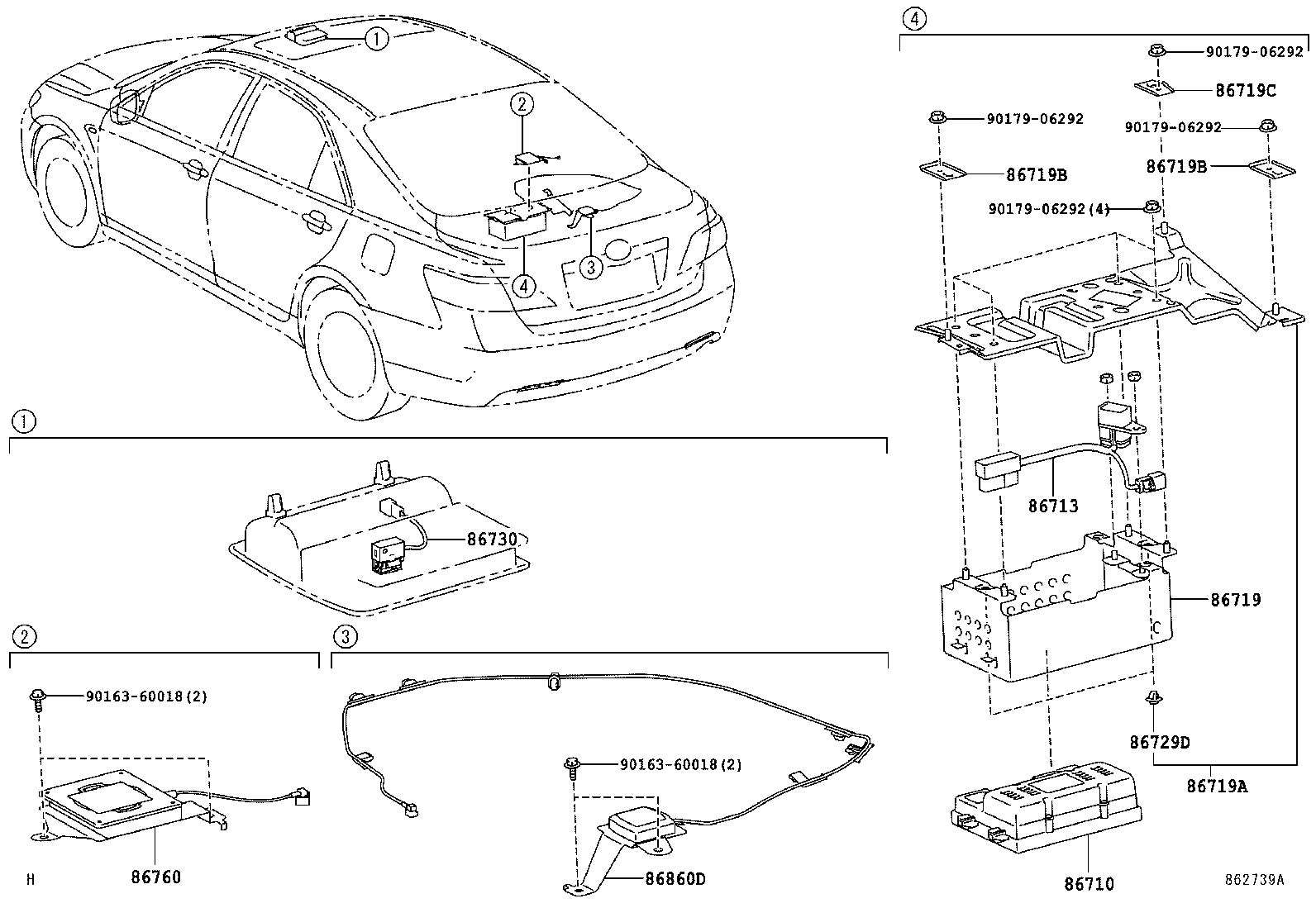

Figure 862739A 862739A 2006-06 → —

Part groups

PNCDescription
86710 Computer Assy, Telephone
86713 Wire, Telephone Computer
86719 Bracket, Telephone
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86719C Bracket, Telephone NO.3
86729D Clip, Mobilephone Bracket, NO.1
86730 Microphone Assy, Telephone
86760 Antenna Assy, Telephone
86860D Antenna, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
