Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

10 part groups · 2 illustrations

Illustrations

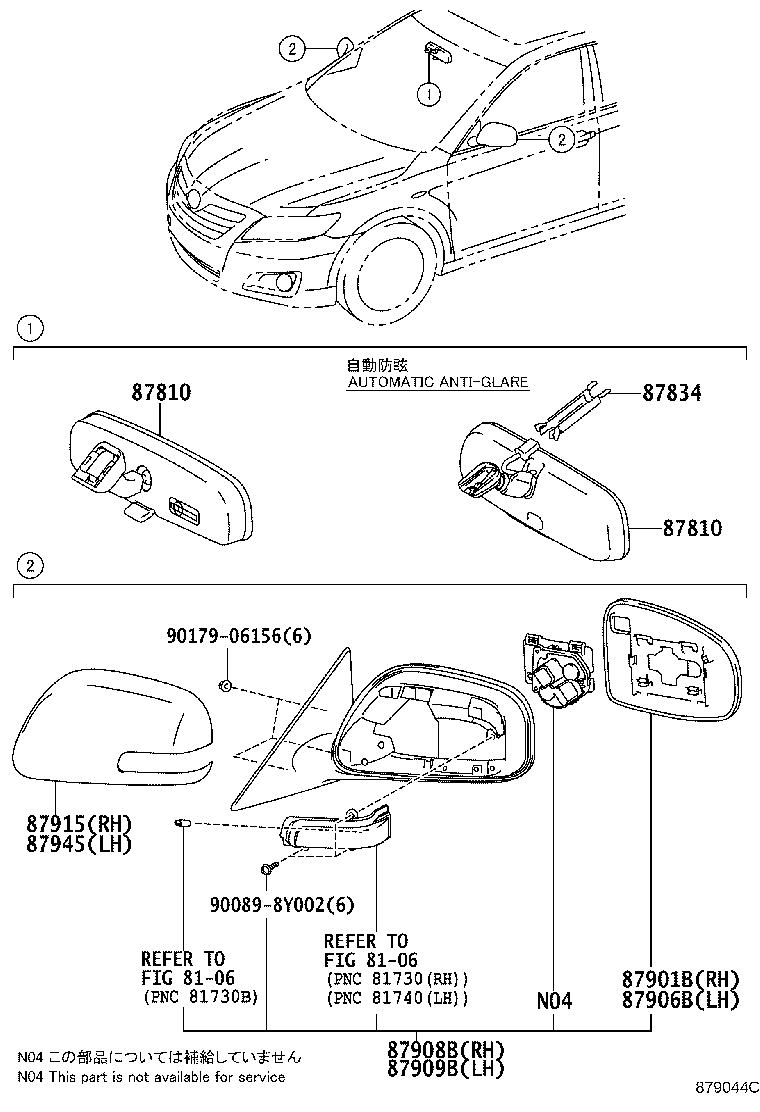

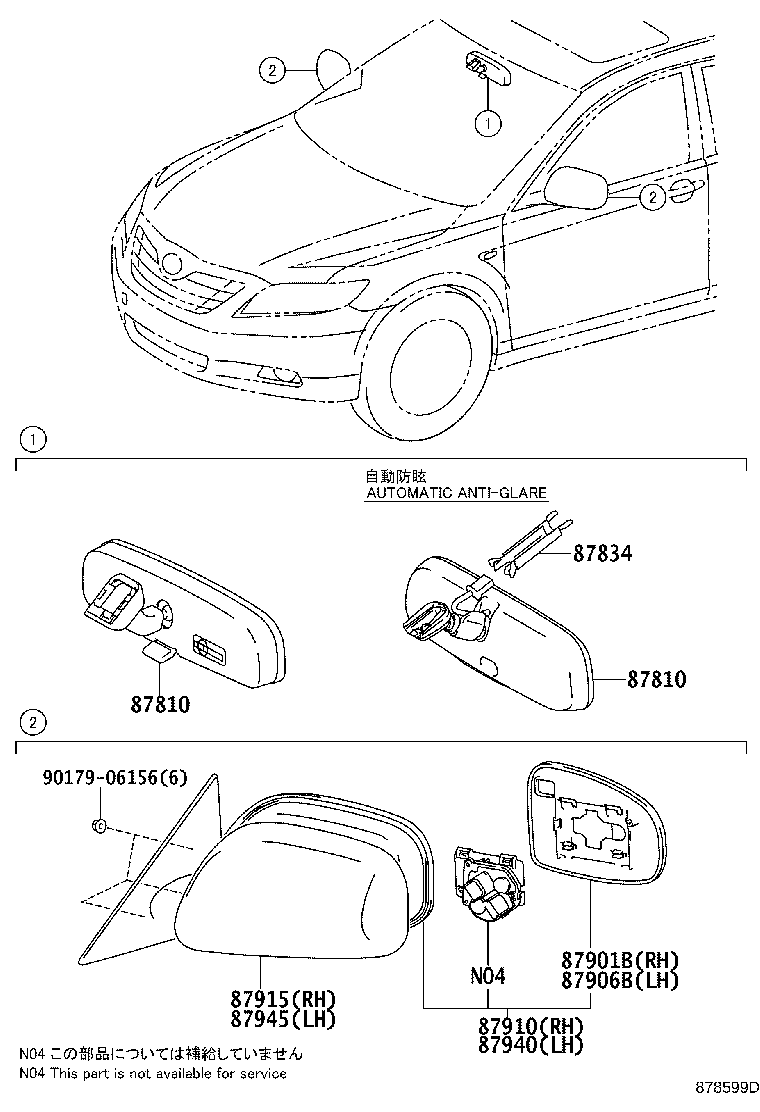

Figure 878599D 878599D 2006-06 → — Figure 879044C 879044C 2006-10 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87908B Mirror Sub-assy, RH
87909B Mirror Sub-assy, LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
