Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

18 part groups · 10 illustrations

Illustrations

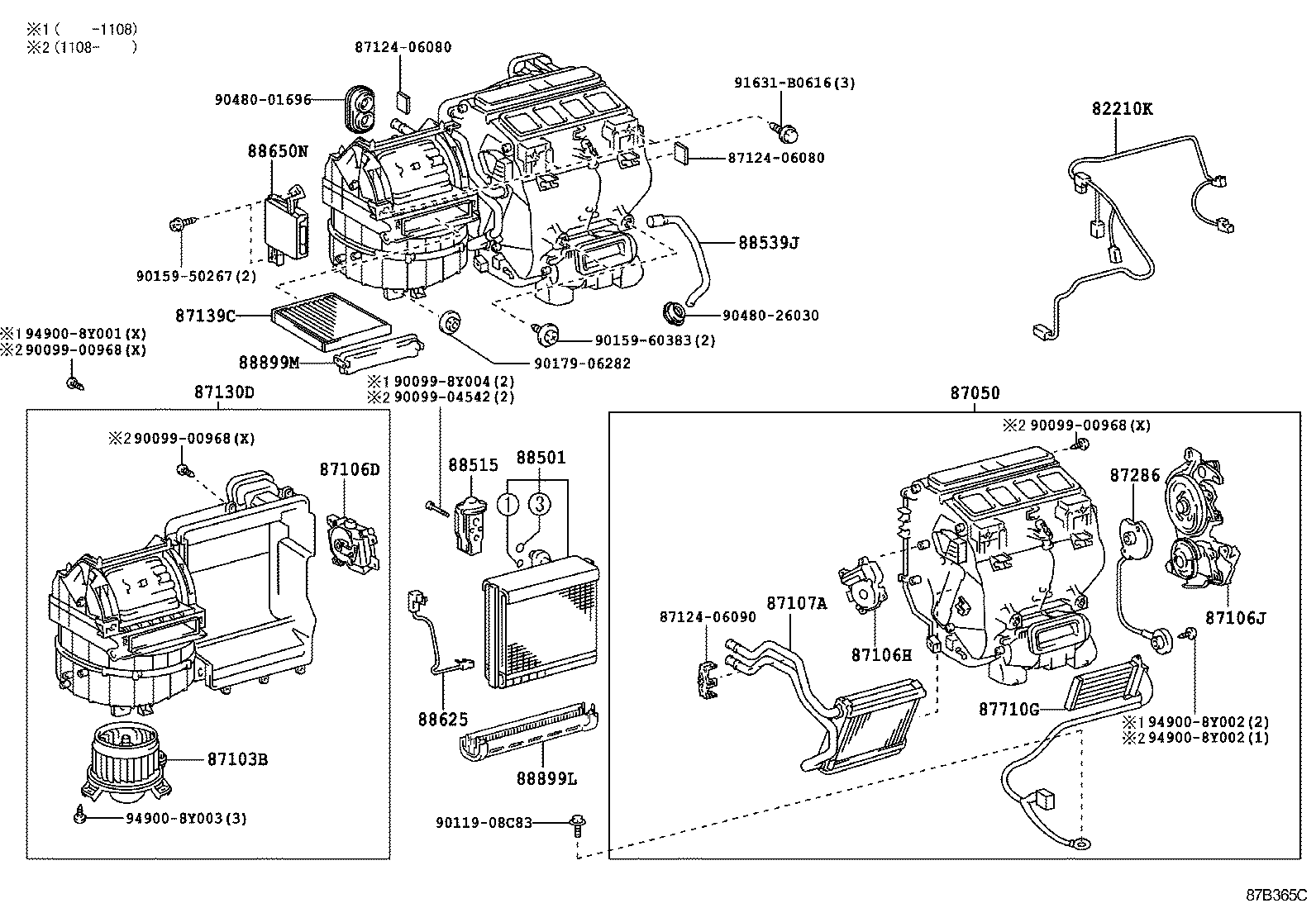

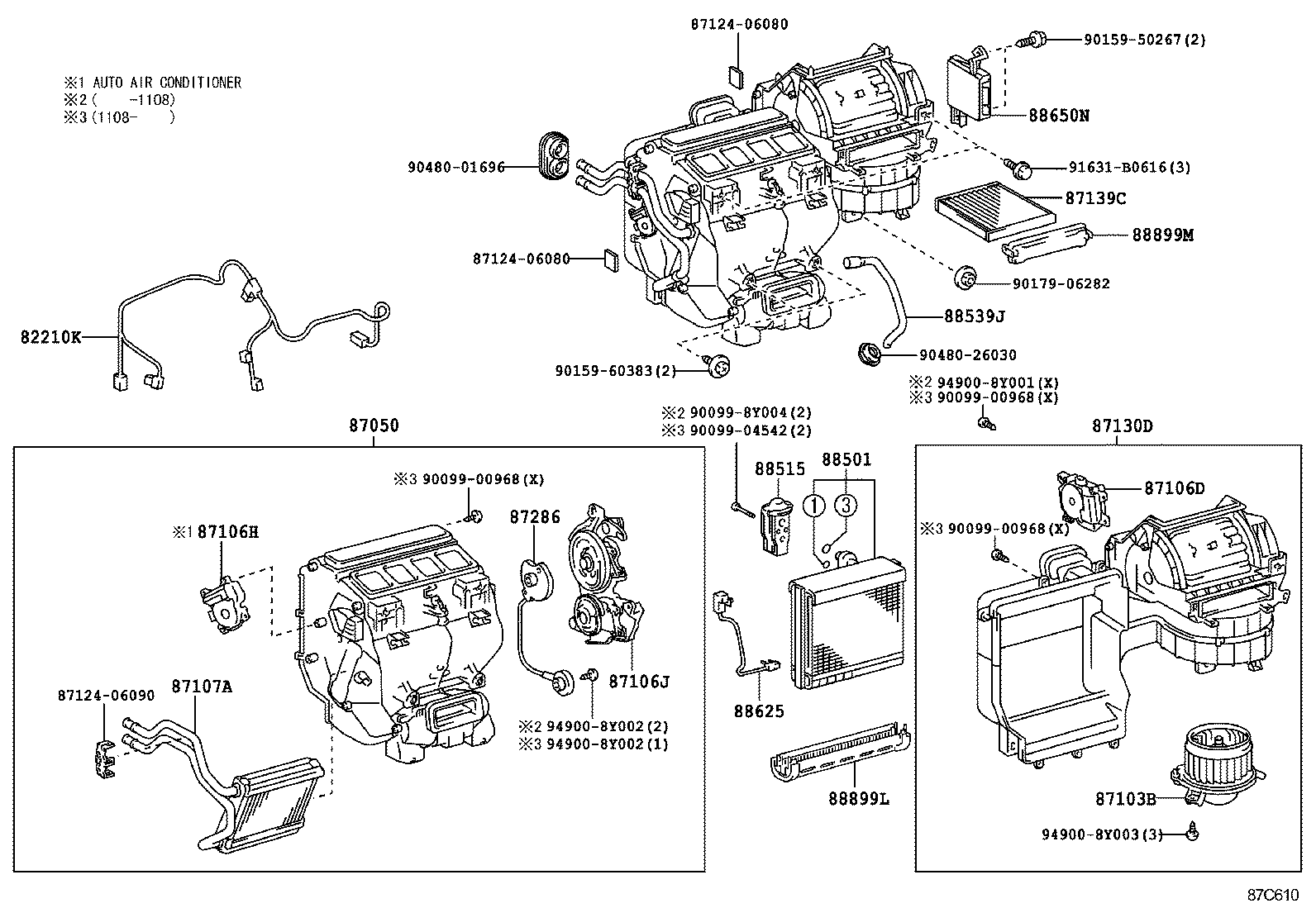

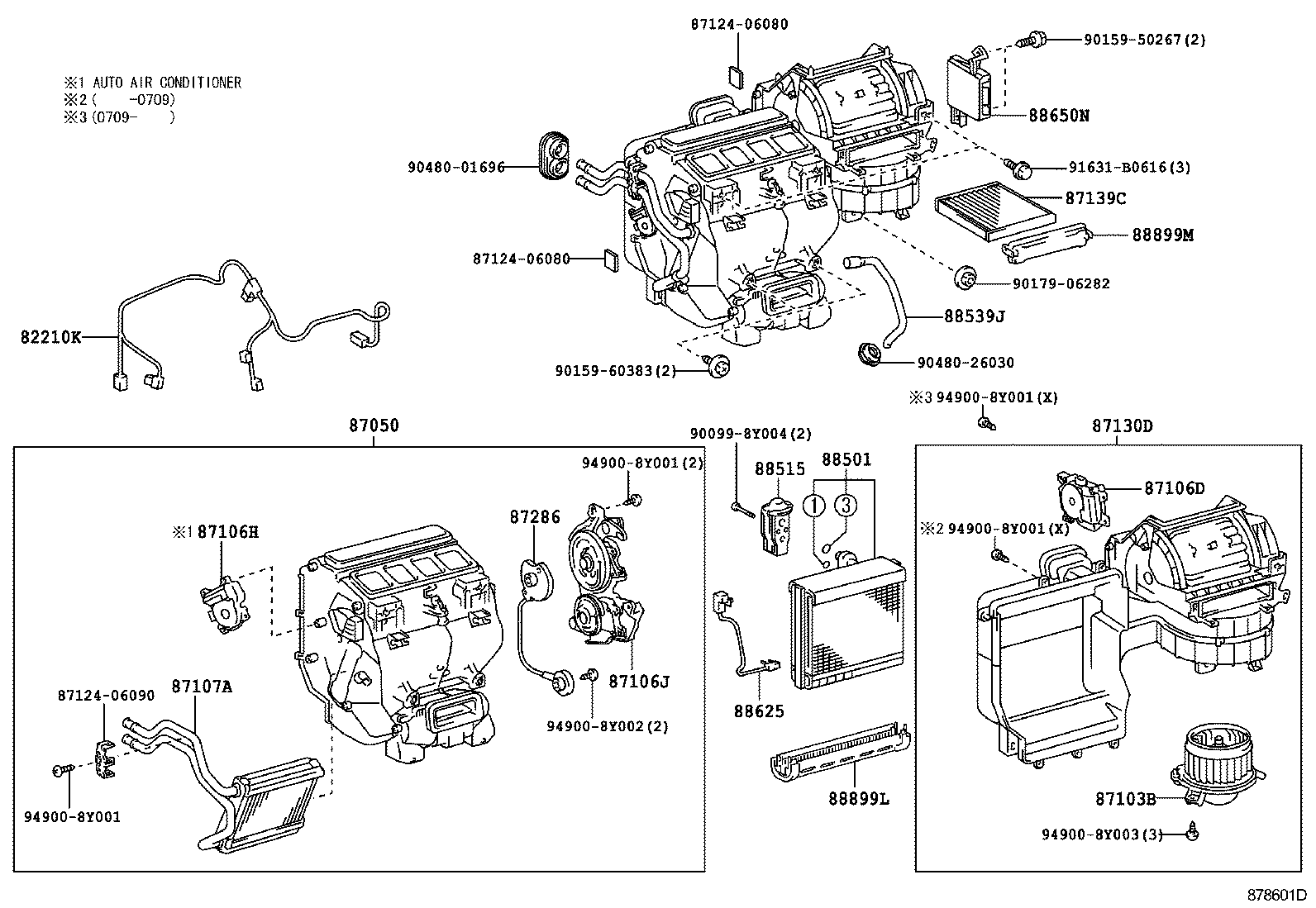

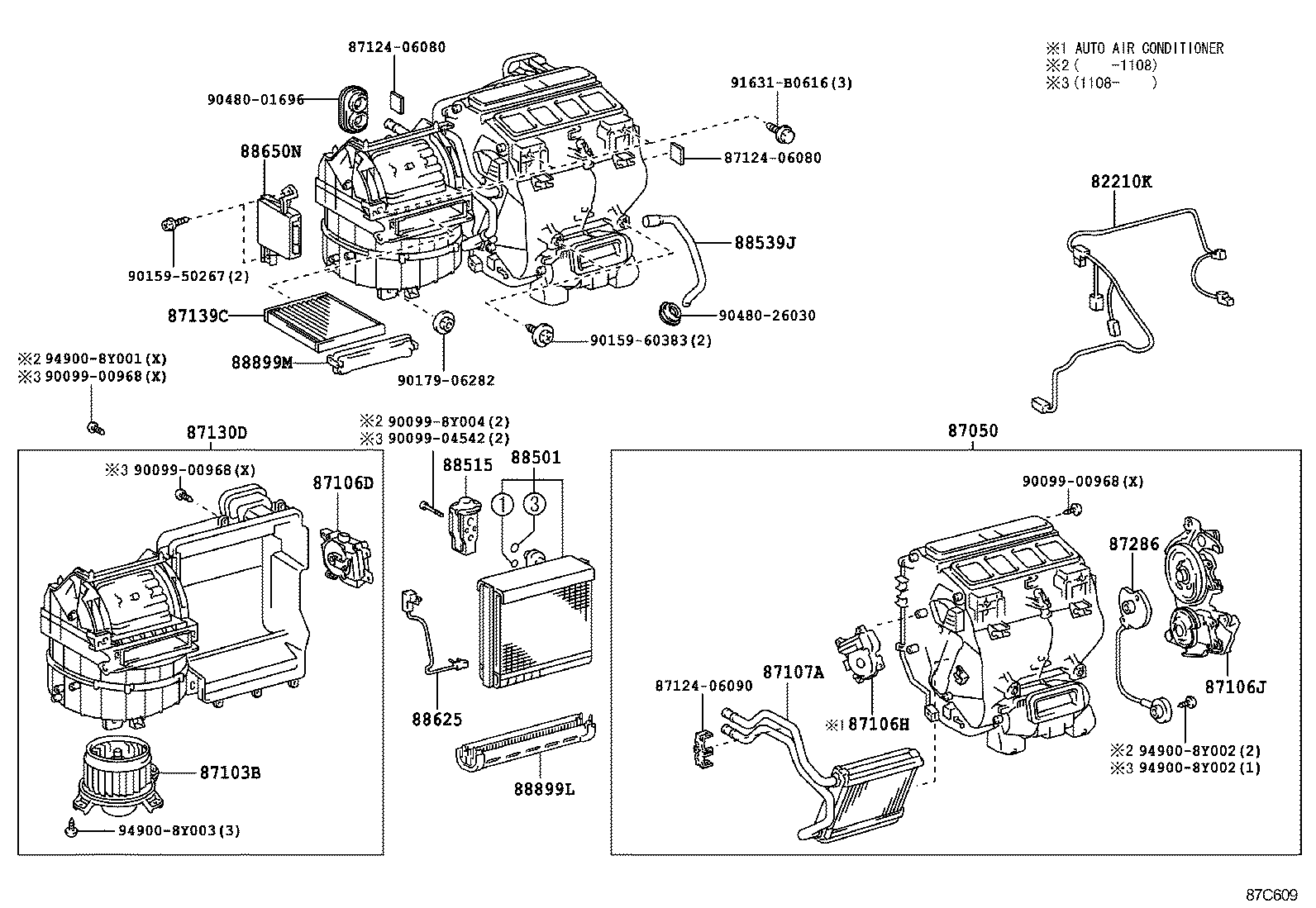

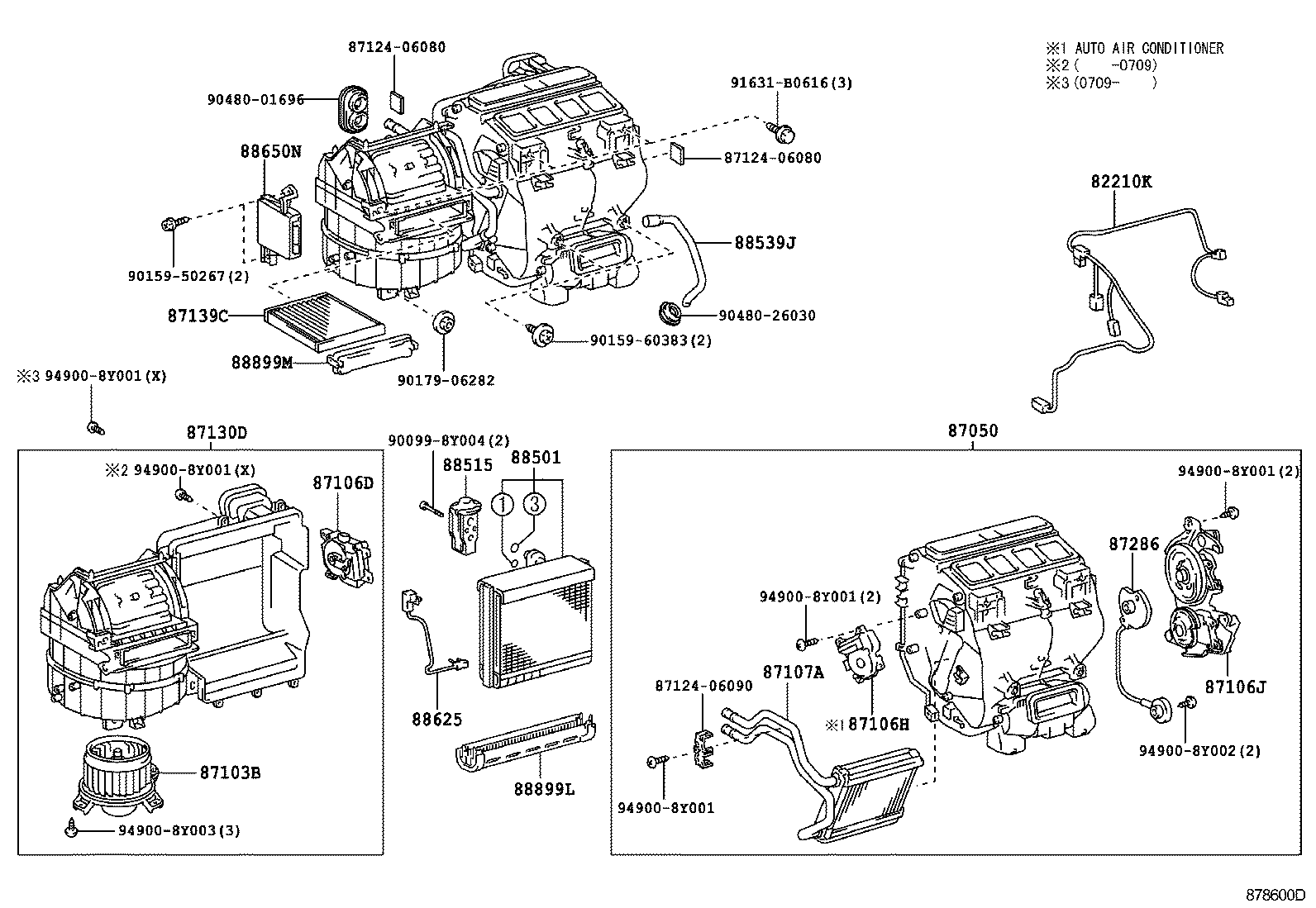

Figure 878600D 878600D 2006-06 → 2009-06 Figure 878600D 878600D 2006-10 → 2009-08 Figure 878601D 878601D 2006-06 → 2009-06 Figure 878601D 878601D 2006-10 → 2009-08 Figure 87B365C 87B365C 2010-01 → — Figure 87C609 87C609 2009-06 → — Figure 87C609 87C609 2009-08 → — Figure 87C610 87C610 2009-06 → — Figure 87C610 87C610 2009-08 → — Figure 874585 874585 2006-06 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106D Servo Sub-assy, Damper, NO.1
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87139C Filter, Clean Air
87286 Cable, Control
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539J Hose, Drain Cooler
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
