Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 5 illustrations

Illustrations

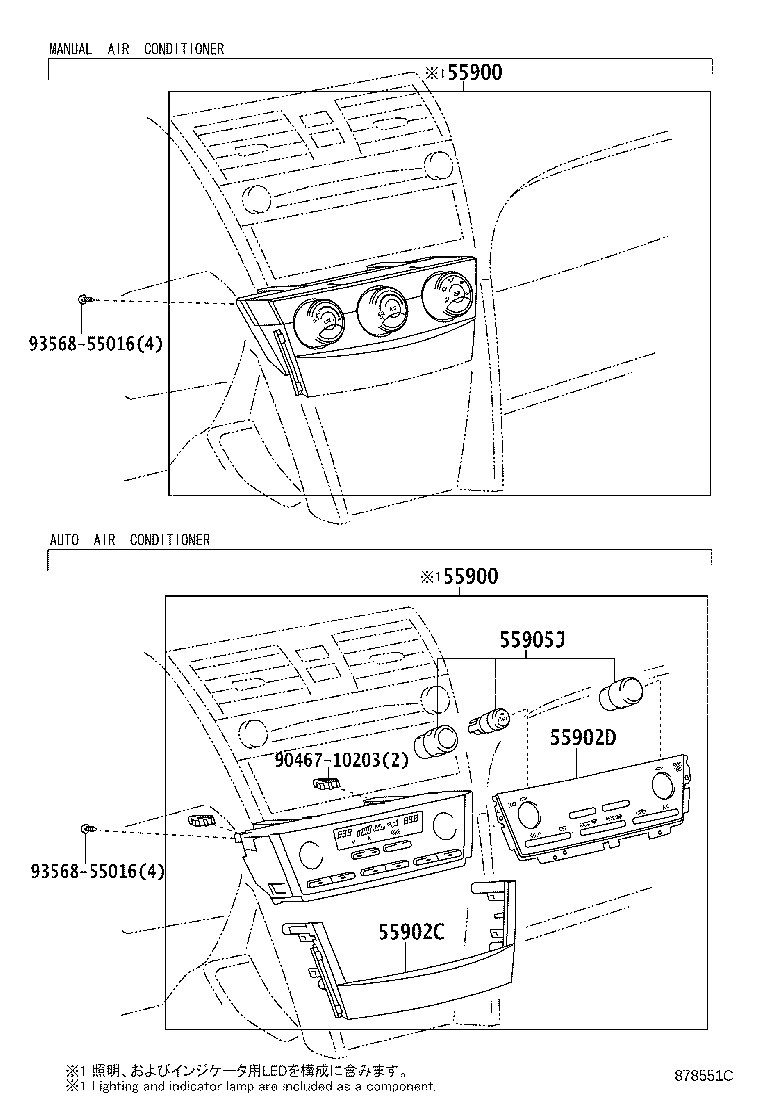

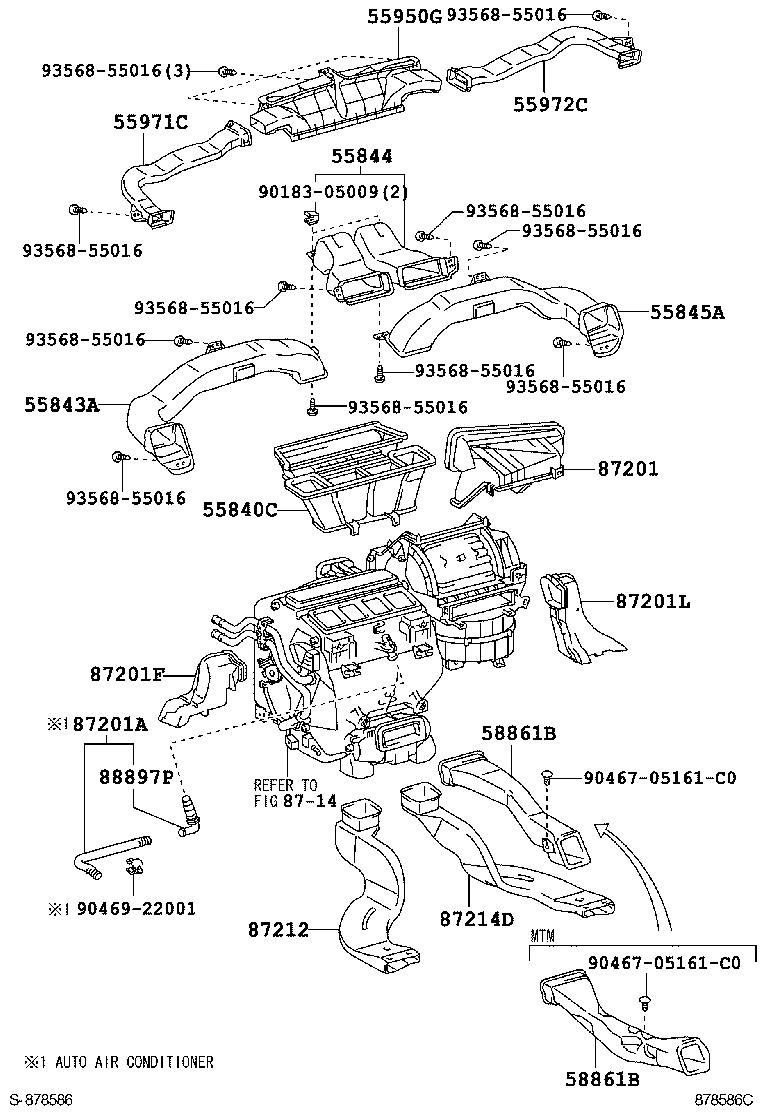

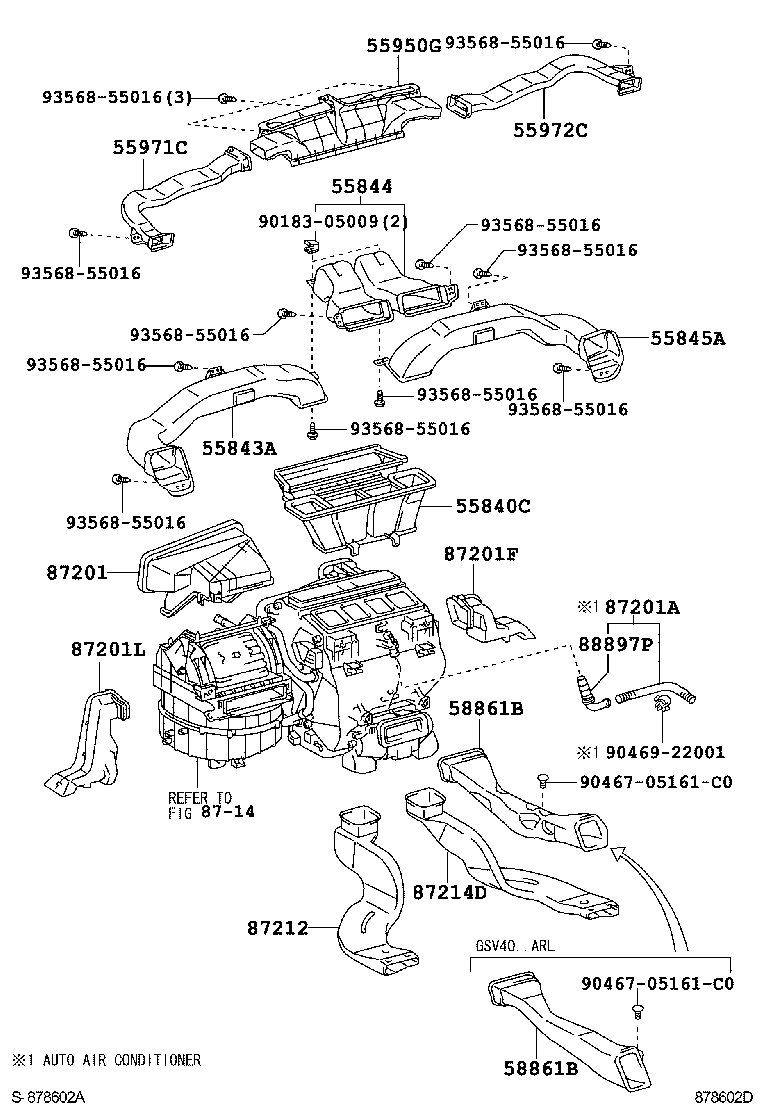

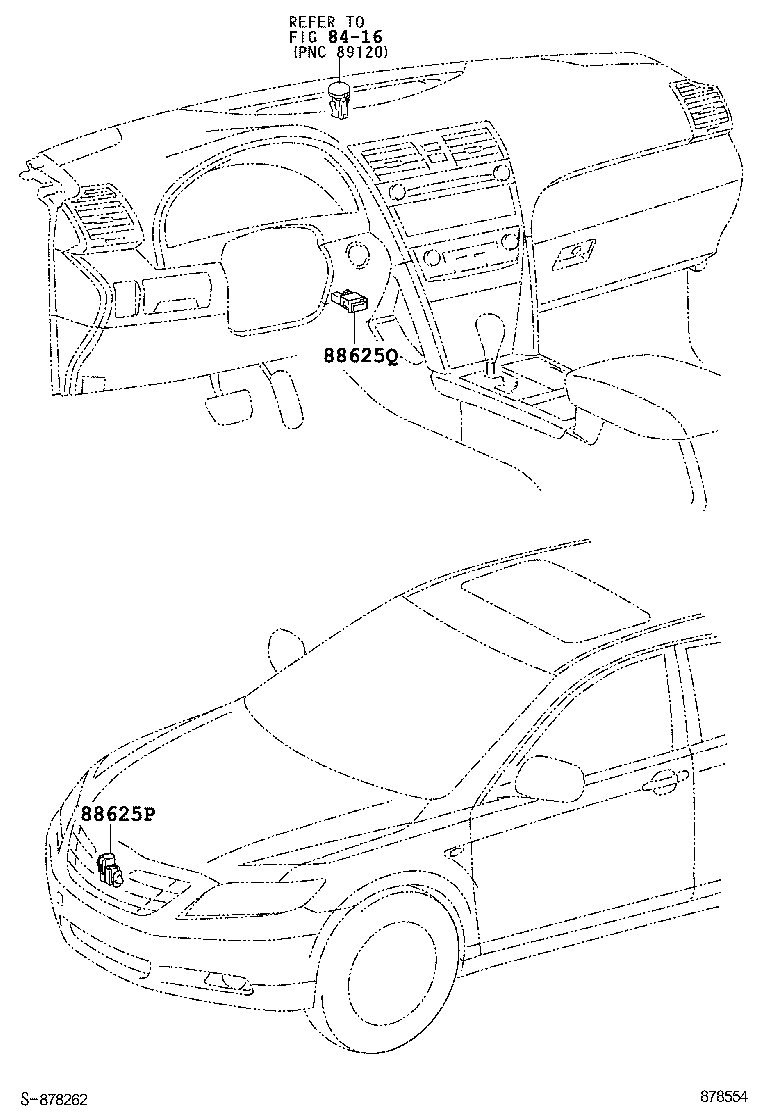

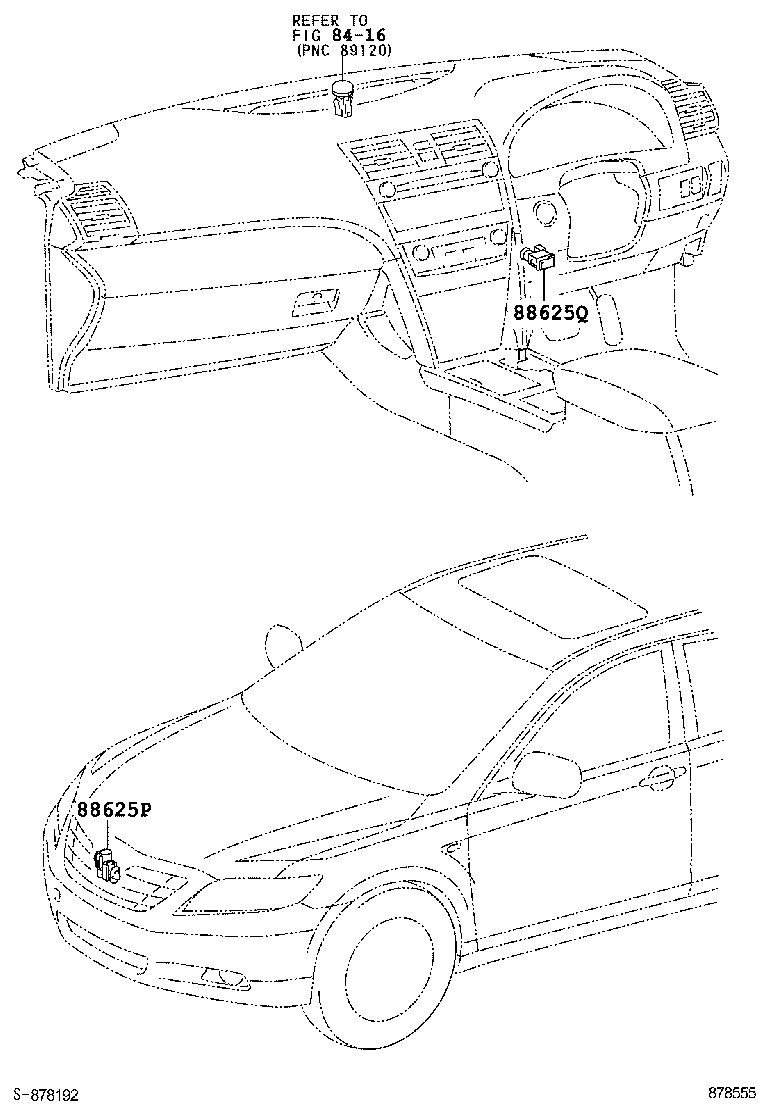

Figure 878551C 878551C 2006-06 → — Figure 878602D 878602D 2006-06 → — Figure 878586C 878586C 2006-06 → — Figure 878555 878555 2006-06 → — Figure 878554 878554 2006-06 → —

Part groups

PNCDescription
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55902D Panel Sub-assy, Air Conditioner
55905J Knob Sub-assy, Control
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
58861B Duct, Console Box, NO.1
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87212 Duct, Air, Rear NO.1
87214D Duct, Air, Rear NO.3
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
