Toyota Camry/Aurion/HV(ARL)

2006-06 → 2011-10 · chassis ACV40,AHV40,GSV40 · catalogue 285380 · General

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 3 illustrations

Illustrations

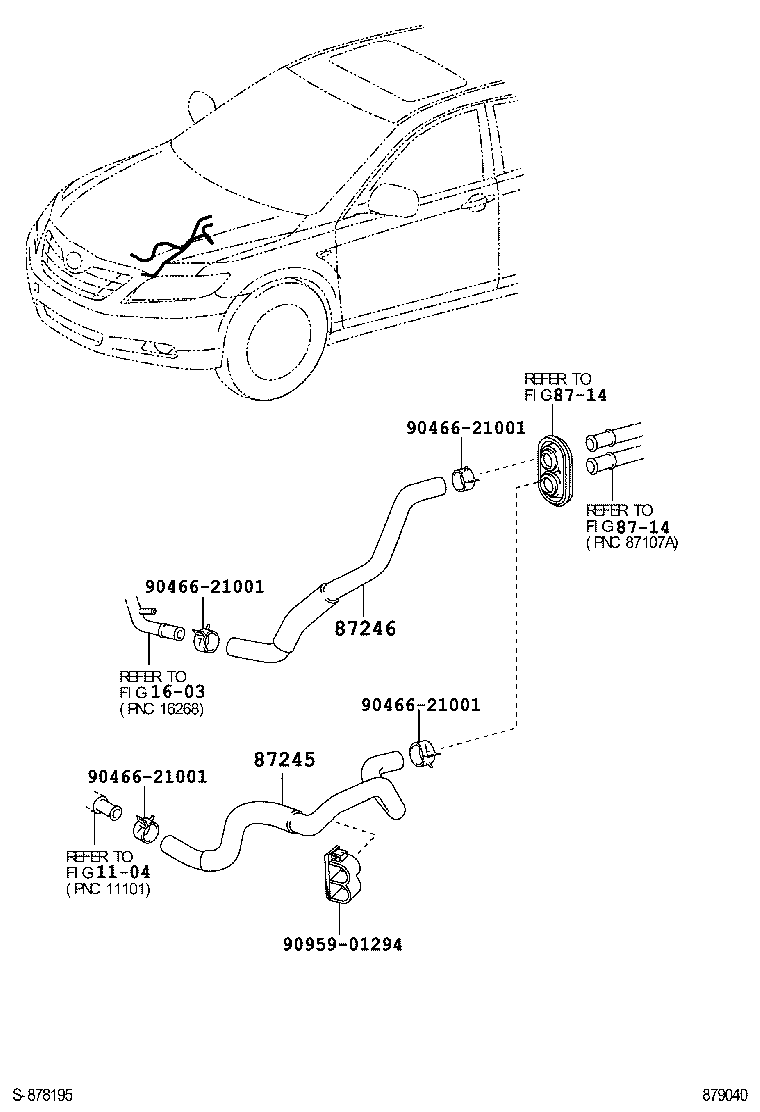

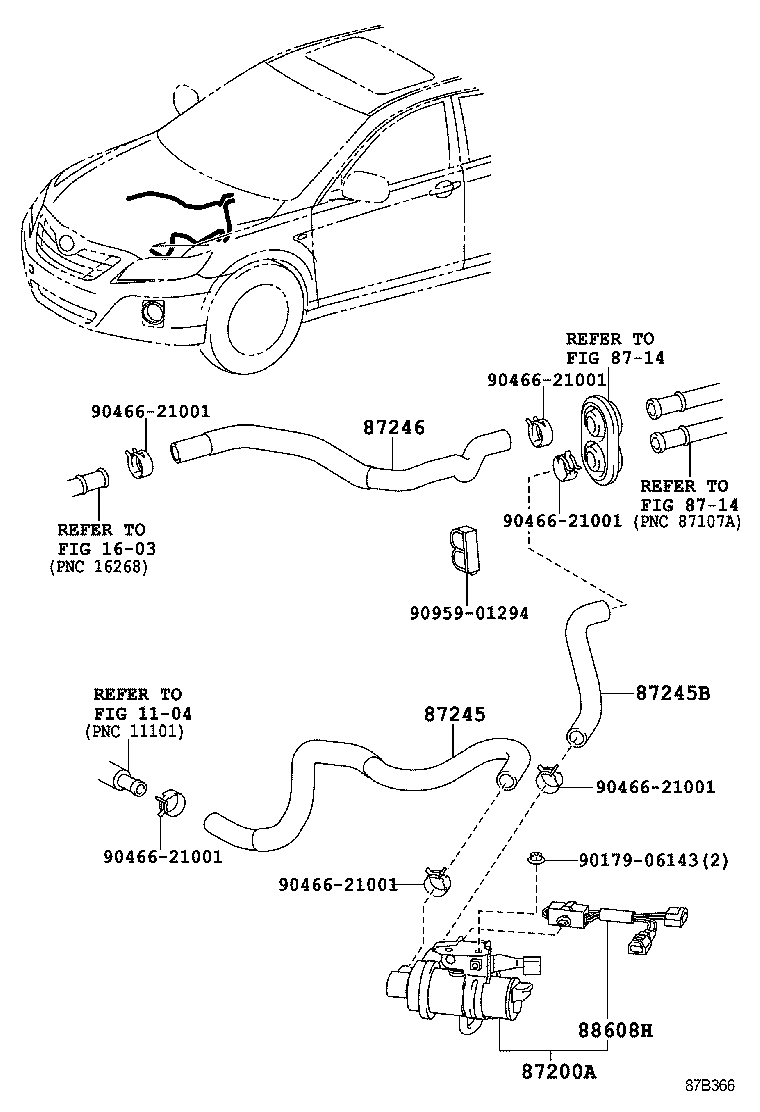

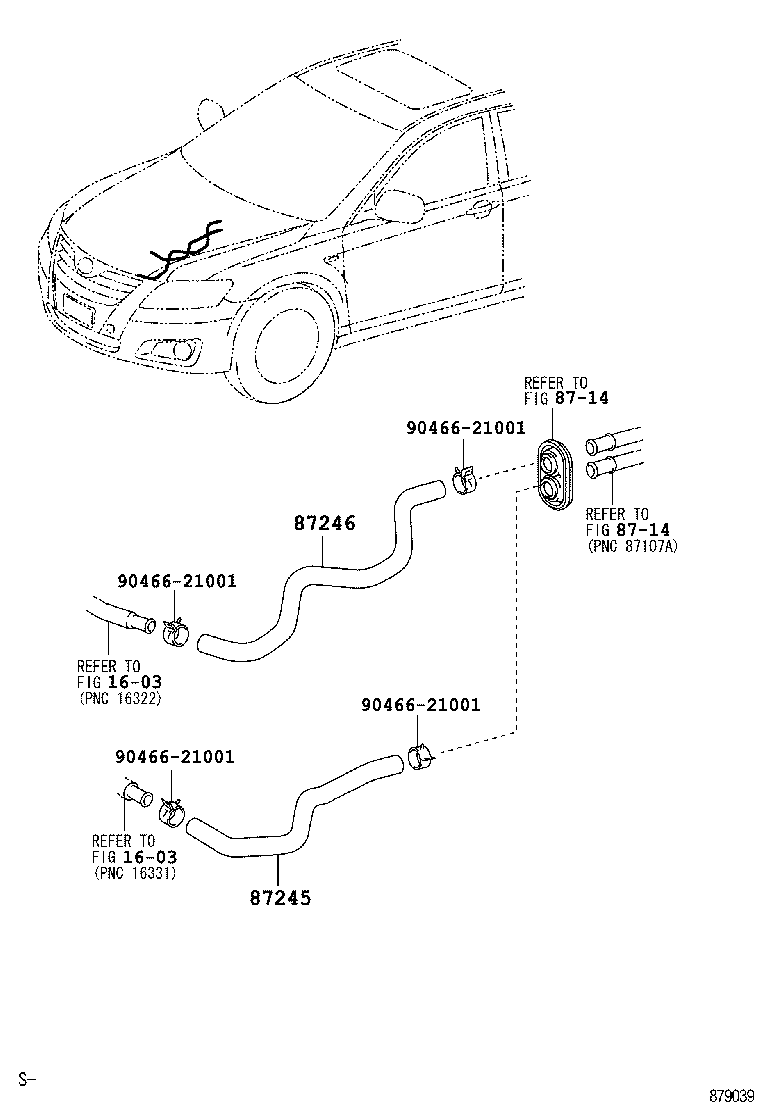

Figure 879040 879040 2006-06 → — Figure 879039 879039 2006-10 → — Figure 87B366 87B366 2010-01 → —

Part groups

PNCDescription
87200A Pump Assy, Water(FOR HEATER)
87245 Hose, Heater Water, Inlet
87245B Hose, Heater Water, Inlet B
87246 Hose, Heater Water, Outlet
88608H Harness Sub-assy, Wiring Air Indicator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
