Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

14 part groups · 3 illustrations

Illustrations

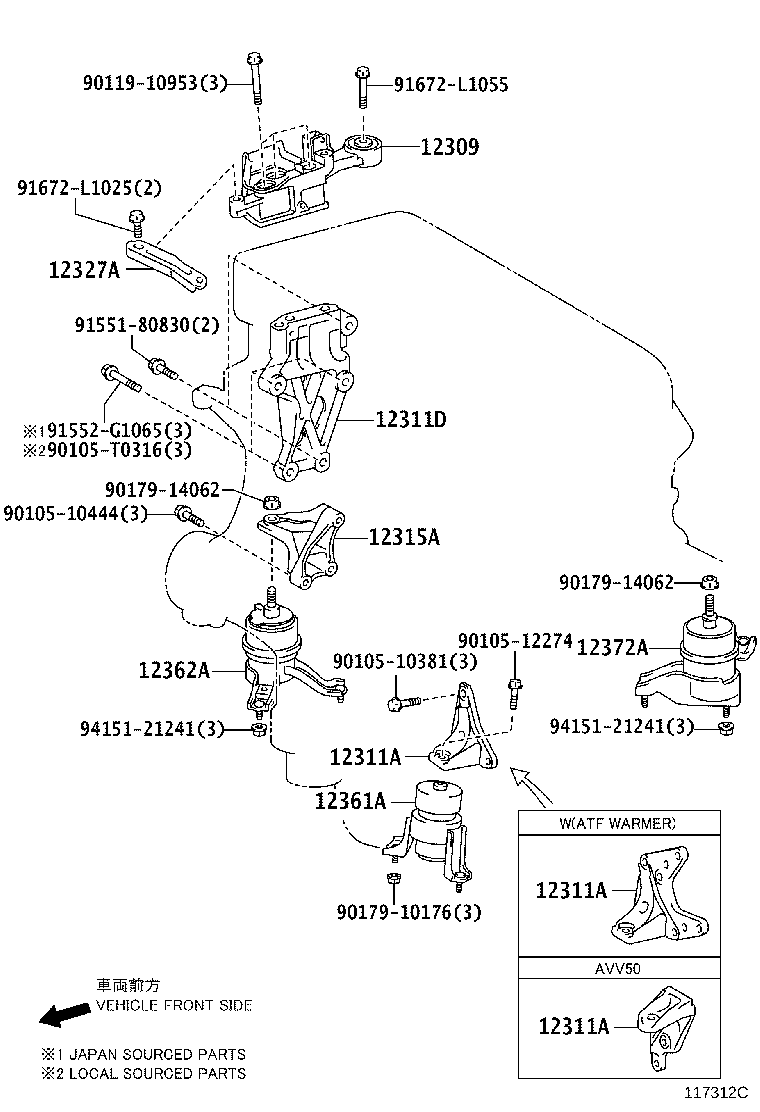

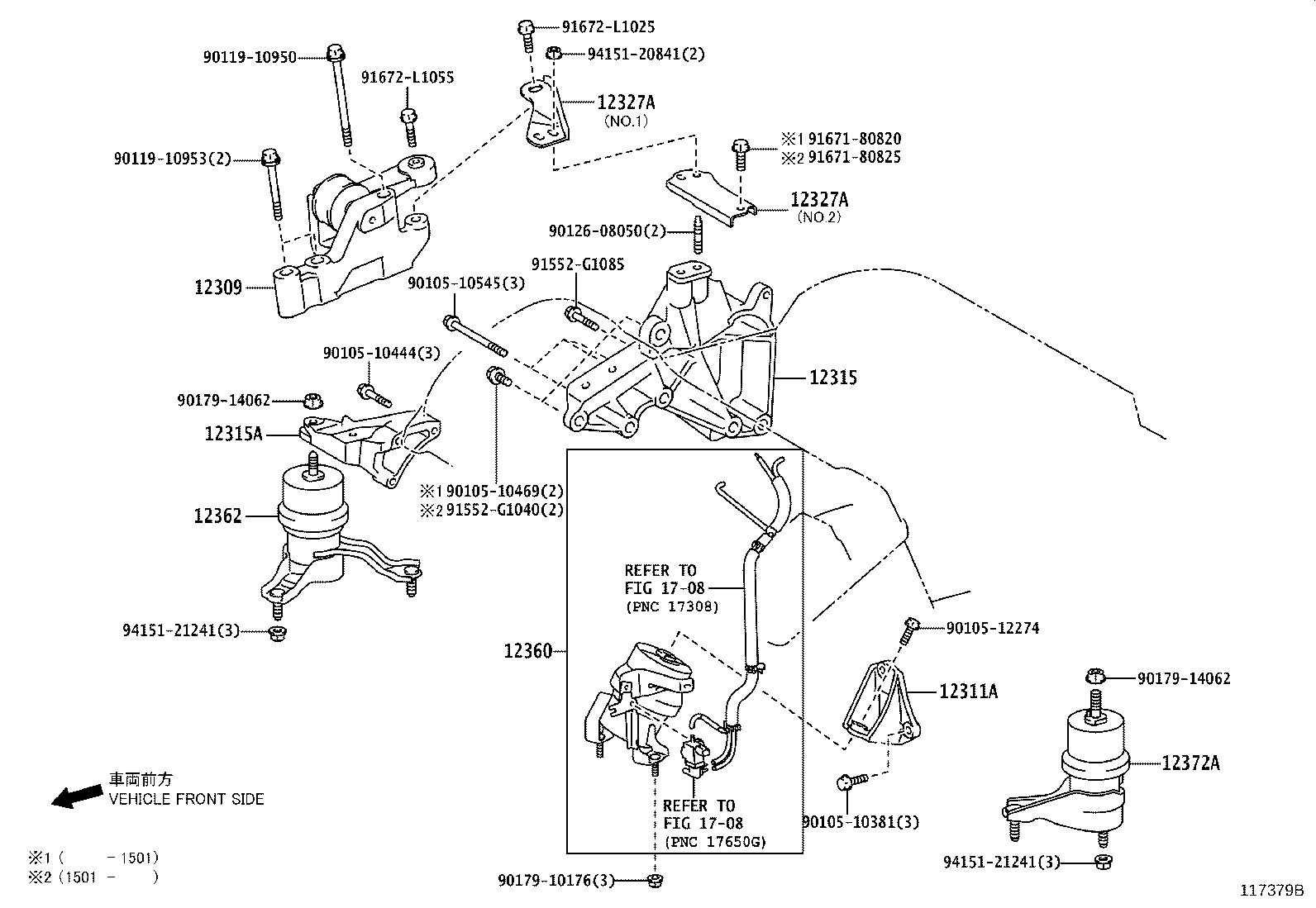

Figure 117311B 117311B 2011-10 → — Figure 117312C 117312C 2011-10 → — Figure 117379B 117379B 2012-02 → —

Part groups

PNCDescription
12309 Rod Sub-assy, Engine Moving Control
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311D Bracket, Engine Mounting
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12327A Stay, Engine Mounting, NO.2 RH
12360 Insulator Assy, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12362A Insulator, Engine Mounting, Front LH
12364A Rod, Engine Lateral Control
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
