Water Pump

8 part groups · 3 illustrations

Illustrations

Figure 164677B

164677B 2011-10 → —

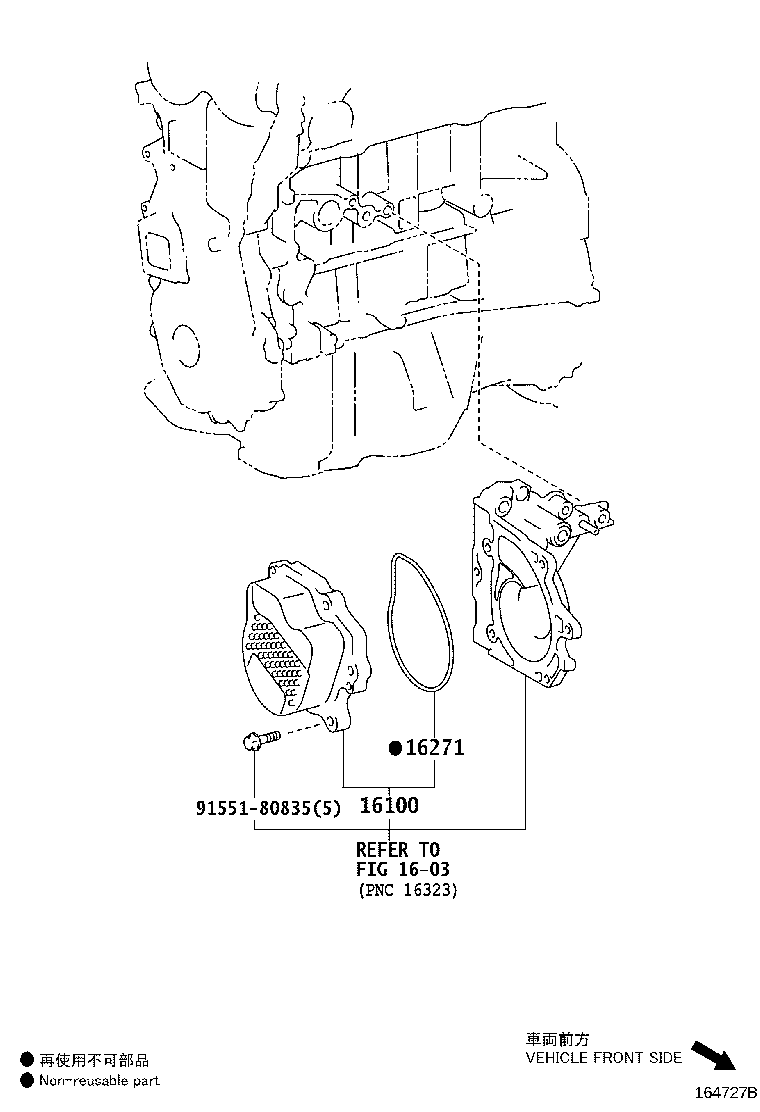

Figure 164727B

164727B 2012-01 → —

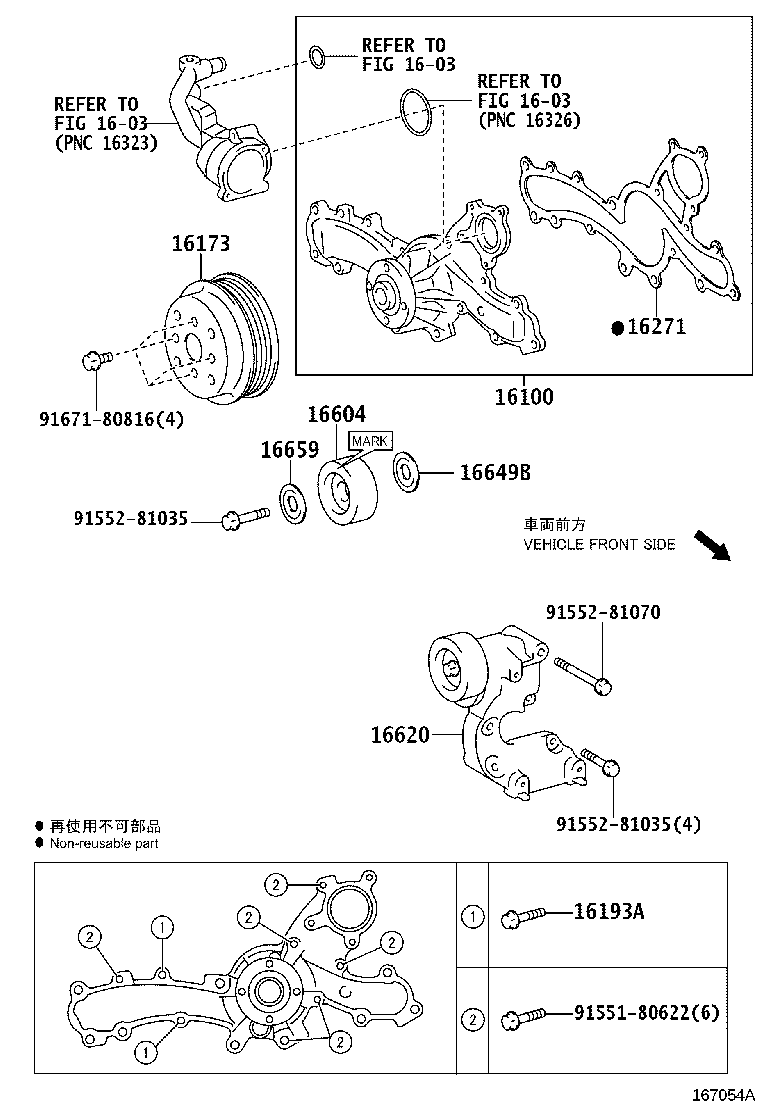

Figure 167054A

167054A 2012-02 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16649B	Plate, Idler Pulley Cover
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
