Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

14 part groups · 3 illustrations

Illustrations

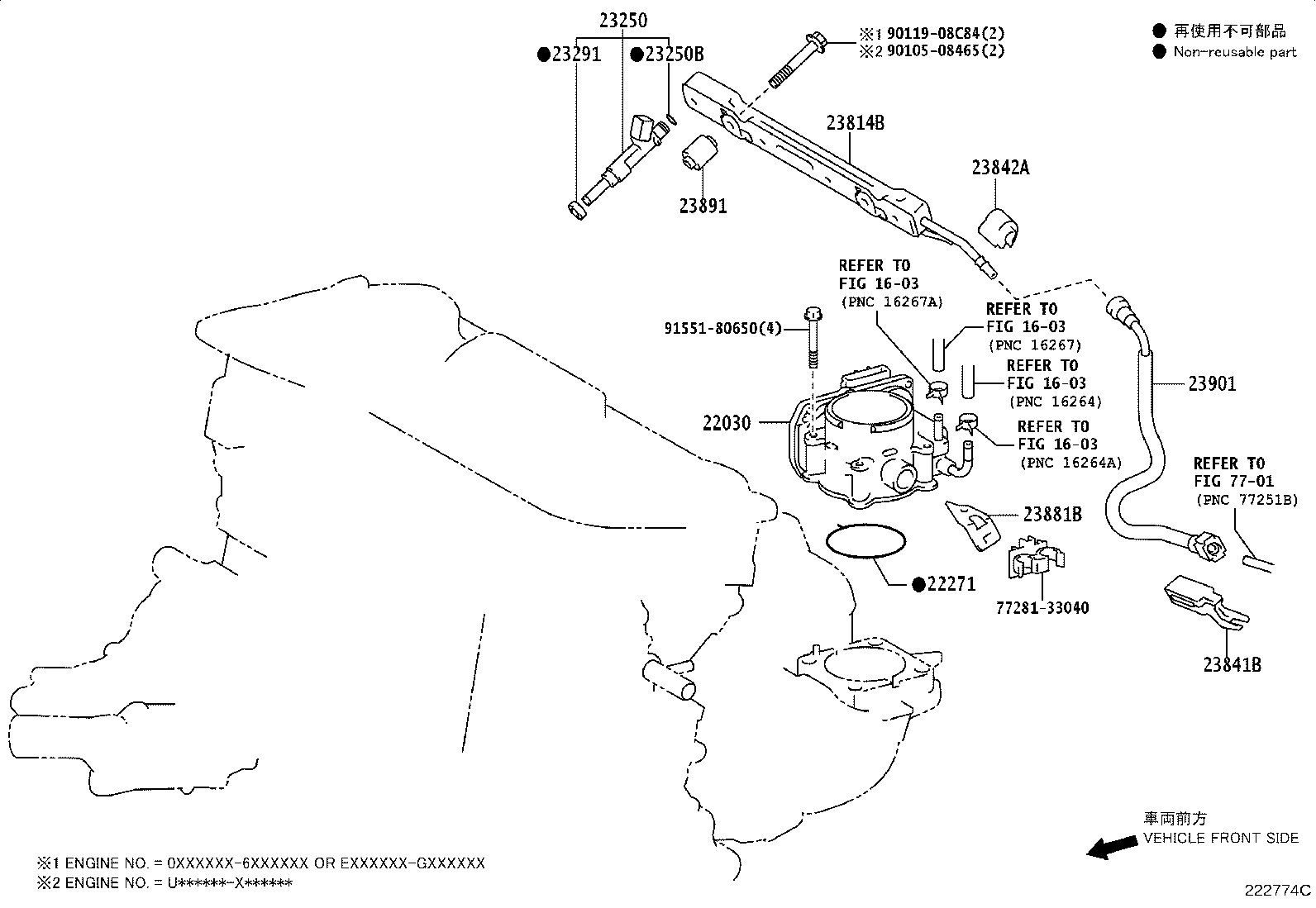

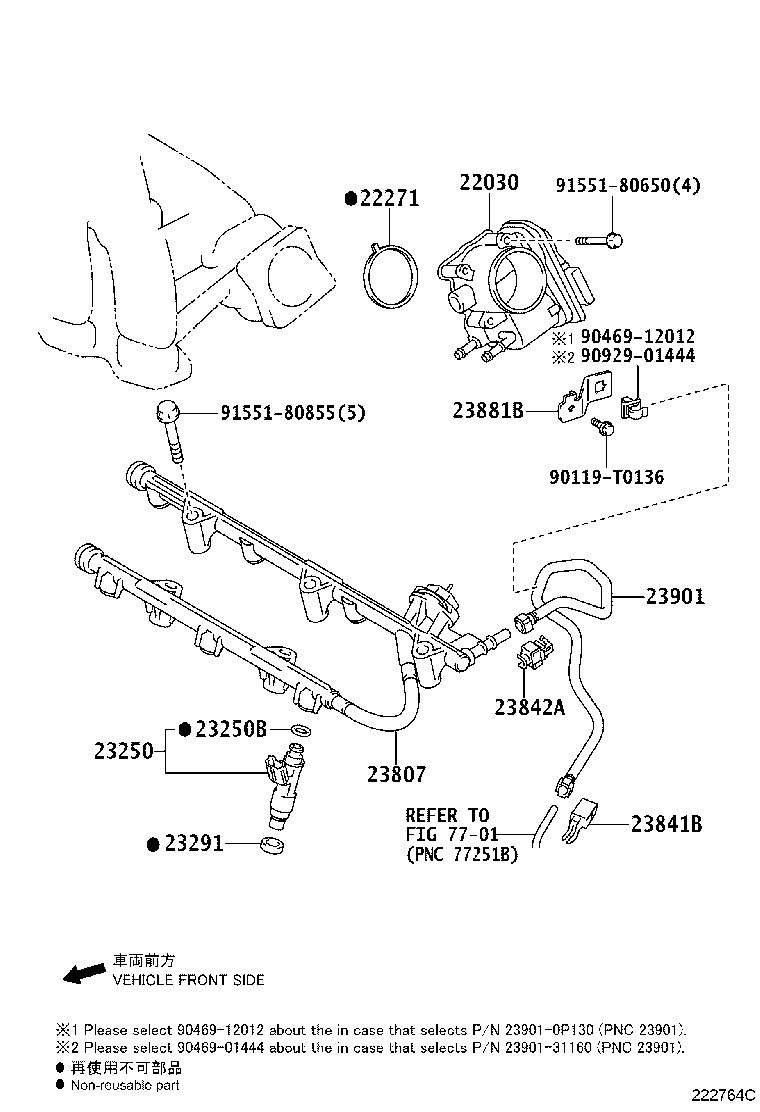

Figure 222737E 222737E 2011-10 → — Figure 222774C 222774C 2012-01 → — Figure 222764C 222764C 2012-02 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270F Ring, O(FOR PULSATION DAMPER)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23881B Bracket, Fuel Hose
23891 Spacer, Fuel Delivery
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
