Toyota Camry/Aurion/HV(ARL)
2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General
Supported model
Data version 2018-04

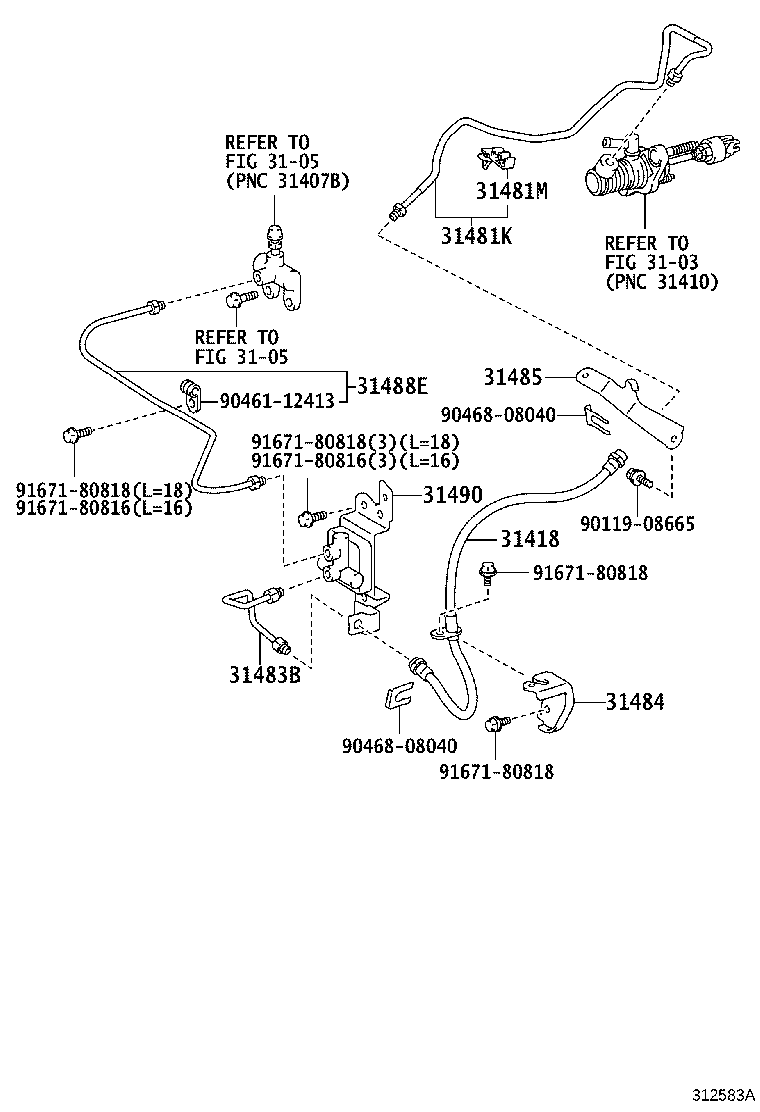

Clutch Pedal & Flexible Hose
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31353 | Holder, Clutch Pedal Spring |
| 31380 | Support Assy, Pedal |
| 31394A | Spring, Pedal W/Hook |
| 31418 | Hose, Clutch |
| 31453A | Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31453B | Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 31481K | Tube, Master Cylinder TO Tube Connector |
| 31481M | Clamp(FOR CLUTCH MASTER CYLINDER TUBE) |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31484 | Bracket, Flexible Hose(FOR CLUTCH) |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31488E | Tube, Bleeder TO Accumulator |
| 31490 | Accumulator Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
