Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

23 part groups · 3 illustrations

Illustrations

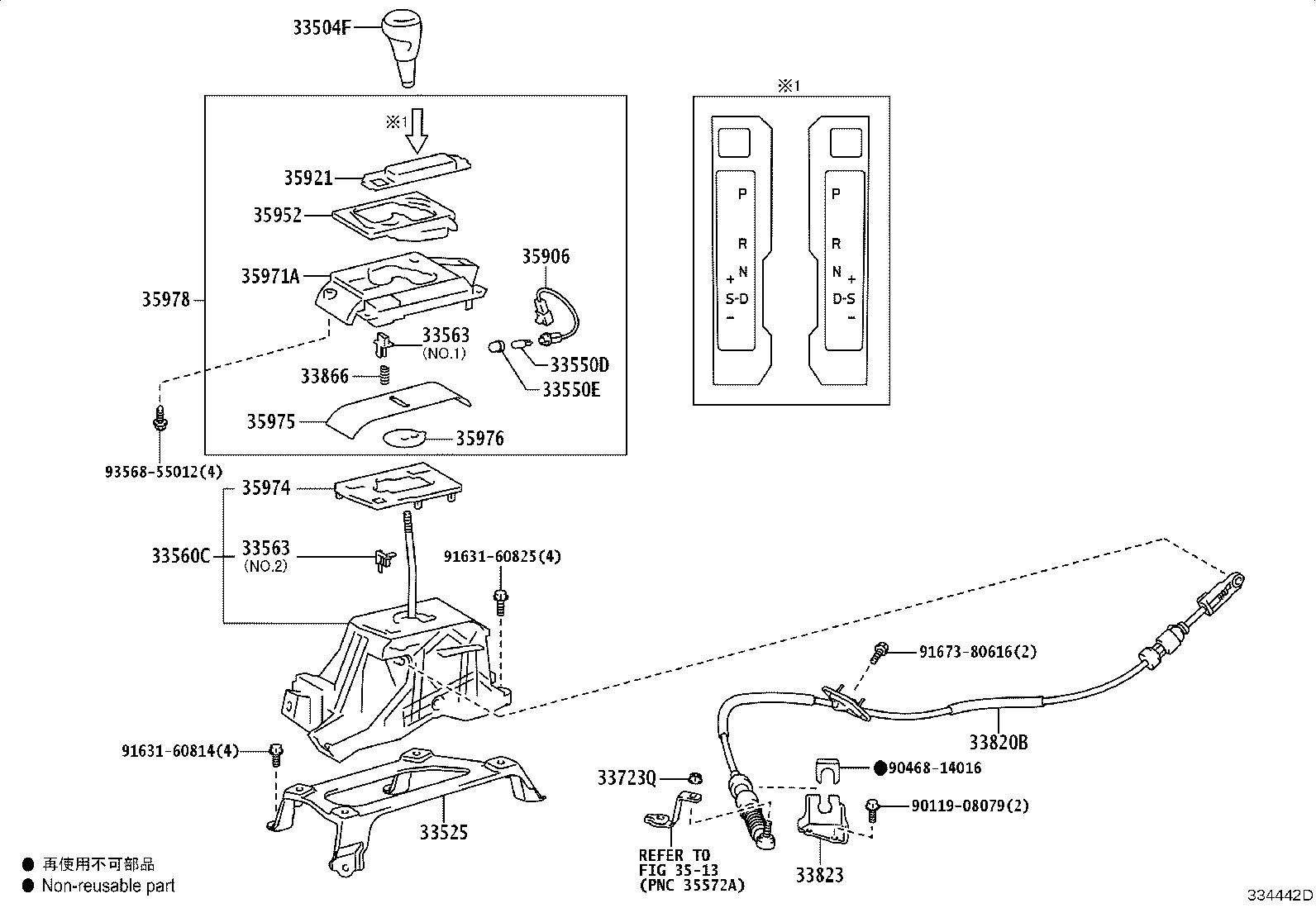

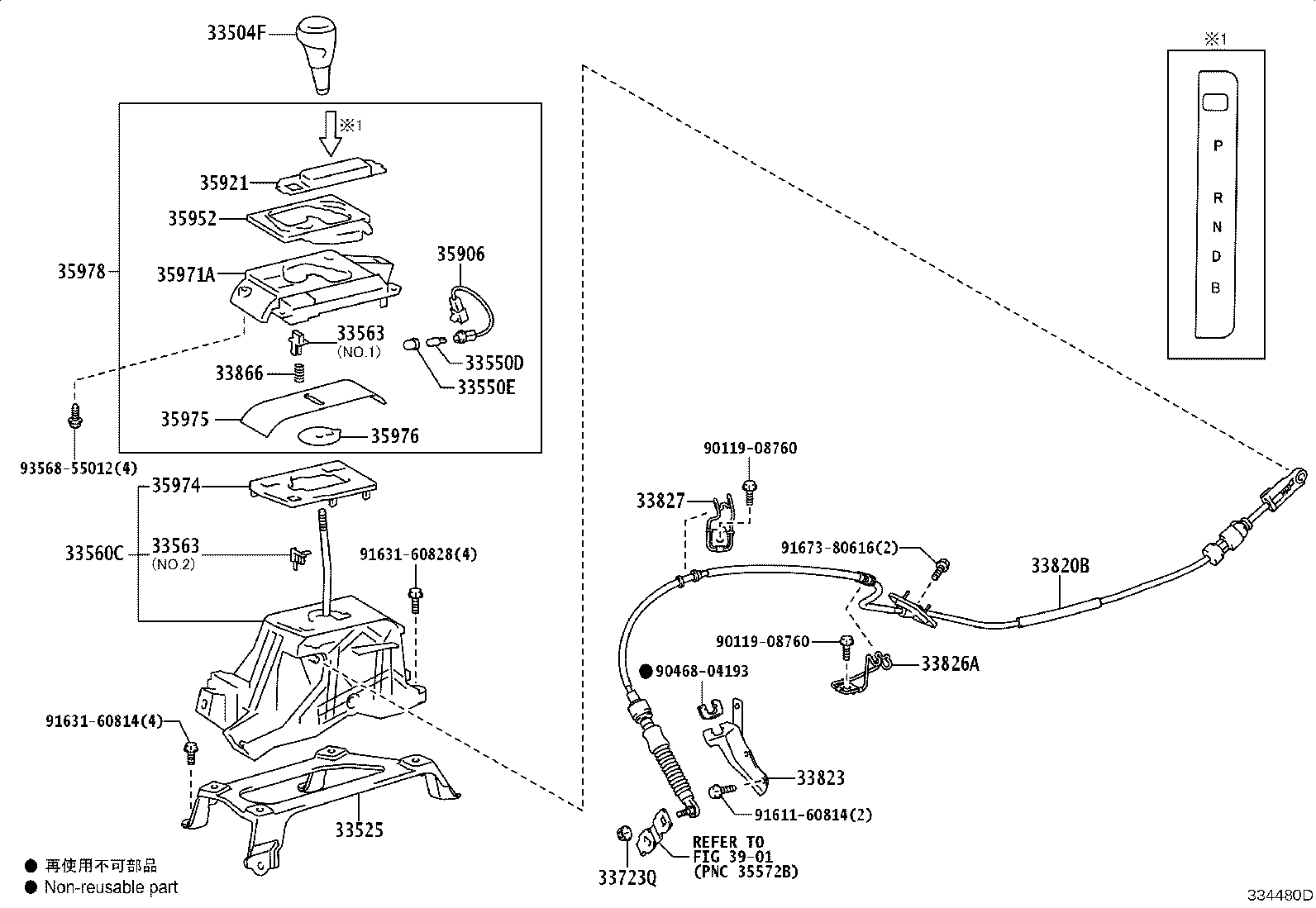

Figure 334443B 334443B 2011-10 → — Figure 334442D 334442D 2011-10 → — Figure 334480D 334480D 2012-01 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524B Bracket, Control Cable
33525 Support, Shift Lever
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33560C Lever Assy, Shift, Lower
33563 Button, Shift Lock Release
335A0 Bracket Assy, Control Cable
33723Q Nut (FOR CONNECTING ROD SWIVEL)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
33866 Spring, Shift Lock Release
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
