Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

16 part groups · 5 illustrations

Illustrations

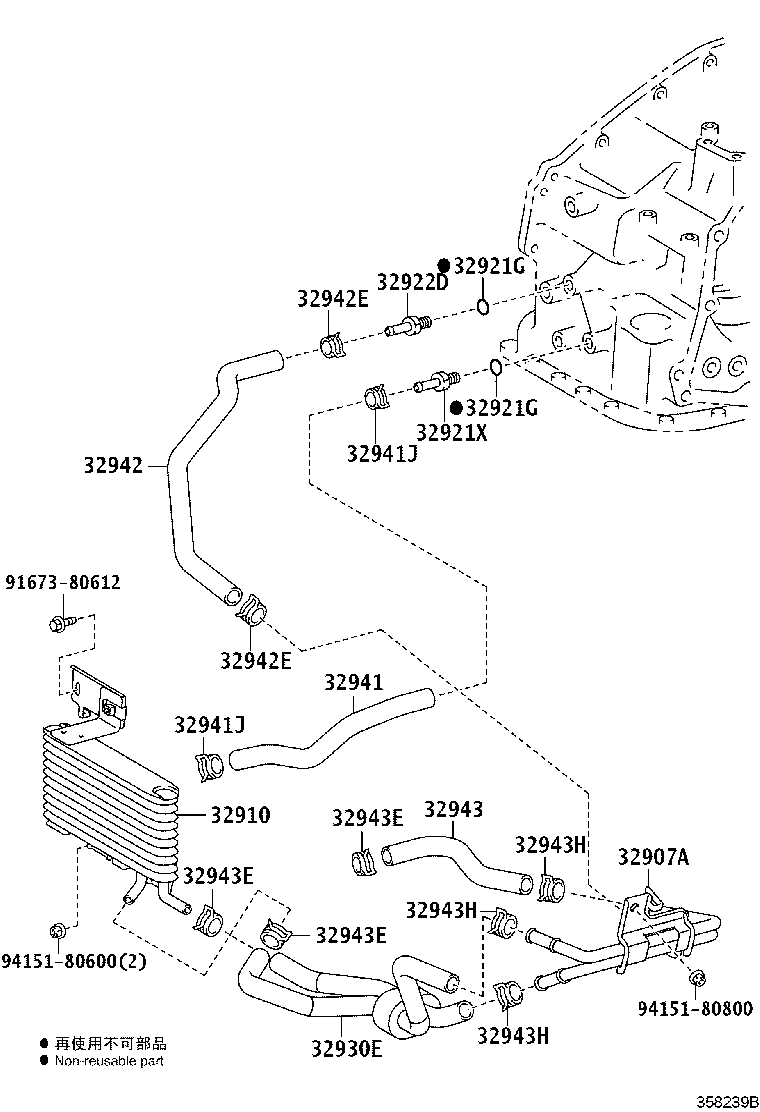

Figure 358162E 358162E 2011-10 → — Figure 358163C 358163C 2011-10 → — Figure 358163C 358163C 2012-02 → — Figure 358164B 358164B 2011-10 → — Figure 358239B 358239B 2012-02 → —

Part groups

PNCDescription
16267H Hose, Water By-pass, NO.3
16281K Hose, Water By-pass, NO.4
32907A Tube, Oil Cooler
32910 Cooler Assy, Oil
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921X Union OR Elbow, Oil Cooler Inlet
32922D Union OR Elbow, Oil Cooler Outlet
32930E Hose Assy, Transmission Oil Cooler, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943E Clip, NO.3(FOR OIL COOLER HOSE)
32943H Clip, NO.4(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
