Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

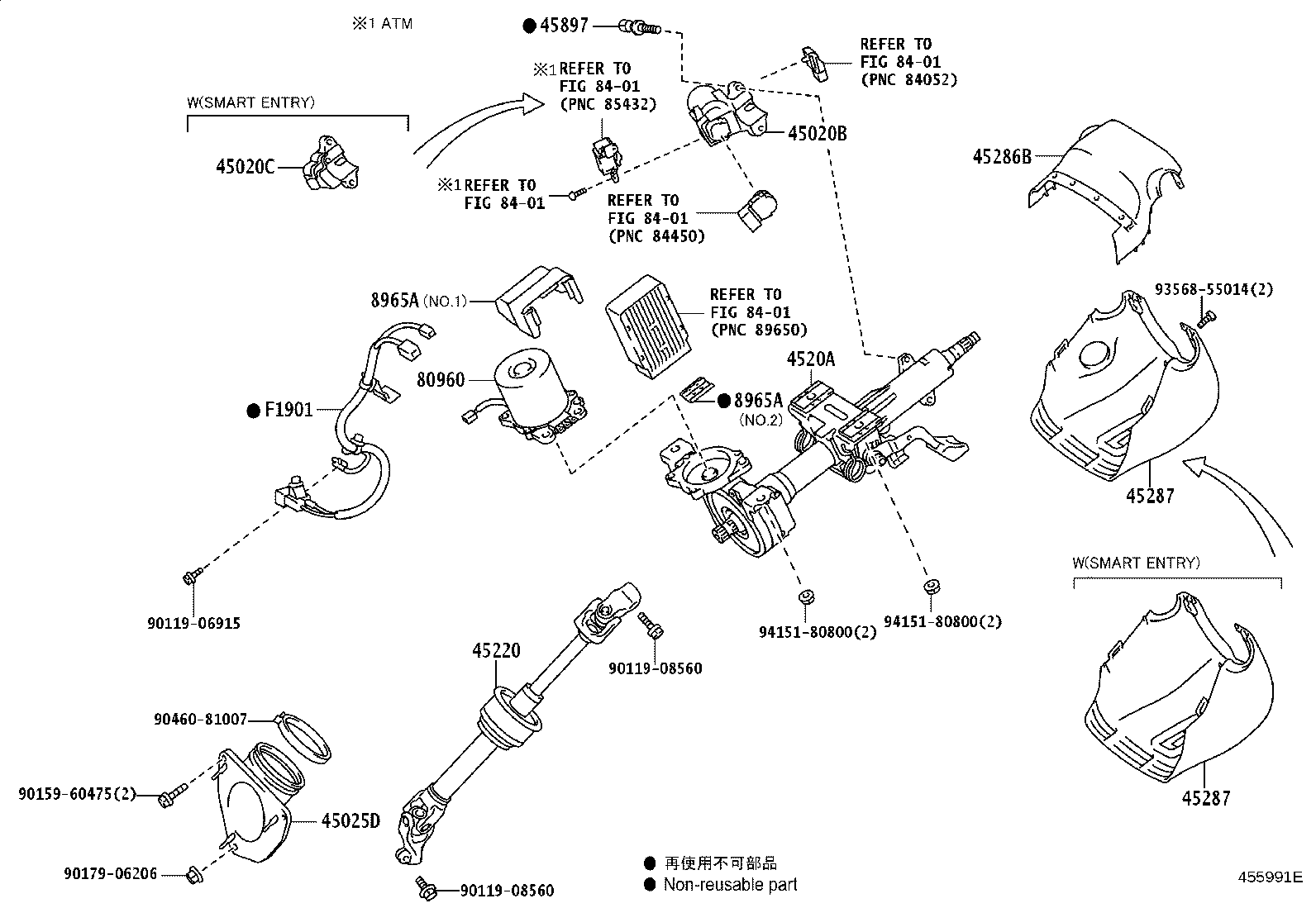

Figure 455992E 455992E 2011-10 → — Figure 455991E 455991E 2011-10 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45220 Shaft Assy, Steering Intermediate
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
80960 Motor Assy, Power Steering
8965A Protector, Power Steering Computer
F1901 Wire Sub-assy, Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
