Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

23 part groups · 14 illustrations

Illustrations

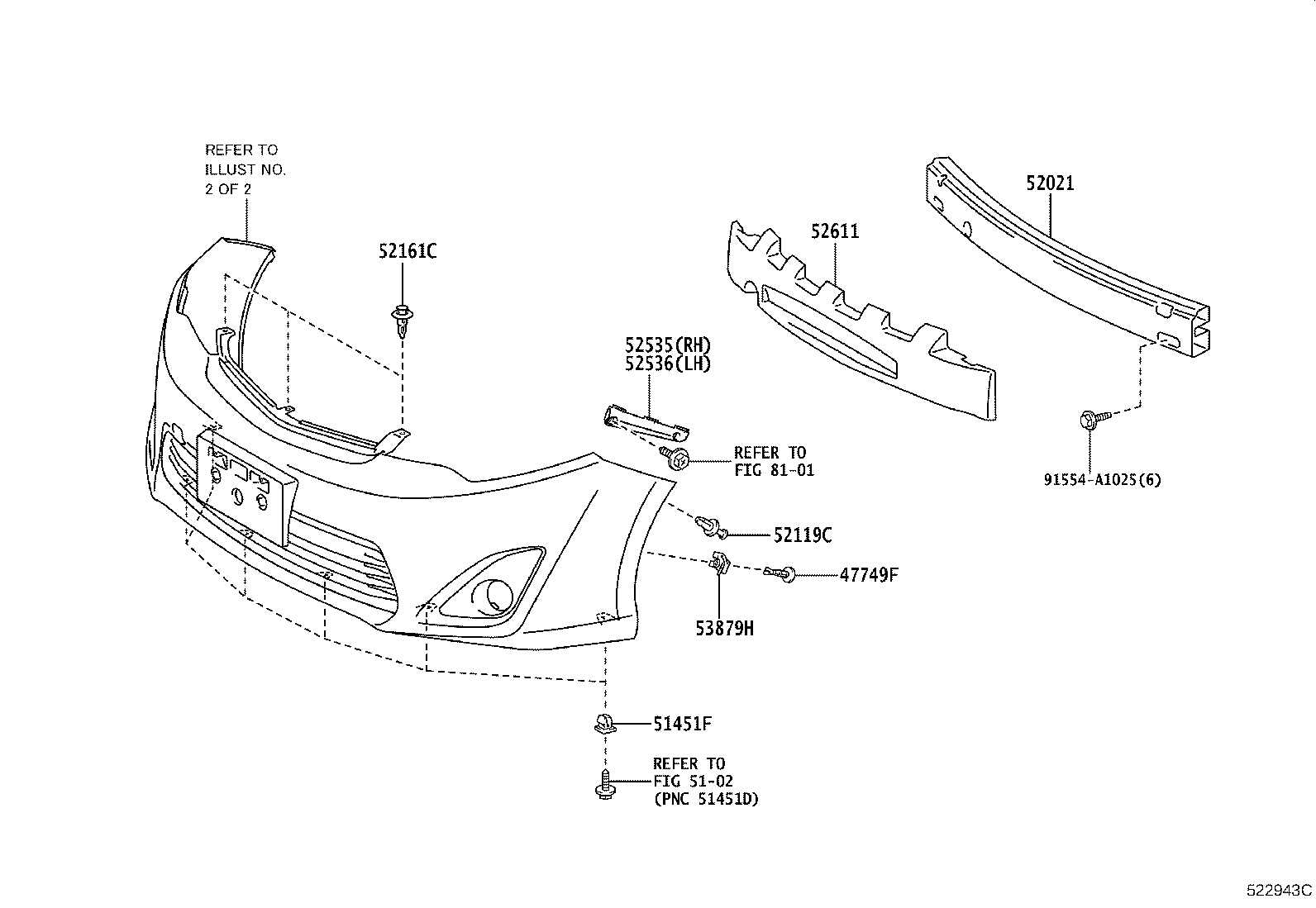

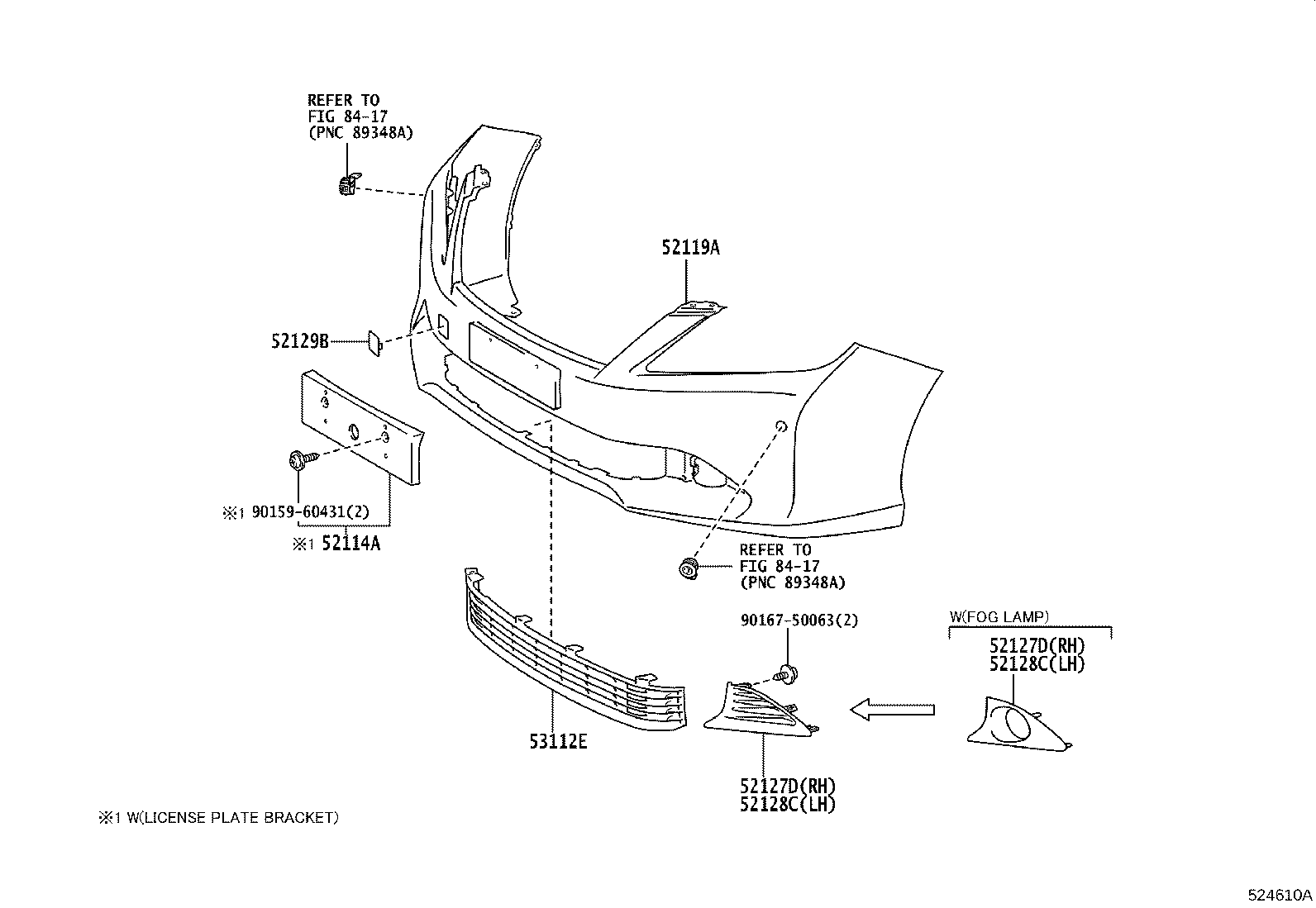

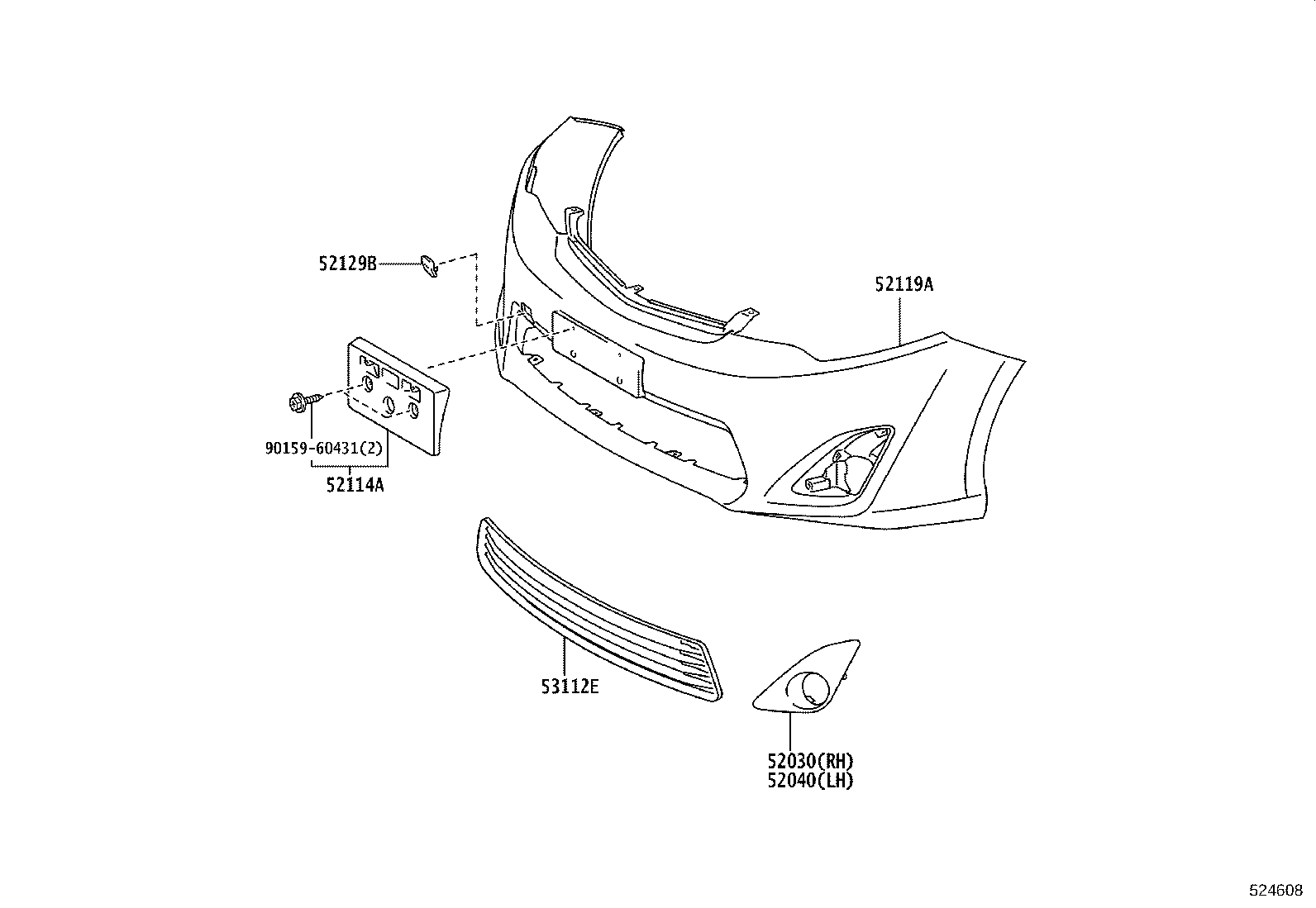

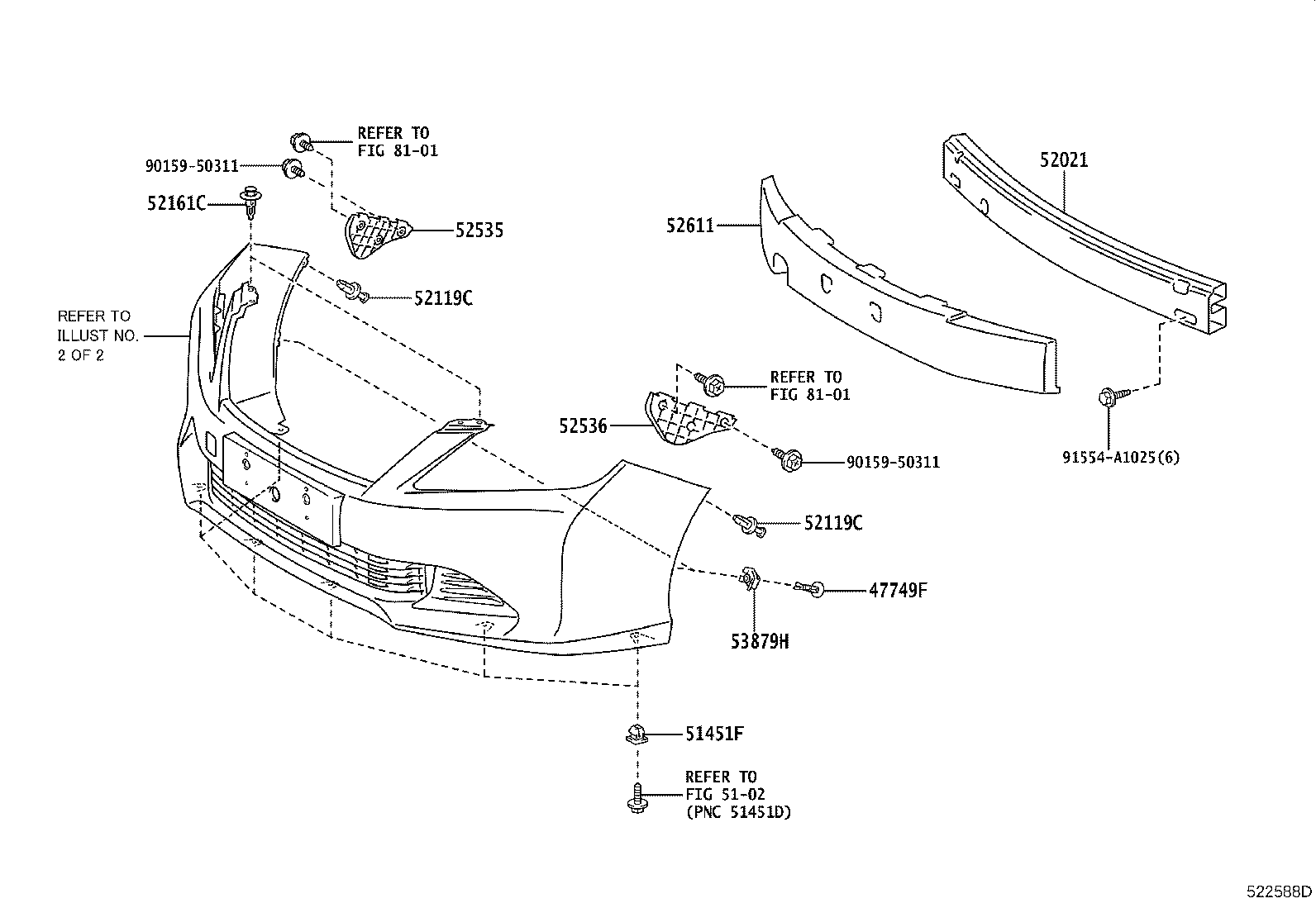

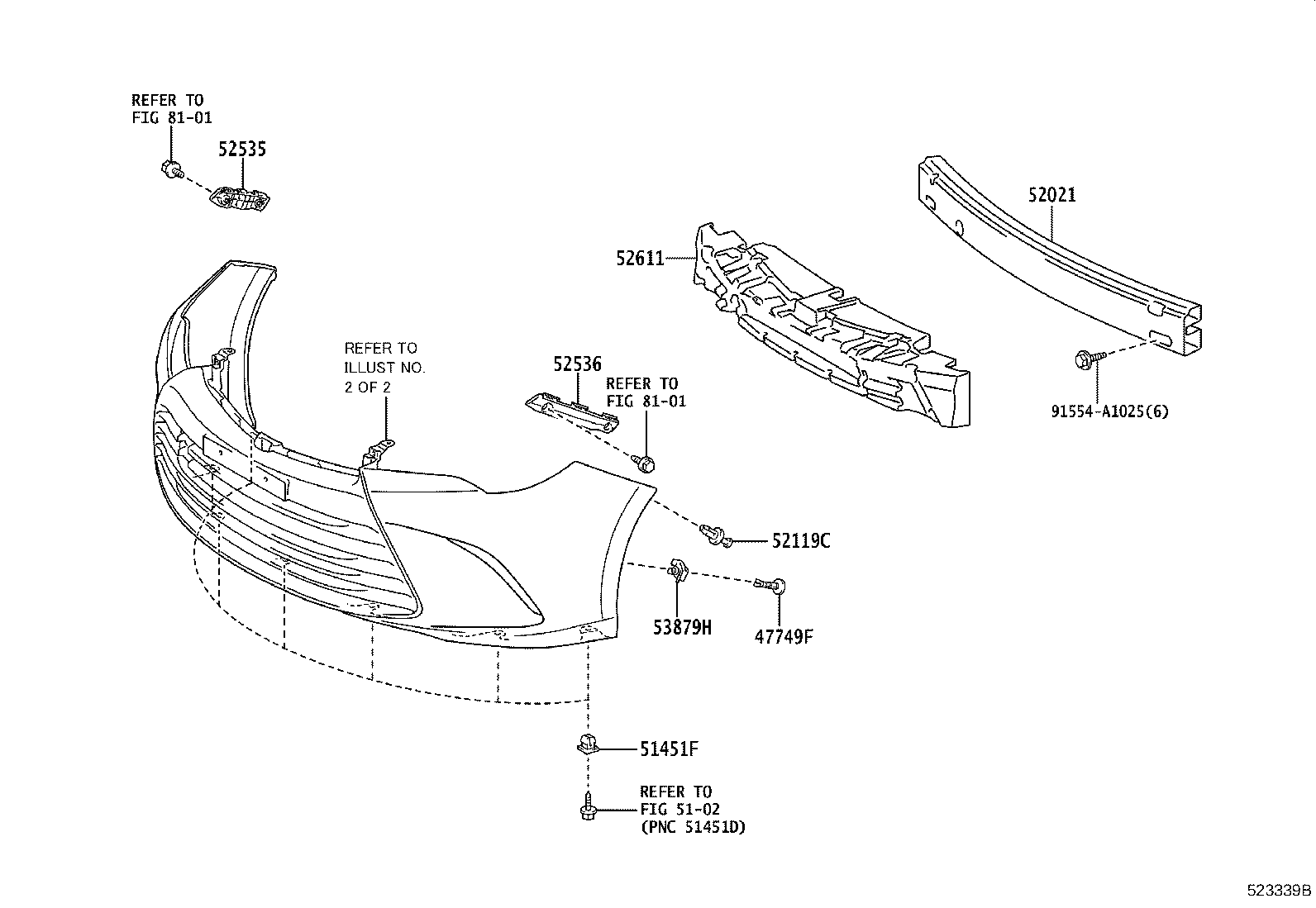

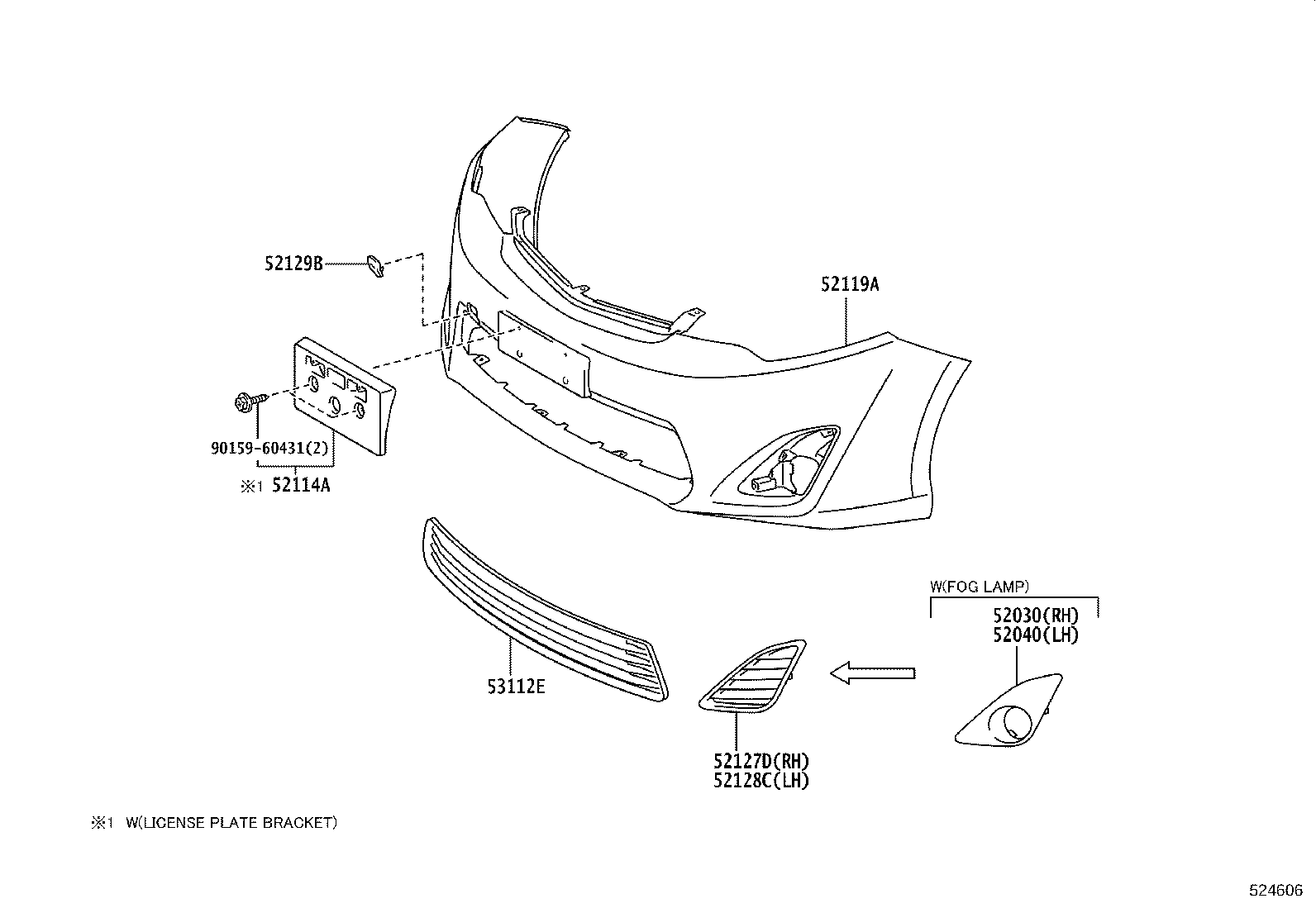

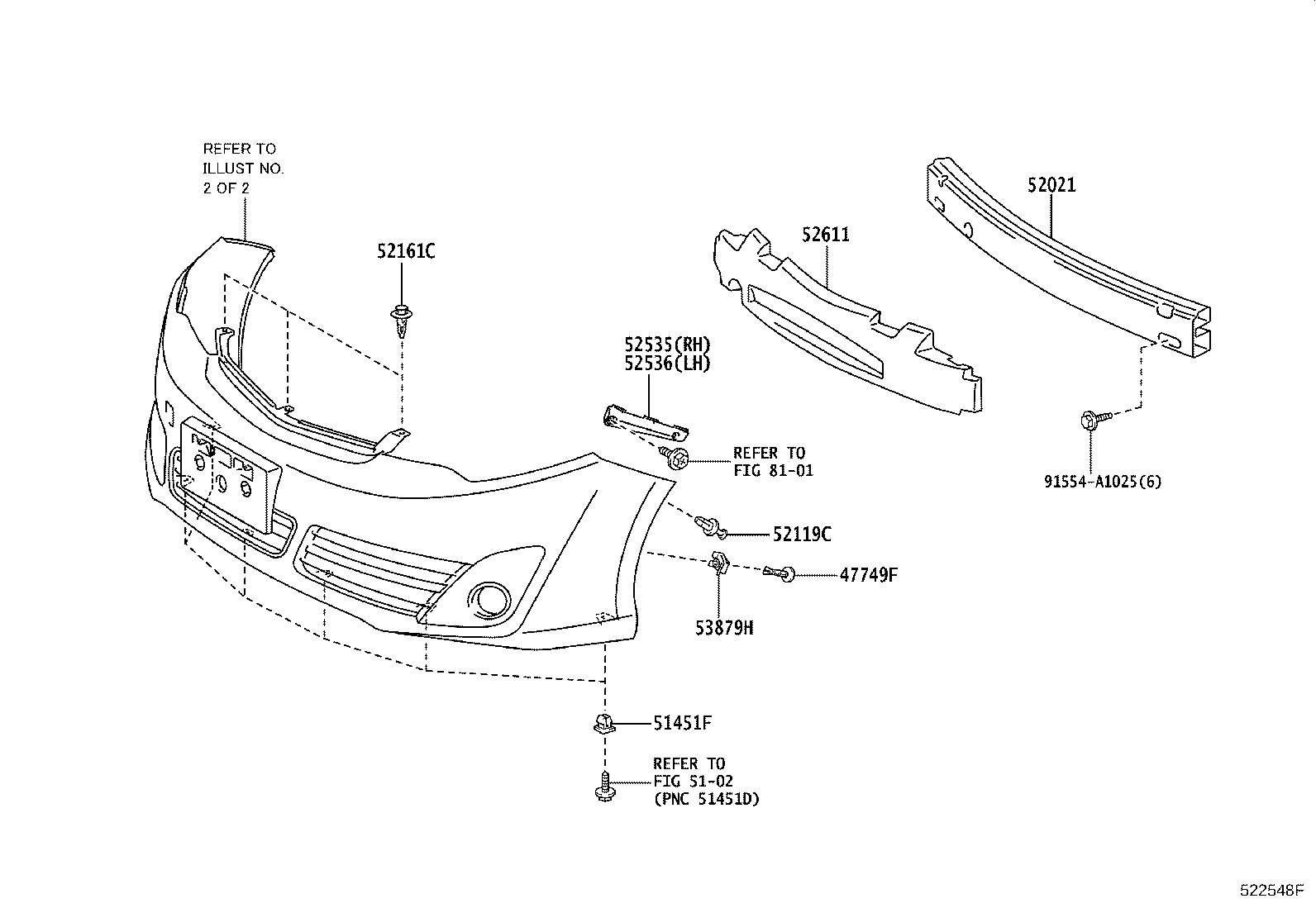

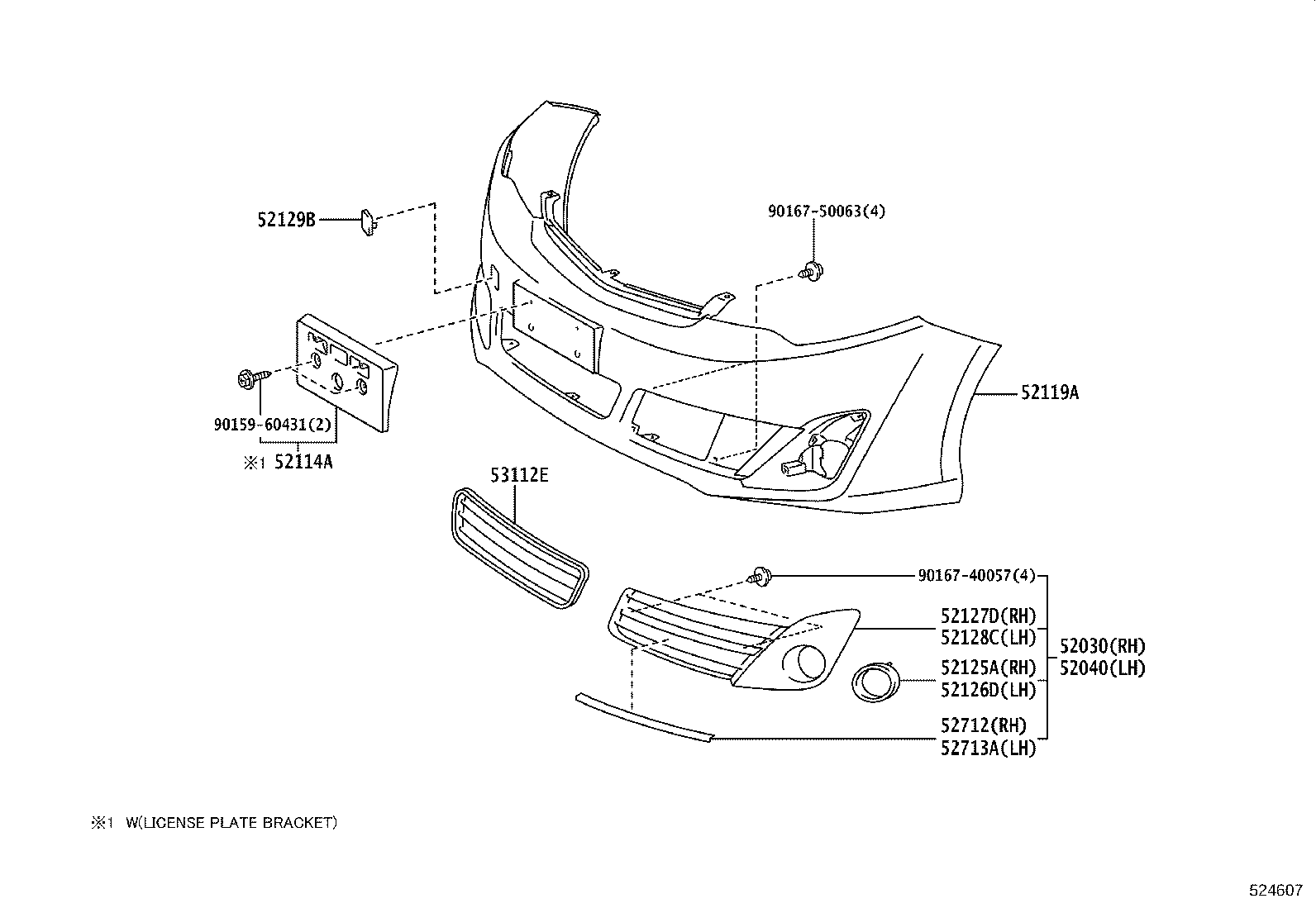

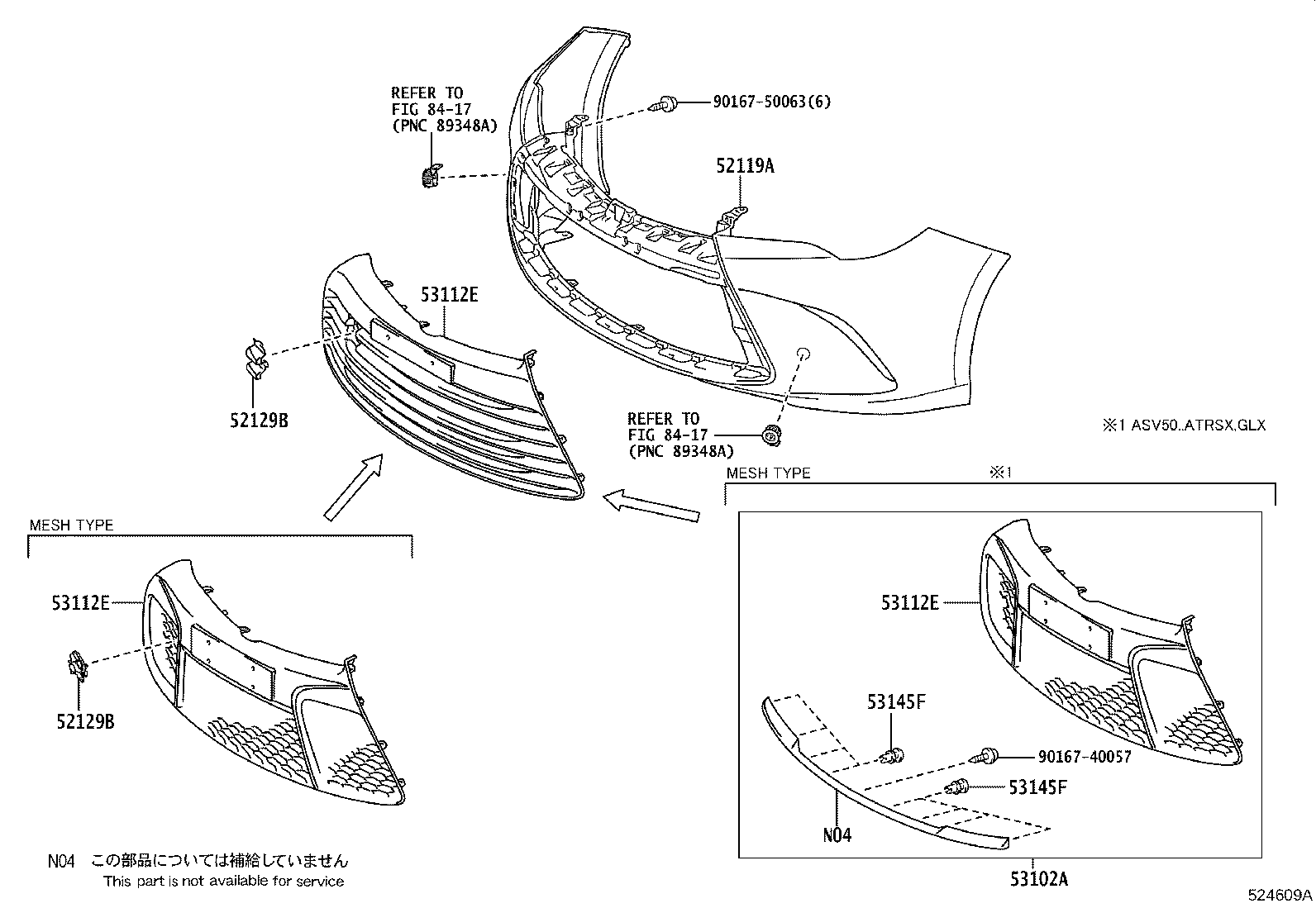

Figure 522547D 522547D 2011-10 → 2015-04 Figure 522547D 522547D 2013-07 → 2015-04 Figure 524606 524606 2011-10 → 2015-04 Figure 524606 524606 2013-07 → 2015-04 Figure 522548F 522548F 2011-10 → 2013-07 Figure 522548F 522548F 2011-10 → 2015-04 Figure 524607 524607 2011-10 → 2013-07 Figure 524607 524607 2011-10 → 2015-04 Figure 522943C 522943C 2014-05 → 2015-04 Figure 524608 524608 2014-05 → 2015-04 Figure 523339B 523339B 2015-04 → — Figure 524609A 524609A 2015-04 → — Figure 522588D 522588D 2012-02 → — Figure 524610A 524610A 2012-02 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451F Grommet, NO.1
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53145F Clip, Radiator Grille Garnish
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
