Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 7 illustrations

Illustrations

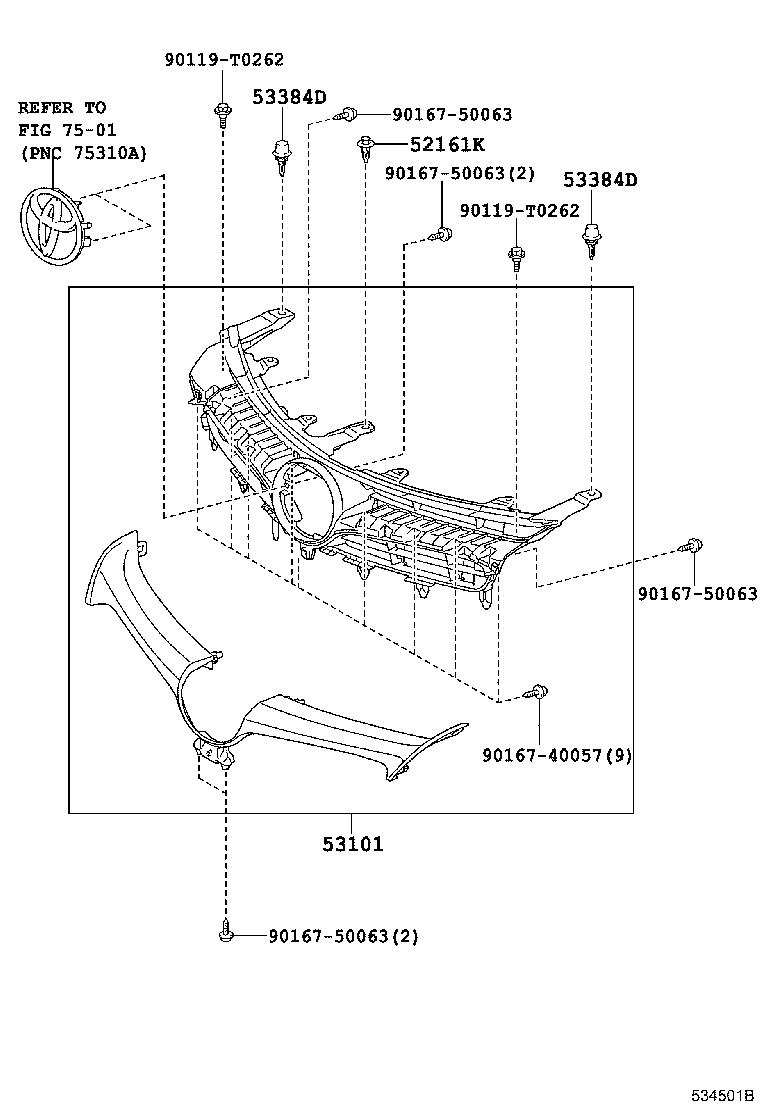

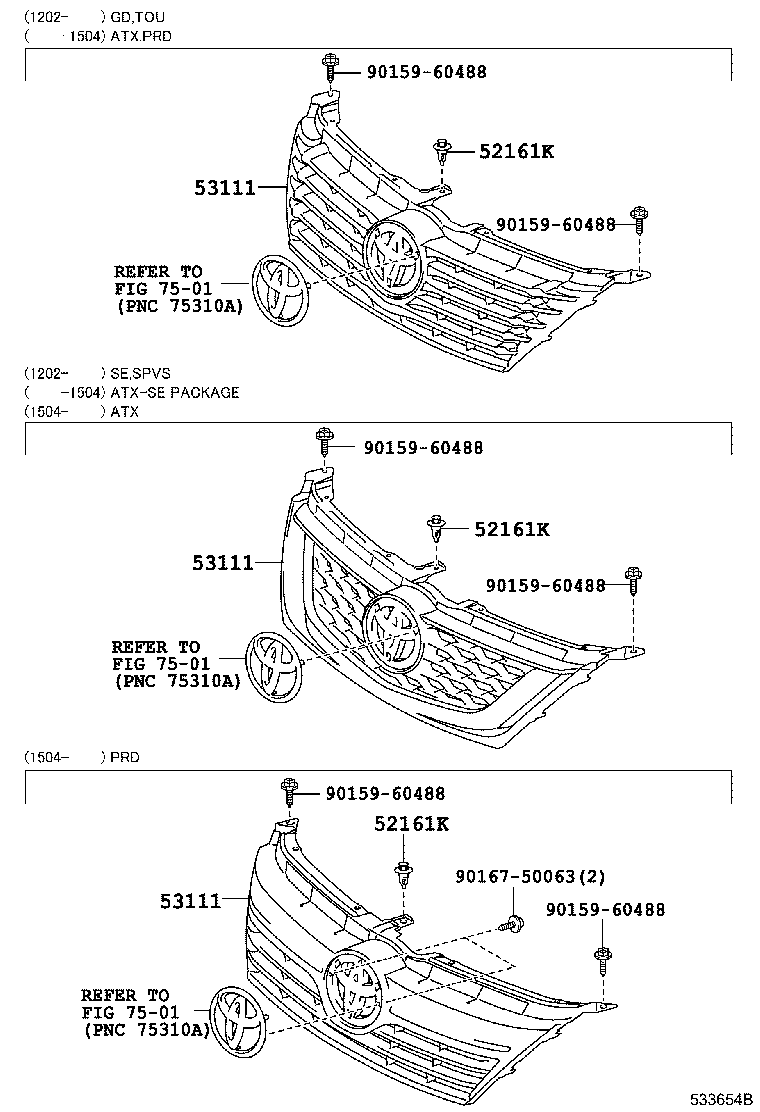

Figure 533599B 533599B 2011-10 → 2013-07 Figure 533599B 533599B 2011-10 → 2015-04 Figure 533653B 533653B 2012-01 → 2015-04 Figure 533653B 533653B 2013-07 → 2015-04 Figure 534231A 534231A 2014-05 → 2015-04 Figure 534501B 534501B 2015-04 → — Figure 533654B 533654B 2012-02 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53145G Clip, Radiator Grille
53384D Cushion, Hood, Center
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
