Toyota Camry/Aurion/HV(ARL)
2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General
Supported model
Data version 2018-04
Instrument Panel & Glove Compartment
40 part groups · 16 illustrations

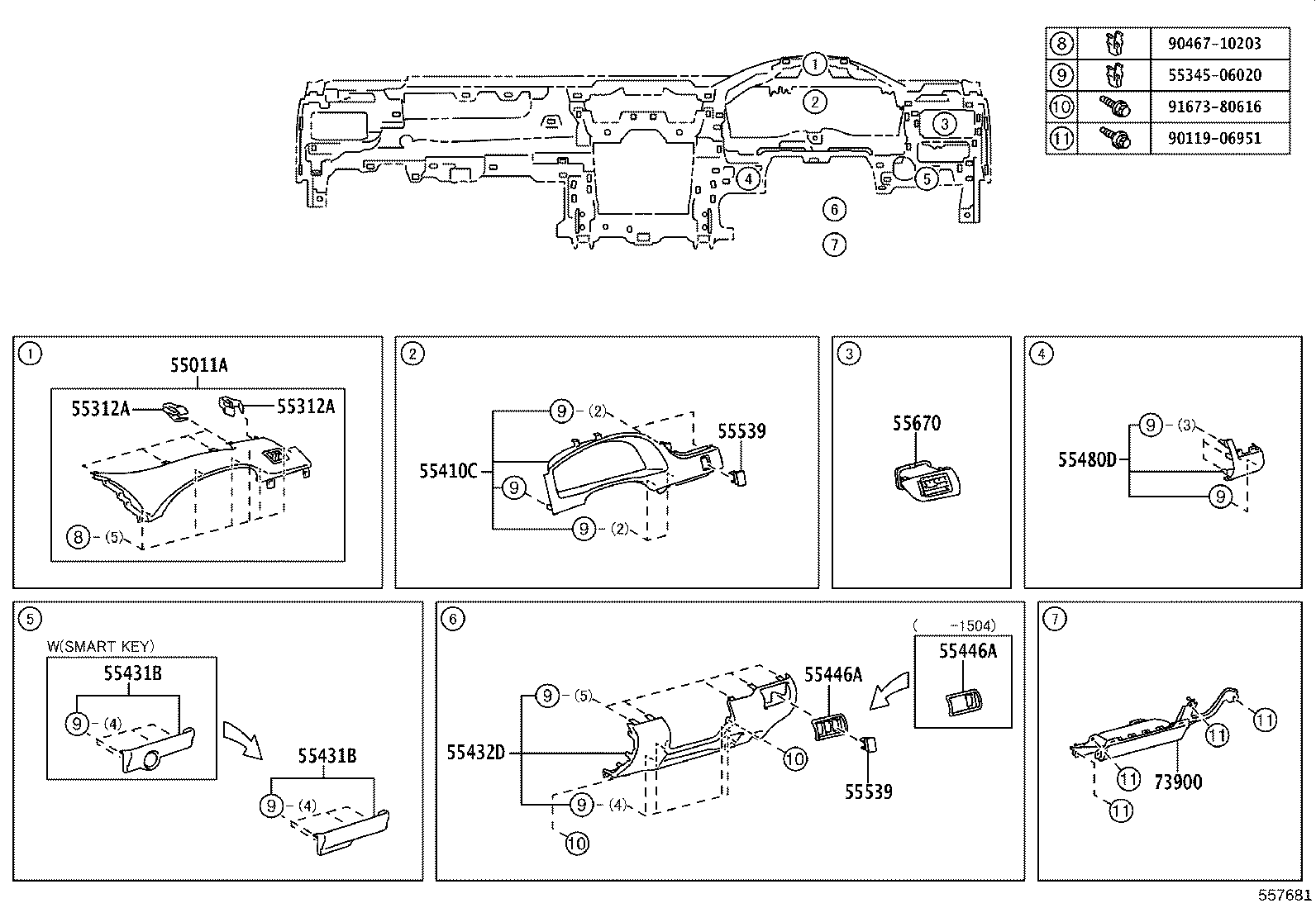

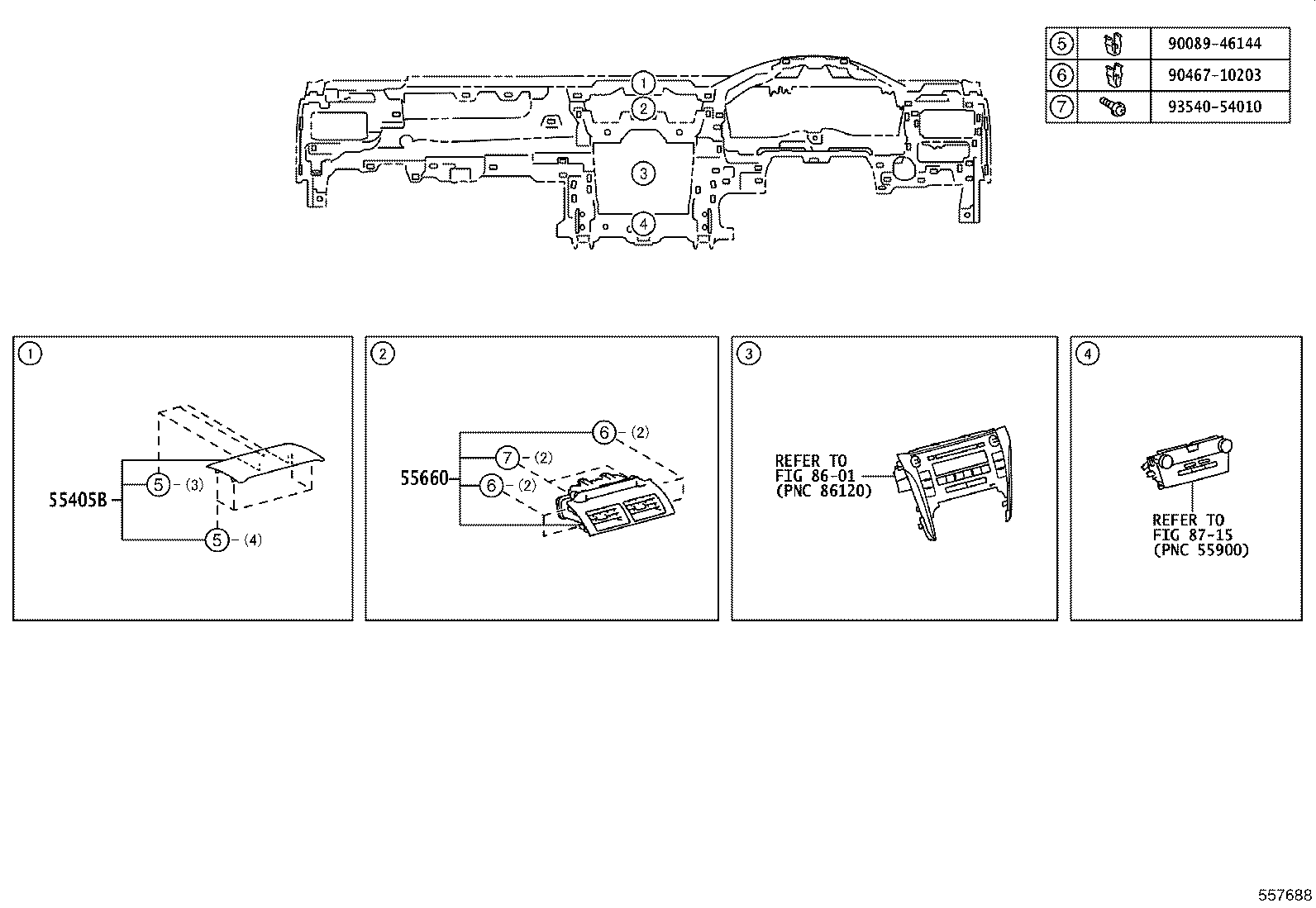

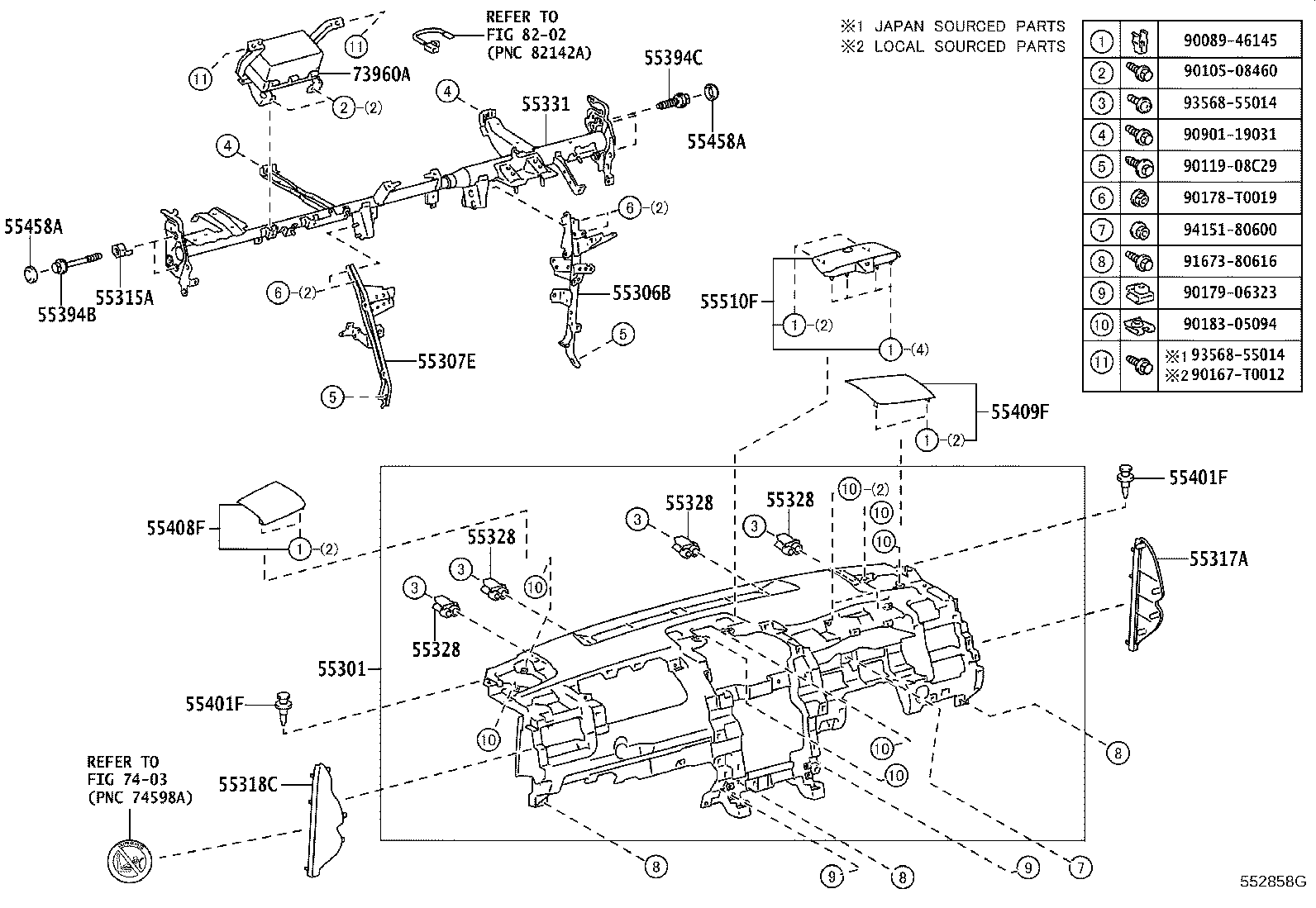

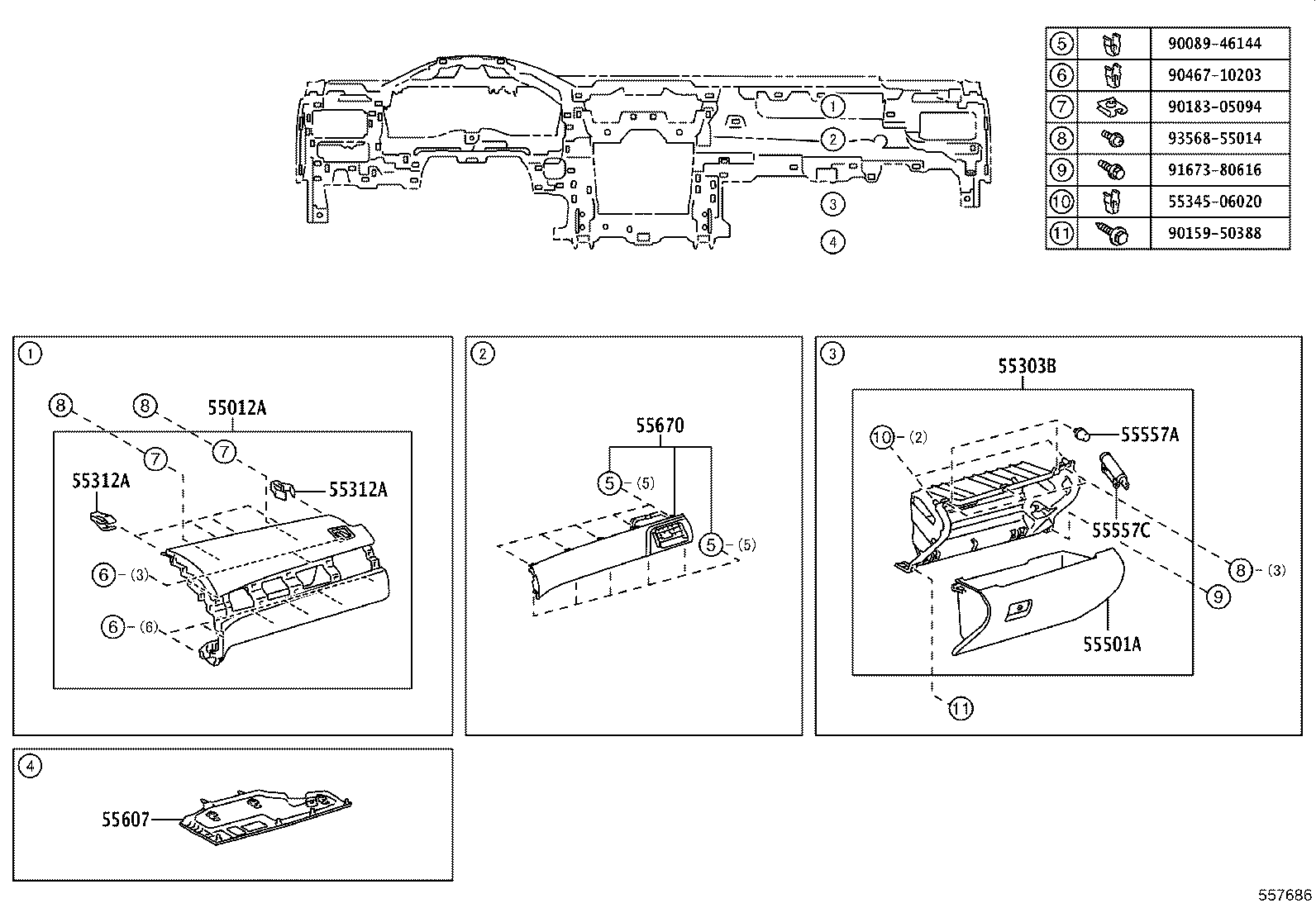

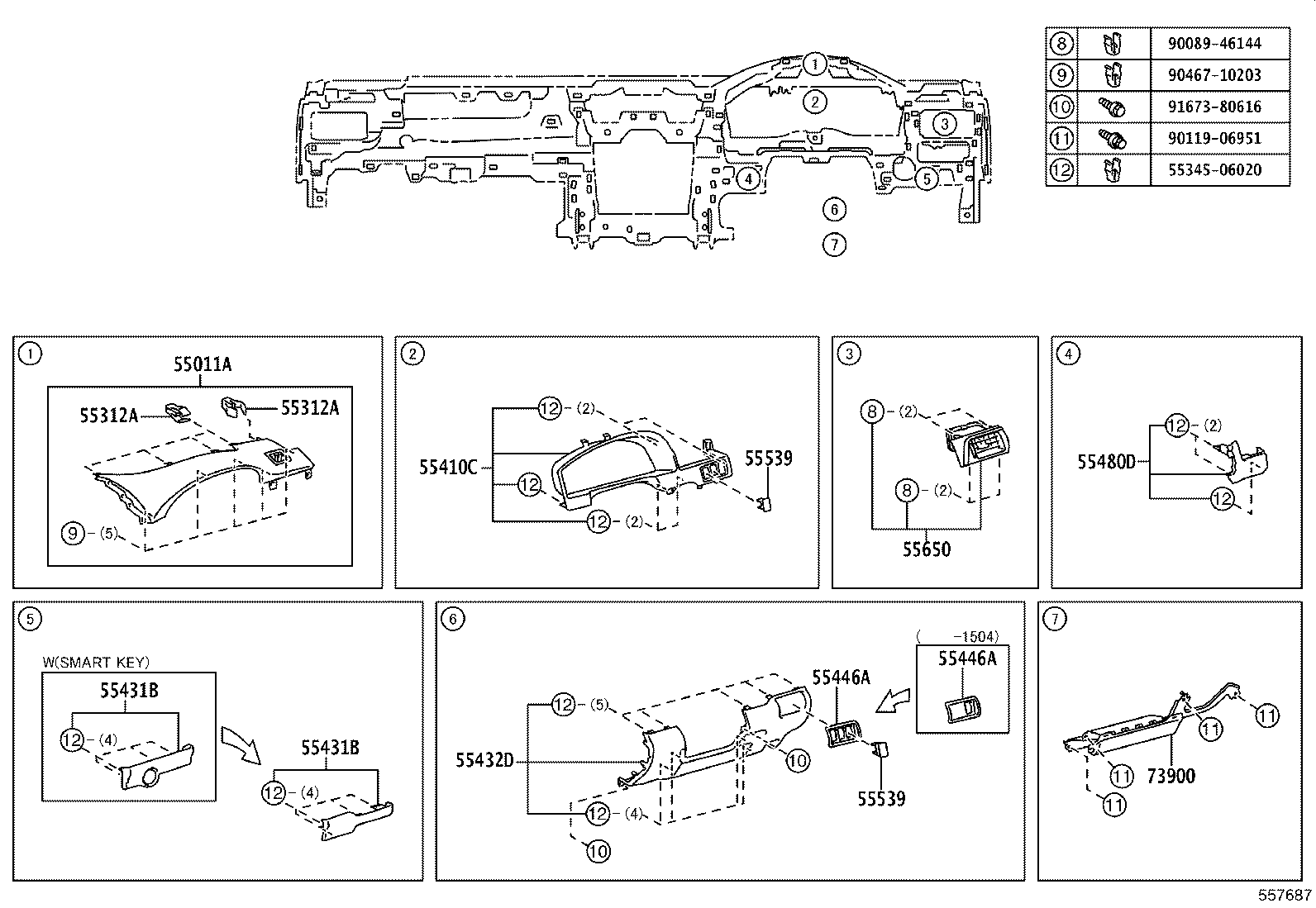

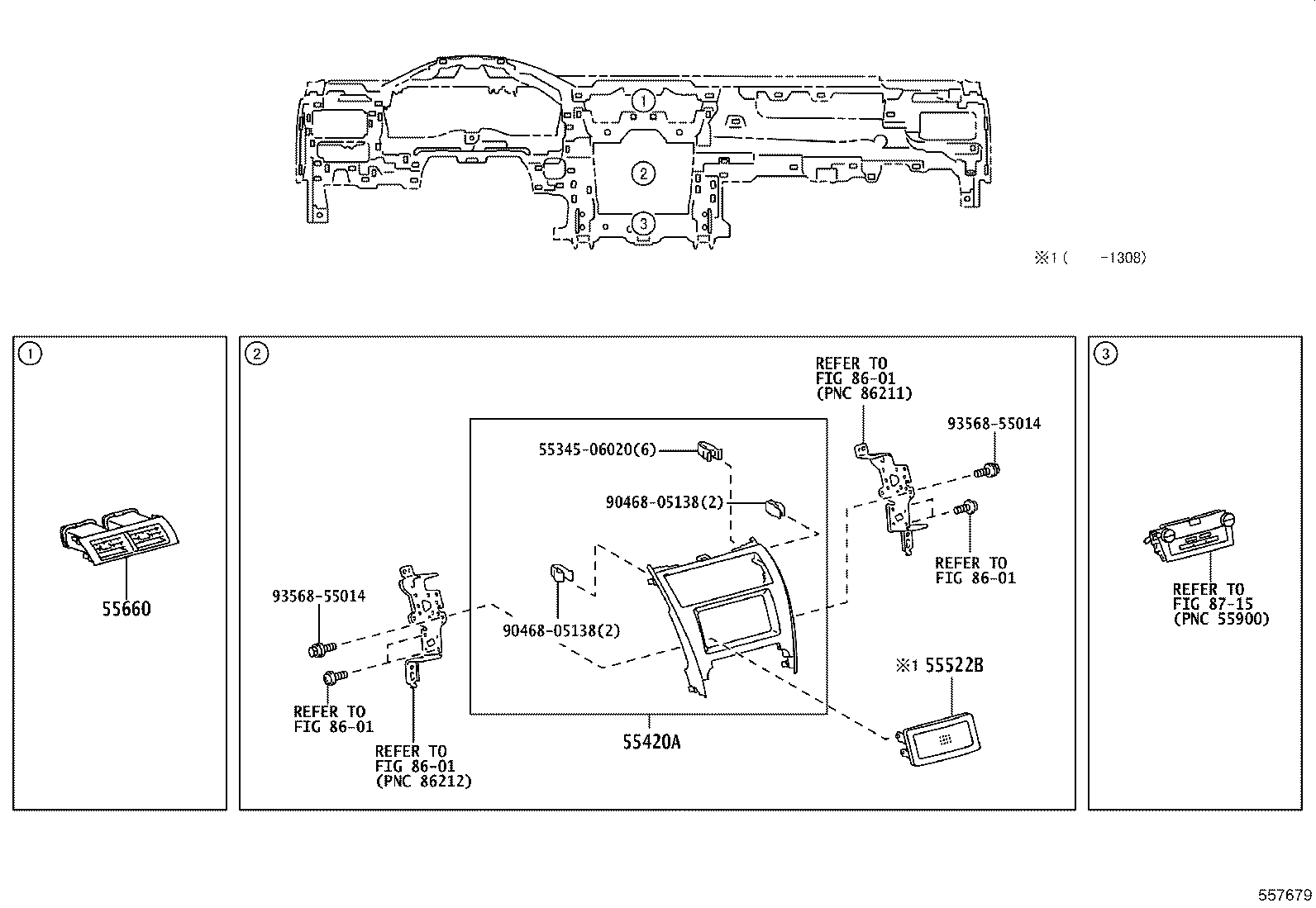

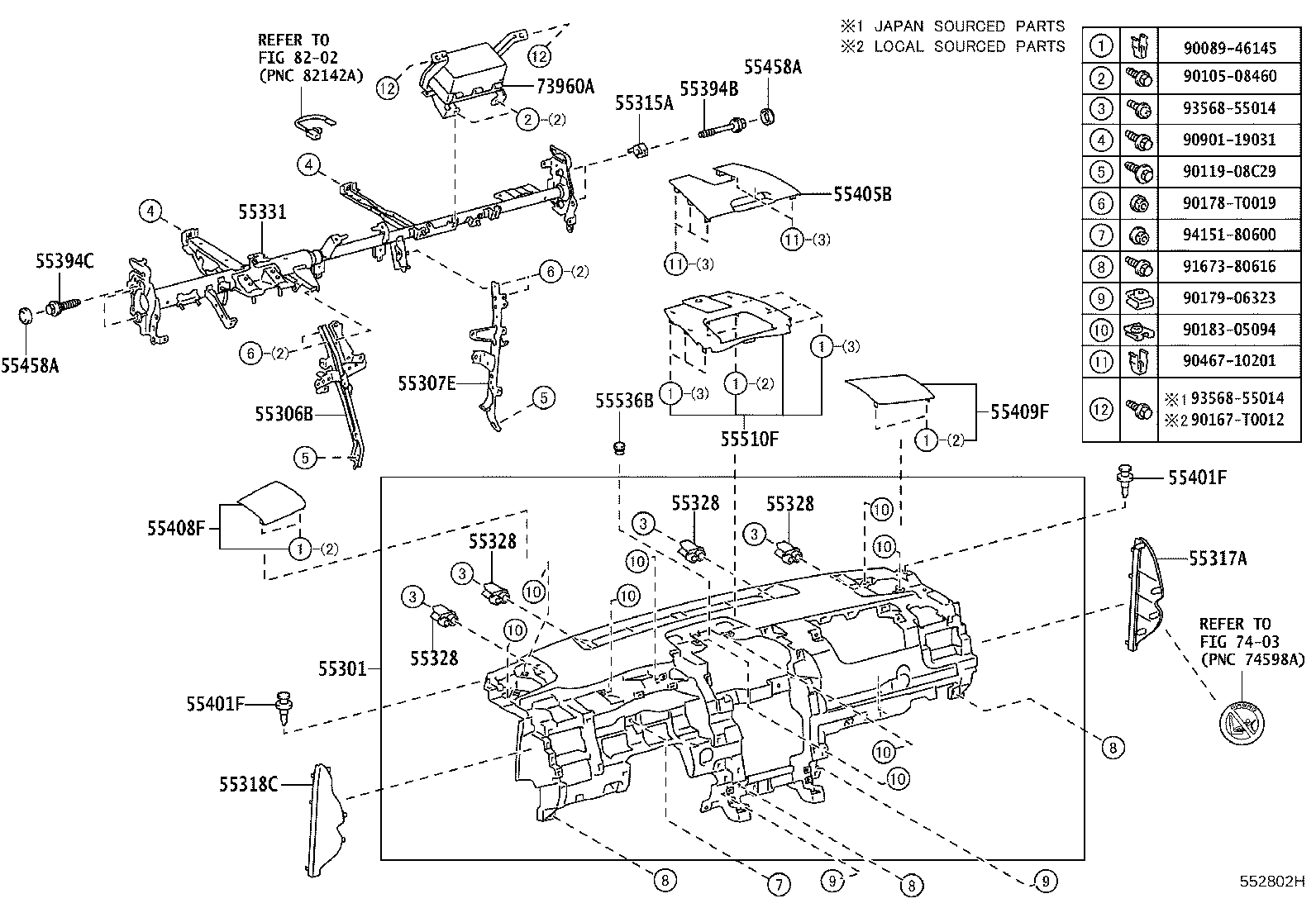

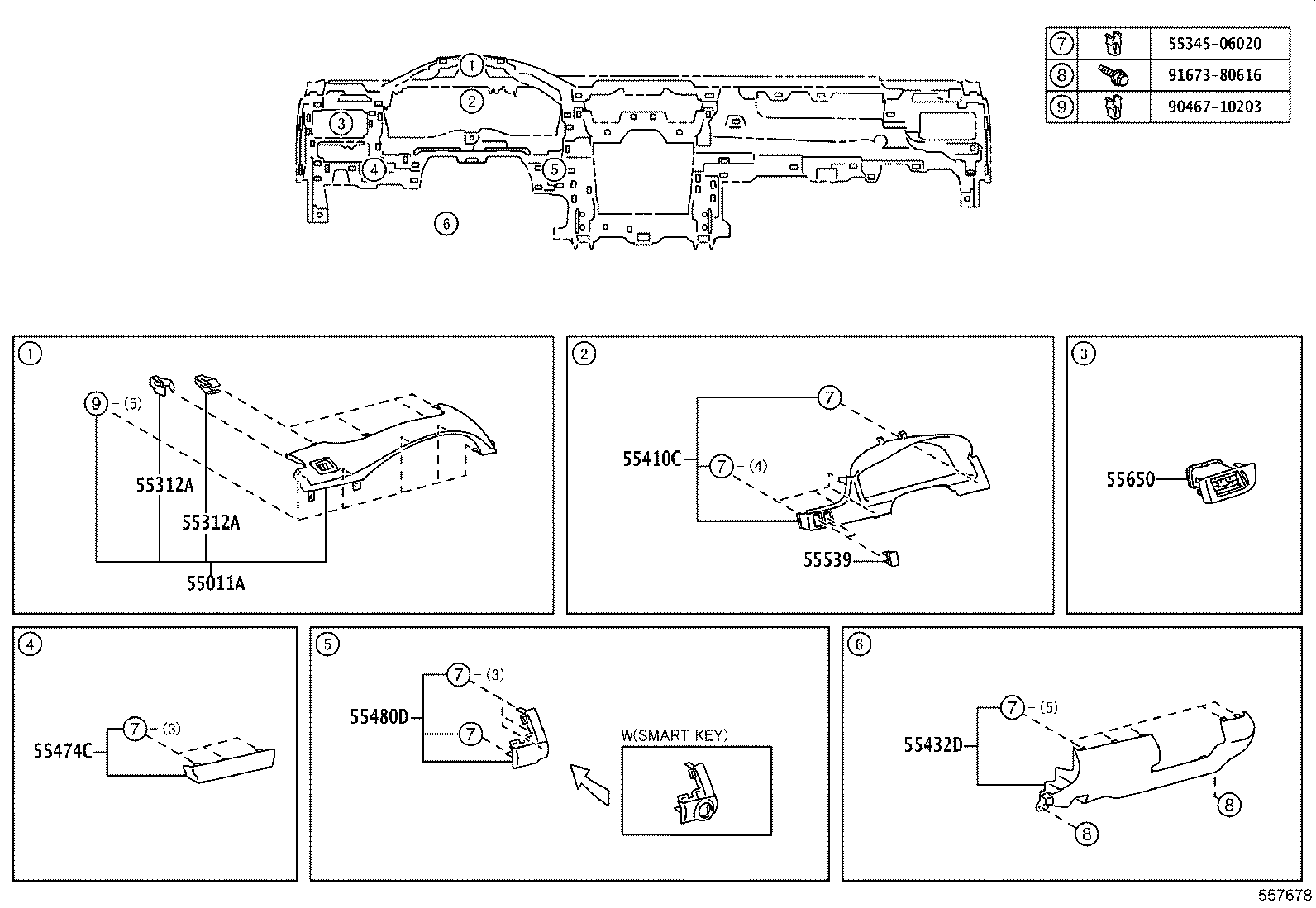

Illustrations
Part groups
| PNC | Description |
|---|---|
| 55011A | Garnish Sub-assy, Instrument Panel, NO.1 |
| 55012A | Garnish Sub-assy, Instrument Panel, NO.2 |
| 55301 | Panel Sub-assy, Instrument |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306B | Brace Sub-assy, Instrument Panel TO Cowl |
| 55307E | Brace Sub-assy, Instrument Panel, NO.2 |
| 55312A | Clip, Instrument Panel |
| 55315A | Spacer, Instrument Panel, NO.1 |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55331 | Reinforcement, Instrument Panel |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55401F | Clip(FOR SAFETY PAD) |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55431B | Panel, Instrument Panel Finish, Upper |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55446A | Base, Switch Hole, NO.1 |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55480D | Panel Assy, Instrument Panel Finish, Lwr |
| 55501A | Door Sub-assy, Glove Compartment |
| 55510F | Cover Assy, Speaker Opening, NO.1 |
| 55522B | Cover, Radio Tuner Opening |
| 55536B | Cover, Light Control Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55557A | Cushion, Glove Compartment Door Check |
| 55557C | Damper, Glove Compartment Door |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
