Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

29 part groups · 9 illustrations

Illustrations

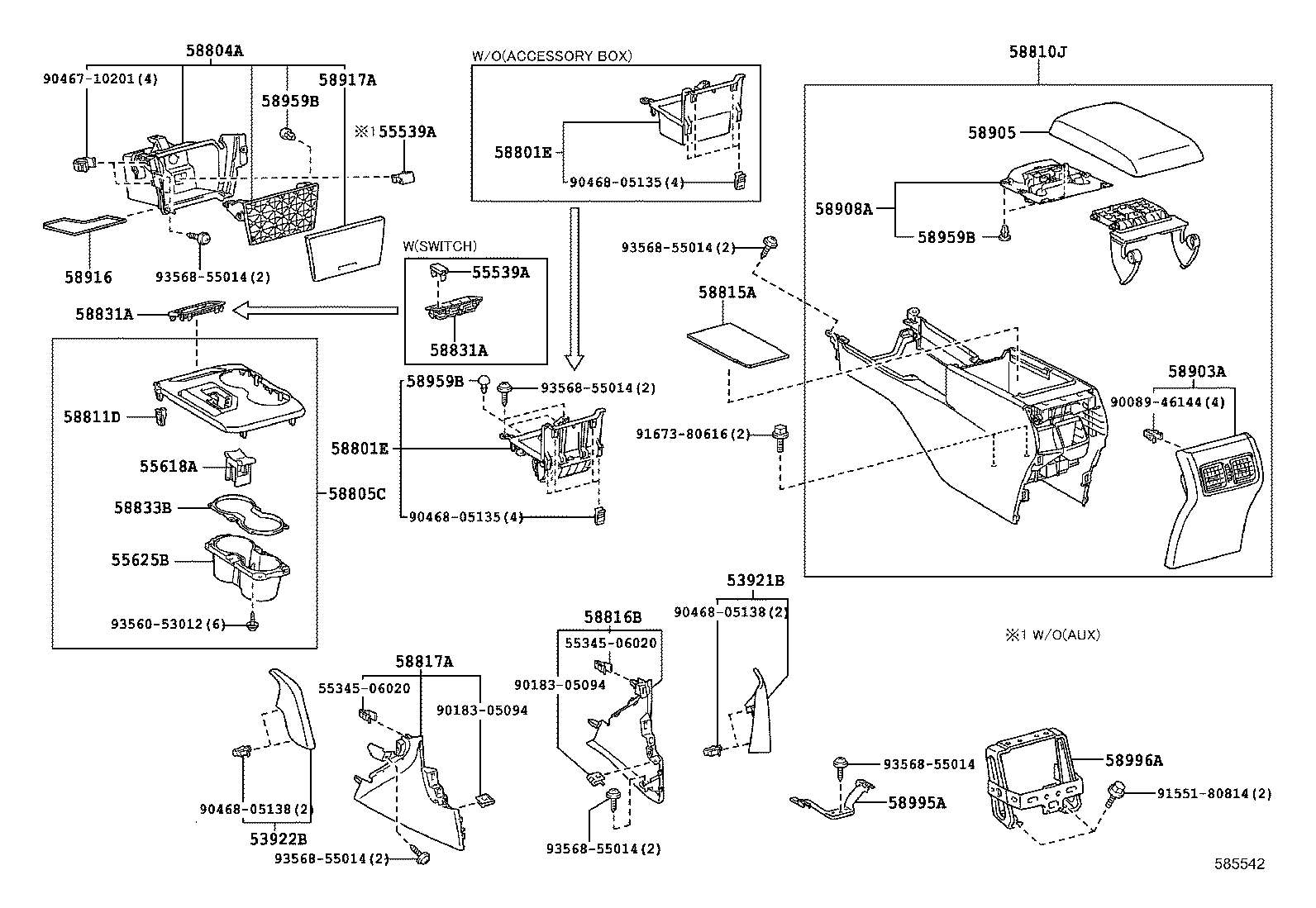

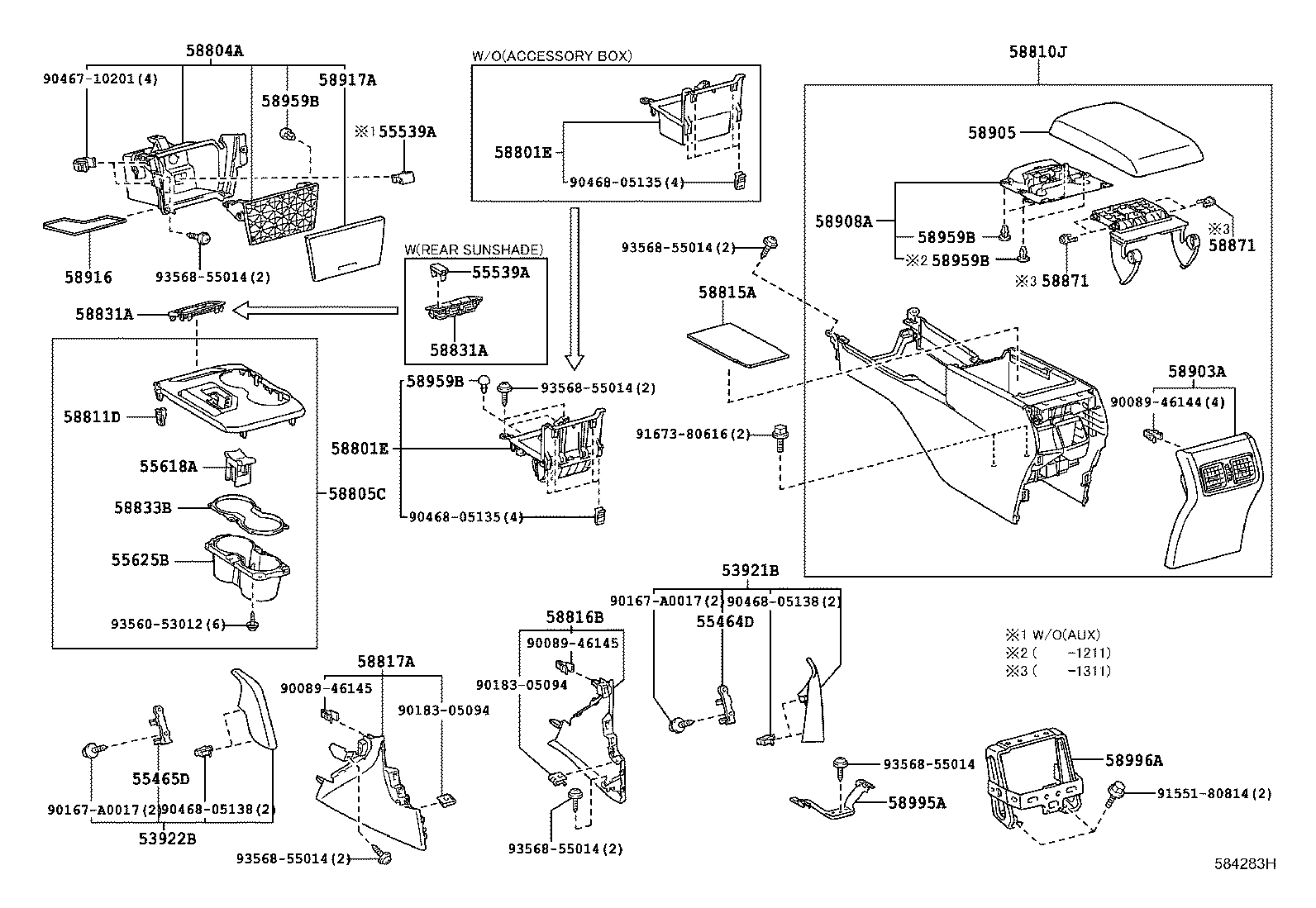

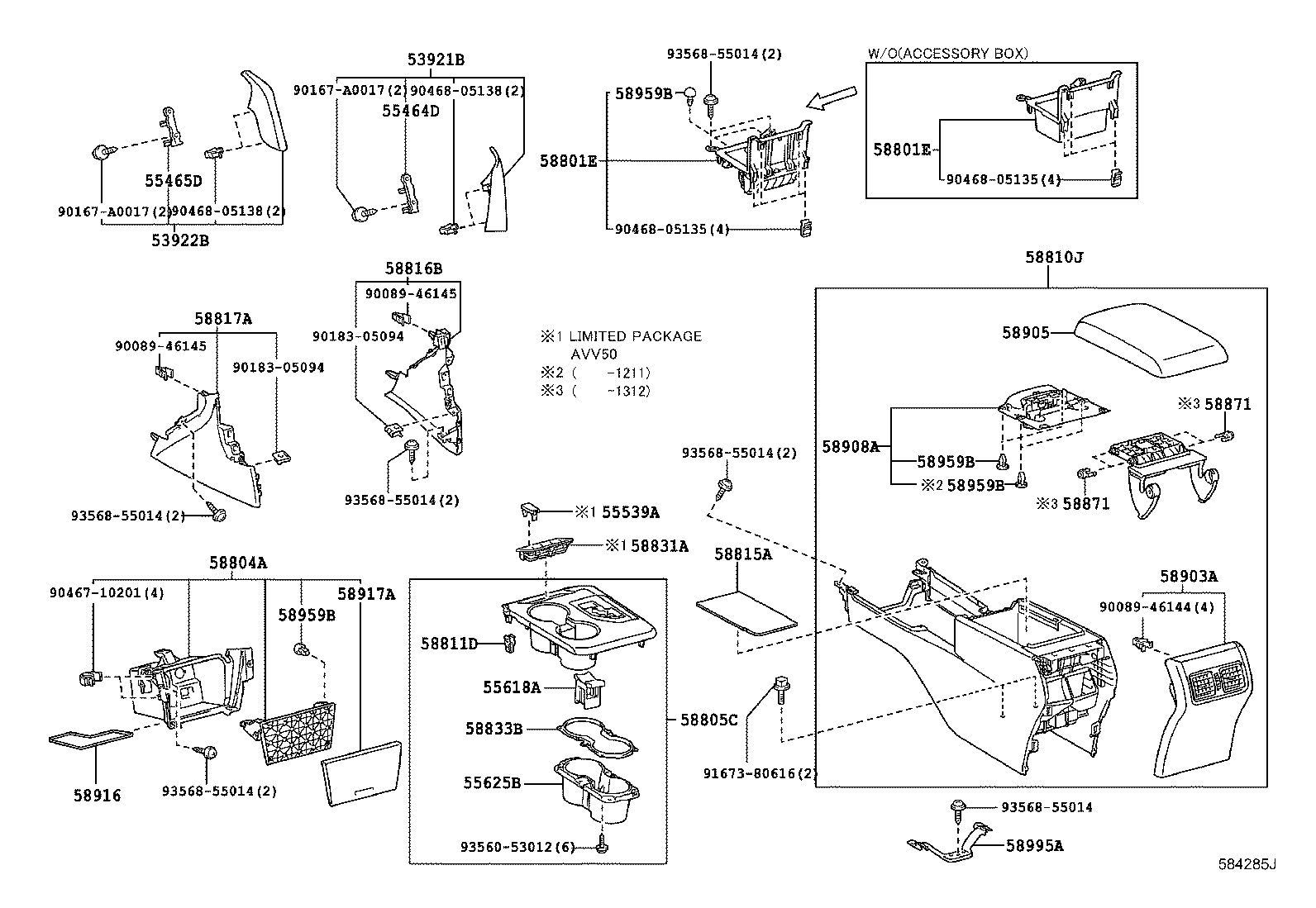

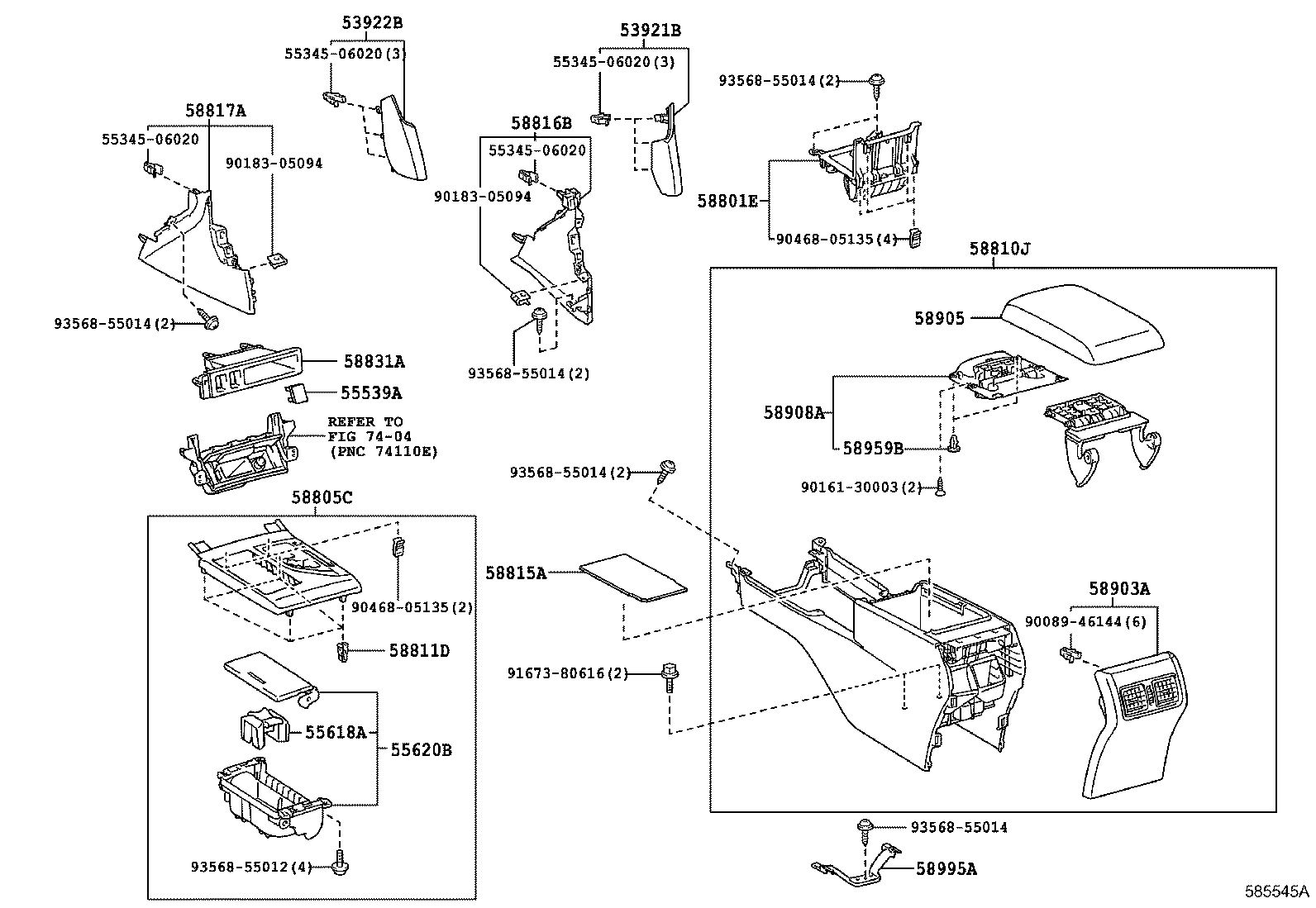

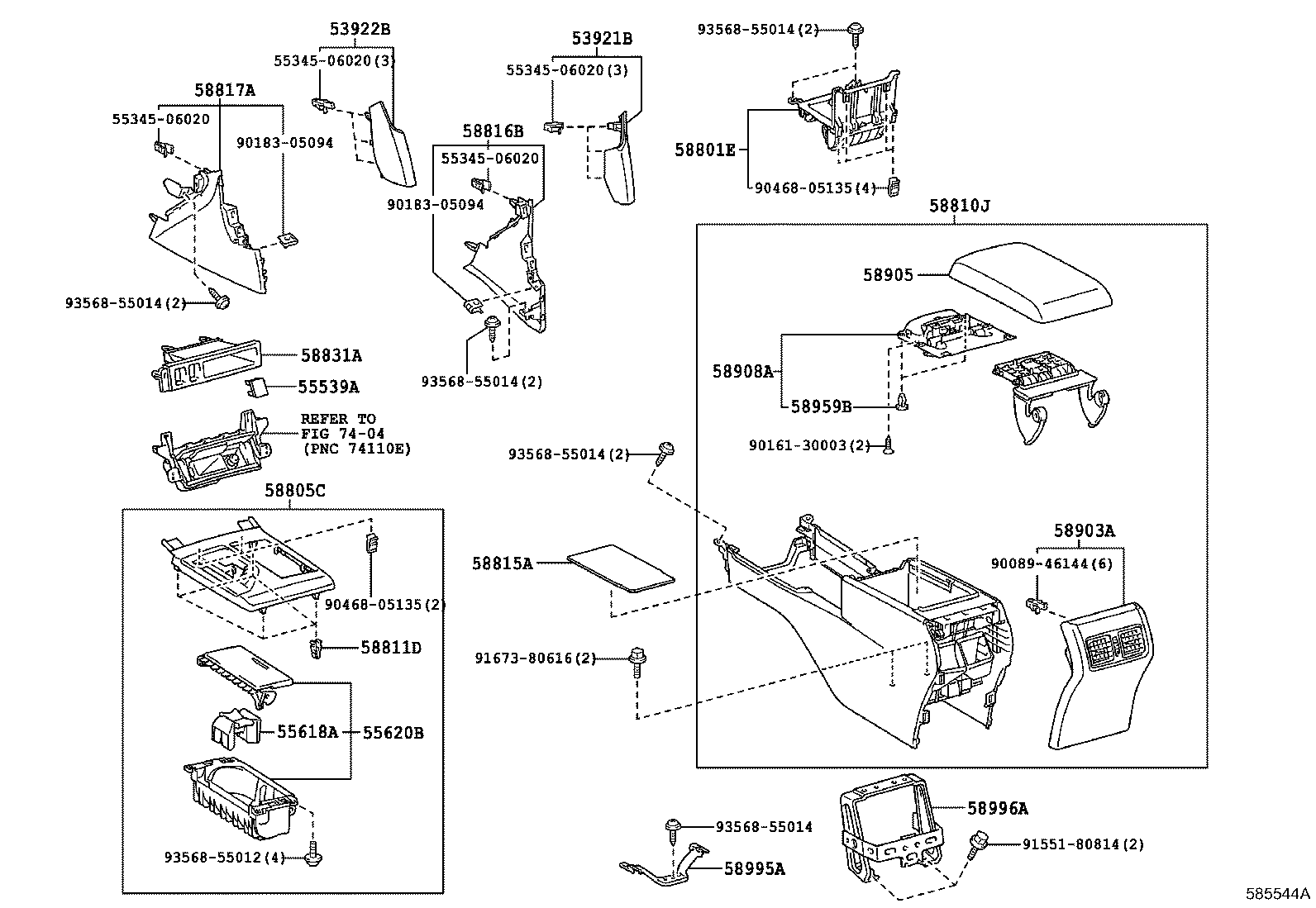

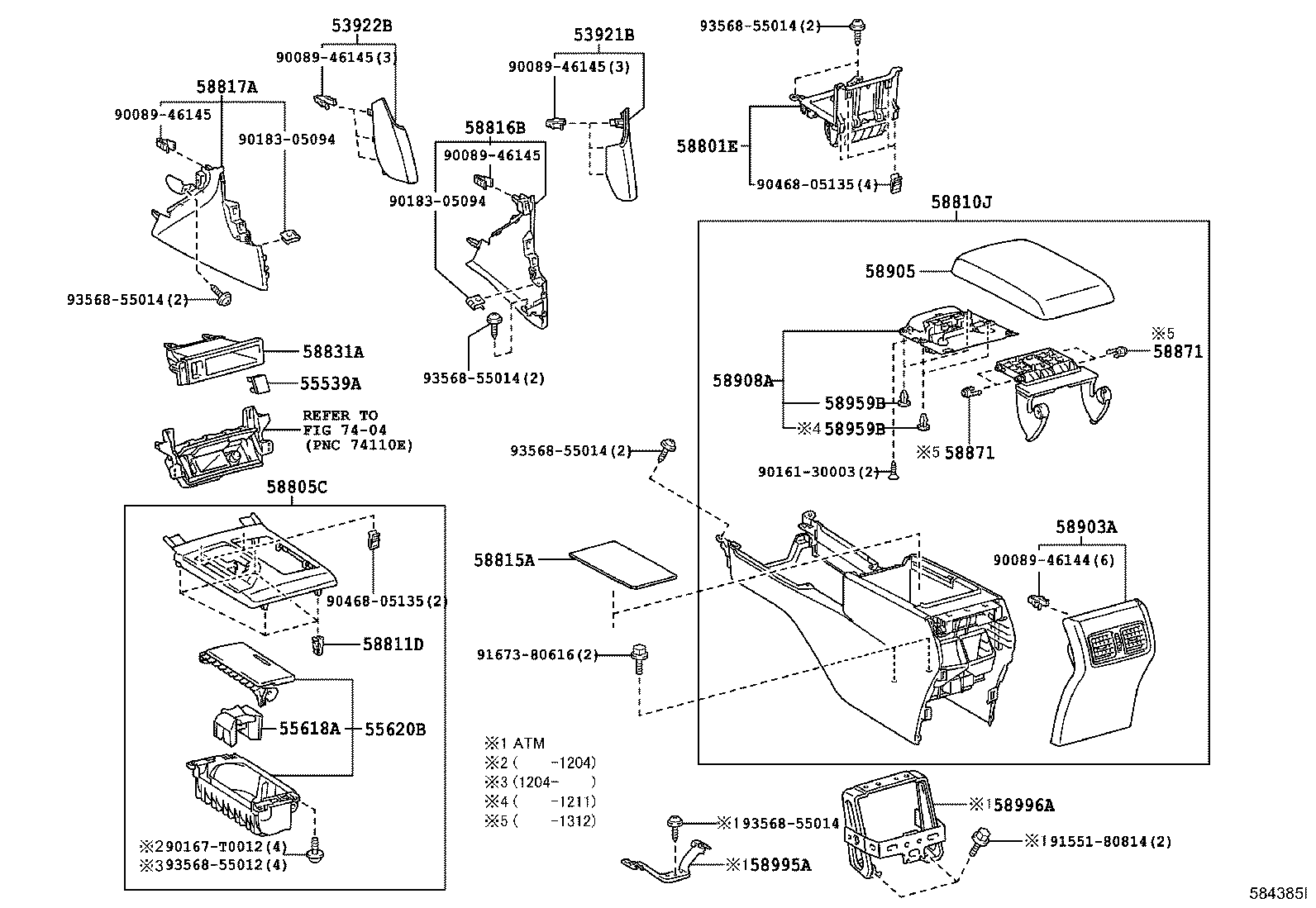

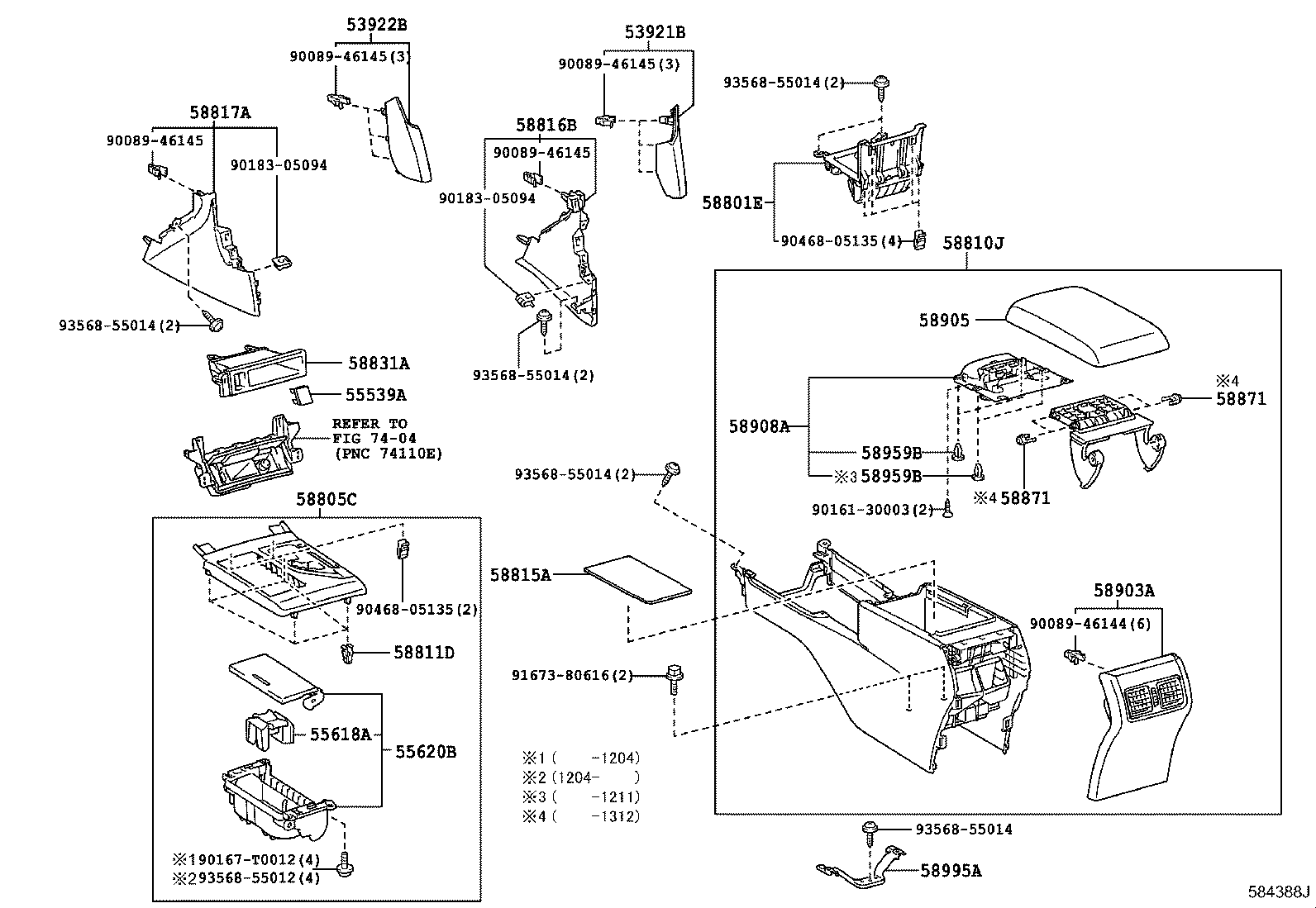

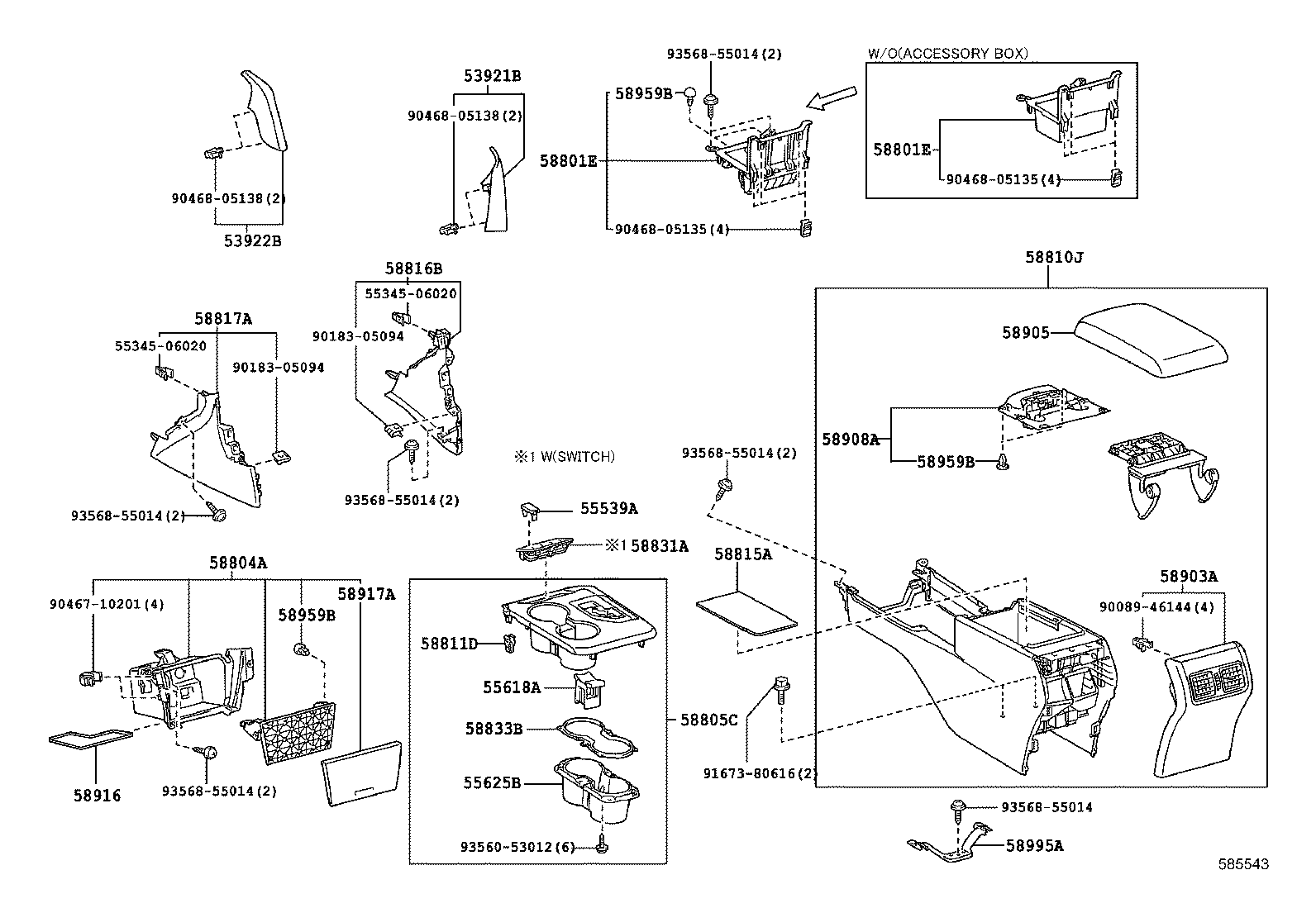

Figure 584284F 584284F 2011-10 → 2012-11 Figure 584283H 584283H 2011-10 → 2015-04 Figure 584285J 584285J 2011-10 → 2015-04 Figure 584385I 584385I 2012-02 → 2015-04 Figure 584388J 584388J 2012-02 → 2015-04 Figure 585542 585542 2015-04 → — Figure 585543 585543 2015-04 → — Figure 585544A 585544A 2015-04 → — Figure 585545A 585545A 2015-04 → —

Part groups

PNCDescription
53921B Garnish, Front Panel, RH
53922B Garnish, Front Panel, LH
55464D Insert, Instrument Panel Lower Pad, RH
55465D Insert, Instrument Panel Lower Pad, LH
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
55620B Holder, Instrument Panel Cup
55625B Tray, Instrument Panel Cup Holder
58801E Box Sub-assy, Console, Upper
58804A Panel Sub-assy, Console, Upper
58805C Panel Sub-assy, Console, Upper Rear
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58831A Garnish, Console Upper Panel, Front
58833B Garnish, Console Upper Panel, NO.1
58871 Cushion, Console Box
58903A Panel Sub-assy, Console Rear End
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58917A Cover, Console Box, Rear
58959B Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
