Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

25 part groups · 8 illustrations

Illustrations

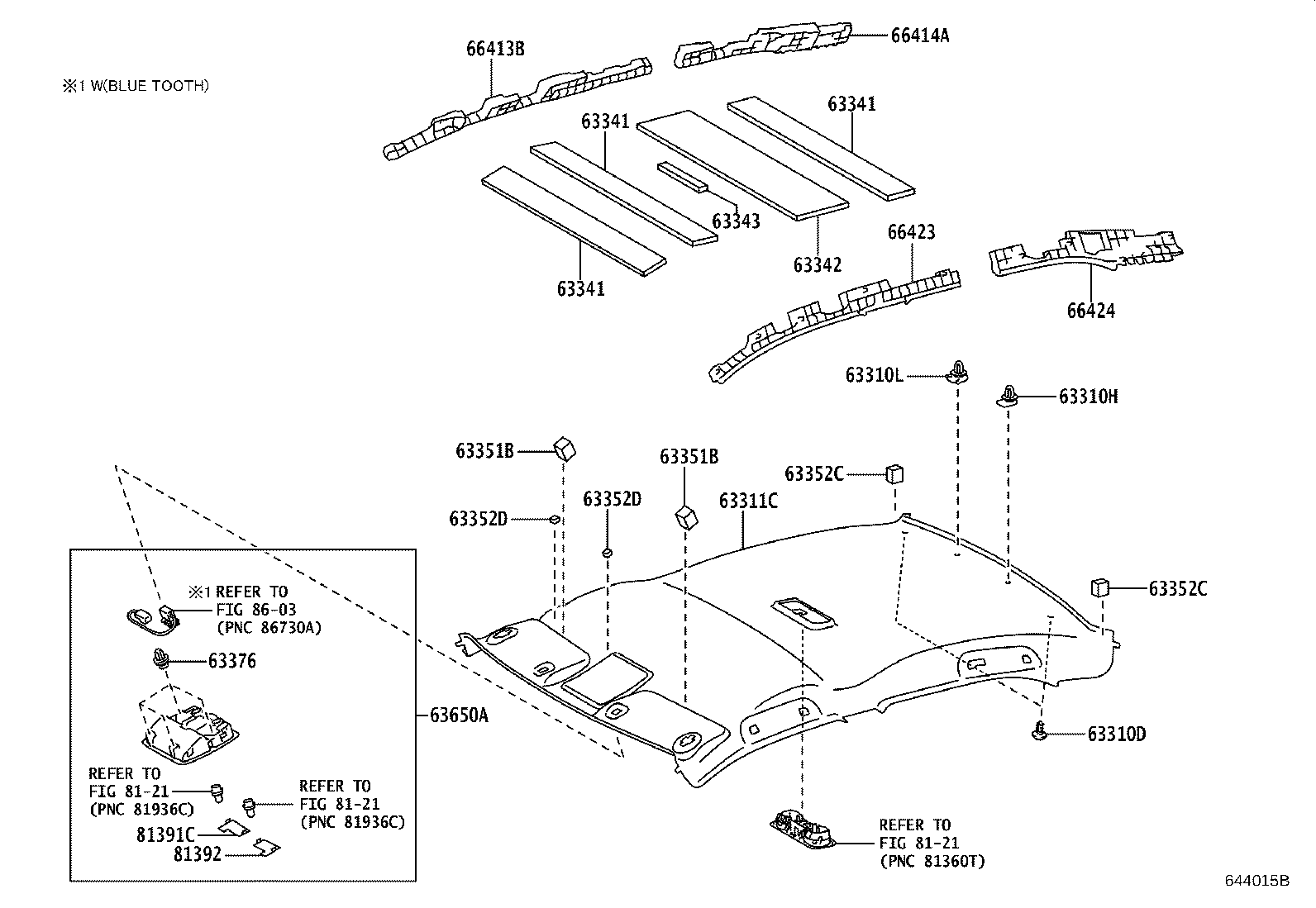

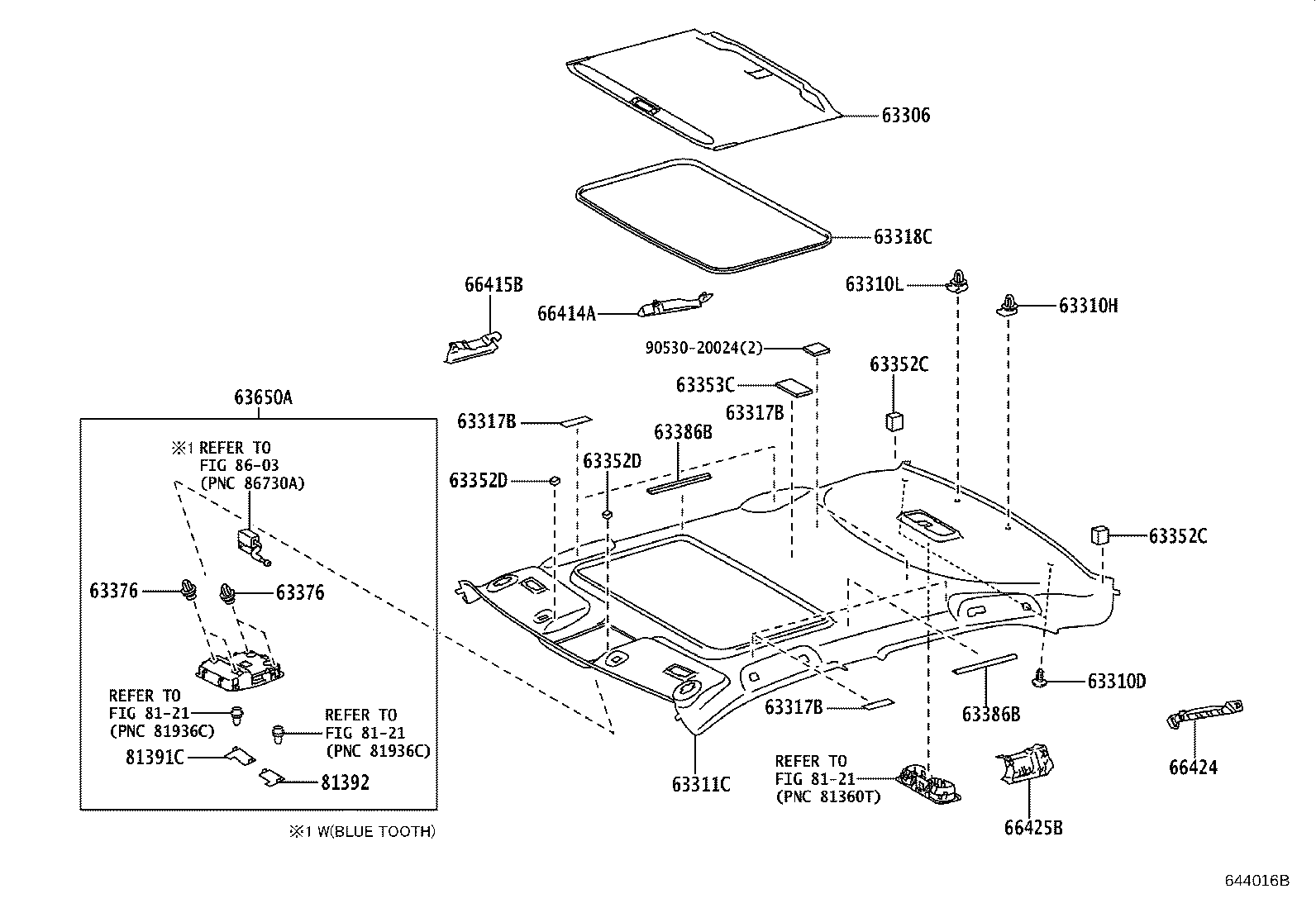

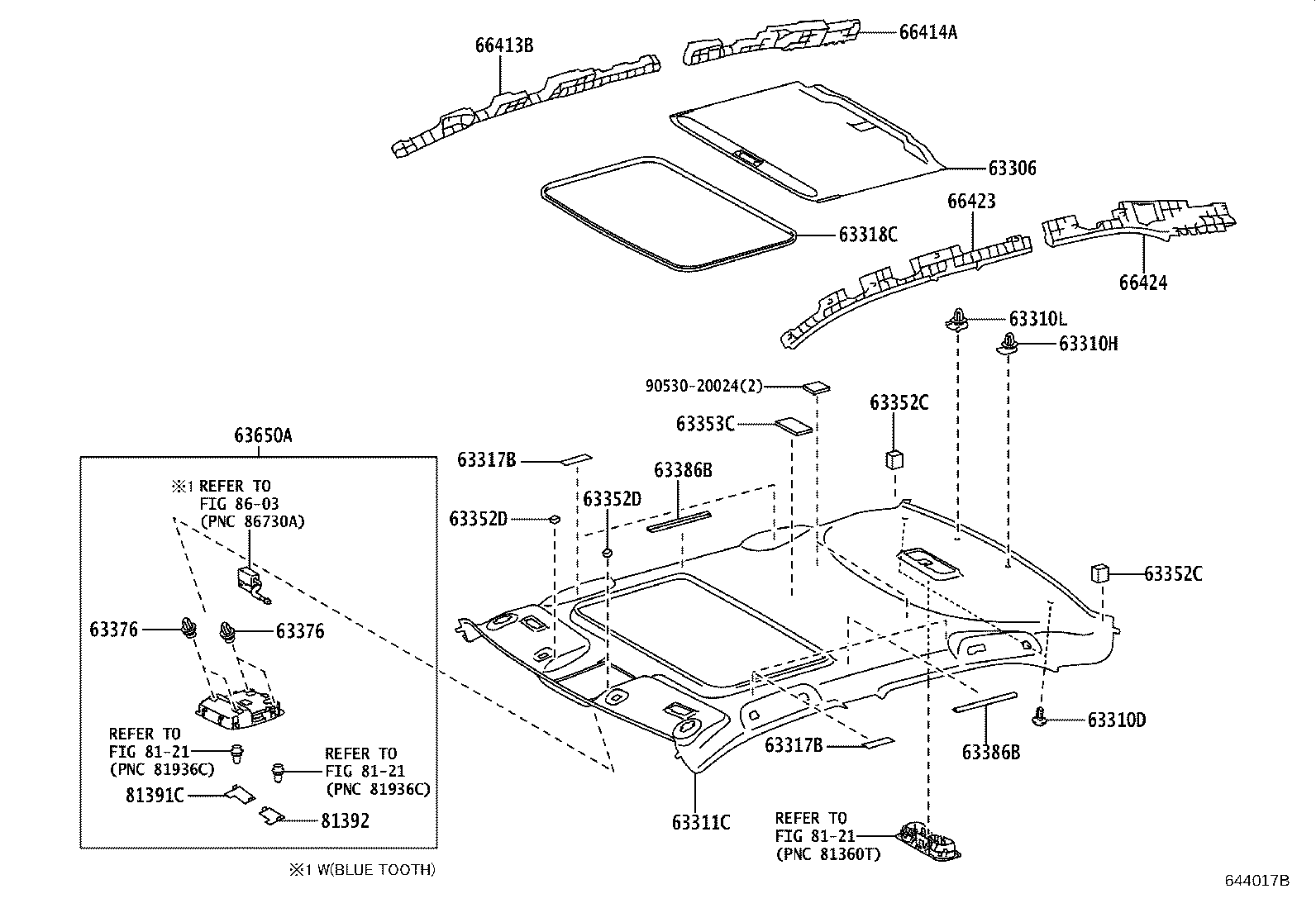

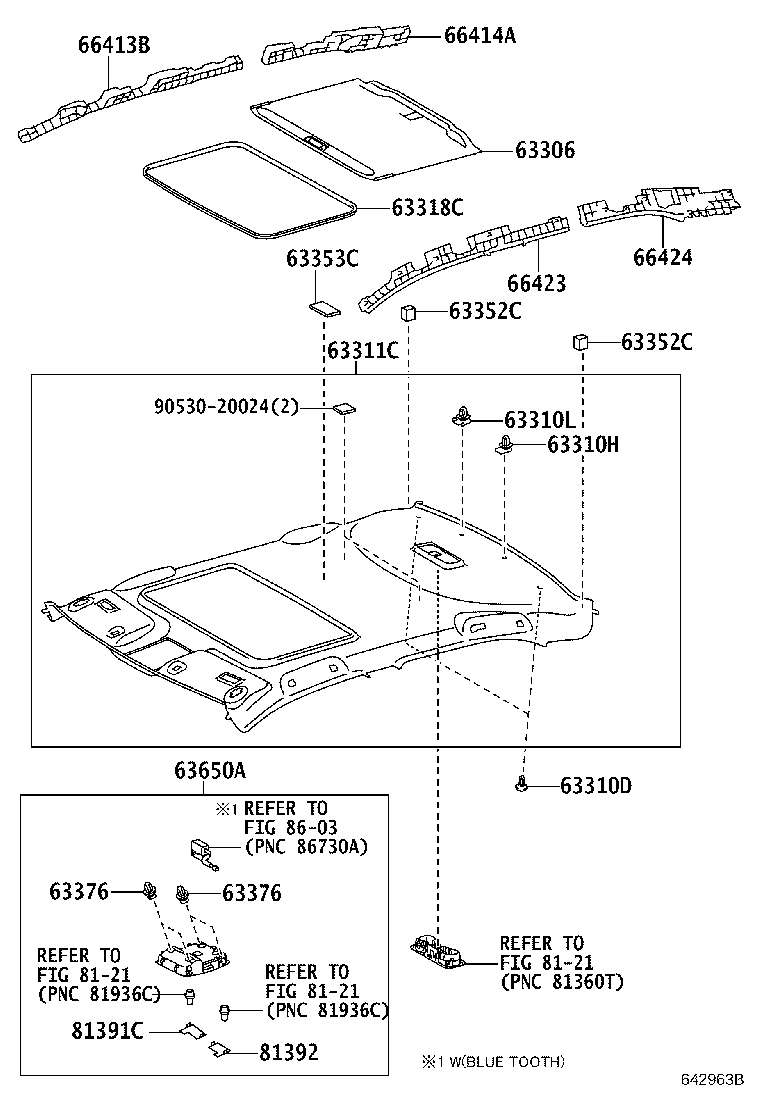

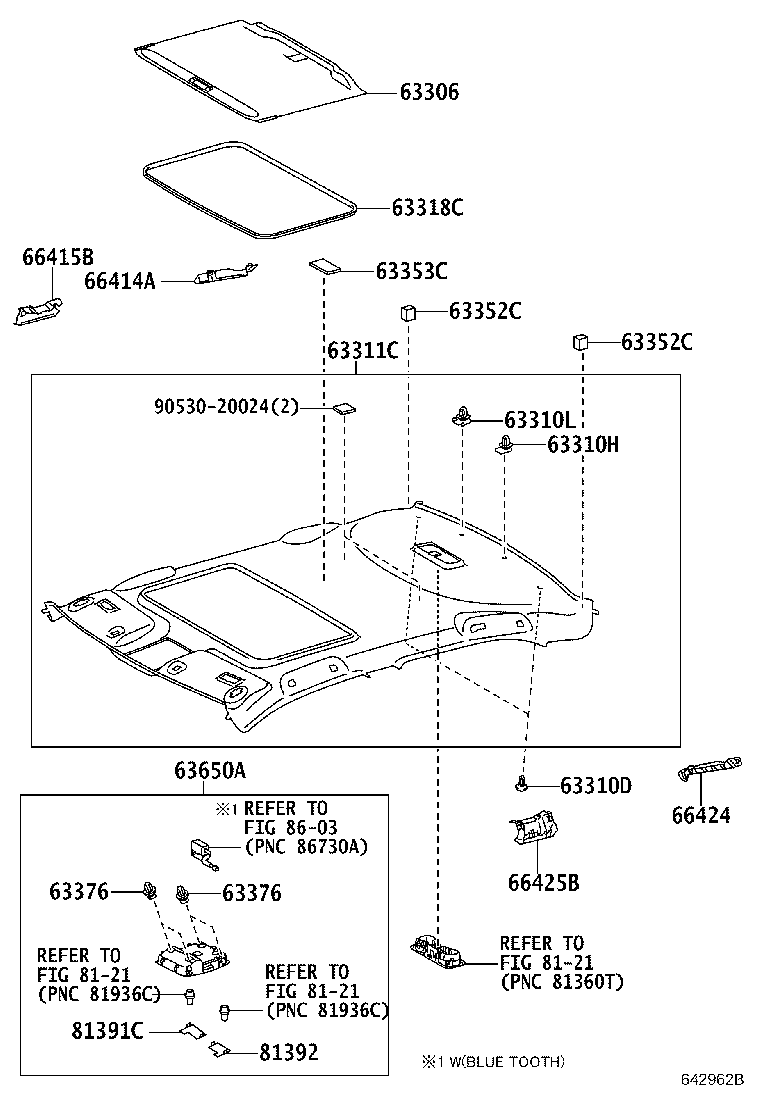

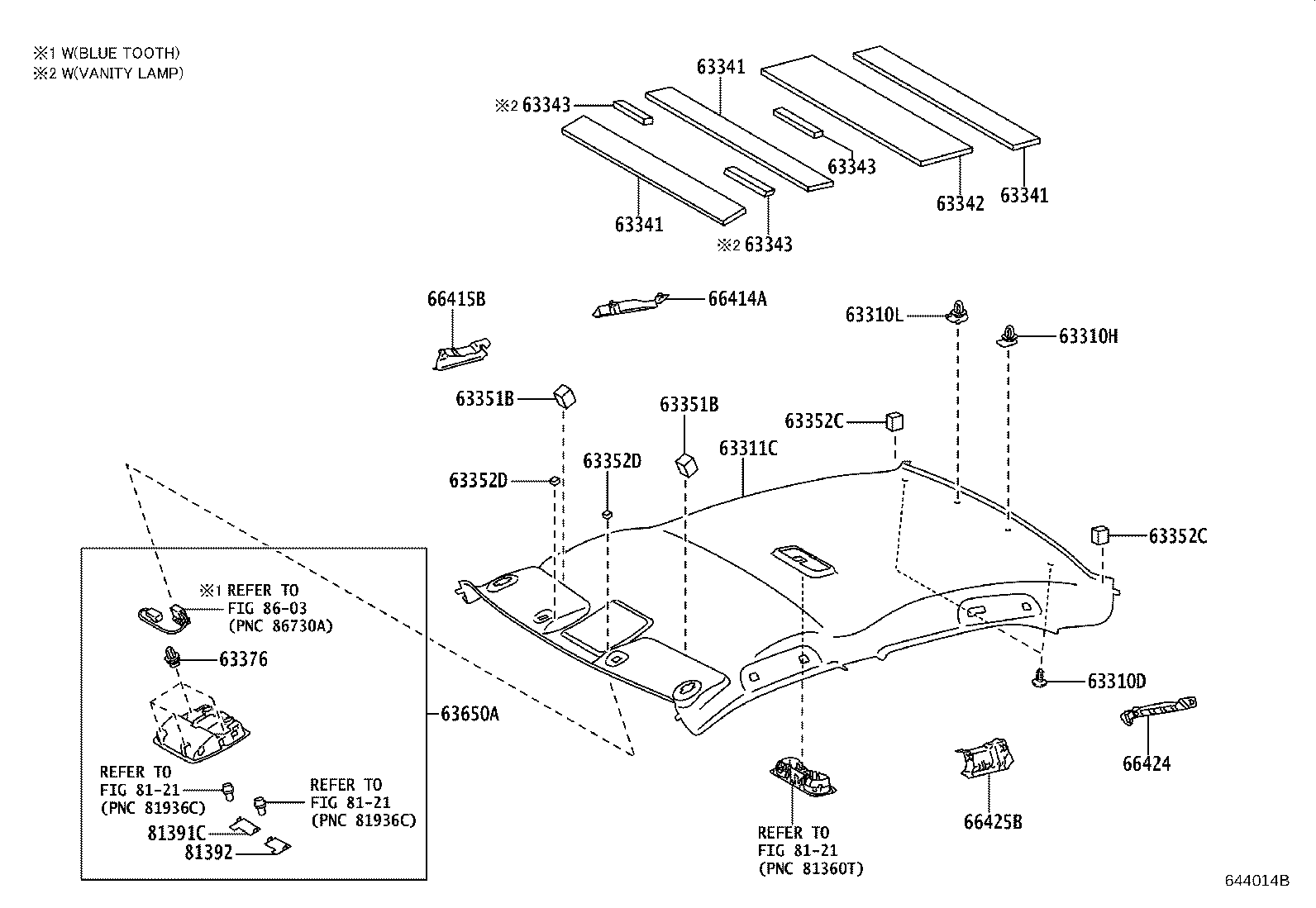

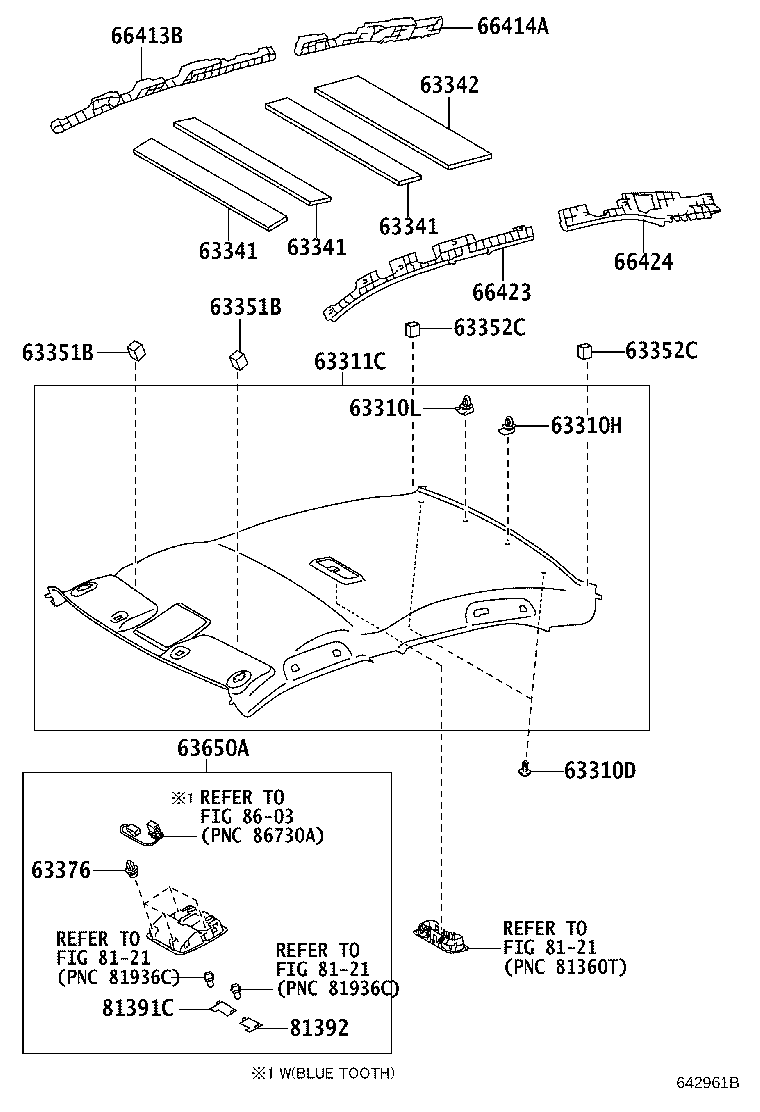

Figure 642960C 642960C 2011-10 → 2016-08 Figure 644014B 644014B 2016-08 → — Figure 642961B 642961B 2011-10 → 2016-08 Figure 644015B 644015B 2016-08 → — Figure 642962B 642962B 2011-10 → 2016-08 Figure 644016B 644016B 2016-08 → — Figure 642963B 642963B 2011-10 → 2016-08 Figure 644017B 644017B 2016-08 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63310L Cap(FOR ROOF HEADLINING)
63311C Headlining, Roof
63317B Fabric, Roof Headlining
63318C Moulding, Sun Roof Opening Trim
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63351B Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63352D Pad, Roof Headlining, NO.2
63353C Pad, Roof Headlining, Center
63376 Clip, Headlining
63386B Reinforcement, Roof Headlining Trim
63650A Box Assy, Roof Console
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
81391C Holder, Lens, Front RH
81392 Holder, Lens, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
