Toyota Camry/Aurion/HV(ARL)
2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General
Supported model
Data version 2018-04

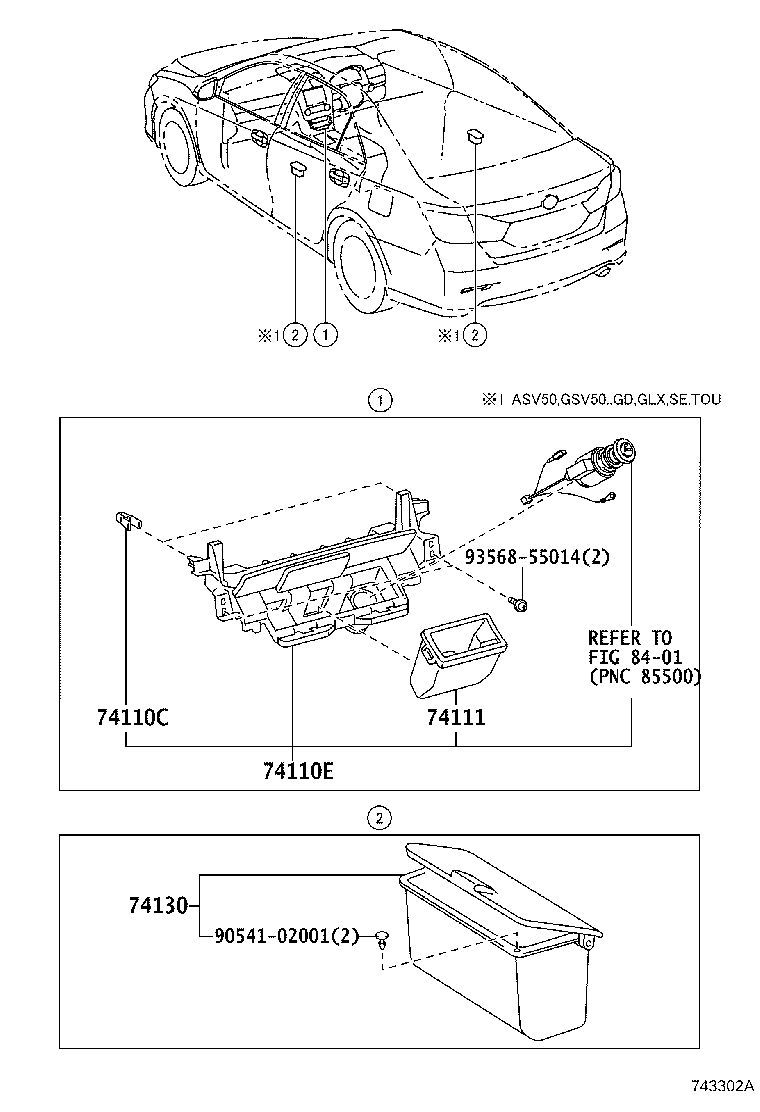

Ash Receptacle
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 74102B | Box Sub-assy, Front Ash Receptacle |
| 74110C | Clip, Front Ash Receptacle, Inner |
| 74110E | Receptacle Assy, Front Ash |
| 74111 | Box, Front Ash Receptacle |
| 74130 | Receptacle Assy, Rear Ash |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
