Toyota Camry/Aurion/HV(ARL)

2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

3 part groups · 6 illustrations

Illustrations

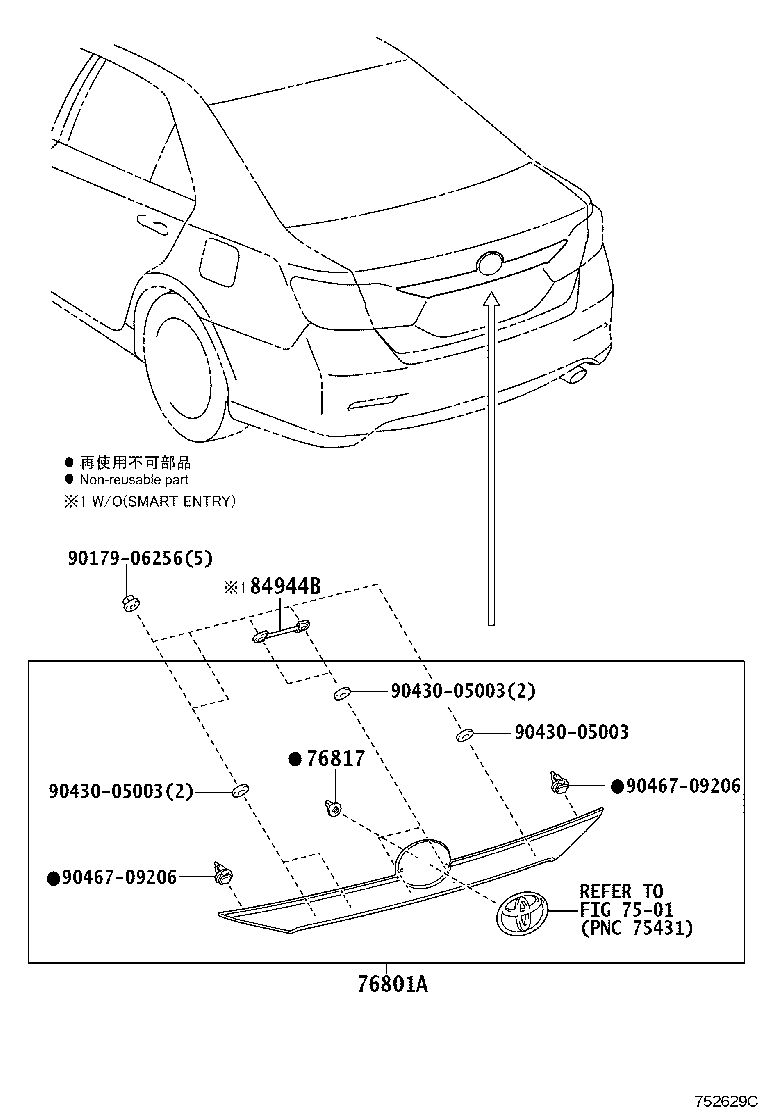

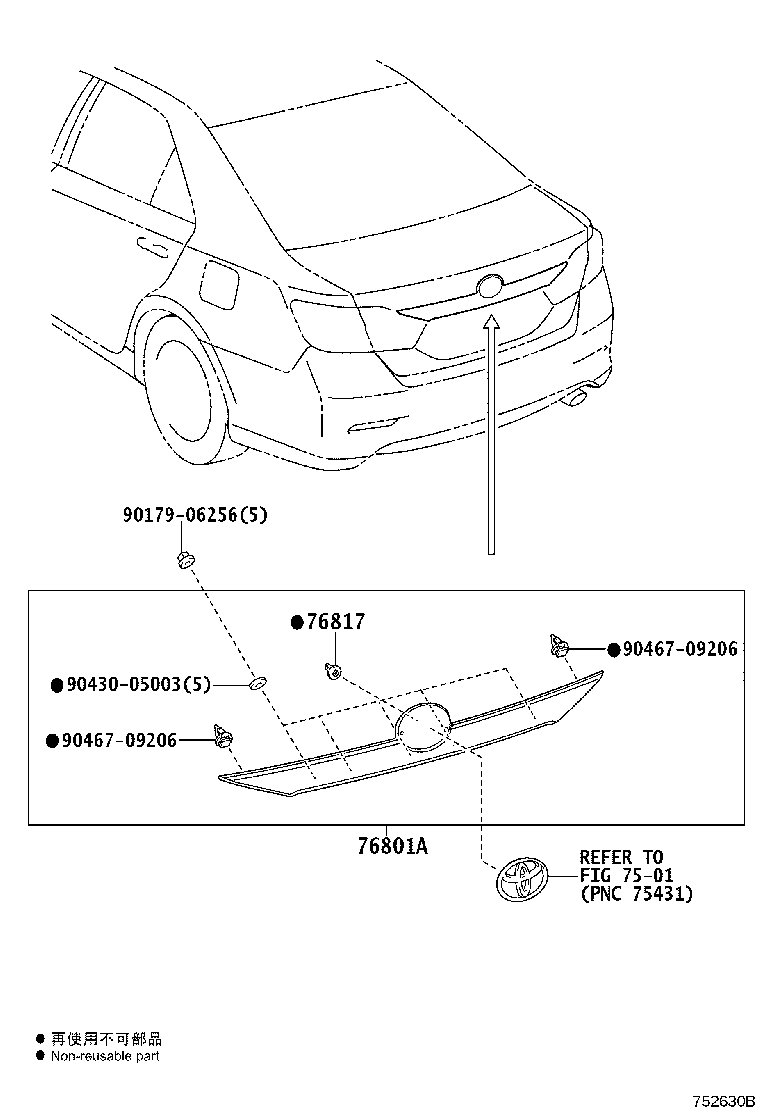

Figure 752589B 752589B 2011-10 → 2015-04 Figure 752629C 752629C 2012-02 → 2015-04 Figure 752629C 752629C 2012-02 → — Figure 752630B 752630B 2012-02 → — Figure 752630B 752630B 2015-04 → — Figure 753155A 753155A 2015-04 → —

Part groups

PNCDescription
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
84944B Cover, Luggage Electrical Key Switch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
