Toyota Camry/Aurion/HV(ARL)
2011-10 → 2017-10 · chassis ASV50,AVV50,GSV50 · catalogue 285390 · General
Supported model
Data version 2018-04

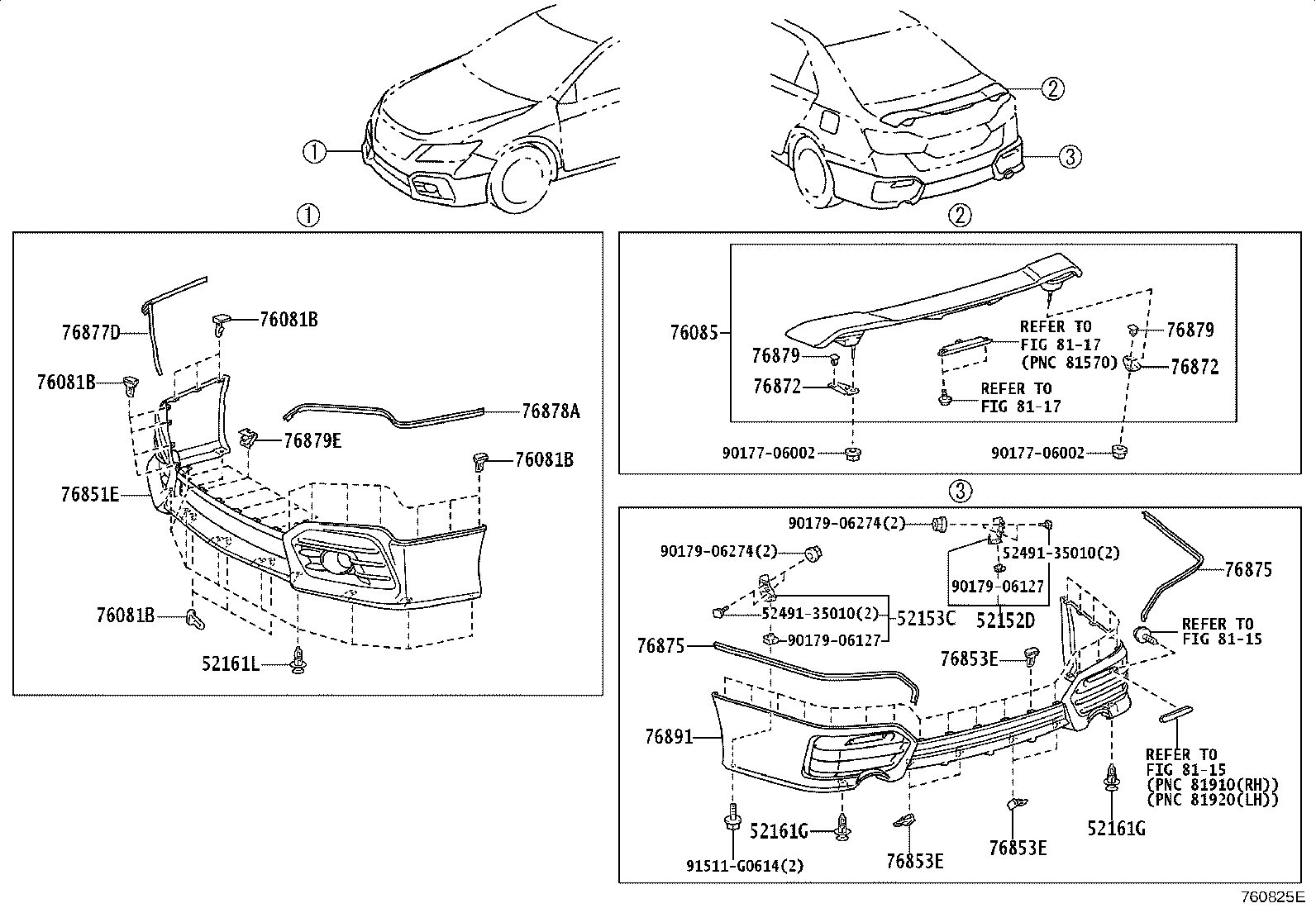

Mudguard & Spoiler
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52152D | Extension, Rear Bumper, RH |
| 52153C | Extension, Rear Bumper, LH |
| 52161G | Piece, Rear Bumper |
| 52161L | Piece, Front Spoiler |
| 76081B | Retainer, Front Spoiler |
| 76085 | Spoiler Sub-assy, Rear |
| 76851E | Spoiler, Front |
| 76853E | Retainer, Rear Spoiler, NO.1 |
| 76859B | Protector, Front Spoiler Side, NO.2 RH |
| 76869B | Protector, Front Spoiler Side, NO.2 LH |
| 76871B | Cover, Rear Spoiler |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76872B | Protector, Rear Spoiler, Center |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76873A | Protector, Rear Spoiler, RH |
| 76873B | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76874B | Protector, Rear Spoiler, LH |
| 76875 | Protector, Rear Spoiler, NO.4 |
| 76877A | Protector, Front Spoiler |
| 76877D | Protector, Front Spoiler Side, RH |
| 76878A | Protector, Front Spoiler Side, LH |
| 76878B | Protector, Front Spoiler |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76879B | Clip, Rear Spoiler, NO.2 |
| 76879E | Clip, Front Spoiler |
| 76881 | Protector, Rear Spoiler Side, NO.1 RH |
| 76882 | Protector, Rear Spoiler Side, NO.1 LH |
| 76883A | Protector, Rear Sopiler, NO.7 |
| 76887 | Seal, Rear Spoiler |
| 76891 | Spoiler, Rear NO.1 |
| 76895 | Protector, Rear Spoiler, NO.5 |
| 76896 | Protector, Rear Spoiler, NO.6 |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
